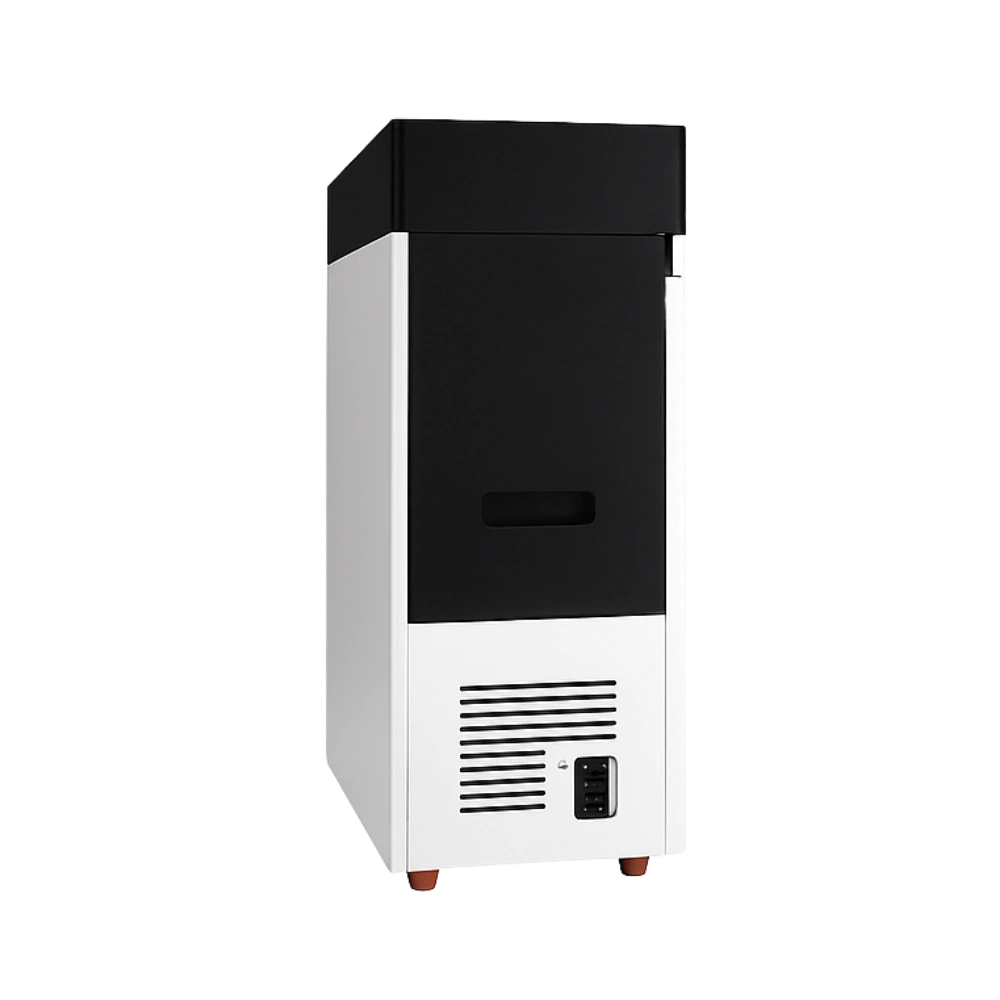

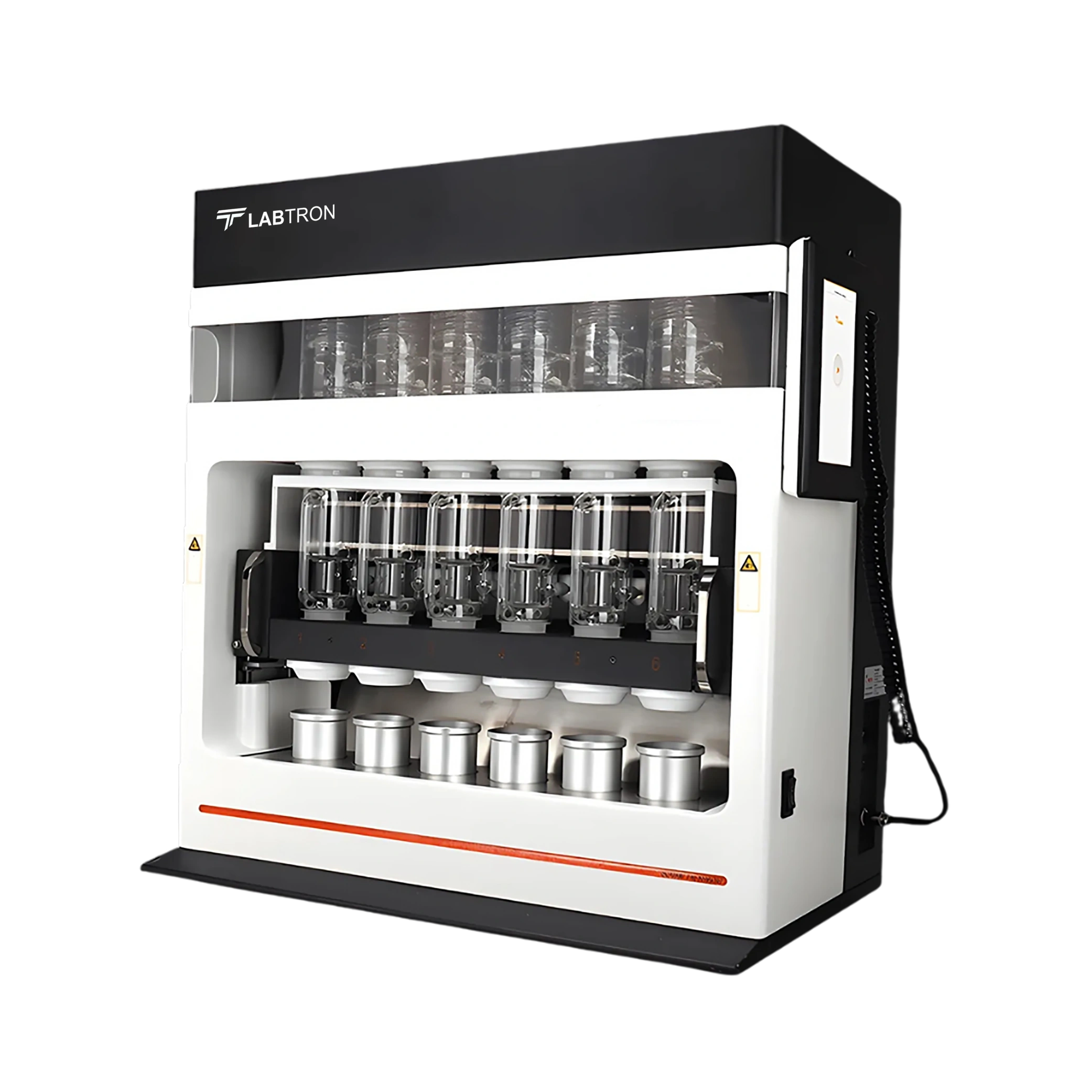

Fat Analyzer LSFA-B10

Fat Analyzer LSFA-B10

Fat Analyzer LSFA-B10 is a fully automated analyzer that operates by Soxhlet extraction principle. With a capacity of 6 pieces per batch it can accommodate 0.5 to 15 g of sample volume. Features advanced metal heating module. It provides faster warming, favourable effects, and low power consumption. Equipped with a built-in ether leak detection system, it ensures experimental safety. Our analyzer offers comprehensive water temperature and flow control for environmental and economic benefits.

Request Quote
Capacity 6 pcs/ batch
Sample Weight 0.5 to 15 g
Temperature Range RT + 5°C to 300°C
Temperature Accuracy ± 1°C
Measuring Range 0.1 to 100%
Display 7-inch color touch screen
Extraction Method Soxhlet Extraction
Soxhlet Hot Extraction
Continuous Flow Extraction
Hot Extraction
CH Standard methods
Solvent Cup Volume 150 ml
Solvent Recovery ≥ 85%
Reproducibility Relative error 1%
Controller External via Cable
Power Consumption 2.6 kW
Power Supply 220 V AC ± 10%, 50 Hz
Dimension (L×W×H) 650×380×720 mm
Weight 50 Kg
  • Customized with glass and PTFE for impurity blocking
  • One-click start and pause
  • Surface adsorption capability
  • Vertical screen design
  • Five built-in extraction methods
  • Pre-set reagent options
  • Efficient solvent recovery system

Fat Analyzer utilizes the weight method to determine the fat content of samples. Widely applicable across agricultural, food, chemical, and environmental sectors, it excels particularly in extracting soluble organic compounds from drugs, soil, sludge, cleaners, and other substances.

Compare Models

Model Capacity Sample Weight Temperature Range Temperature Accuracy Measuring Range Display Extraction Method Solvent Cup Volume Solvent Recovery Reproducibility Controller Power Consumption Power Supply Dimension (L×W×H) Weight
LSFA-A10 6 pcs/batch 0.5 to 15 g RT +5℃ to 280℃ ±1℃ 0 to 100 % 4.3-inch LCD screen - 80 ml ≥ 80 % - - 1 kW AC 220 V±10%, 50 Hz - 35 kg
LSFA-B10 6 pcs/ batch 0.5 to 15 g RT + 5°C to 300°C ± 1°C 0.1 to 100% 7-inch color touch screen Soxhlet Extraction
Soxhlet Hot Extraction
Continuous Flow Extraction
Hot Extraction
CH Standard methods
150 ml ≥ 85% Relative error 1% External via Cable 2.6 kW 220 V AC ± 10%, 50 Hz 650×380×720 mm 50 Kg
