Semi-Automatic (Soxhlet) Fat Analyzer LSFA-A10

Semi-Automatic (Soxhlet) Fat Analyzer LSFA-A10

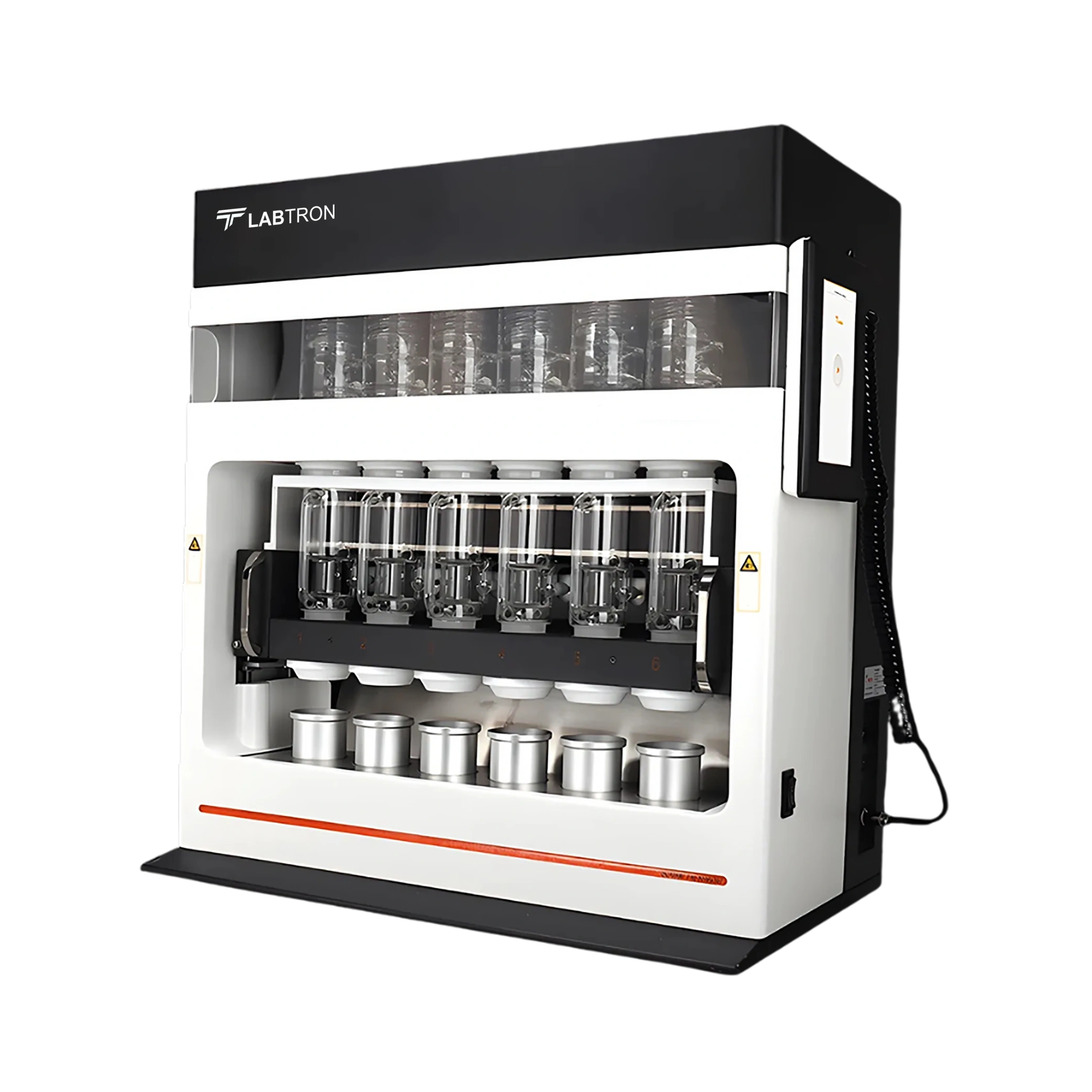

Semi-Automatic (Soxhlet) Fat Analyzer LSFA-A10 is based on the Soxhlet extraction principle, is an automatic crude fat analyzer in which weight method is used to determine the fat content. It offers 6 pcs/batch capacity with 0.5 to 15 g sample weight range. The temperature range is from RT +5℃ to 280℃ and measuring range 0 to 100 %. Features sealed metal bath heating with automatic temperature control, ensuring uniform heating and safe operation. Designed with 4.3 inches LCD touch screen control panel, easy to operate and integral dry bath heating gives quick, uniform, stable and safe temperature rise. It has wide scope of temperature control for the organic solvents with different boiling points.

Request Quote
Capacity 6 pcs/batch
Sample Weight 0.5 to 15 g (generally 2 to 5 g, depending on sample)
Temperature Range RT +5℃ to 280℃
Measuring Range 0 to 100 %
Temperature Accuracy ±1℃
Solvent Cup Volume 80 ml
Solvent Recovery ≥80 %
Shortened extraction time 20 to 80%
Dimension 650 × 320 × 715 mm
Power consumption 1 kW
Power Supply AC 220 V±10%, 50 Hz
Net Weight 35 kg
  • Designed with 4.3 inches LCD screen and microcomputer controller system
  • Offers functions as soaking, extraction, leaching, heating, condensation and solvent recovery
  • Integral metal heating, wide scope and high precision of temperature control
  • Adopted Triple alarms i.e. sound, light and LCD screen
  • Abundant interface contents give simultaneous display of given temperature, actual temperature, given time and heating time
  • Offers electric circuit is isolated from the extraction space, ensuring device security
  • Independent timer and timing controlled circulation system
  • Over-temperature alarming and timer reminding function
  • Equipped with intelligent man-machine dialogue control system
  • Exclusive air insulation technique leaves the case in room temperature, has thermal insulation and temperature maintenance two function

Semi-Automatic (Soxhlet) Fat Analyzer is used in one substance from solid or semi-solid mixtures, can determine the soluble organic compounds contained in foods, feeds, medicines, soil, sludge, polymers, fiber products, and petrochemical products, detergents, rubber, plastics and other materials.

Compare Models

Model Capacity Sample Weight Temperature Range Measuring Range Temperature Accuracy Solvent Cup Volume Solvent Recovery Shortened extraction time Dimension Power consumption Power Supply Net Weight
LSFA-A10 6 pcs/batch 0.5 to 15 g (generally 2 to 5 g, depending on sample) RT +5℃ to 280℃ 0 to 100 % ±1℃ 80 ml ≥80 % 20 to 80% 650 × 320 × 715 mm 1 kW AC 220 V±10%, 50 Hz 35 kg
LSFA-B10 6 pcs./ batch - - - - - - - - - - -
