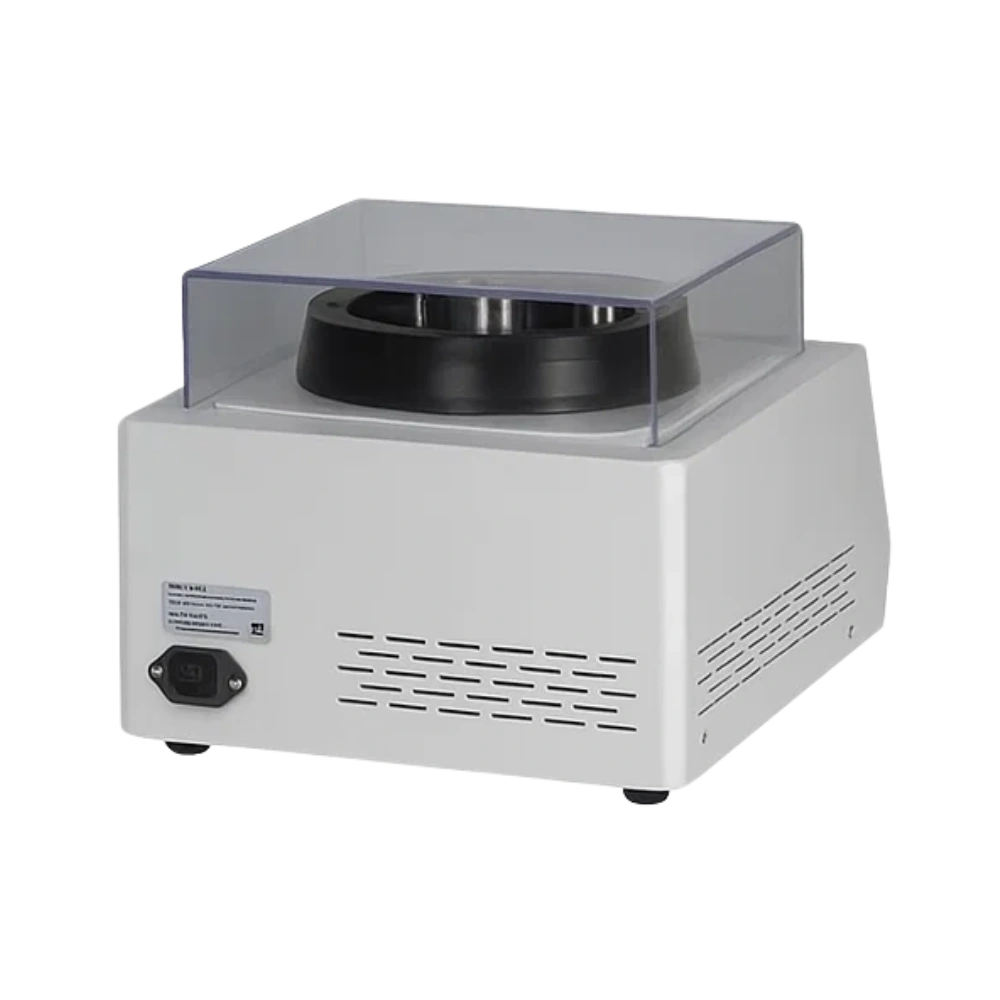

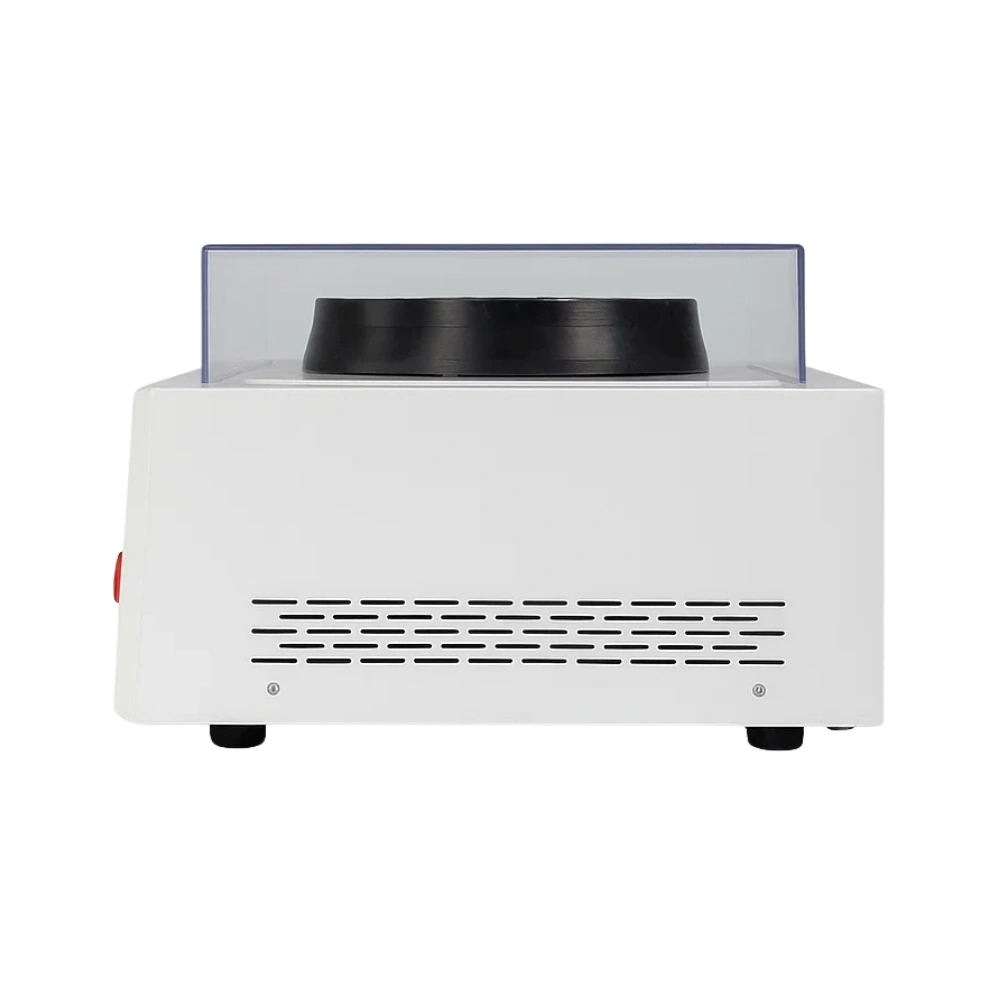

Vibration Polishing Machine LGPM-A20

The Vibration Polishing Machine LGPM-A20 is engineered to perform fine, uniform polishing on metallographic samples using controlled high-frequency micro-vibrations. Its key function is to prepare high-quality, damage-free surfaces required for accurate microscopic or structural analysis. Unlike conventional polishers, it eliminates surface deformation, plastic flow, or embedded abrasives. The circular motion generated by the vibration system ensures consistent contact with the polishing cloth, enhancing uniformity. This machine is particularly valuable for preparing specimens for high-resolution microscopy and advanced surface evaluation.

The Vibration Polishing Machine LGPM-A20 is optimized for soft and ductile materials that are sensitive to conventional polishing techniques. It performs exceptionally well on pure titanium, pure aluminium, pure copper, and their respective alloys. Additionally, it is well-suited for polishing nickel-based alloys and high-temperature-resistant materials often used in aerospace and biomedical industries. These materials benefit from the machine’s ability to minimize mechanical stress during polishing. This capability ensures that surface integrity is maintained even in challenging metallographic specimens.

The Vibration Polishing Machine LGPM-A20 employs a unique combination of a magnetic motor and spring plate to generate left-right horizontal vibrations. Unlike conventional vertical or random vibration polishers, this system produces highly stable, circular motion due to the angled spring plate. As a result, samples maintain longer, even contact with the polishing cloth without vertical impact. This nearly horizontal vibration significantly reduces the risk of embedding particles or creating surface distortions. It ensures efficient polishing while preserving the microstructural integrity of the sample.

Yes, the Vibration Polishing Machine LGPM-A20 supports fully automated, unattended polishing sessions. Once the vibration intensity and polishing time are programmed, users can place multiple samples and leave the system to operate independently. The design includes long-duration timers and adaptive vibration settings that adjust to varying sample requirements. This not only saves time but also improves productivity in high-throughput laboratory settings. It is especially useful in labs where manpower is limited, yet consistent and precise sample preparation is required.

Absolutely, the Vibration Polishing Machine LGPM-A20 is ideal for preparing samples for Electron Backscatter Diffraction (EBSD), Scanning Electron Microscopy (SEM), and Atomic Force Microscopy (AFM). Its ability to deliver deformation-free surfaces without additional damage layers makes it suitable for high-resolution analytical techniques. These applications require surface smoothness at the microscopic or even nanoscopic level, which this machine consistently achieves. The absence of artifacts ensures accurate imaging and elemental analysis results. Therefore, it is a preferred choice for research institutions and material analysis laboratories.
