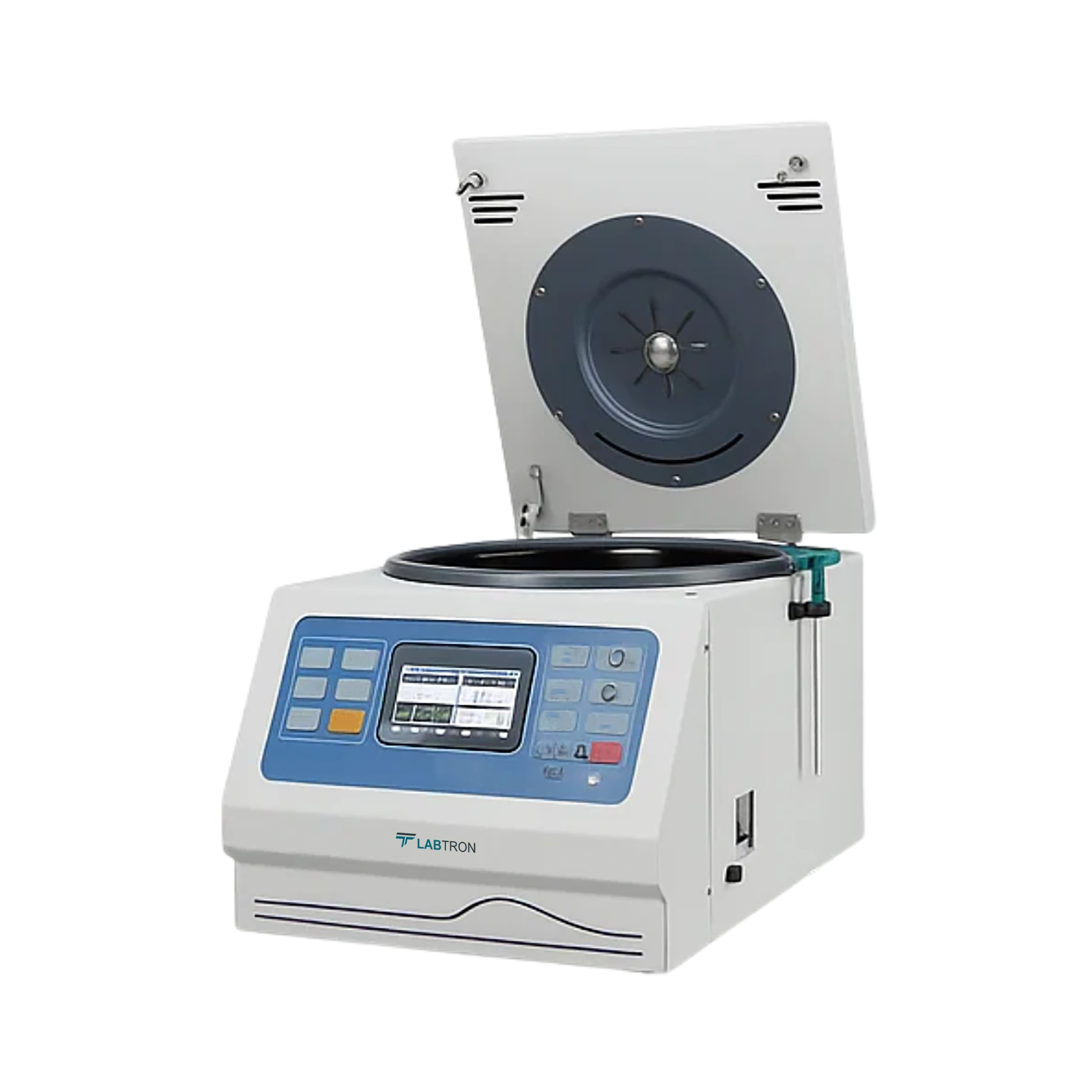

High Speed Centrifuge LHS-C10 features a 4×250ml capacity and operates at a speed of 20000 rpm. It is controlled by a microcomputer and powered by an AC frequency conversion brushless motor, ensuring fast and stable operation. The centrifuge is equipped with a quickly lockable rotor cover for easy handling. Its ergonomic design with a low opening height allows the cover to be closed with a single press. Our high speed centrifuge is a compact and bench-top unit applicable in many laboratories.
| Max. Speed | 20000rpm |
| Max. RCF | 30677×g |
| Max. Capacity | 4×250ml |
| Timer Range | 1s to 99h59min59s |
| Speed Accuracy | ±10 rpm |
| Noise Level | ≤ 62dB（A） |
| Preset Program Groups | 5 Groups |
| Maximum Storage Capacity | 99 program groups |
| Rotor Identification | automatic |
| Electronic Door Lock | automatic |
| Protection Feature | Over-speed, overheating, and unbalanced protection |
| Chamber Material | Stainless Steel |
| Display | HD large LCD screen display |
| Acceleration/Deceleration Level | Up to 10 levels with linear drive |
| Timing Modes | start timing and arrival revolution timing |
| Power Consumption | 750W |
| Power Supply | AC 220±22V 50Hz 10A |
| Dimension | 430×545×400 mm |
| Net Weight | 50kg |
Our High Speed Centrifuge is used in laboratories to separate complex mixtures' components, such as cells, proteins, or nucleic acids, based on their density. It is essential in applications like DNA/RNA extraction, protein purification, and cell fractionation.
| Rotor Type | Max Volume | Max. Speed | Max. RCF |
| Angle Rotor 01 | 16×1.5/2.0ml | 20000rpm | 30677×g |
| Angle Rotor 02 | 24×1.5/2.0ml | 17500rpm | 29410×g |
| Angle Rotor 03 | 12×5ml | 16000rpm | 17344×g |
| Angle Rotor 04 | 12×10ml | 14000rpm | 17660×g |
| Angle Rotor 05 | 32×1.5/2.0ml | 14000rpm | 19940×g |
| Angle Rotor 06 | 48×1.5/2.0ml | 14000rpm | 21255×g |
| Angle Rotor 07 | 6×50ml (round bottom) | 13000rpm | 17146×g |
| Angle Rotor 08 | 6×50ml (Conical/round bottom) | 12000rpm | 16227×g |
| Angle Rotor 09 | 12×15ml (Conical bottom) | 12000rpm | 16340×g |
| Angle Rotor 10 | 4×100ml | 12000rpm | 17016×g |
| Angle Rotor 11 | 6×100ml | 11000rpm | 14757×g |
| Angle Rotor 12 | 8×50ml (Conical/round bottom) | 10000rpm | 12610×g |
| Angle Rotor 13 | 60×1.5ml (swing-out rotor) | 14000rpm | 16400×g |
| Angle Rotor 14 | 40×15ml(W) | 5000rpm | 4919×g |
| Swing Out Rotor 01 | 4×100ml | 4500rpm | 3010×g |
| Swing Out Rotor 02 | 4×250ml (Round/ Square bucket) | 4200rpm | 3352×g |
| Swing Out Rotor 03 | 2×2×96 hole (Micro-plate) | 4200rpm | 2267×g |
| Adapter Type | Capacity |
| Adapter 01 | 4 × 8 × 10ml （blood tube) |
