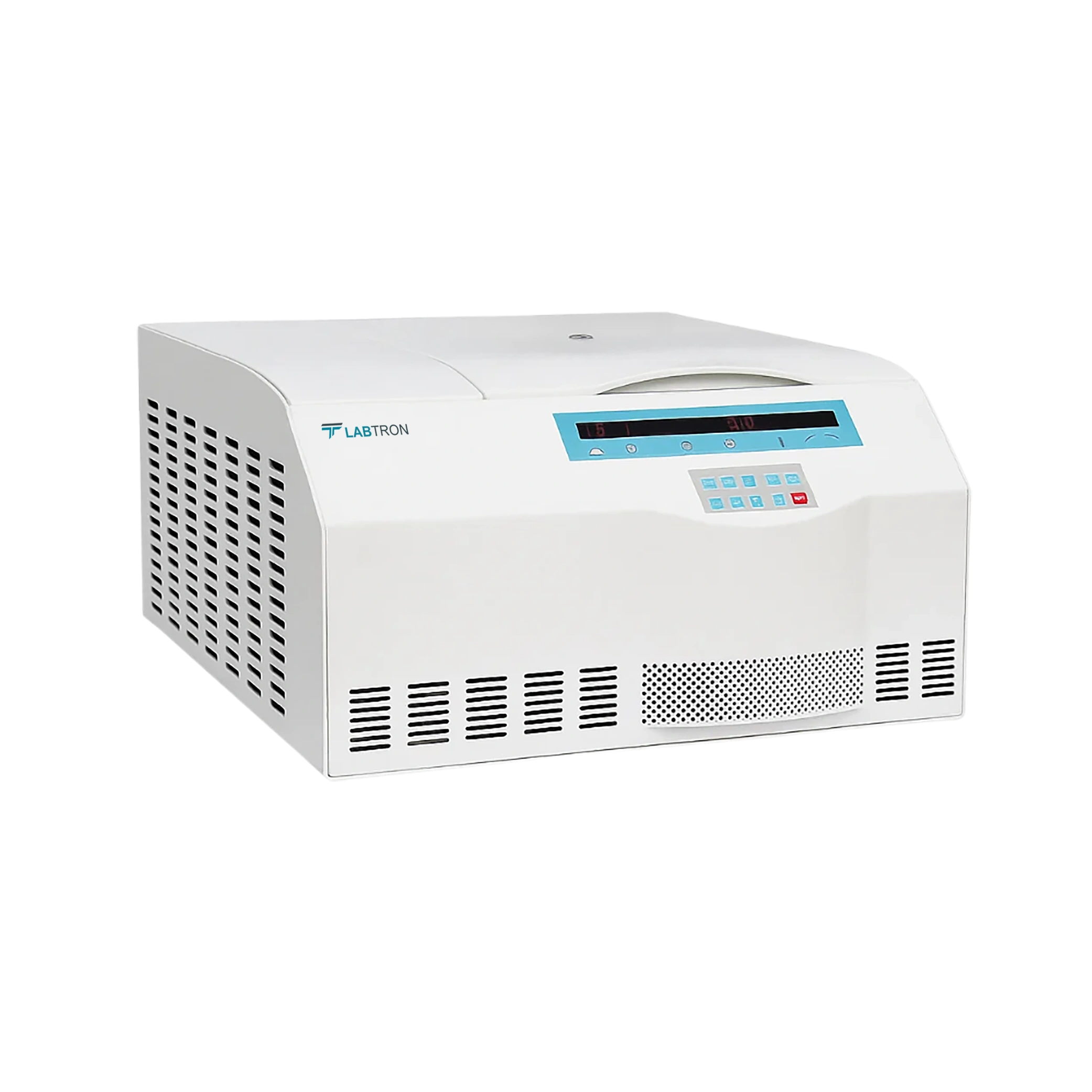

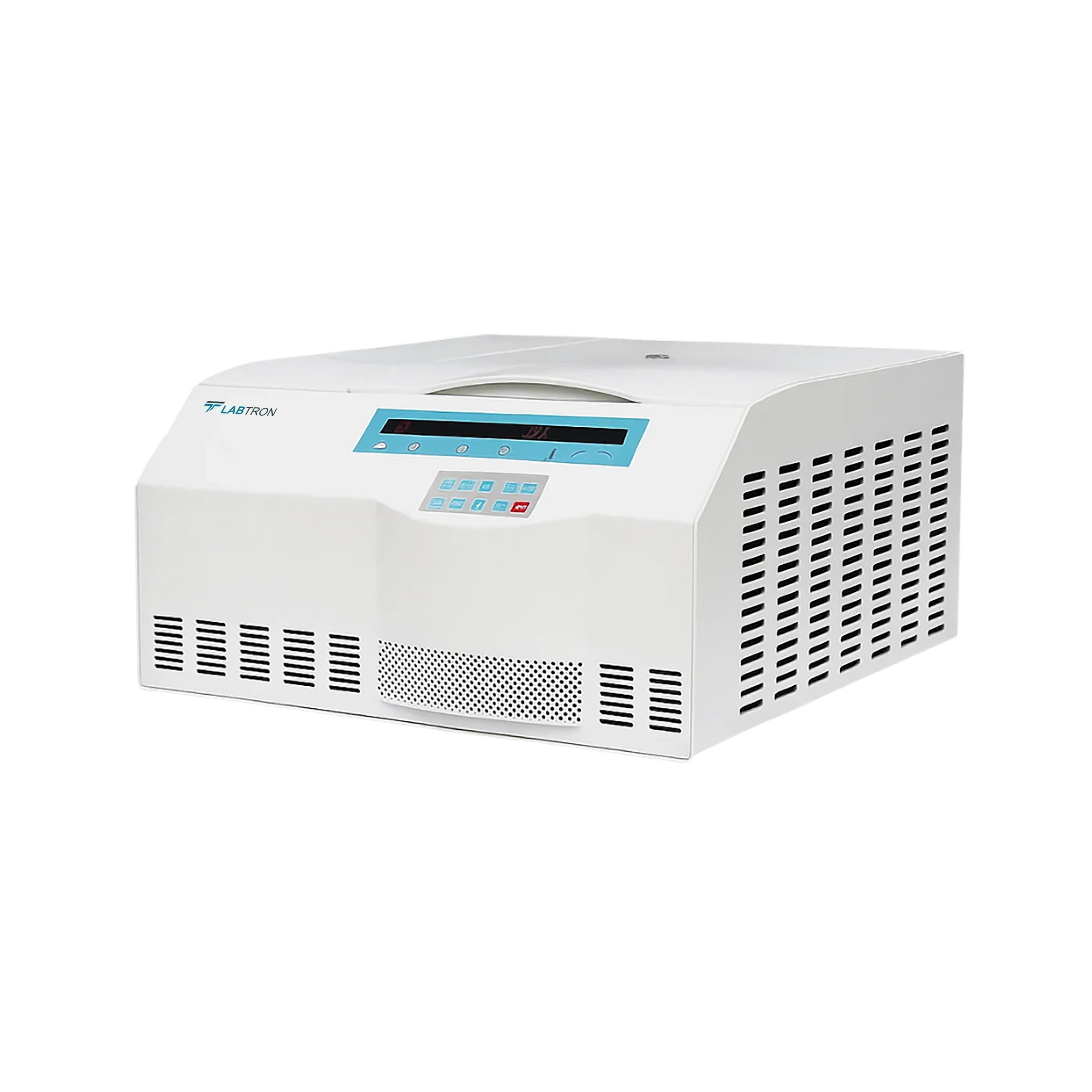

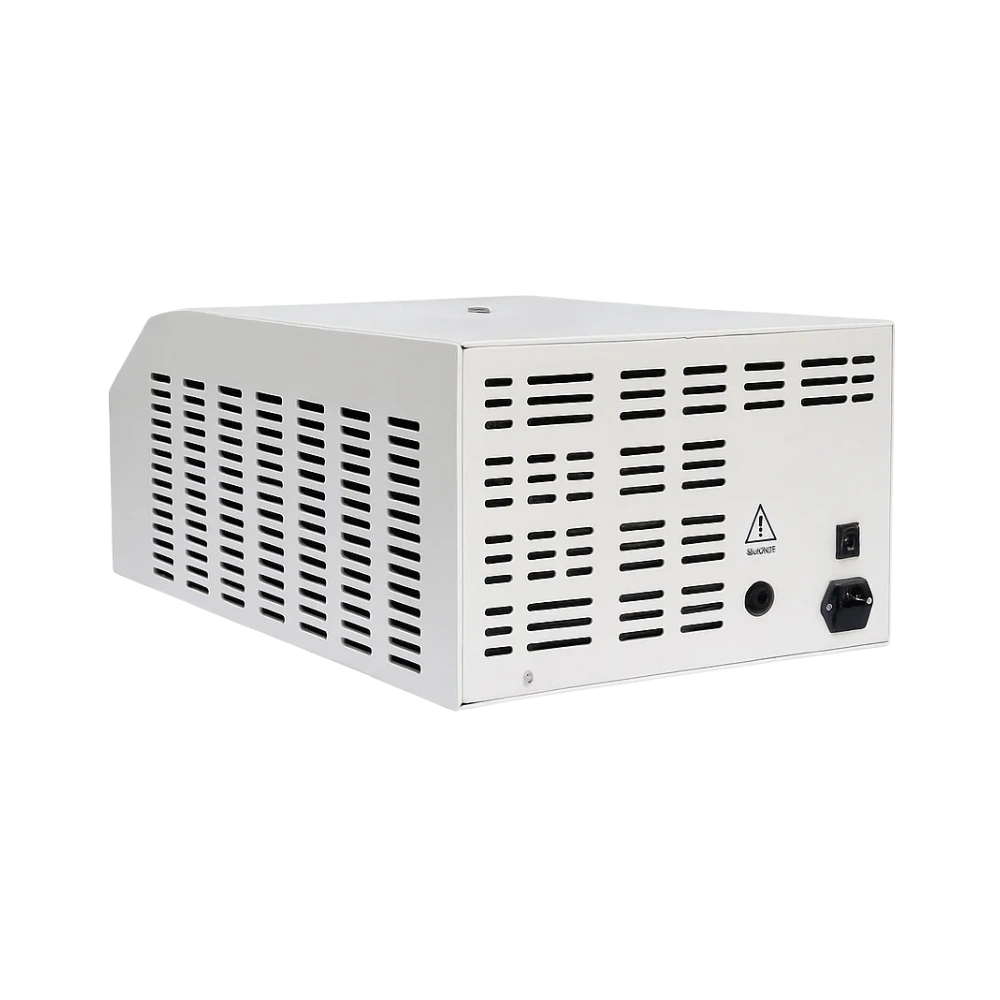

High speed centrifuge LHS-B20 is safe, reliable, maintenance free multi-purpose desktop type centrifuge having 21000 rpm speed. It is well equipped with LCD display, dual core processor, fluorine free compressor, brushless DC motor and auto electric locking system. Also, it has double effect cooling cycle which ensures effective cooling along with 3 tier protective steel covering to ensure safety.
| Max. speed | 21000 rpm |
| Max. RCF | 30910 x g |
| Max. Capacity | 4 x 800 ml |
| Speed Accuracy | ± 20 rpm |
| Temp. Range | (-20) °C - 40 °C |
| Temp. Accuracy | ± 1 ℃ |
| Timer range | 1 - 99 hr. 59 min |
| Noise | ≤ 58 dB |
| Power supply | AC 110 - 220 V / 50 - 60 Hz / 15A |
| Dimension (H x W x D) | 700 x 715 x 420 mm |
| Net Weight | 125 kg |
| Gross Weight | 150 kg |
It is widely used in protein precipitation, RNA extraction, Clinical sample processing.
| Rotor Name | Max. Speed (rpm) | Max. Capacity (ml) | Max. RCF (x g) |
| Swing Rotor 01 | 4000 | 4×800 (Round Cup) | 3450 |
| Swing Rotor 02 | 4000 | 4×500 ( Round Cup) | 3380 |
| Swing Rotor 03 | 4000 | 4×500 (Square Cup) | 3310 |
| Microplate Rotor 01 | 4000 | 4×4×96 Well | 2840 |
| 2×4×96 Well | 2490 | ||
| 2×3×48 Well | 2300 | ||
| Swing Rotor 04 | 4000 | 4×40×7 | 3270 |
| 4×40×5 | 2890 | ||
| 4×18×10 | 3140 | ||
| Angle Rotor 01 | 21000 | 12×1.5/2 | 30910 |
| Angle Rotor 02 | 15000 | 40×0.5 | 22920 |
| Angle Rotor 03 | 17000 | 24×1.5/2 | 26460 |
| Angle Rotor 04 | 13500 | 30×1.5/2 | 19340 |
| Angle Rotor 05 | 16000 | 16×5 | 22020 |
| Angle Rotor 06 | 14000 | 12×7 | 21380 |
| Angle Rotor 07 | 10000 | 12×15 | 11840 |
| Angle Rotor 08 | 15000 | 12×10 | 22680 |
| Angle Rotor 09 | 15000 | 8×20 | 22680 |
| Angle Rotor 10 | 14000 | 6×30 | 19060 |
| Angle Rotor 11 | 12000 | 6×50 | 16050 |
| Angle Rotor 12 | 12000 | 6×70 | 15570 |
| Angle Rotor 13 | 12000 | 4×100 | 14850 |
| Angle Rotor 14 | 12000 | 6×100 | 14850 |
| Angle Rotor 15 | 16000 | 6×10 | 21500 |
| Angle Rotor 16 | 18000 | 30×0.5 | 26660 |
| Angle Rotor 17 | 13500 | 48×1.5/2 | 17930 |
| Angle Rotor 18 | 5000 | 12×15ml | 3080 |
| Angle Rotor 19 | 5000 | 6×50ml | 2850 |
| Angle Rotor 20 | 5000 | 4×50ml | 2520 |
| Angle Rotor 21 | 5000 | 4×100ml | 2630 |
| Angle Rotor 22 | 5000 | 24×15ml | 3500 |
| Angle Rotor 23 | 5000 | 12×50ml | 3860 |
| Angle Rotor 24 | 5000 | 6×100ml | 3130 |
| Angle Rotor 25 | 4000 | 12×100ml | 2970 |
Adapter for 800ml and 500ml bucket:
| Volume | 5ml | 7ml | 10ml | 15ml | 50ml |
| 800ml （Round Cup） | 23pcs/cup | 23 | 19 | 14 | 5 |
| 500ml （Round Cup） | 18pcs/cup | 18 | 14 | 9 | 3 |
| 500ml （Square Cup） | 20pcs/cup | 20 | 16 | 12 | 5 |
Download catalog for
High Speed Centrifuge LHS-B20 Catalog
Labtron High Speed Centrifuge is specialized to separate components of mixture based on density through rapid rotation. They operate by spinning samples at high speed of 12000rpm to 21000rpm generating significant centrifugal forces. Their tubes are designed to withstand elevated g-forces without breaking or leaking. They incorporate advanced cooling systems to maintain optimal temperatures during centrifugation processes. Our High Speed Centrifuge is essential in medical laboratories for blood separation and biopharmaceutical companies for product purification.
