| Max Speed | 16500 rpm |
| Speed Accuracy | ± 10 rpm |
| Max RCF | 24814 × g |
| Capacity | 6 × 100 mL |
| Timing Range | 1 sec to 99 h 59 min 59 sec |
| Display | LCD |
| Noise | Up to 60 dB (A) |
| ACC/DEC Rates | 40 rates |
| Programs | Up to 1000 |
| Power Consumption | 500 W |
| Dimension | 440 × 360 × 315 mm |
| Net Weight | 29 kg |
Our High Speed Centrifuge LHS-C20 is ideal for rapid separation in molecular biology, diagnostics, and pharmaceuticals, including nucleic acid extraction, cell fractionation, and protein isolation.
Name | Max. Speed | Max. RCF | Capacity | Tube Size |
| Fixed Angle Rotor 01 | 18000 | 22675 × g | 12 × 1.5/2.2 mL | Ø11 × 42 mm |
| Fixed Angle Rotor 02 | 15000 | 18287 × g | 12 × 5 mL | Ø14 × 54 mm |
| Fixed Angle Rotor 03 | 16000 | 24814 × g | 24 × 1.5/2.2 mL | Ø11 × 42 mm |
| Fixed Angle Rotor 04 | 16000 | 24814 × g | 24 × 1.5/2.2 mL (Aerosol Tight) | Ø11 × 42 mm |
| Fixed Angle Rotor 05 | 13000 | 15625 × g | 12 × 10 mL | Ø16 × 86 mm |
| Fixed Angle Rotor 06 | 13000 | 15625 × g | 36 × 1.5/2.2 mL | Ø11 × 42 mm |
| Fixed Angle Rotor 07 | 12000 | 15712 × g | 6 × 50 mL Conical Bottom | Ø29 × 116 mm |
| Fixed Angle Rotor 08 | 12000 | 15712 × g | 6 × 50 mL Round Bottom | Ø29 × 111 mm |
| Fixed Angle Rotor 09 | 12000 | 15712 × g | 48 × 1.5/2.2 mL | Ø11 × 42 mm |
| Fixed Angle Rotor 10 | 10000 | 11045 × g | 4 × 100 mL | Ø38 × 123 mm |
| Fixed Angle Rotor 11 | 10000 | 11045 × g | 8 × 50 mL Conical Bottom | Ø29 × 116 mm |
| Fixed Angle Rotor 12 | 10000 | 11045 × g | 8 × 50 mL Round Bottom | Ø29 × 111 mm |
| Fixed Angle Rotor 13 | 10000 | 11045 × g | 12 × 15 mL | Ø17 × 112 mm |
| Fixed Angle Rotor 14 | 10000 | 11045 × g | 24 × 10 mL | Ø16 × 86 mm |
| Fixed Angle Rotor 15 | 16000 | 19004 × g | 6 × 10 mL | Ø16 × 86 mm |
| Fixed Angle Rotor 16 | 13000 | 14945 × g | 8 × 15 mL | Ø17 × 112 mm |
| Fixed Angle Rotor 17 | 13000 | 14945 × g | 6 × 30 mL | Ø25.5 × 100 mm |
| Fixed Angle Rotor 18 | 13000 | 14643 × g | 8 × 0.2 mL PCR Strip | — |
| Fixed Angle Rotor 19 | 8000 | 7720 × g | 6 × 100 mL | Ø38 × 123 mm |
| Microplate Rotor | 4000 | 1538 × g | 2 × 2 × 48 Well Plate | 128 × 48 × 60 mm |
Download catalog for
High Speed Centrifuge LHS-C20 Catalog
Labtron High Speed Centrifuge is specialized to separate components of mixture based on density through rapid rotation. They operate by spinning samples at high speed of 12000rpm to 21000rpm generating significant centrifugal forces. Their tubes are designed to withstand elevated g-forces without breaking or leaking. They incorporate advanced cooling systems to maintain optimal temperatures during centrifugation processes. Our High Speed Centrifuge is essential in medical laboratories for blood separation and biopharmaceutical companies for product purification.
Labtron’s High Speed Centrifuge LHS-C20 offers a wide speed range up to 16500 rpm, along with time settings from 1 second to 99 hours, 59 minutes, and 59 seconds. This enables precise customization of centrifugation parameters for both quick micro-sample spins and long-duration protocols. Such flexibility ensures optimal performance across various sample types and laboratory workflows. It is ideal for research, clinical diagnostics, and routine lab operations.

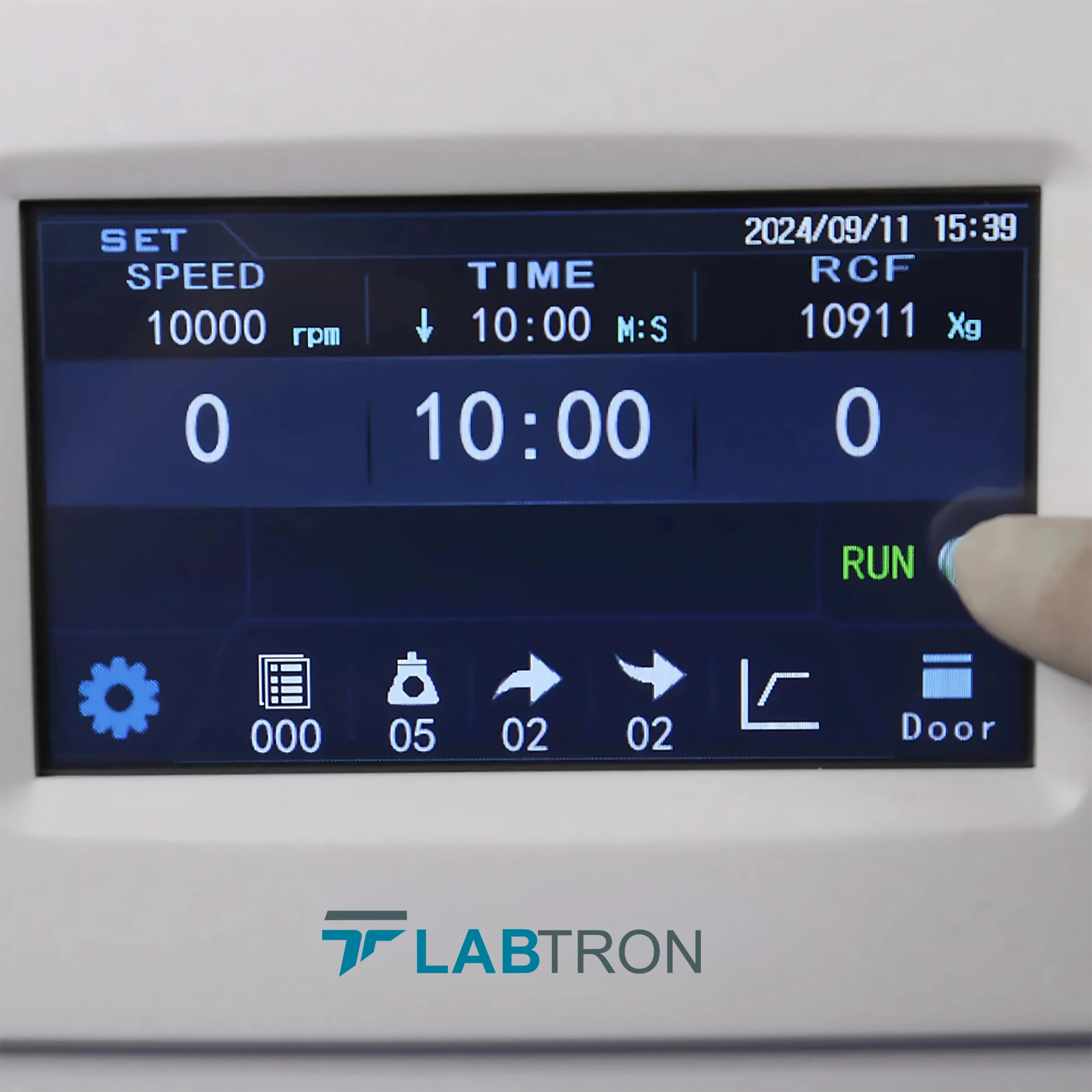

Our High Speed Centrifuge LHS-C20 features a smart LCD touchscreen that clearly displays run parameters, including automatic RPM and RCF values. The intuitive interface allows quick setting adjustments and smooth navigation, reducing training time and minimizing errors. It supports reliable, efficient operation even in high-pressure environments. The interface is glove-friendly and designed for continuous laboratory use.
The High Speed Centrifuge LHS-C20 centrifuge supports a range of fully autoclavable rotors, including fixed-angle aluminum and swing-out steel types. These rotors can withstand repeated sterilization cycles without compromising structural integrity or performance. This makes the system highly suitable for aseptic processes and biosafety-compliant workflows. It ensures both user safety and sample protection.
Our High Speed Centrifuge LHS-C20 integrates advanced safety features such as automatic overspeed protection, imbalance detection using a three-axis gyroscope, motorized lid lock, and emergency door release. Additionally, gas hinge support ensures safe and controlled lid movement. These features collectively enhance user safety and equipment durability during routine and intensive operations.
