| Max Speed | 18000 rpm |
| Speed Accuracy | ± 10 rpm |
| Max RCF | 24814 × g |
| Capacity | 6 × 100 mL |
| Timing Range | 1 sec to 99 h 59 min 59 sec |
| Display | LCD |
| Operation Mode | Touchscreen |
| Noise | Up to 60 dB(A) |
| ACC/DEC Rates | 40 rates |
| Programs | Up to 1000 |
| Power Consumption | 500 W |
| Dimension | 440 × 360 × 315 mm |
| Net Weight | 29 kg |
Automatic rotor recognition
Secure motorized lock
Durable and corrosion-resistant housing
Programmable multi-step centrifugation
Autoclavable rotors

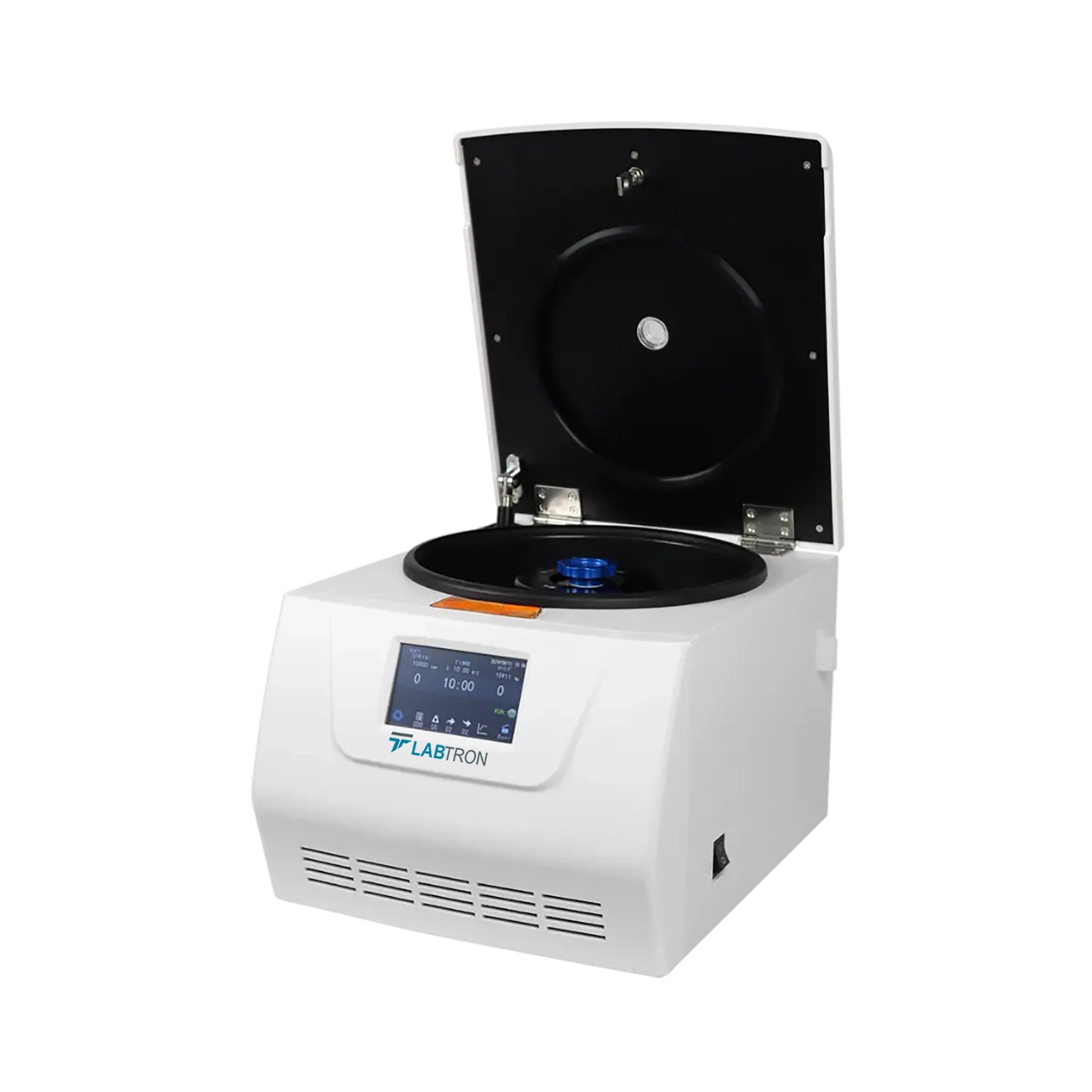

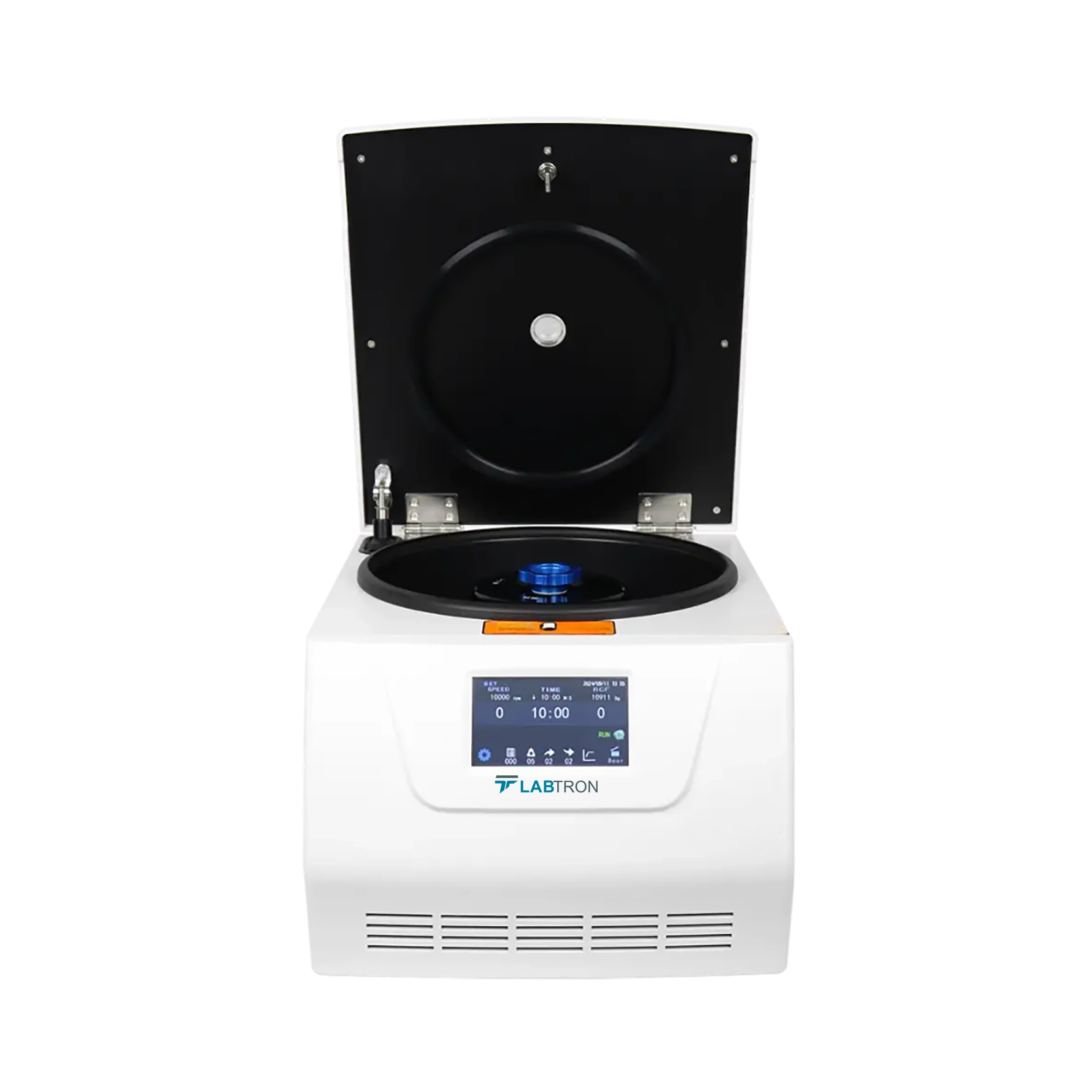

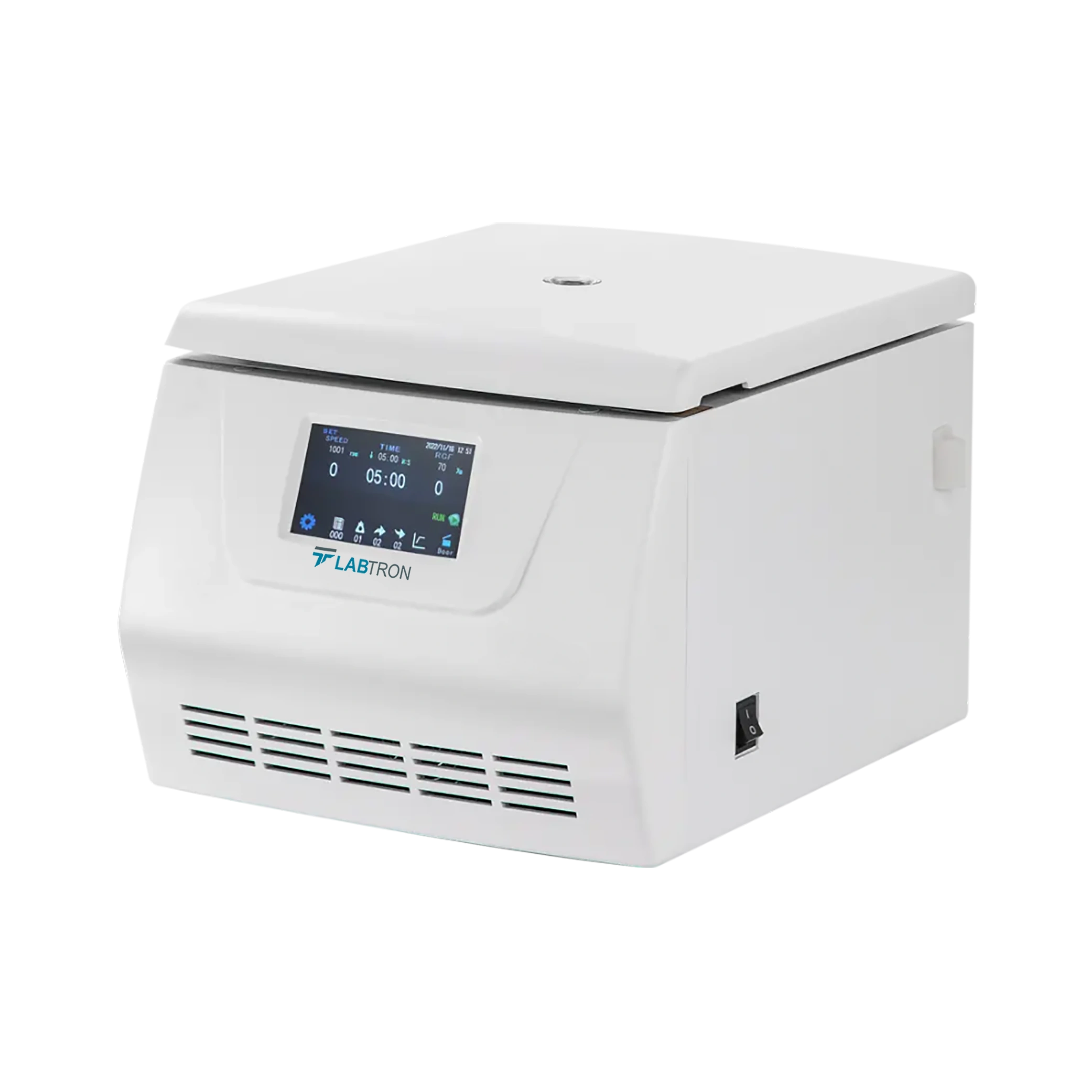

Our High Speed Centrifuge LHS-C21 is used for rapid separation of biological samples such as cells, proteins, and nucleic acids. It is ideal for applications in clinical, research, and pharmaceutical laboratories.
Name | Max. Speed | Max. RCF | Capacity | Tube Size |
| Fixed Angle Rotor 01 | 18000 | 22675 × g | 12 × 1.5/2.2 mL | Ø11 × 42 mm |
| Fixed Angle Rotor 02 | 15000 | 18287 × g | 12 × 5 mL | Ø14 × 54 mm |
| Fixed Angle Rotor 03 | 16000 | 24814 × g | 24 × 1.5/2.2 mL | Ø11 × 42 mm |
| Fixed Angle Rotor 04 | 16000 | 24814 × g | 24 × 1.5/2.2 mL (Aerosol Tight) | Ø11 × 42 mm |
| Fixed Angle Rotor 05 | 13000 | 15625 × g | 12 × 10 mL | Ø16 × 86 mm |
| Fixed Angle Rotor 06 | 13000 | 15625 × g | 36 × 1.5/2.2 mL | Ø11 × 42 mm |
| Fixed Angle Rotor 07 | 12000 | 15712 × g | 6 × 50 mL Conical Bottom | Ø29 × 116 mm |
| Fixed Angle Rotor 08 | 12000 | 15712 × g | 6 × 50 mL Round Bottom | Ø29 × 111 mm |
| Fixed Angle Rotor 09 | 12000 | 15712 × g | 48 × 1.5/2.2 mL | Ø11 × 42 mm |
| Fixed Angle Rotor 10 | 10000 | 11045 × g | 4 × 100 mL | Ø38 × 123 mm |
| Fixed Angle Rotor 11 | 10000 | 11045 × g | 8 × 50 mL Conical Bottom | Ø29 × 116 mm |
| Fixed Angle Rotor 12 | 10000 | 11045 × g | 8 × 50 mL Round Bottom | Ø29 × 111 mm |
| Fixed Angle Rotor 13 | 10000 | 11045 × g | 12 × 15 mL | Ø17 × 112 mm |
| Fixed Angle Rotor 14 | 10000 | 11045 × g | 24 × 10 mL | Ø16 × 86 mm |
| Fixed Angle Rotor 15 | 16000 | 19004 × g | 6 × 10 mL | Ø16 × 86 mm |
| Fixed Angle Rotor 16 | 13000 | 14945 × g | 8 × 15 mL | Ø17 × 112 mm |
| Fixed Angle Rotor 17 | 13000 | 14945 × g | 6 × 30 mL | Ø25.5 × 100 mm |
| Fixed Angle Rotor 18 | 13000 | 14643 × g | 8 × 0.2 mL PCR Strip | — |
| Fixed Angle Rotor 19 | 8000 | 7720 × g | 6 × 100 mL | Ø38 × 123 mm |
| Microplate Rotor | 4000 | 1538 × g | 2 × 2 × 48 Well Plate | 128 × 48 × 60 mm |
Download catalog for
High Speed Centrifuge LHS-C21 Catalog
Labtron High Speed Centrifuge is specialized to separate components of mixture based on density through rapid rotation. They operate by spinning samples at high speed of 12000rpm to 21000rpm generating significant centrifugal forces. Their tubes are designed to withstand elevated g-forces without breaking or leaking. They incorporate advanced cooling systems to maintain optimal temperatures during centrifugation processes. Our High Speed Centrifuge is essential in medical laboratories for blood separation and biopharmaceutical companies for product purification.
Labtron’s High Speed Centrifuge LHS-C21 is primarily used for the rapid and efficient separation of biological samples, such as cells, proteins, nucleic acids, and other biomolecules. It is widely utilized in clinical diagnostics, pharmaceutical development, molecular biology, and research laboratories. With its high-speed capability of up to 18000 rpm, the High Speed Centrifuge LHS-C21 is especially suited for applications that require short spin times and high centrifugal force for precise sedimentation and component isolation.

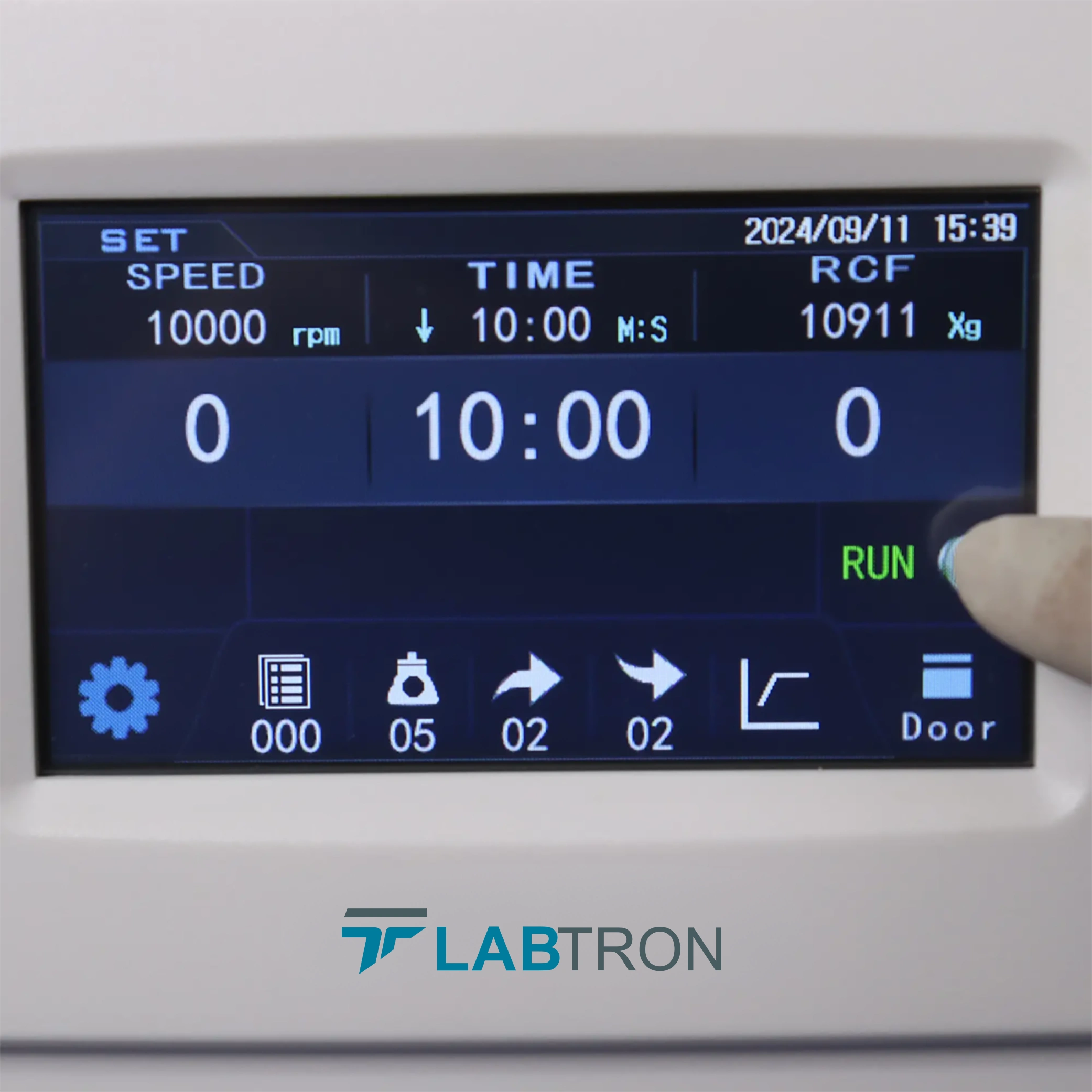

Our High Speed Centrifuge LHS-C21 is equipped with a modern LCD touchscreen interface that simplifies operation by allowing direct input and control of parameters. It supports multi-step programmable centrifugation and stores up to 1,000 programs and 1,000 operation histories. These features, combined with an intuitive interface and visual monitoring of run data, make it user-friendly and adaptable for repetitive and complex lab workflows.
Safety in the High Speed Centrifuge LHS-C21 is ensured through several advanced features, including automatic rotor recognition and imbalance detection using a three-axis gyroscope. This system prevents operation with incompatible or incorrectly installed rotors and detects any imbalance early to halt operations and avoid mechanical damage. Additionally, it includes a secure motorized locking system for the lid, which remains sealed during centrifugation to prevent accidental opening under high-speed rotation.
Yes, the High Speed Centrifuge LHS-C21 is designed to be compatible with autoclavable rotors, which makes it ideal for sterile applications and ensures compliance with laboratory hygiene and biosafety standards. Regular sterilization of rotors used in biological sample processing is crucial, and it supports this requirement without compromising rotor integrity.
Our High Speed Centrifuge LHS-C21 is constructed with a durable and corrosion-resistant housing, making it suitable for prolonged use in demanding lab conditions. It is built to withstand chemical exposure and repeated high-speed operation. The premium construction materials used in this centrifuge extend its lifespan and reduce maintenance needs, offering long-term value for laboratory environments.
