Horizontal Electrophoresis System LHES-A13

Horizontal Electrophoresis System LHES-A13

Horizontal Electrophoresis System LHES-A13 is a high resolution horizontal unit with gel dimension (W × L) 245 × 250 mm. Supplied with a gel tray and 7 comb positions that offers complete control over loading sample and casting dams to maximum of 364-sample throughput. Large volume buffer of 2000 ml ensures cooling effects and stable pH value for running gel at high voltage. Transparent safety lid evades electricity drip and sample volatilizing in cell.
Request Quote
Gel dimension 245 × 250 mm
Buffer volume 2000 ml
Sample capacity 19 to 364
Gel casting material Polycarbonate
Rows of comb 7
Comb thickness and no of well 1 mm and 1.8 mm for 19, 26, 44 and 52 well comb
Unit dimension (L × W × H) 487 × 300 × 93 mm
Weight 3.8 kg
  • Ultra-high resolution separation over extended run times
  • Multi-channel pipette compatible combs reduce gel loading time
  • Dismountable electrodes (easy maintenance)
  • Automatic power off on lid removal
  • High quality gel casting apparatus prevents gel leakage
  • long life platinum electrodes and high apparent material for gel molding
  • lugs for convenient opening and closing of lid
  • Side handles, for safe and easy transportation around the laboratory
Specifically designed for high resolution analytical and preparative studies of numerous samples of nucleic acids, screening PCR products, cloning and RFLP analysis.
Accessories no Accessories name Unit
1.        Lid with cables 1
2.        Body tank with electrodes 1
3.        245 × 250 mm Gel tray 1
4.        Gel casting stand 1
5.        1.0 mm thickness 19-well comb 2
6.        1.8 mm thickness 19-well comb 2
7.        1.0 mm thickness 26-well comb 2
8.        1.8 mm thickness 26-well comb 2
9.        1.0 mm thickness 44-well comb 2
10.    1.8 mm thickness 44-well comb 2
11.    1.0 mm thickness 52-well comb 2
12.    1.8 mm thickness 52-well comb 2
13.    level adjusting button 4
Power supply LHES-A13
Voltage range 10 to 600 V
Current range 1 to 500 mA
Power range 1 to 300 W
Type of control Constant V, Constant I and Constant P
Display LCD screen with backlight
Output jack Four sets
Storage function Store 10 methods
Programming method No
Timing function 1 min to 99 hrs 59 min
V-hr function No
Pause control function Yes
Power recovery function Optional
Automatic memory function Yes
Automatic shutdown function Yes
Intelligent prompt functions Yes
Non-proliferation field function Optional
Temperature detection function No
Safety performance Yes
Molding machine casing Yes
Dimension (L x W x H) 280 × 237 × 118 mm
Weight 3.2 Kg
Horizontal Electrophoresis System LHES-A13 | Gel dimension 245 × 250 mm | Buffer volume	2000 ml
Horizontal Electrophoresis System LHES-A13 | Long life platinum electrodes | Automatic power off

Models of Horizontal Electrophoresis System

Labtron Horizontal Electrophoresis System provide efficient separation of 3 to 364 samples in flat gel format. They utilize casting tray along with comb that form wells for uniform preparation and efficient separation of specimens. Their electrode connections are designed for easy attachment, ensuring reliable conductivity during runs. They incorporate buffer chambers that maintain pH and ionic strength throughout the process. Our Horizontal Electrophoresis System facilitates DNA, RNA and protein analysis in forensic and genetic engineering.

Horizontal Electrophoresis System (DUAL TANK) LHES-B10

Horizontal Electrophoresis System (DUAL TANK) LHES-B10

  • Platinum Electrodes : Three electrodes (one negative and two positive)
  • Number of Gel analysed : 2
  • Immune : For 1 to 20 slides
  • Comb Specifications : 2×8 cm, can be used for 1 to 24 7×9 cm, can be used for 1 to 6 8×12 cm, can be used for 1 to 6
Horizontal Electrophoresis System LHES-A11

Horizontal Electrophoresis System LHES-A11

  • Gel dimension : 78 × 100 mm
  • Buffer volume : 400 ml
  • Sample capacity : 10 to 30
  • Gel casting material : ABS
Horizontal Electrophoresis System LHES-C12

Horizontal Electrophoresis System LHES-C12

  • Gel Dimensions (W × L) : 130 × 130 mm, 78 × 100 mm, 48 × 75 mm
  • Buffer Volume : 600 ml
  • Sample Capacity : 3 to 104
  • Dimensions (L × W × H) : 305 × 152 × 80 mm
Horizontal Electrophoresis System LHES-C10
Horizontal Electrophoresis System LHES-C10
  • Gel Dimensions (W × L) : 120 × 120 mm, 120 × 60 mm, 60 × 120 mm, 60 × 60 mm
  • Buffer Volume : 550 ml
  • Sample Capacity : 1 to 100
  • Dimensions (L × W × H) : 300 × 160 × 75 mm
Horizontal Electrophoresis System LHES-A14
Horizontal Electrophoresis System LHES-A14
  • Comb Thickness : 1.0 mm, 1.5 mm, 2.0 mm
  • Comb Options : 2+3 wells, 6+3 wells, 8+18 wells, 11+25 wells
  • Number of Samples : 2 to 100
  • Buffer Volume : 650 ml
Horizontal Electrophoresis System LHES-C11

Horizontal Electrophoresis System LHES-C11

  • Gel Dimensions (W × L) : 140 × 140 mm, 140 × 70 mm, 70 × 70 mm
  • Buffer Volume : 900 ml
  • Sample Capacity : 1 to 116
  • Dimensions (L × W × H) : 390 × 187 × 63 mm
Horizontal Electrophoresis System LHES-A12

Horizontal Electrophoresis System LHES-A12

  • Gel dimension : 200 × 200 mm, 200 × 150 mm, 200 × 100 mm
  • Buffer volume : 1800 ml
  • Sample capacity : 17 to 104
  • Gel casting material : Polycarbonate

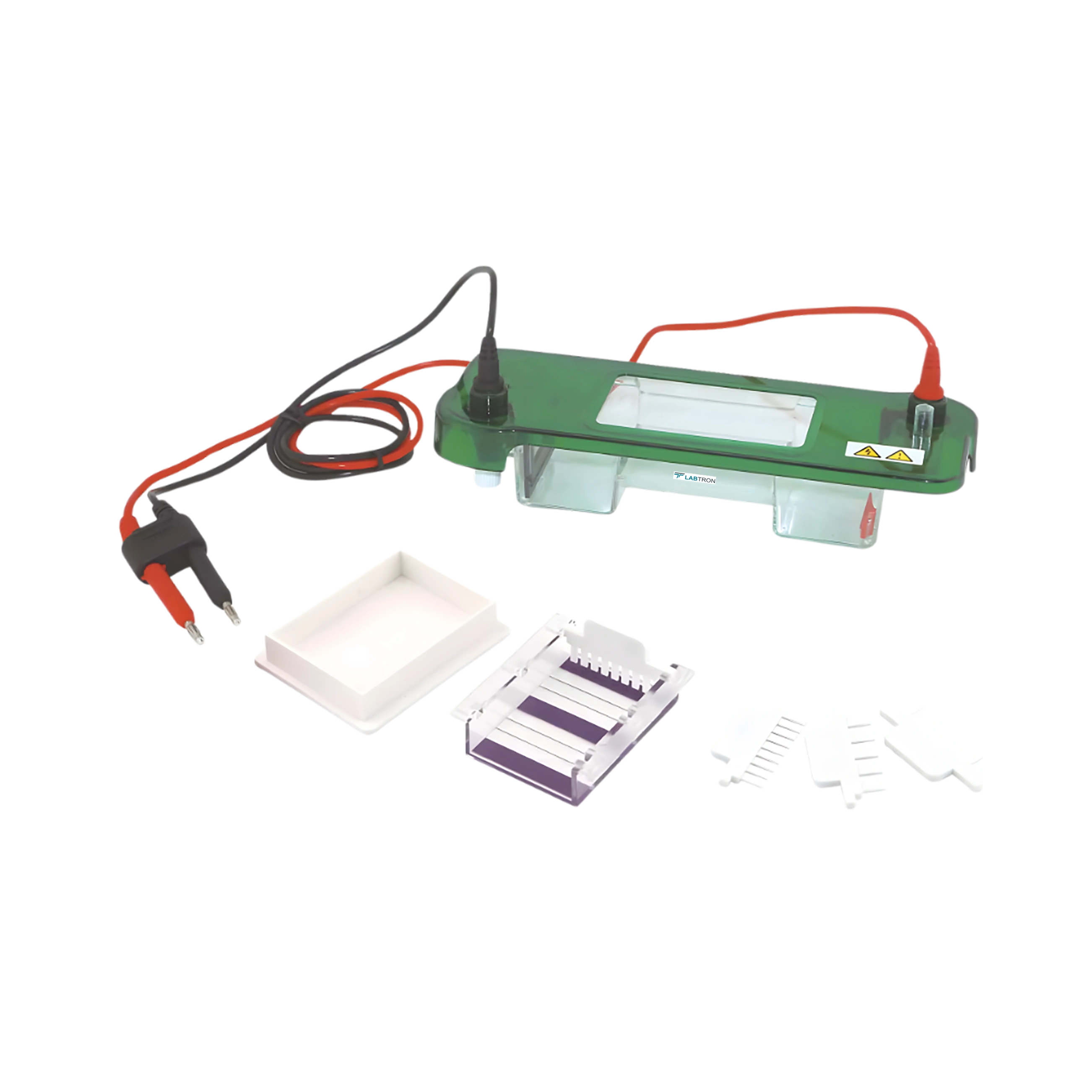

Horizontal Electrophoresis System LHES-A10

Horizontal Electrophoresis System LHES-A10

  • Gel dimension : 48 × 75 mm
  • Buffer volume : 150 ml
  • Sample capacity : 3 to 18
  • Gel casting material : Polycarbonate
