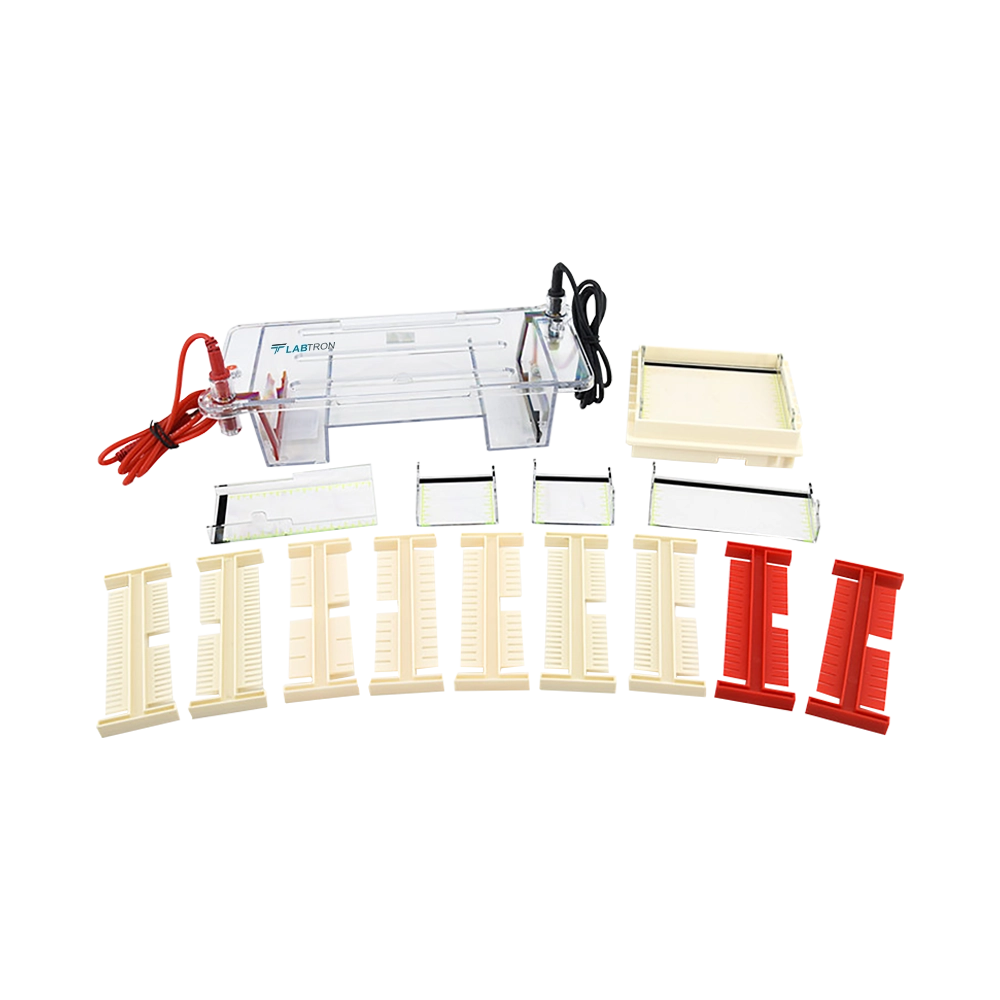

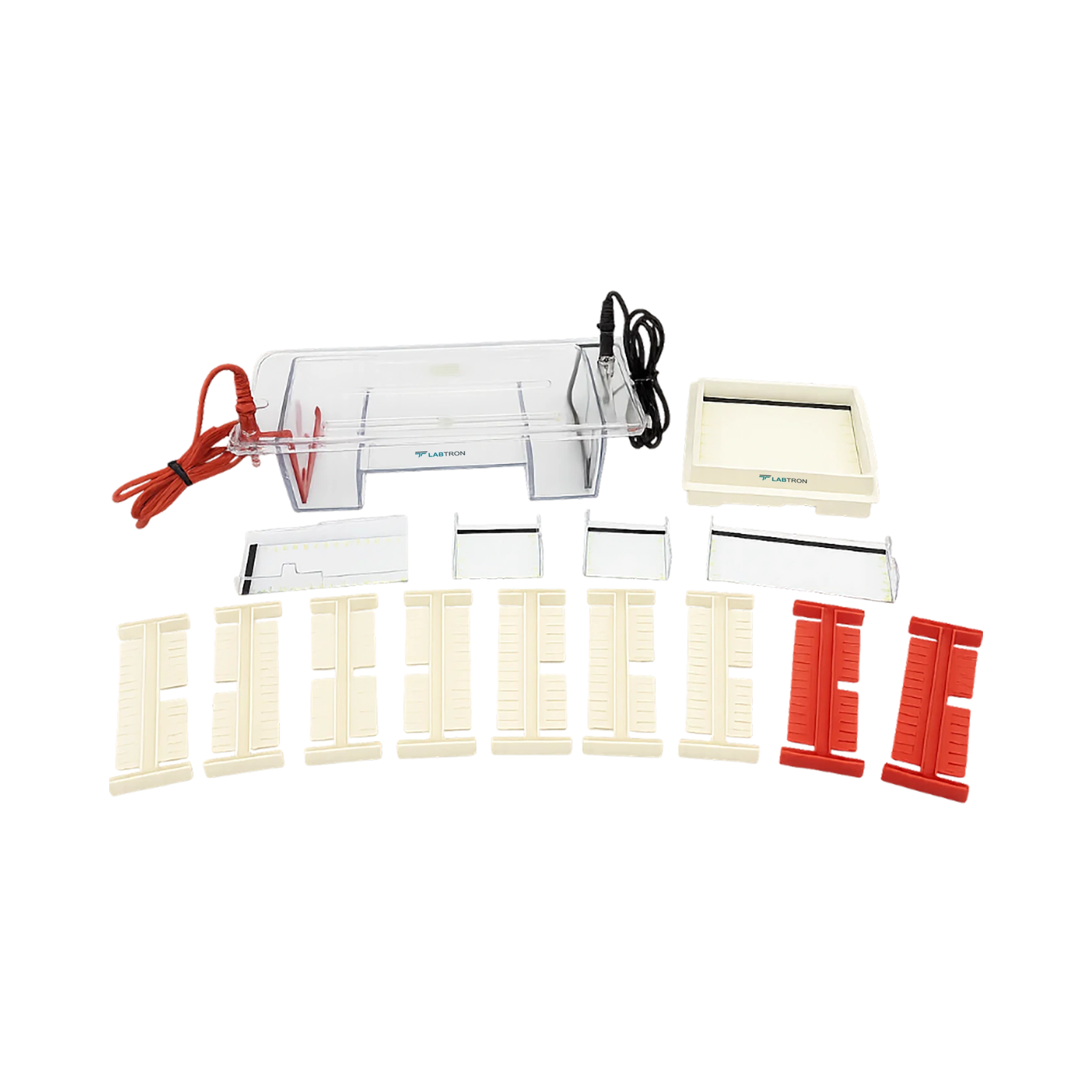

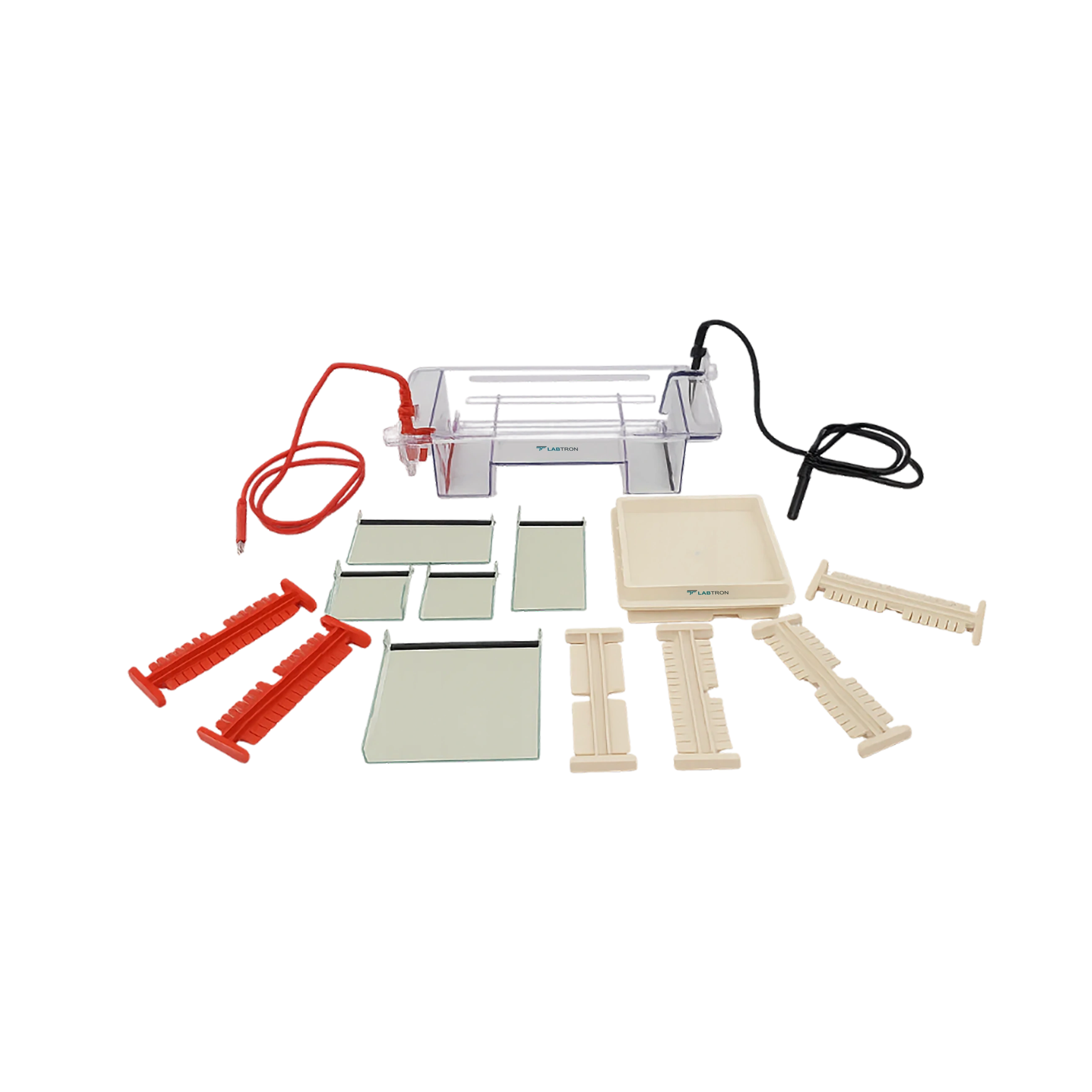

Horizontal Electrophoresis System LHES-A14

Name: Horizontal Electrophoresis System LHES-A14
Brand: Labtron
SKU: LHES-A14
Rating: 5 (820 reviews)

Horizontal Electrophoresis System LHES-A14 supports four different gel dimensions with a buffer capacity of 650 mL. It has a transparent lid that enables real-time observation of the electrophoresis process without interruption. The system allows running two gels simultaneously, enhancing efficiency for comparative studies. Its automatic switch-off safety feature ensures user safety and protects valuable samples during operation. Our Electrophoresis System is widely used for identification, separation, preparation of DNA, and measuring molecular weight.

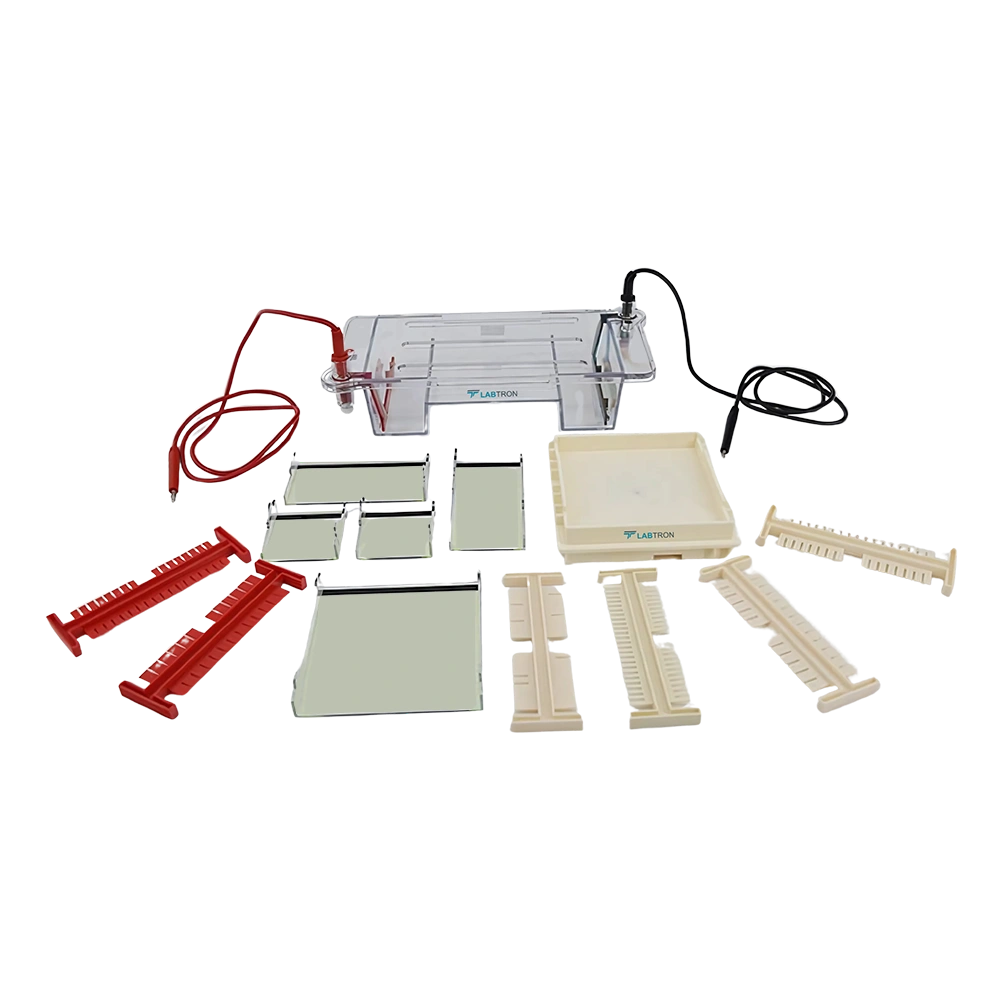

Horizontal Electrophoresis System LHES-A14_over view

Request Quote

Comb Thickness	1.0 mm, 1.5 mm, 2.0 mm
Comb Options	2+3 wells, 6+3 wells, 8+18 wells, 11+25 wells
Number of Samples	2 to 100
Buffer Volume	650 mL
Buffer temperature	20℃ or less
Gel Size (L × W)	60 × 60 mm, 60 × 120 mm, 120 × 60 mm, 120 × 120 mm
Dimensions	310 mm × 150 mm × 120 mm
Packing Dimension	360 mm × 200 mm × 200 mm
Gross Weight	2 Kg
Net Weight	1.0 Kg

Gel tray fluorescent marking
Removable electrodes
Easy and fast gel casting
High-quality polycarbonate build

Our Horizontal Electrophoresis System LHES-A14 is widely used for DNA/RNA separation, facilitating molecular biology research, genetic analysis, and educational applications with reliable, high-performance electrophoretic technology.

Main tank body and Buffer tank	1 unit
Lid	1 piece
25 and (11+11) teeth comb (1.0 mm)	1 piece
13 and (6+6) teeth comb (1.5 mm)	1 piece
18 and (8+8) teeth comb (1.5 mm)	1 piece
(3+2) and (3+3) teeth comb (2.0 mm)	1 piece
18 and (8+8) teeth comb (1.0 mm)	1 piece
13 and (6+6) teeth comb (1.0 mm)	1 piece
Gel casting device	1 piece
Gel tray (60 × 60 mm)	2 pieces
Gel tray (60 × 120 mm)	1 piece
Gel tray (120 × 60 mm)	1 piece
Gel tray (120 × 120 mm)	1 piece

No.	Name
1	Power supply unit

Download catalog for
Horizontal Electrophoresis System LHES-A14 Catalog

Horizontal Electrophoresis System LHES-A14 | Comb Thickness 1.0 mm, 1.5 mm, 2.0 mm | Number of Samples 2 to 100

Horizontal Electrophoresis System LHES-A14 | High-quality polycarbonate material | Special fast gel casting

Models of Horizontal Electrophoresis System

Labtron Horizontal Electrophoresis System provide efficient separation of 3 to 364 samples in flat gel format. They utilize casting tray along with comb that form wells for uniform preparation and efficient separation of specimens. Their electrode connections are designed for easy attachment, ensuring reliable conductivity during runs. They incorporate buffer chambers that maintain pH and ionic strength throughout the process. Our Horizontal Electrophoresis System facilitates DNA, RNA and protein analysis in forensic and genetic engineering.

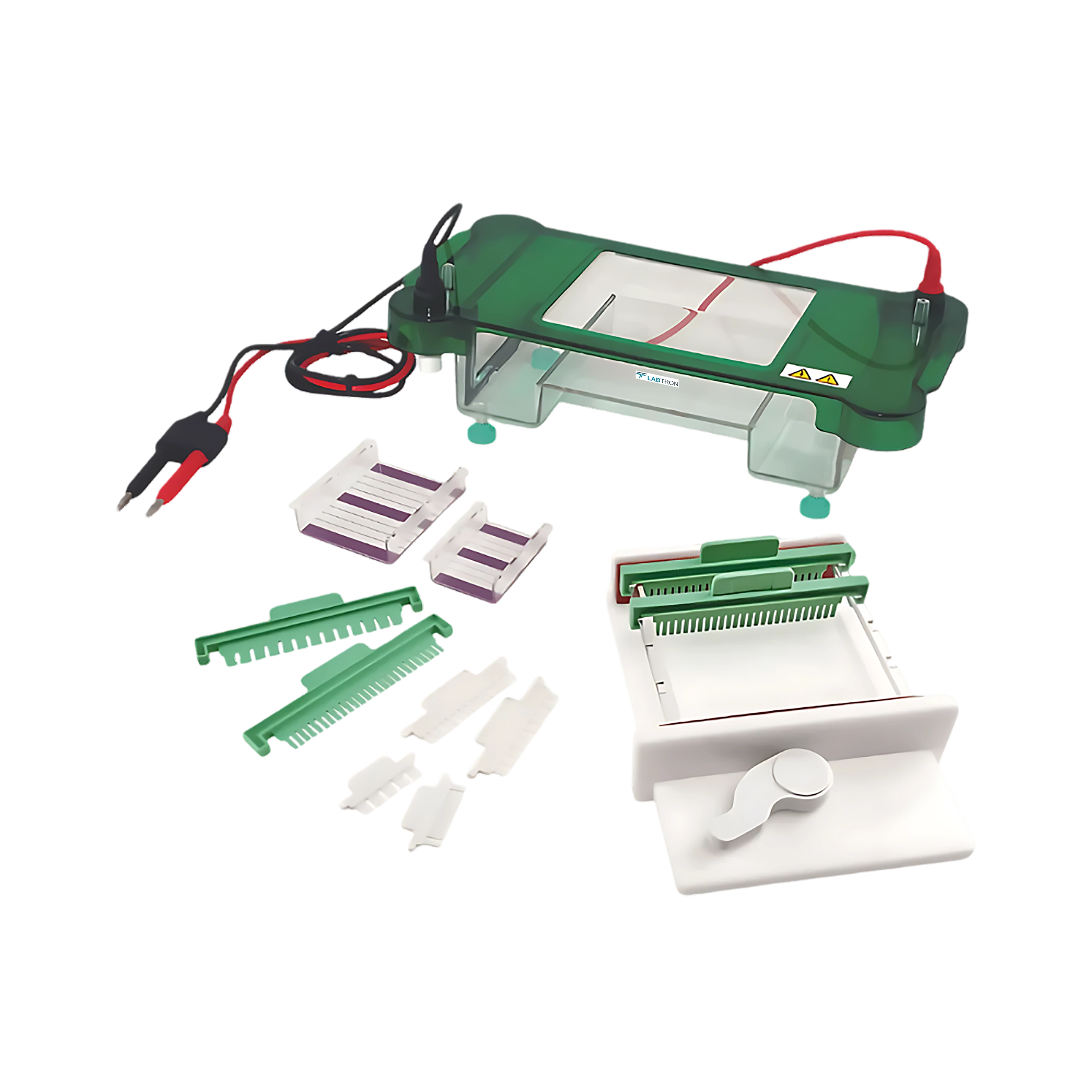

Horizontal Electrophoresis System LHES-C12

Gel Dimensions (W × L) : 130 × 130 mm, 78 × 100 mm, 48 × 75 mm
Buffer Volume : 600 ml
Sample Capacity : 3 to 104
Dimensions (L × W × H) : 305 × 152 × 80 mm

Compare Remove

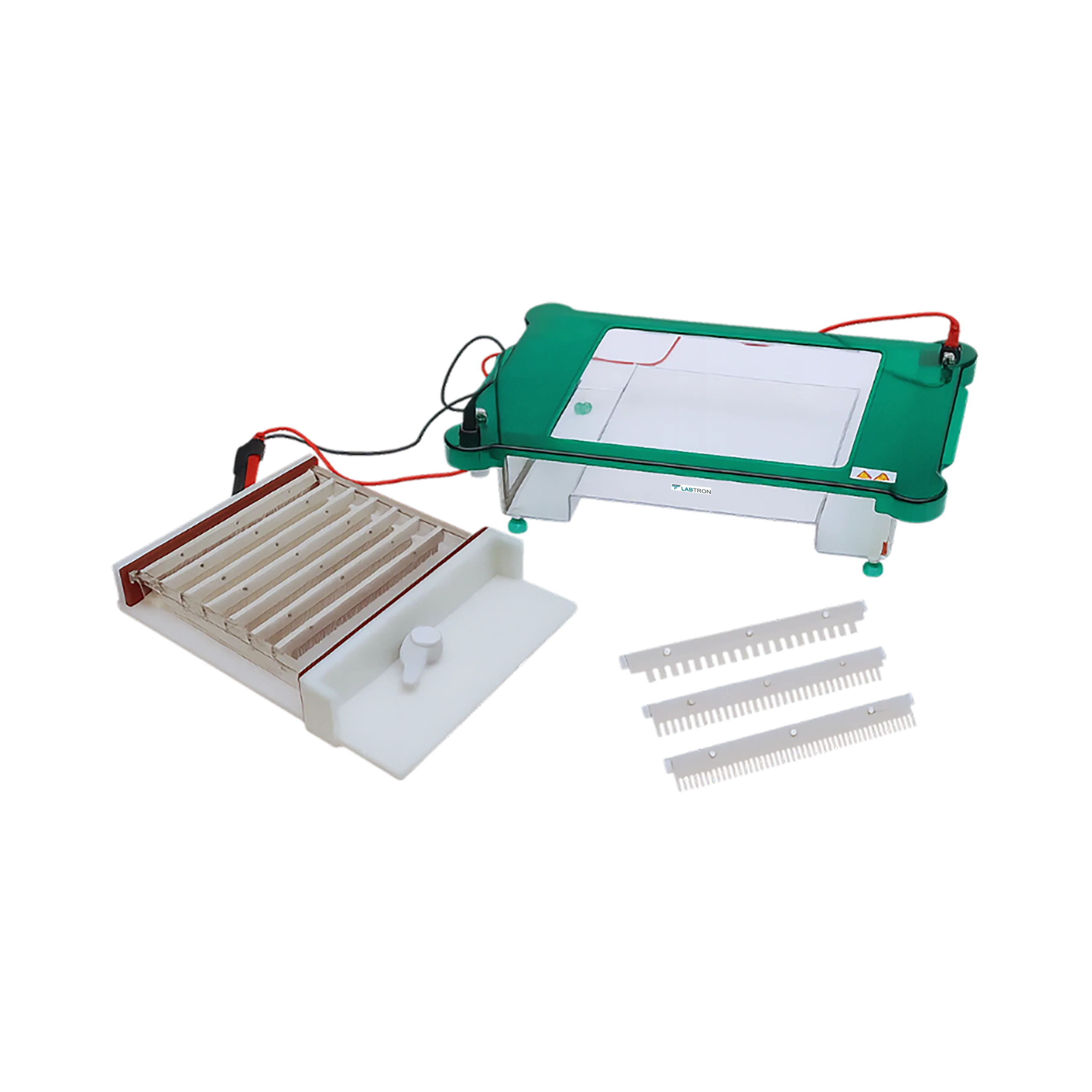

Horizontal Electrophoresis System LHES-A13

Gel dimension : 245 × 250 mm
Buffer volume : 2000 ml
Sample capacity : 19 to 364
Gel casting material : Polycarbonate

Compare Remove

Horizontal Electrophoresis System LHES-C10

Gel Dimensions (W × L) : 120 × 120 mm, 120 × 60 mm, 60 × 120 mm, 60 × 60 mm
Buffer Volume : 550 ml
Sample Capacity : 1 to 100
Power Supply : 220 V | 50 Hz

Compare Remove

Horizontal Electrophoresis System LHES-A10

Gel dimension : 48 × 75 mm
Buffer volume : 150 ml
Sample capacity : 3 to 18
Gel casting material : Polycarbonate

Compare Remove

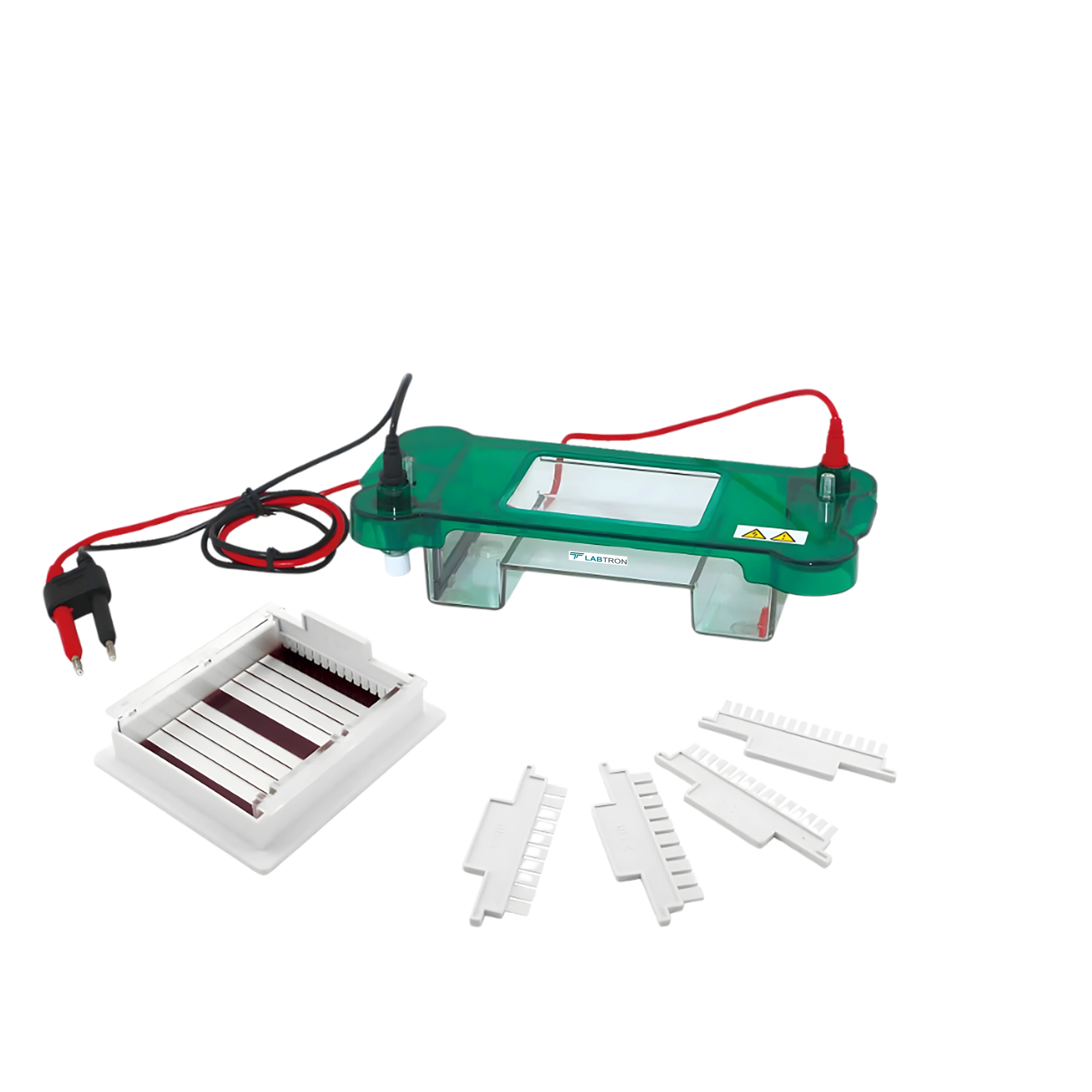

Horizontal Electrophoresis System LHES-A11

Sample Capacity : 10 to 30
Gel Dimension : 78 × 100 mm
Buffer Volume : 400 ml
Gel Casting Material : ABS

Compare Remove

Horizontal Electrophoresis System (DUAL TANK) LHES-B10

Platinum Electrodes : Three electrodes (one negative and two positive)
Number of Gel analysed : 2
Immune : For 1 to 20 slides
Comb Specifications : 2×8 cm, can be used for 1 to 24 7×9 cm, can be used for 1 to 6 8×12 cm, can be used for 1 to 6
