| Flow Range | 0.001 to 9.999 mL/min |
| Delivery Method | Double piston (Main & Auxiliary) |
| Pump Head | 10 mL SST / PEEK analytical |
| Accuracy | ±1% or ±2 μL/min, whichever is greater ±1% or ±1 μL/min, whichever is greater (Micro) |
| Flow Rate Settings | 0 to 0.10 mL/min: 0.001 increment 0.10 to 0.90 mL/min: 0.010 increment 1.0 mL/min and above: 0.10 increment |
| Precision | 0.1% RSD |
| Maximum Pressure | 9999 psi |
| System Connections | 1/16’’ capillaries |
| Display | 300 mm |
| UV-Spectrophotometer Wavelength Range | 190 to 700 nm |
| Spectral Bandwidth | 6 nm |
| Wavelength Accuracy | Less than equal to ±1 nm |
| Wavelength Reproducibility | Less than equal to ±0.1 nm |
| Flow Cell Volume | 8 μL |
| Optical Path | 10 mm |
| Dynamic Noise | Less than equal to ±0.75 × 10⁻⁵ AU (Methanol, 1 mL/min, 254 nm, 20°C) |
| Static Noise | Less than equal to ±0.5 × 10⁻⁵ AU (Empty pool, Response time 1s, 20°C) |
| Dynamic Drifting | ≤ ±1 × 10⁻⁴ AU (Methanol, 1 mL/min, 254 nm, 20°C) |
| Static Drifting | ≤ ±0.5 × 10⁻⁴ AU (Empty pool, Response time 1s, 20°C) |
| Qualitative Repeatability | RSD ≤ 0.1% |
| Quantitative Repeatability | RSD ≤ 0.5% |
| Power Supply | 85 to 264 VAC, 47 to 63 Hz, 60 Watts |
| Pump Dimensions | 130 × 260 × 420 mm |
| UV- spectrophotometer Dimensions | 130 × 260 × 420 mm |
| Weight | 11 kg |
Easy maintenance
Online washing device
Self-priming pump head
Deuterium lamp
Advanced design

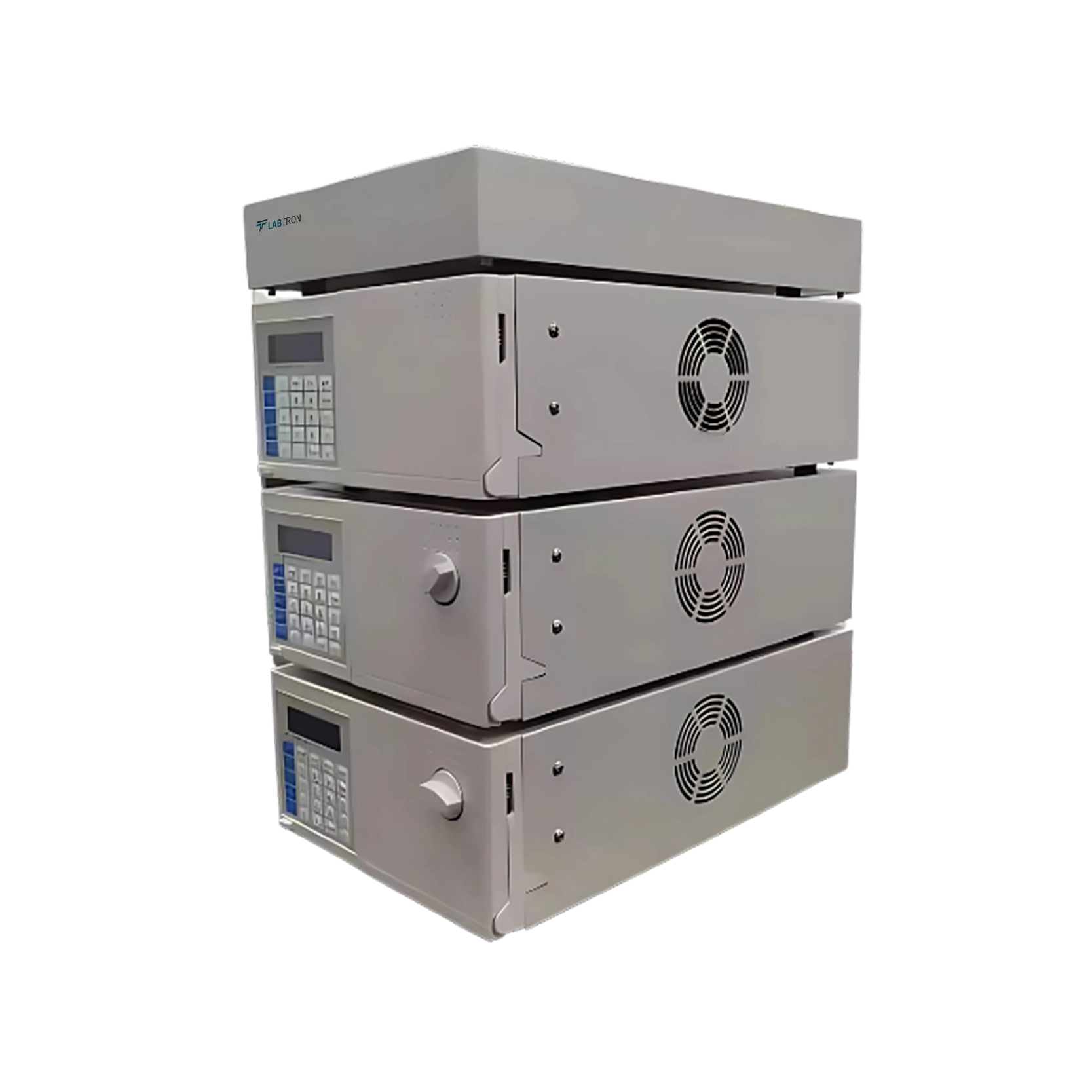

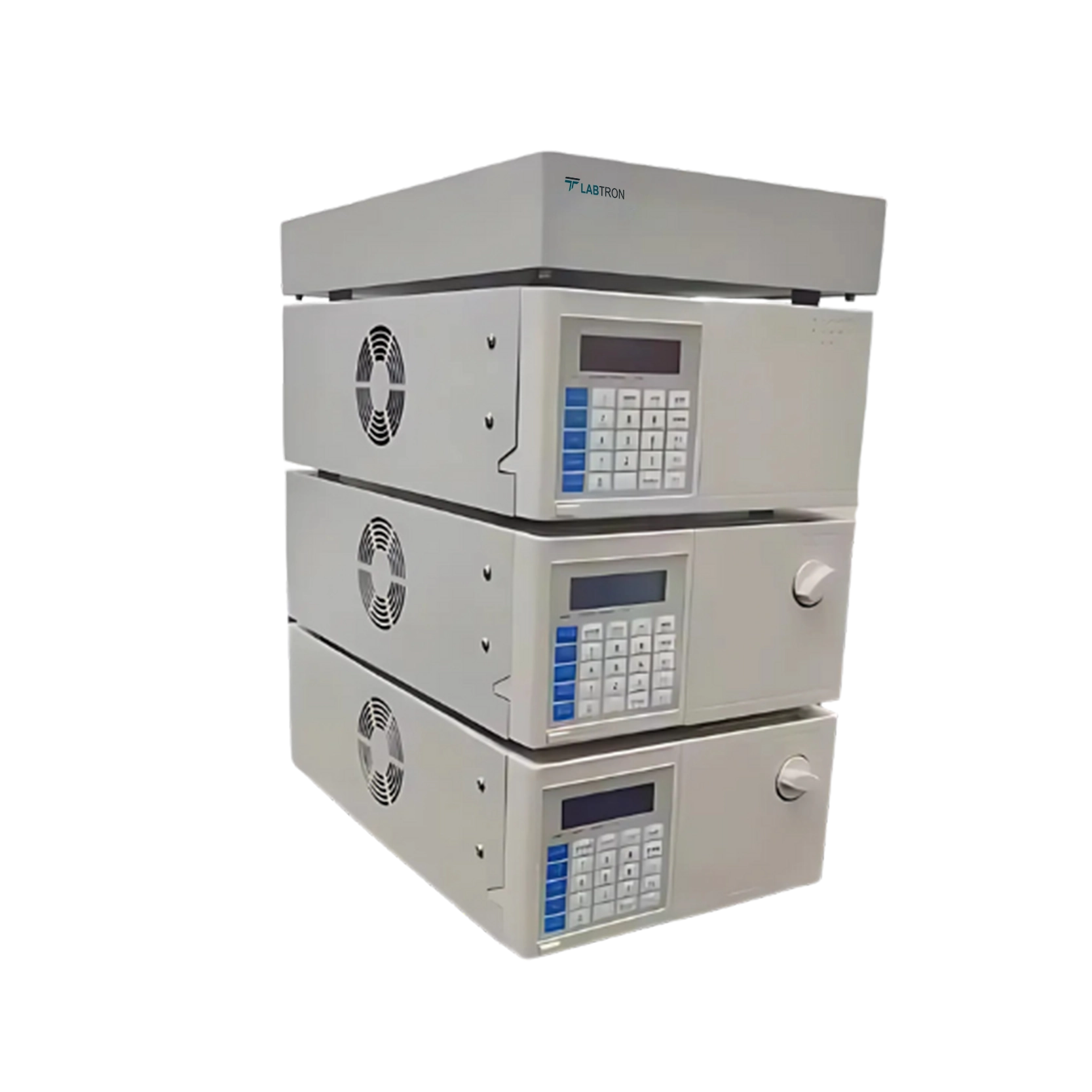

HPLC System LHLC-A12 is widely used in high-performance liquid chromatography (HPLC), laboratory chemical reactions, fusion processes, and chromatography applications.
Liquid Constant Flow Pump | 2 sets |
UV-VIS Spectrophotometric Detector | 1 set |
Solvent Tray | 1 set |
Mixer | 1 set |
Manual Injector | 1 set |
Chromatography Data System | 1 set |
Chromatography Column | 1 set |
4.6 × 250 mm, 5µm Sodium Benzoate Column | 2 pcs |
4.6 × 250mm, 5µm Di-Sulphonates/Sulfonates Column | 2 pcs |
Pack of 100 pcs Syringe Filters | 4 packs |
Pack of 200 pcs Membrane Filters | 4 packs |
Pack of 100 pcs Sample Vials | 1 pack |
Water Purification System (HPLC Grade) | 1 pc |
Mobile Phase Degassing Unit (HPLC Grade) | 1 pc |
Microfiltration System (HPLC Grade) | 1 pc |
Download catalog for
HPLC System LHLC-A12 Catalog
Labtron HPLC System feature high-resolution detectors for analysis of complex chemical compositions. Their advanced gradient pumps ensure accurate and consistent flow rates during separation. They include user-friendly software interface for seamless operation and data analysis. Their integrated temperature control system assures optimal column performance and sample stability. Our HPLC system is suitable for food and beverage, clinical diagnostics, Petrochemical industry and cosmetics.
.webp "HPLC System LHLC-C10")
Labtron’s HPLC system offers a flow rate range of 0.001 to 9.999 mL/min, providing precise control for various analytical applications.
Yes, it complies with GMP/GLP, ISO 9001, and 21 CFR Part II, ensuring data integrity and regulatory compliance.
The system supports micro, analytical, semi-prep, and prep pump heads, allowing flexibility for different laboratory needs.
No, Labtron’s HPLC system features a self-priming pump head, eliminating the need for manual priming and making operation more convenient.
The HPLC system is designed for easy maintenance and service, with accessible wetted parts for quick replacements and routine servicing.
