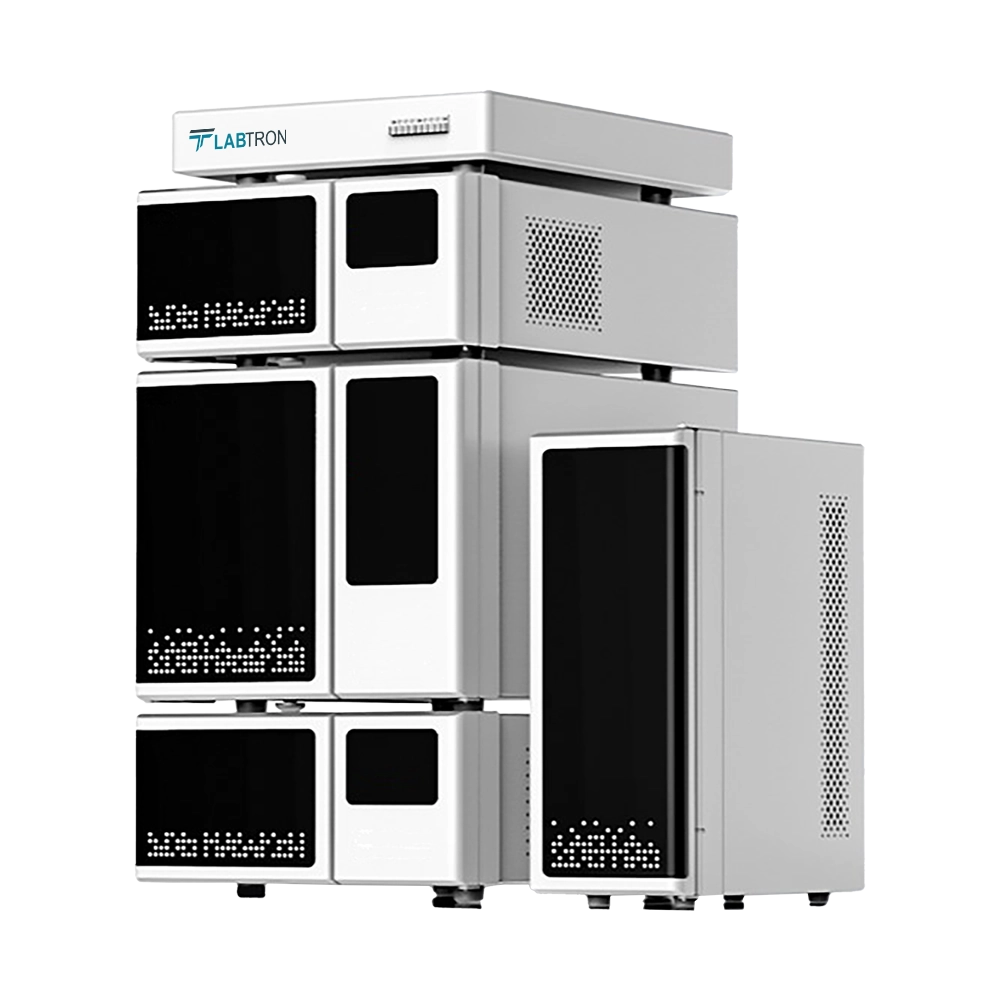

HPLC System LHLC-C10

Name: HPLC System LHLC-C10
Brand: Labtron
SKU: LHLC-C10
Rating: 4.8 (622 reviews)

HPLC System LHLC-C10 provides a flow rate range of 0.001 to 10.000 mL/min for precise performance. It handles a maximum pressure of 6000 psi with a pressure pulse ≤1%, ensuring stable operation. The UV/Vis detector features a wavelength range of 190 to 740 nm for accurate detection. With a multi-solvent management system, it enables easy mobile phase switching. Our HPLC system is ideal for high-precision liquid chromatography applications, ensuring reliable and repeatable results.

Request Quote

Pump Type	Binary Pump
Pump Flow Rate Range	0.001 to 10.000 mL/min
Pump Flow Accuracy	±0.2%
Pump Flow Precision	≤0.06%RSD
Pressure Pulse	≤1%
Maximum Pressure	6000psi
Pump Composition Precision	± 0.02%
UV/Vis Detector Wavelength Range	190 to 740 nm
Wavelength Precision	0.1nm
Detector Wavelength Accuracy	± 1 nm
Detector Band Width	8 nm
Detector Response Time	≤ 1 sec
Detector Baseline Noise	±0.5×10-5AU(JJG)
Maximum Sampling Rate	100Hz
Pressure Resistance of Flow Cell	1200psi
Detector Path Length	10 mm
Detector Light Source	Deuterium & Tungsten Lamps
Column Oven Temperature	Room Temperature +5℃ to 65℃
Controlling Temperature Accuracy	±0.5℃
System Kits	Standard configuration with options
Sample Size	2ml × 120 bits
Injection Repeatability	Full Loop Injection: RSD≤0.3% Partial Injection: RSD≤0.5% Micro Injection: RSD≤1%
Cross Contamination	<0.005%
Power Supply	220V ± 10%, 50 Hz, 250 W
Dimension	600 × 450 × 550mm
Weight	35 kg

Dual independent solvent flows
One-key mobile phase switching
Precise binary pump infusion
Micro volume mixer stability
Optional quaternary pump available
Column temperature control up to 65℃
24/7 automated sample injection
Cost-effective manual injector option

Our HPLC System LHLC-C10 is ideal for separating, identifying, and quantifying compounds in pharmaceuticals, food, and environmental analysis. It ensures accurate, reproducible results for quality control and research applications.

Clarity Software
Auto-derivatization

Download catalog for
HPLC System LHLC-C10 Catalog

Download manual for
HPLC System LHLC-C10 Manual

Models of HPLC System

Labtron HPLC System feature high-resolution detectors for analysis of complex chemical compositions. Their advanced gradient pumps ensure accurate and consistent flow rates during separation. They include user-friendly software interface for seamless operation and data analysis. Their integrated temperature control system assures optimal column performance and sample stability. Our HPLC system is suitable for food and beverage, clinical diagnostics, Petrochemical industry and cosmetics.

HPLC system LHLC-A11

High pressure pump : Two sets of pump
Flow rate range : 0.001 - 9.999 mL / min (0.001 mL / min increments)
Pressure range : ≤ 0.5 MPa (0 - 42 MPa)
Flow rate precision : RSD < 0.06 %

Compare Remove

HPLC system LHLC-B10

High pressure pump : High pressure gradient pump
Peak operating pressure : 45 MPa, Stainless steel pump
Pressure : ± 0.02 MPa
Flow rate range : 0.001 - 9.999 mL / min

Compare Remove

HPLC system LHLC-B11

High pressure pump : High pressure constant-current infusion pump
Infusion Way : Micro volume series dual-piston
Infusion pressure : 0 - 9999 Psi
Flow rate : ≤ 0.5 %

Compare Remove

HPLC system LHLC-A10

High pressure pump : Single pump
Flow rate range : 0.001 - 9.999 mL / min (0.001 mL / min increment)
Pressure range : ≤ 0.5 MPa (0 - 42 MPa)
Flow rate precision : RSD < 0.06 %

Compare Remove

HPLC System LHLC-A12

Flow Range : 0.001 to 9.999 mL/min
Delivery Method : Double piston (Main & Auxiliary)
Pump Head : 10 mL SST / PEEK analytical
Accuracy : ±1% or ±2 μL/min, whichever is greater ±1% or ±1 μL/min, whichever is greater (Micro)

Compare Remove

HPLC System:
HPLC system LHLC-A11, HPLC system LHLC-B10, HPLC system LHLC-B11, HPLC system LHLC-A10, HPLC System LHLC-A12, and more.

Catalogs : Laboratory Equipment Catalog, Analytical Equipment Catalog, Medical Equipment Catalog, Test Equipment Catalog, Petroleum Testing Catalog, Pharmaceutical Machinery Catalog, Security Systems Catalog, Lab Products Catalog.
