| Carbon Measurement Range | 0.0001 to 20% (expandable to 100%) |
| Sulfur Measurement Range | 0.00001 to 5% (expandable) |
| Sensitivity | 0.01 ppm |
| Analysis Time | 30 to 50 s |
| Accuracy Standard (RSD) – Carbon | ≤0.5% |
| Accuracy Standard (RSD) – Sulfur | ≤1.5% |
| Detector | 3 sets (high carbon, low sulfur, carbon monoxide) |
| Measurement Principle | High-frequency combustion infrared absorption method |
| Analysis Gas | Pure oxygen 99.5% |
| Power Gas | Nitrogen or anhydrous compressed air |
| Electron Tube | Glass |
| Light Source | Nichrome wire |
| Modulating Motor | 30,000 hours without failure |
| Absorption Pool Coating Material | Gold plated |
| Flow Meter | Digital quality |
| Filter | Metal micropores |
| Power | 2.5 kW |
| Dimensions | 575×455×725 mm |
| Weight | 80 kg |
Expandable carbon and sulfur ranges
High-frequency infrared absorption method
Carbon monoxide compensation included
Glass electron tube for durability
Peak width compensation stability

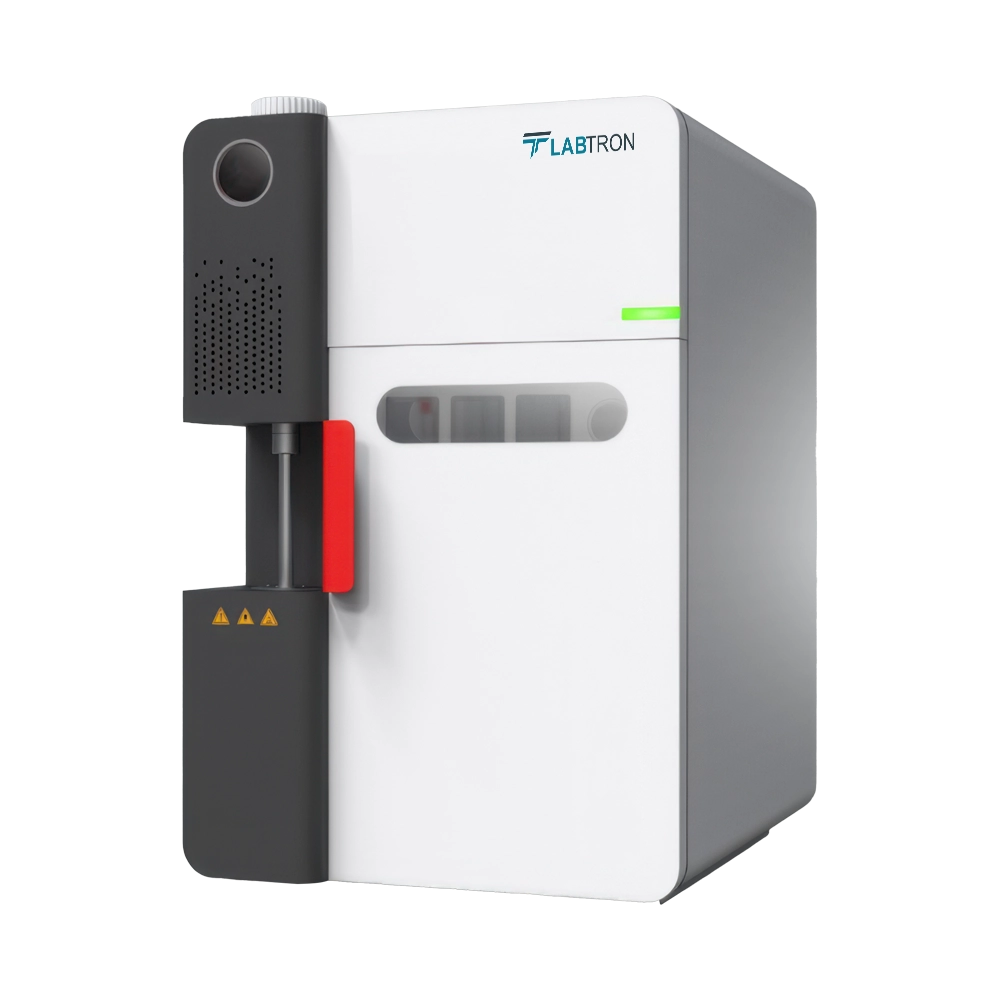

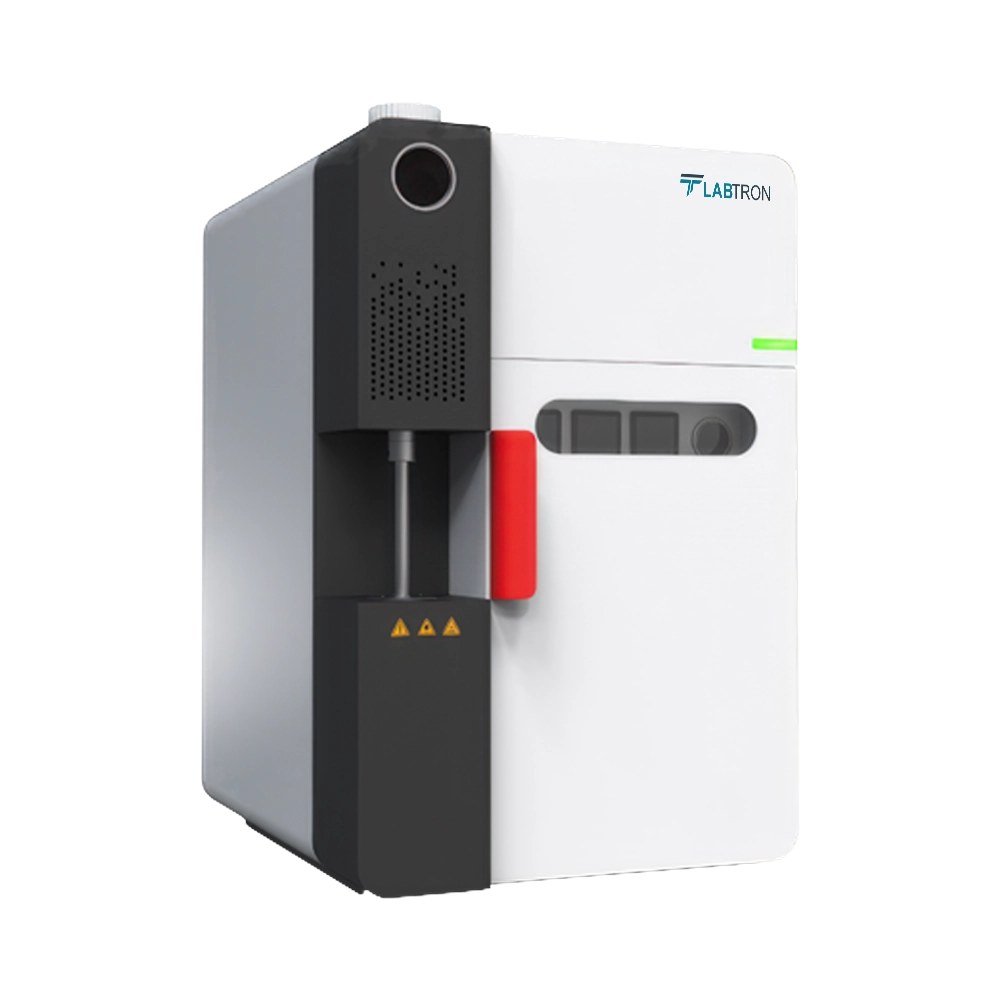

Our IR Carbon And Sulfur Analyzer LCSA-B21 is designed for industries requiring carbon monoxide measurement, ensuring accurate carbon and sulfur detection in steel, ferroalloy, non-ferrous metals, and ores.
Download catalog for
IR Carbon And Sulfur Analyzer LCSA-B21 Catalog
Available Range :
IR Carbon And Sulphur Analyzer LCSA-B20 : 0.0001 to 20% (expandable to 100%) IR Carbon and Sulphur Analyzer LCSA-A11 : 0.0001% to 10.0000% (can be expanded to 99.999%) IR Carbon And Sulphur Analyzer LCSA-B10 : C1: 0.001 to 50% (expandable to 100%)Labtron IR Carbon Sulphur Analyzers are capable of achieving high levels of accuracy and precision in the determination of carbon and sulfur content, even at low concentrations. These analyzers offer a wide dynamic range, allowing for the analysis of samples with varying carbon and sulfur concentrations, from trace levels to high percentages. With advanced heating and detection systems, our Analyzers can perform rapid analysis, enabling high sample throughput and efficient workflow in laboratory settings. These analyzers are versatile and can analyze a variety of sample types, including metals, alloys, ceramics, minerals, and more. Feature intuitive interfaces and software, making them user-friendly and accessible to operators. Built-in safety features ensure safe operation, including mechanisms to prevent overheating, gas leaks, and other potential hazards associated with high-temperature combustion processes.
