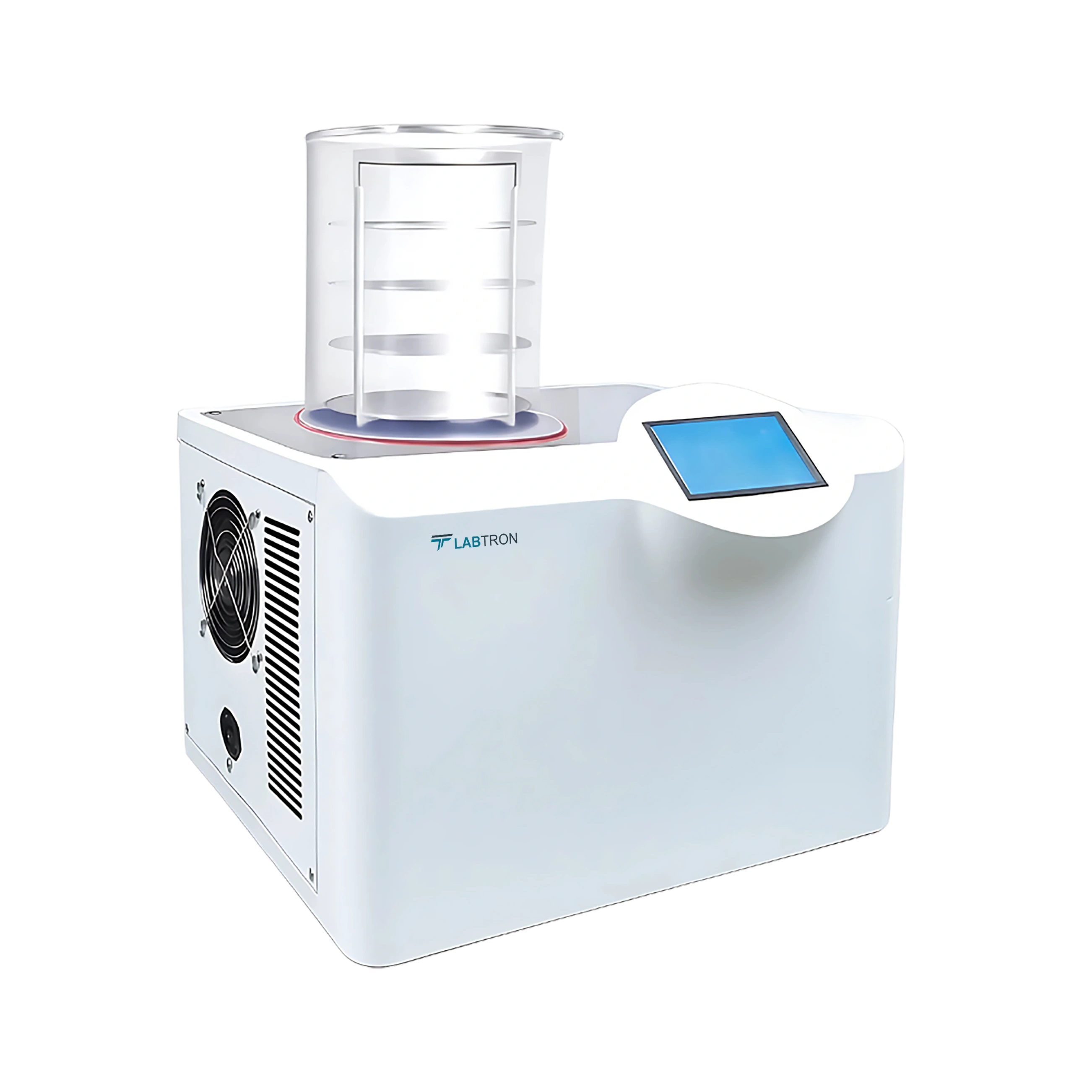

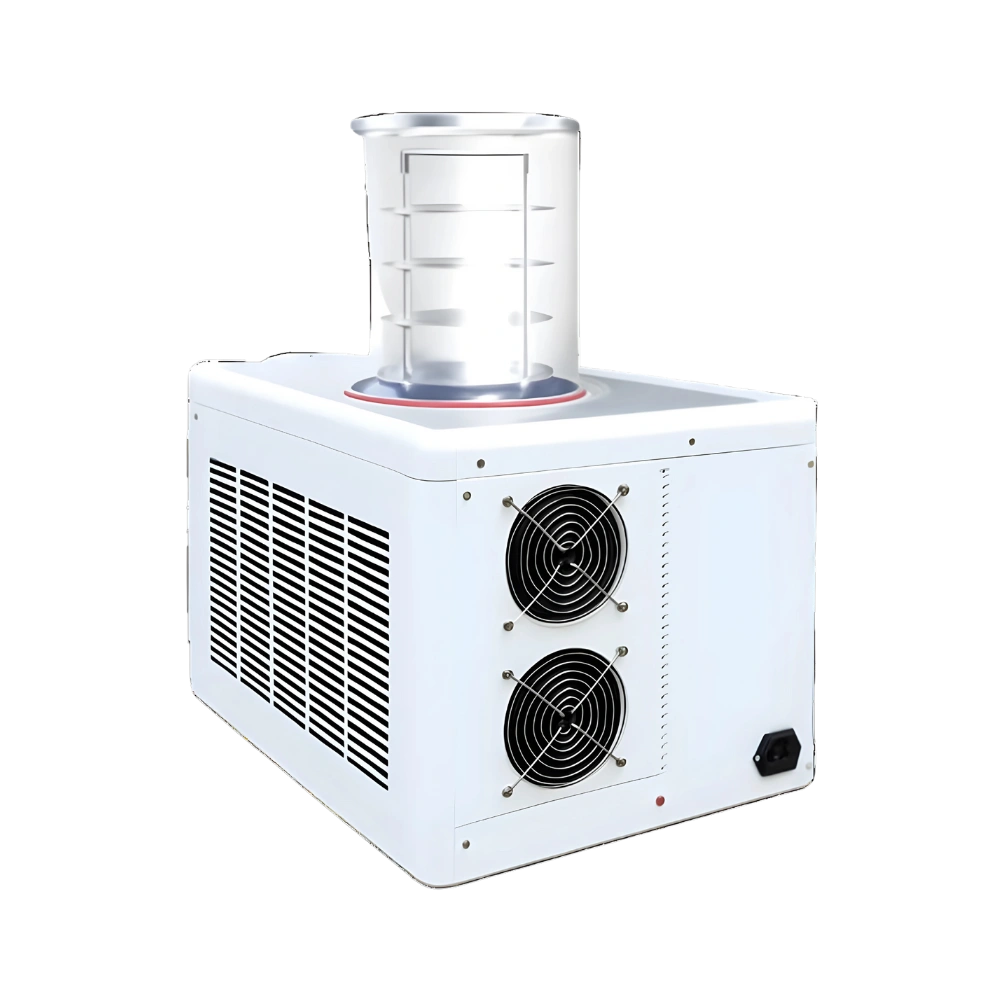

Bench-top Standard Freeze Dryer LBFD-A22

Our Labtron Bench-top Standard Freeze Dryer is designed specifically for laboratory-scale freeze-drying applications. It comes with a user-friendly PID controller that allows precise regulation of temperature and pressure during the drying process. The circular round display screen provides a clear interface for monitoring and controlling the equipment easily. It is equipped with a high-power condenser and internal condenser coils that help achieve fast and efficient freezing. The freeze dryer also offers the flexibility of both automatic and manual control options, allowing users to adjust settings based on specific sample needs. These advanced features make it reliable for drying heat-sensitive materials while maintaining ease of use in various lab settings.

Our Labtron Bench-top Freeze Dryer is built with a highly efficient and reliable cooling system. It uses a hermetic compressor that is sealed to prevent leakage and contamination. This compressor includes a built-in restart delay mechanism, which protects the equipment by avoiding sudden power surges during restarts. Additionally, the unit features a thermal overload protection module that automatically shuts off the system if the temperature exceeds safe levels. This helps prevent overheating and ensures long-term safety and stability during operation. These integrated protective features make the system highly dependable, especially when dealing with delicate or temperature-sensitive samples.

The top surface of the Labtron Bench-top Freeze Dryer is made from high-quality stainless steel 304. This material is well known for its excellent resistance to corrosion, as well as its ability to withstand exposure to acids and alkalis. This means the unit is highly durable and can be used in harsh lab environments without damage or degradation over time. The stainless-steel surface is also easy to clean and maintain, which is essential in laboratory settings where hygiene and contamination control are important. Overall, the use of stainless steel 304 enhances the durability, safety, and longevity of the freeze dryer.

It is widely used in laboratories, pharmaceutical research, and the biotechnology industry. It is specifically designed for the preservation of heat-sensitive and moisture-sensitive materials. Common applications include the drying and storage of biological samples such as enzymes, vaccines, proteins, and other sensitive materials that cannot withstand high temperatures. It is also suitable for sample preparation in research experiments. By removing moisture through freeze-drying, the structure and integrity of these substances are preserved without damaging their properties. This makes the Labtron freeze dryer a valuable tool for scientists, researchers, and lab technicians.

It is engineered for efficient performance with impressive vacuum and ice handling capabilities. It offers a drying area of 0.12 square meters and has a cold trap volume of 13 Liters. The unit can hold up to 6 kg of ice, with a 24-hour maximum ice capacity of 3 kg, making it suitable for batch processing. It achieves a no-load vacuum pressure of 5 Pa and an ultimate vacuum pressure of 1 Pa, which is essential for effective sublimation and thorough drying of samples. The system includes 4 adjustable shelves with a tray diameter of 200 mm, allowing flexibility for different sample sizes. With a noise level of ?55 dB and compact dimensions, it is also quiet and space-saving, fitting well in most lab environments.
