What makes the Labtron Bench-top T-type Freeze Dryer suitable for laboratory and pharmaceutical use?

Our Labtron Bench-top T-type Freeze Dryer is ideal for laboratory and pharmaceutical applications because it is designed to preserve heat- and moisture-sensitive materials. It features a high-power condenser and a reliable cold trap that reaches temperatures as low as -68°C. This ensures efficient and consistent freeze-drying results. The equipment can be used in research labs, biotech setups, and pharmaceutical facilities where precision and reliability are essential.

How does the cooling system of the Labtron Bench-top Freeze Dryer work?

The cooling system in the Labtron freeze dryer uses a high-power condenser and internal condenser coils for rapid cooling. This setup helps maintain a low cold trap temperature, which is important for capturing and freezing vaporized moisture from samples. The cold trap has a volume of 13 Liters and an ice holding capacity of 6 kg, allowing for effective freeze-drying during extended use.

Can the sublimation process in the Labtron freeze dryer be adjusted?

Yes, the Labtron freeze dryer offers both automatic and manual control of the sublimation process. This gives users flexibility depending on the type of sample and drying requirements. For example, researchers can use automatic settings for standard procedures or switch to manual mode for customized drying based on specific material properties.

What are the key features that enhance the user experience with the Labtron Bench-top Freeze Dryer?

Our Labtron Bench-top Freeze Dryer includes user-friendly features such as a hermetic compressor for quiet operation, curved integrated design for compactness, and KF-25 quick flange fittings for secure connections. It also includes a vacuum monitoring system with cumulative operating hours, allowing users to track vacuum pump usage. The stainless-steel 304 top adds durability and resistance to corrosion, acids, and alkalis.

What are the technical specifications and dimensions of the Labtron freeze dryer, and how do they support its performance?

Our freeze dryer has a drying area of 8 or 16 tubes, a 13-liter cold trap volume, and an ultimate vacuum of 1 Pa. It supports a solution load of 1.2 Liters and features adjustable trays with 60 mm spacing. Its noise level is kept low at ? 55 dB, and it operates efficiently within an ambient temperature of up to 26°C. The compact dimensions (580 × 580 × 460 mm) and 75 kg weight make it suitable for benchtop use without occupying too much space in the lab.

Bench-top T-type Freeze Dryer LBFD-B15

Name: Bench-top T-type Freeze Dryer LBFD-B15
Brand: Labtron
SKU: LBFD-B15
Rating: 4.8 (926 reviews)

Bench-top T-type Freeze Dryer LBFD-B15 has 8 or 16 tubes drying area and 6 Kg ice holding capacity. Our Bench-top T-type Freeze Dryer cooling system features a high-power condenser for efficient performance. Its top surface is made from 304 stainless steel, known for its corrosion resistance and sublimation process can be controlled both automatically and manually. The cold trap operates at a low temperature, and its number is accurate. It is used in laboratory-scale freeze-drying, pharmaceuticals, and biotechnology for preserving heat and moisture-sensitive materials.

Bench-top T-type Freeze Dryer LBFD-B15_Front View

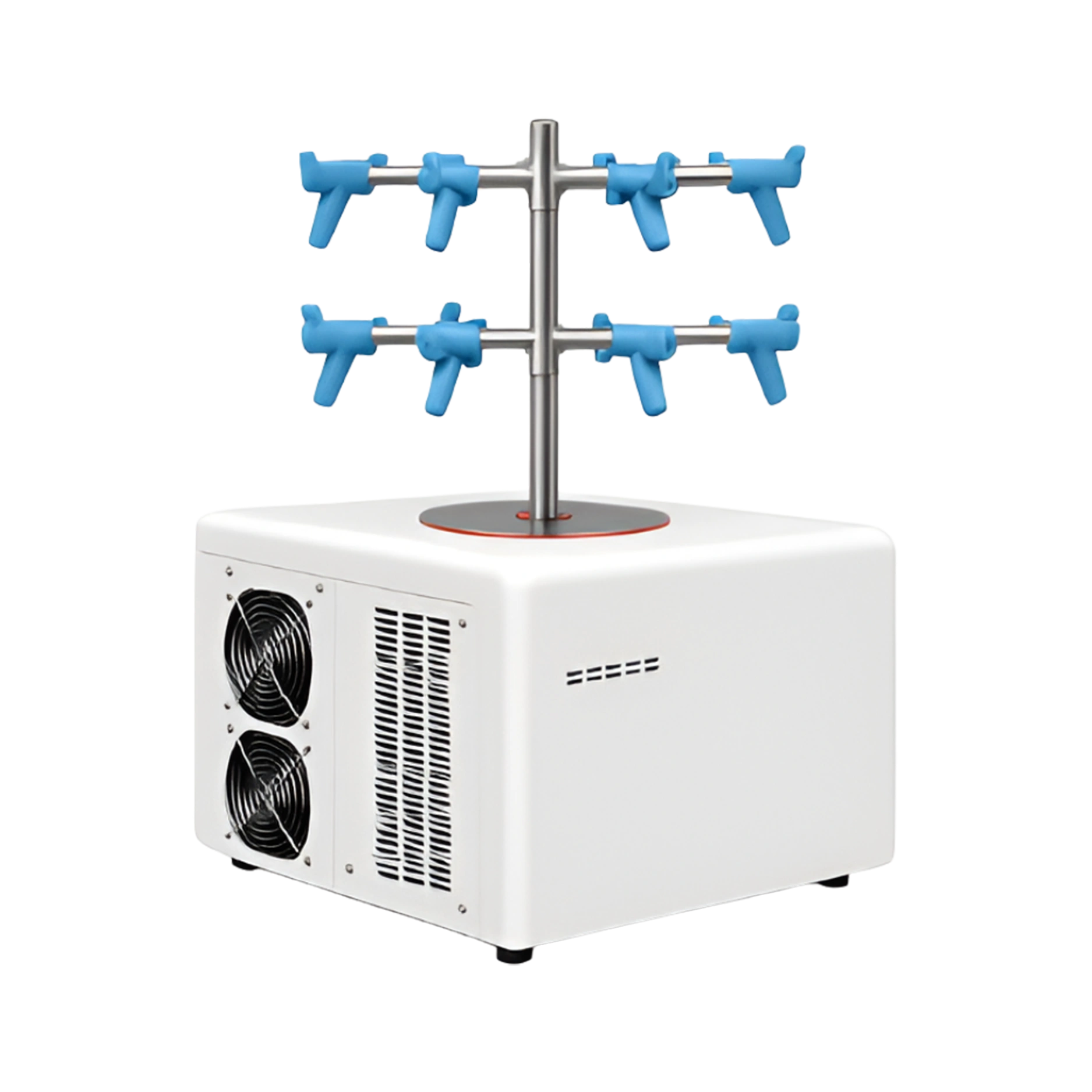

Bench-top T-type Freeze Dryer LBFD-B15_Side View

Request Quote

Drying Area	8 or 16 tubes
No-load Temperature	Min.to Less than or Equal - 68℃ (cold trap)
Cold Trap Volume	13 Liters
Ice Holding Capacity	6 Kg
24-hour Maximum Ice Holding Capacity	3 Kg
No-load Vacuum Pressure	5 Pa
Ultimate Vacuum	1Pa
Material Tray Diameter	Ø 200 mm
Shelf Spacing	60 mm（can be removed and adjusted）
Tray-loaded Solution	1.2 Liters
Installed Capacity	1.1 Kw (220V 50Hz)
Operating Noise	≤ 55dB
Ambient Temperature	Less than or Equal to 26℃
Dimension	580 × 580 × 460 mm
Weight	75 Kg

Hermetic compressor
Internal condenser coils
Curved integrated structure
Refrigeration technology
Cumulative vacuum pump operating hours

Bench-top T-type Freeze Dryer LBFD-B15 is widely used in laboratories, pharmaceuticals, and biotechnology for preserving heat and moisture-sensitive materials.

Two-stage rotary vane vacuum pump

Download catalog for
Bench-top T-type Freeze Dryer LBFD-B15 Catalog

Available Range :

Bench-top Top Press Freeze Dryer LBFD-C13 : 0.08 ㎡ Bench-top Standard Freeze Dryer LBFD-A18 : 0.09 ㎡ Bench-top Manifold Freeze Dryer LBFD-D16 : 0.09 ㎡ plus 10 tubes Bench-top Standard Freeze Dryer LBFD-A19 : 0.12 ㎡ Bench-top Manifold Freeze Dryer LBFD-D17 : 0.12 ㎡ plus 10 tubes Bench-top Standard Freeze Dryer LBFD-A23 : 0.18 ㎡ Bench-top Standard Freeze Dryer LBFD-A24 : 0.25㎡ Bench-top T-type Freeze Dryer LBFD-B13 : 8 or 16 tubes

Models of Laboratory Bench-top Freeze Dryer

Labtron Laboratory Bench-top Freeze Dryer offers compact, desktop-sized unit of temperature ranging from -50℃ to -100℃. Their moisture sensors provide accurate readings, ensuring correct monitoring throughout cycle. They offer automatic defrosting capabilities, reducing manual intervention and ensuring consistent freeze-drying efficiency. Their safety interlocks prevent accidental operation, enhancing user safety during process. Our Laboratory Bench-top Freeze Dryer is ideal for preserving sensitive biological materials like enzymes, proteins, tissues, pharmaceuticals and food samples.
