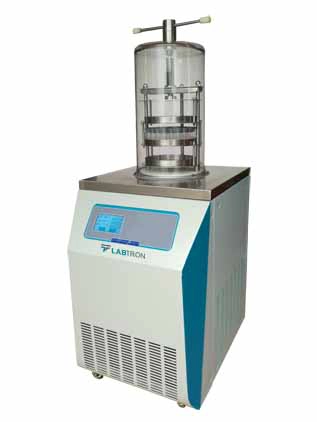

Top Press Freeze Dryer LFFD-C11 is a floor standing unit with 3 kg condenser capacity and condenser temperature of -80 °C for specimen’s containing solvents. It provides feasibility of vial lyophilization. Precise vacuum control enables faster freeze drying and reproducible results. Built in oil mist filtration system and vacuum pump oil return device helps in maintenance of vacuum pressure and prevention of oil leakage.
| Condenser temperature | - 80 °C |
| Condenser capacity | 3 kg / 24 h |
| Freeze drying area | 0.12 m² |
| Bulk capacity | 1.2 L |
| Vial capacity Φ 12 mm | 820 pieces |
| Vial capacity Φ 16 mm | 460 pieces |
| Vial capacity Φ 22 mm | 244 pieces |
| Display | LCD touch screen |
| Shelves | 4 shelves |
| Shelves dimension | Φ 240 mm |
| Final Vacuum | < 10 Pa |
| Voltage | 220 V / 50 Hz |
| Dimensions | 630 x 580 x ( 970 + 540 ) mm |
| Weight | 160 kg |
Available Range :
Condenser temperature : - 50 °C Condenser temperature : - 80 °C Condenser temperature : - 50 °C Condenser temperature : - 80 °C Condenser temperature : - 50 °C Condenser temperature : - 80 °CRelated Models :
Manifold Freeze Dryer LFFD-D10
Manifold Freeze Dryer LFFD-D11
Manifold Top Press Freeze Dryer LFFD-E10
Manifold Top Press Freeze Dryer LFFD-E11
Top Press Freeze Dryer LFFD-C10
Standard Freeze Dryer LFFD-A10
Standard Freeze Dryer LFFD-A11
Standard Freeze Dryer LFFD-A12
T-type Freeze Dryer LFFD-B10
T-type Freeze Dryer LFFD-B11
| Model | Condenser temperature | Condenser capacity | Freeze drying area | Bulk capacity | Vial capacity Φ 12 mm | Vial capacity Φ 16 mm | Vial capacity Φ 22 mm | Display | Shelves | Shelves dimension | Final Vacuum | Voltage | Dimensions | Weight |
| LFFD-D10 | - 50 °C | 3 kg / 24 h | 0.12 m² | 1.2 L | - | - | - | LCD touch screen | 4 shelves | Φ 200 mm | < 10 Pa | 220 V / 50 Hz | 580 x 500 x ( 720 + 640 ) mm | 110 kg |
| LFFD-D11 | - 80 °C | 6 kg / 24 h | 0.18 m² | 1.8 L | - | - | - | LCD touch screen | 6 shelves | Φ 240 mm | < 10 Pa | 220 V / 50 Hz | 810 x 580 x ( 950 + 450 ) mm | 185 kg |
| LFFD-E10 | - 50 °C | 3 kg / 24 h | 0.08 m² | 0.8 L | 492 pieces | 279 pieces | 147 pieces | LCD touch screen | 4 shelves | Φ 180 mm | < 10 Pa | 220 V / 50 Hz | 580 x 500 x ( 720 + 540 ) mm | 115 kg |
| LFFD-E11 | - 80 °C | 3 kg / 24 h | 0.1 m² | 1 L | 656 pieces | 372 pieces | 196 pieces | LCD touch screen | 4 shelves | Φ 180 mm | < 10 Pa | 220 V / 50 Hz | 660 x 460 x ( 710 + 430 ) mm | 190 kg |
| LFFD-C10 | - 50 °C | 3 kg / 24 h | 0.08 m² | 0.8 L | 492 pieces | 279 pieces | 147 pieces | LCD touch screen | 4 shelves | Φ 240 mm | < 10 Pa | 220 V / 50 Hz | 635 x 540 x ( 970 + 430 ) mm | 125 kg |
| LFFD-C11 | - 80 °C | 3 kg / 24 h | 0.12 m² | 1.2 L | 820 pieces | 460 pieces | 244 pieces | LCD touch screen | 4 shelves | Φ 240 mm | < 10 Pa | 220 V / 50 Hz | 630 x 580 x ( 970 + 540 ) mm | 160 kg |
| LFFD-A10 | - 50 °C | 3 kg / 24 h | 0.12 m² | 1.2 L | 820 pieces | 460 pieces | 244 pieces | LCD touch screen | 4 - 6 shelves | Φ 200 mm | < 10 Pa | 220 V / 50 Hz | 580 x 500 x ( 720 + 430 ) mm | 105 kg |
| LFFD-A11 | - 80 °C | 3 kg / 24 h | 0.18 m² | 1.8 L | 1220 pieces | 680 pieces | 348 pieces | LCD touch screen | 4 - 6 shelves | Φ 240 mm | < 10 Pa | 220 V / 50 Hz | 735 x 540 x ( 970 + 430 ) mm | 190 kg |
| LFFD-A12 | - | - | - | - | - | - | - | LCD Touch screen | 4 to 6 pcs | - | ≤ 5 pa | 220 V / 50 Hz | - | 155 kg |
| LFFD-B10 | - 50 °C | 3 kg / 24 h | - | - | - | - | - | LCD touch screen | - | - | < 5 Pa | 220 V / 50 Hz | 580 x 500 x ( 720 + 430 ) mm | 100 kg |
| LFFD-B11 | - 80 °C | 3 kg / 24 h | - | - | - | - | - | LCD touch screen | - | - | < 10 Pa | 220 V / 50 Hz | 770 x 550 x ( 720 + 430 ) mm | 155 kg |
