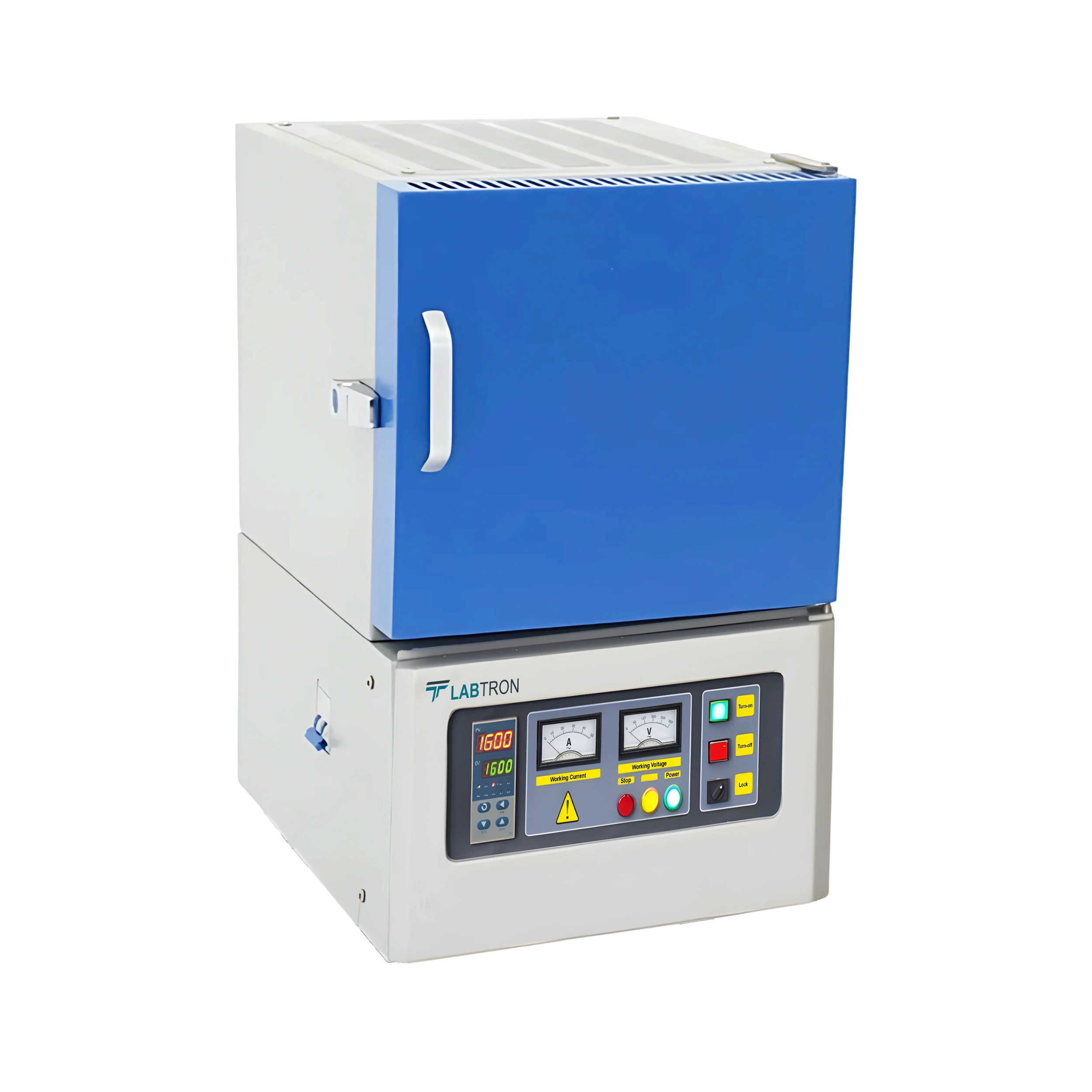

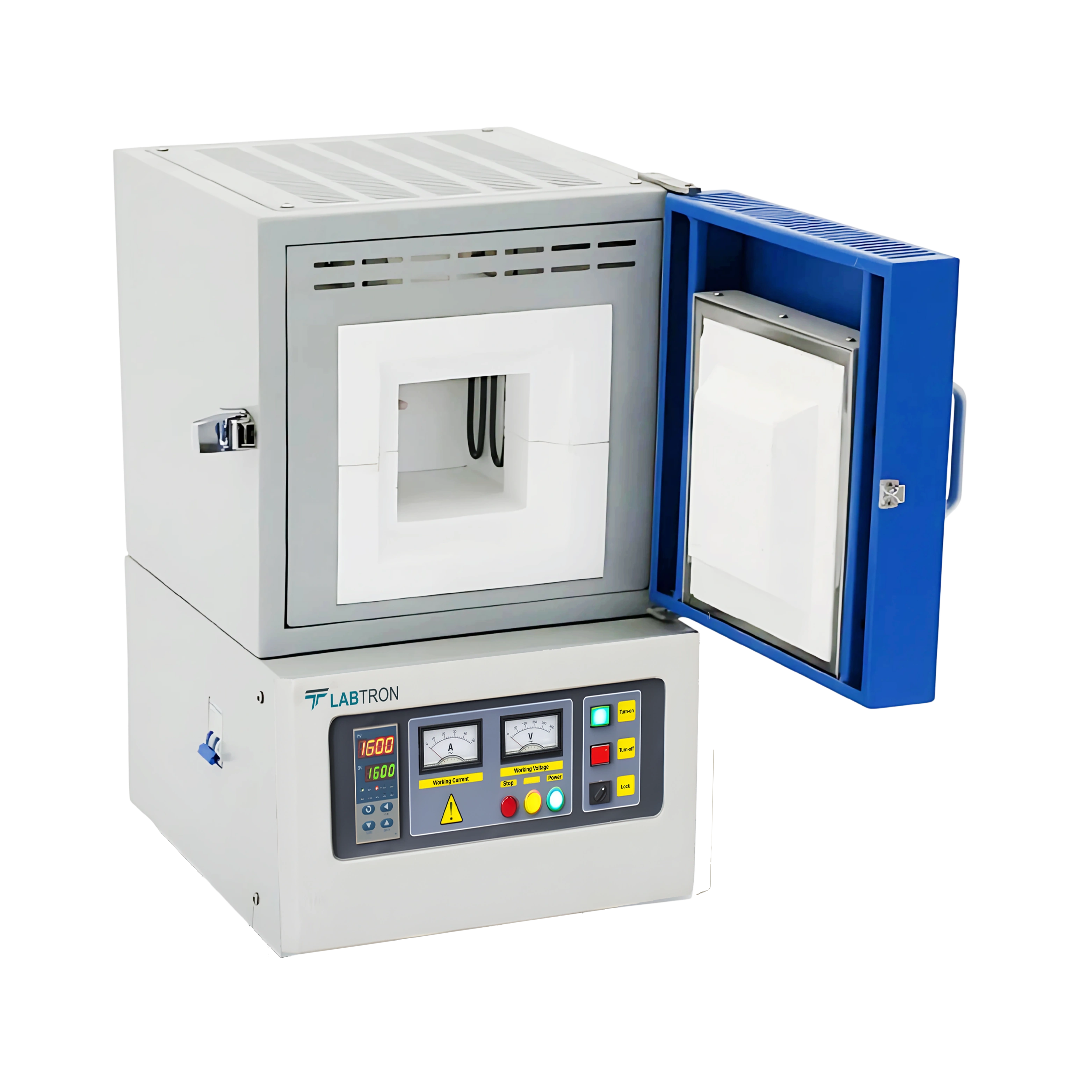

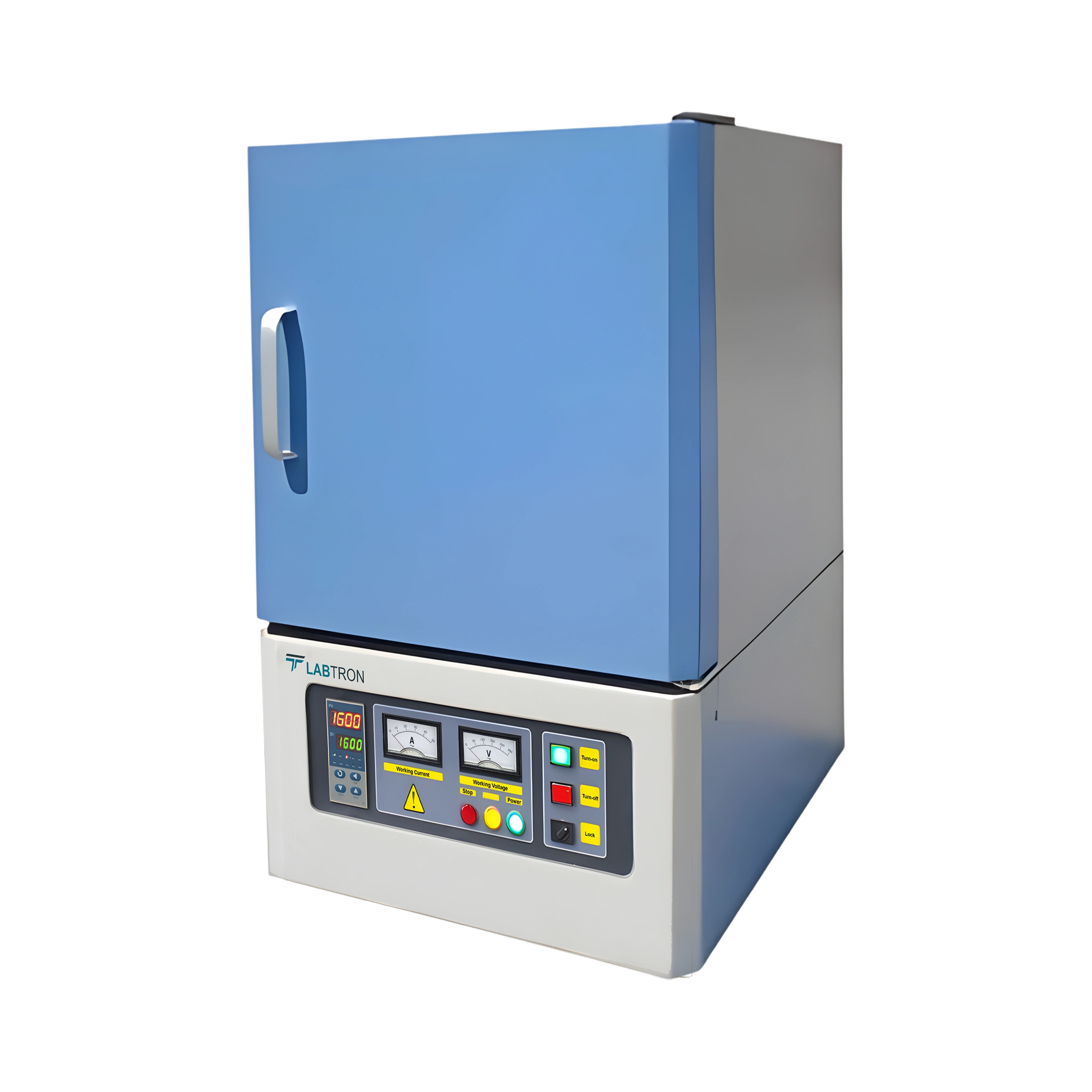

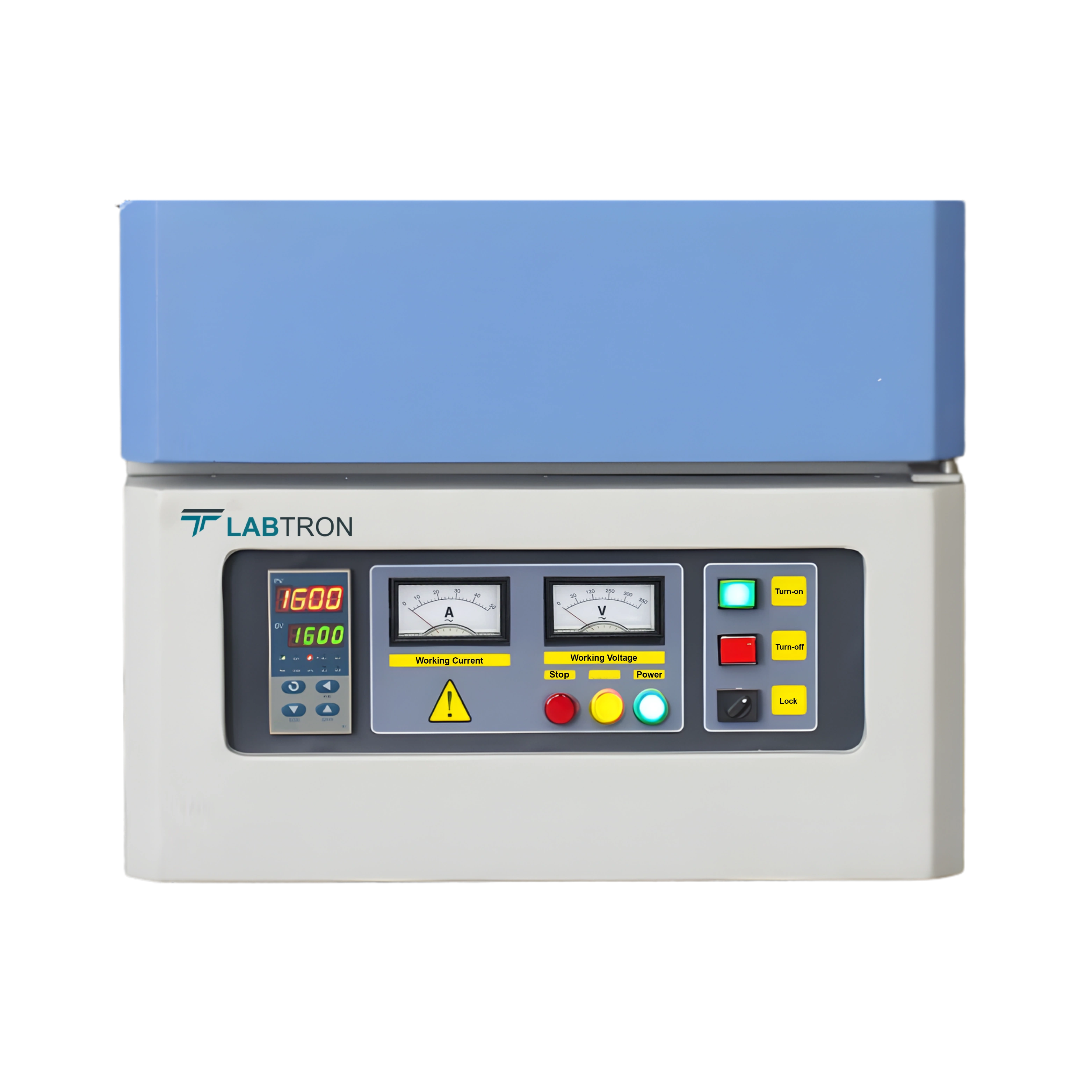

Muffle Furnace LMF-C11

Name: Muffle Furnace LMF-C11
Brand: Labtron
SKU: LMF-C11
Rating: 4.8 (932 reviews)

LMF-C11 model of Muffle Furnace is efficient, accurate and reliable microprocessor controlled furnace with optimum insulation properties and basic control options. Crafted for minimal space requirement in the laboratory, it is equipped with instantaneous energy consumption indicator, calculator for average working temperature, Total working hour counter and descriptive error indicator. With heating elements, Fe-Cr-Al embedded into bricks, dual shell housing for low outer temperature and K and S type thermocouple, it is perfect for maximum and continuous working temperature of 1200 °C.

Request Quote

Max. Temperature	1200 °C
Capacity	5 L
Heating Program	4 step
Thermal Rate	3 °C - 20 °C
Heating element	Fe-Cr-Al
Program Memories	4
Thermocouple Type	K Type
Heating Element Placement	Embedded into brick walls
Inner Insulation Material	Insulating Fire Brick
Front Face Insulation Material	Insulating Fire Brick
Door Insulation Material	Ceramic Fibre Board
Housing Material	Steel Sheet
Housing Coating	Epoxy powder coating
Chimney	Standard
Heating Element Protection	Quartz Tube
Lockable Door Handle	Sidewards
Temperature Control Accuracy	± 1 °C (can vary at low temperatures)
Measurement Accuracy	± 1 °C
Inner Volume Temperature Homogenity	± 10 °C
Max. Current	9A
Power	2.000 W
Inner Chamber Dimension (W x H x D)	150 x 150 x 225 mm
Product Outer Dimension (W x H x D)	446 x 618 x 620 mm
Gross Dimension (W x H x D)	506 x 780 x 678 mm
Net Weight	43 kg
Gross weight	57 kg

PID controller
LCD display that shows current and target temperature
Optimum insulation properties
2, 4, 8 and 16 step heating programs available
Fe-Cr-Al heating element embedded in brick walls
Accurate measurement and control of temperature using K and S type thermocouple
Second thermocouple for different adjustable purposes
Durable inside lining made of light insulating bricks
Dual shell housing for low outer surface temperature
Steel sheet housing material
Insulating fire brick as inner and front face insulation material
Ceramic fibre board as door insulation material
Quartz tube used to protect heating element
Provision of audio warning as the step changes and at the end of the program
Provision of automatic power cut-off to the heating elements and alert if the control unit/control card is over heated
Instantaneous energy consumption indicator
Calculator for average working temperature
Descriptive error indicator
User friendly menu

It is used for applications such as: Fusing glass, Creating enamel coatings, Ceramics, Soldering, Brazing, Rubbers & Polymers. It is also used for metallurgical applications, for ash content determination and in research centers and medical laboratories to determine the volatile & non-combustible proportion of the sample.

Sr. No.	Accessory
1	High Temperature Gloves
2	Tongs
3	Alumina Crucibles
4	Metal Crucibles
5	Alumina Combustion Boats
6	Ceramic pipes
7	Extra Thermocouples

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20 / 220 V fan
Chimney Fan: 40 x 40 x 10 / 5V fan

Download catalog for
Muffle Furnace LMF-C11 Catalog

Download manual for
Muffle Furnace LMF-C11 Manual

Available Range :

Muffle Furnace LMF-C41 : 1200 °C
