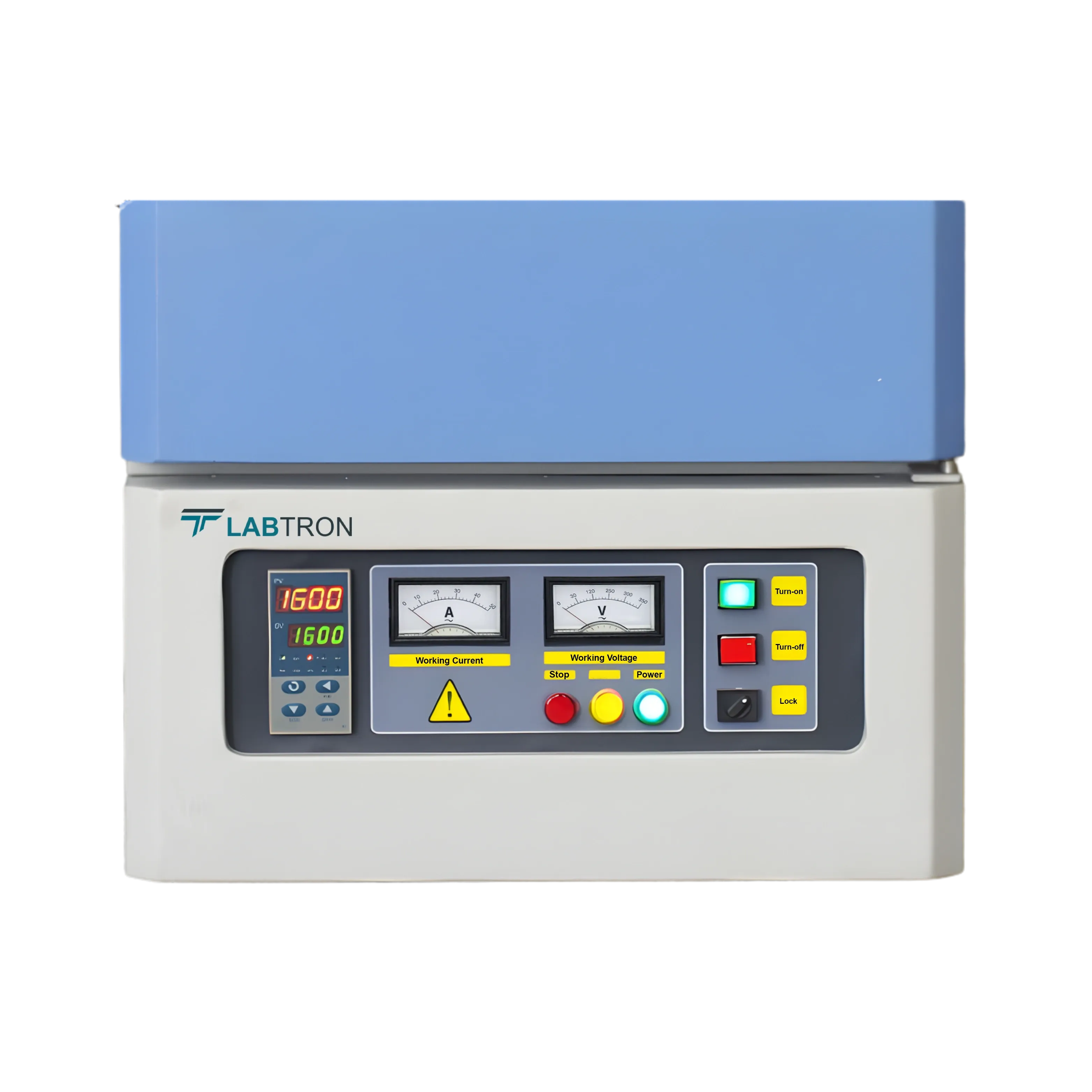

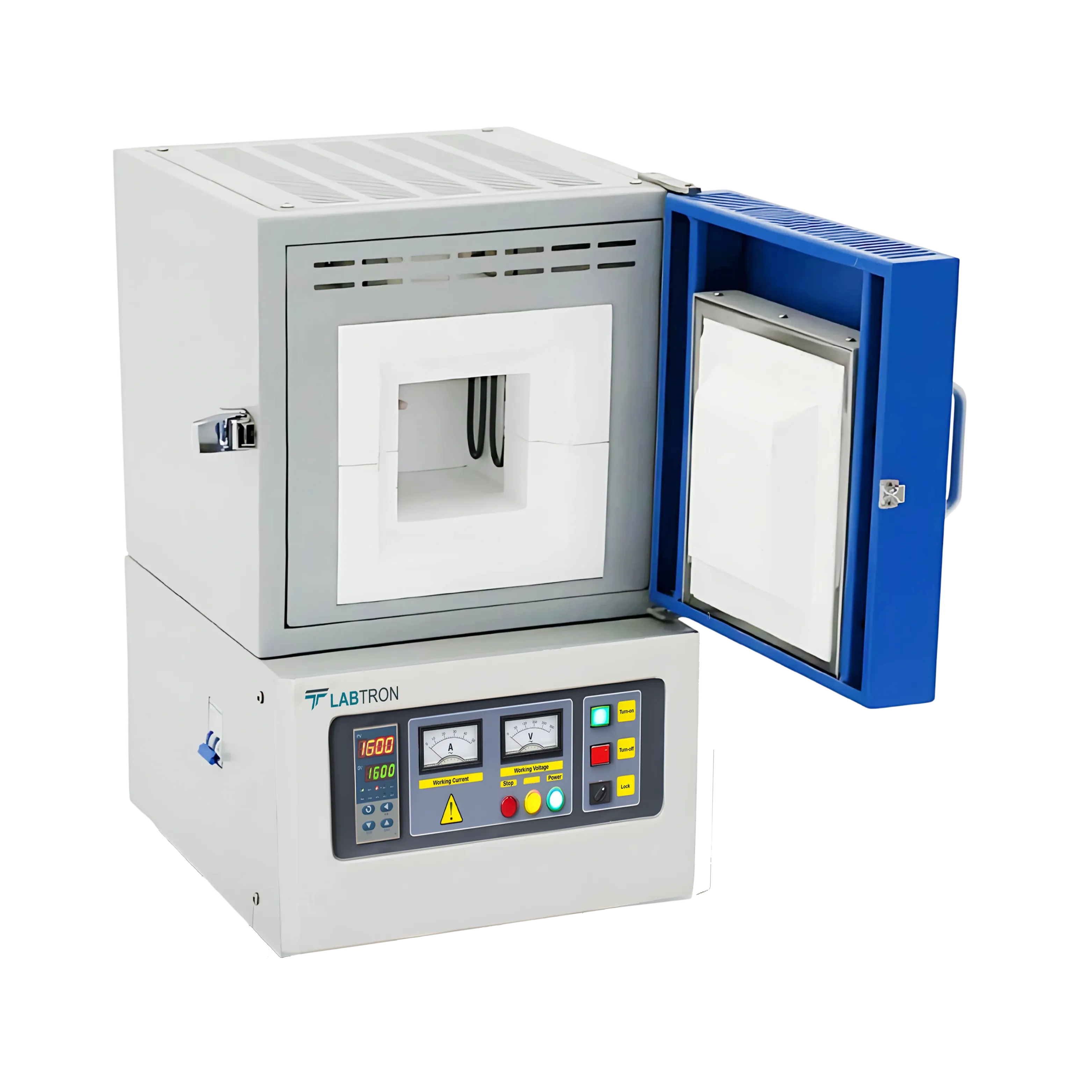

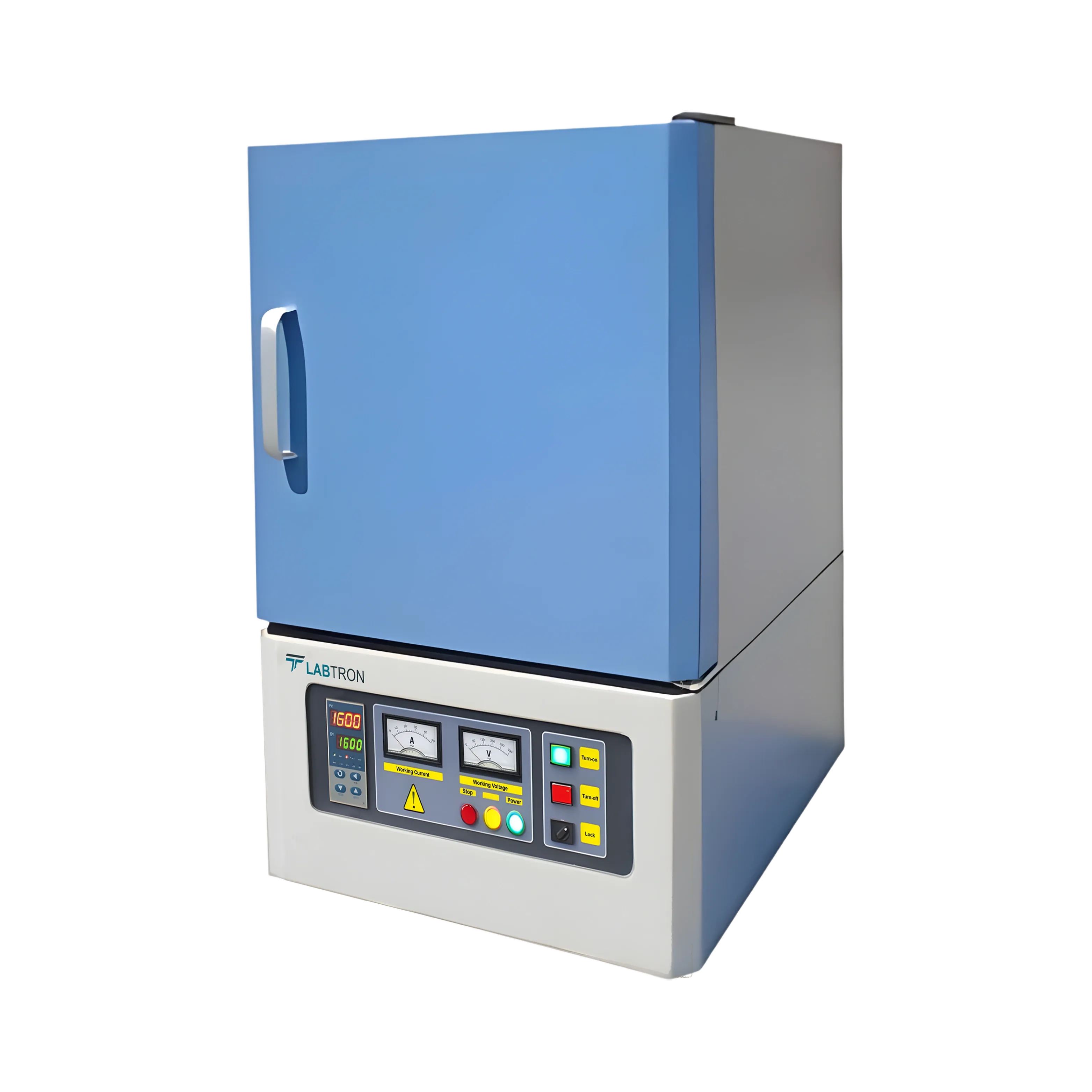

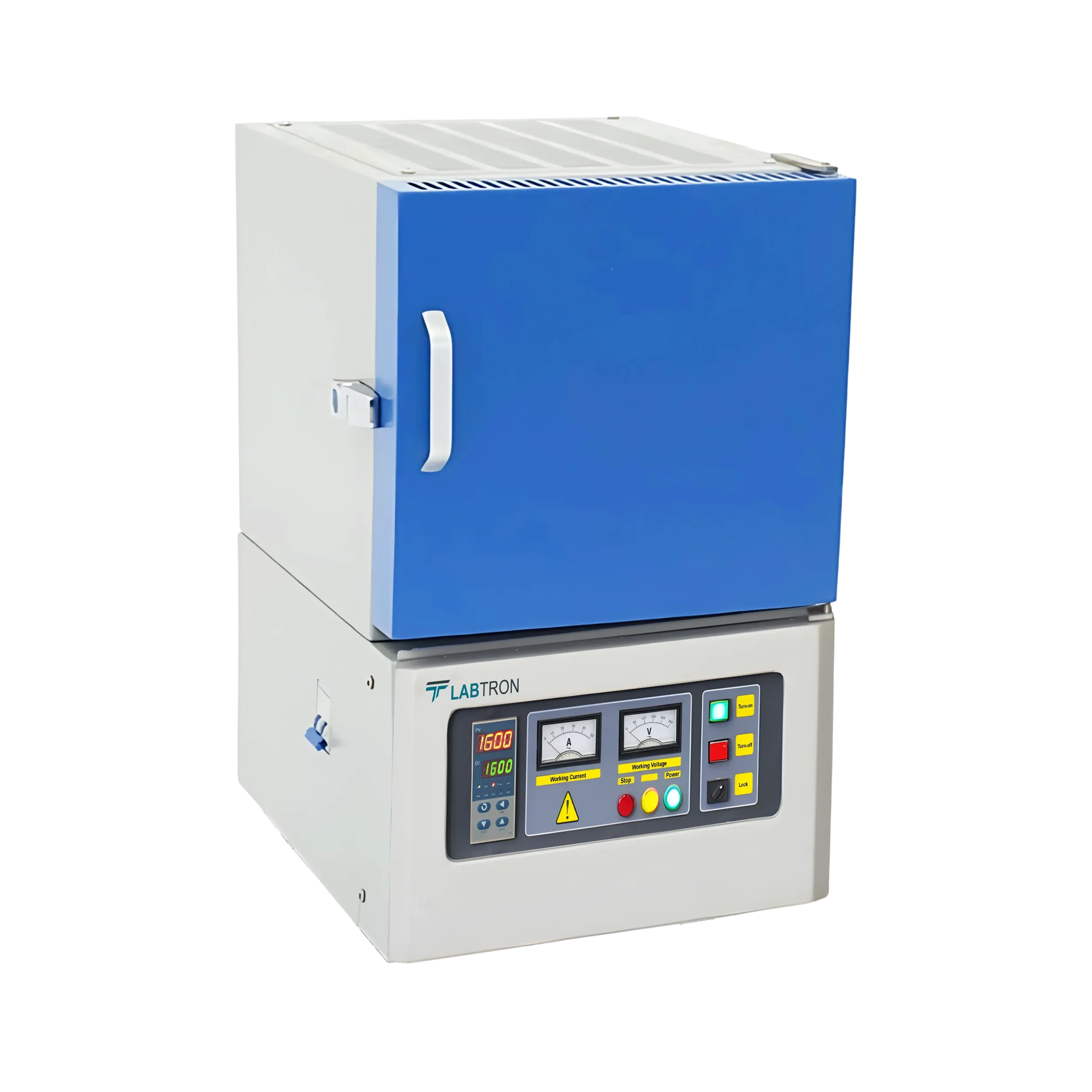

Muffle Furnace LMF-C30

Name: Muffle Furnace LMF-C30
Brand: Labtron
SKU: LMF-C30
Rating: 4.8 (897 reviews)

Muffle Furnace LMF-C30 supports a maximum temperature of up to 1200°C, allowing for precise material processing at elevated heat levels. Its sufficient internal space for medium-sized batches, ensuring efficient resource utilization. The multi-stage heating processes enable controlled temperature ramps. It features flexibility in heating speed, protecting sensitive materials from thermal shock. Our Muffle Furnace is used for glass fusing, ceramic firing, enamel coating, and metallurgical testing.

Request Quote

Max. Temperature	1200 °C
Capacity	10 L
Heating Program	50 step
Thermal Rate	3 °C to 20 °C
Heating element	Fe-Cr-Al
Program Memories	50 steps
Thermocouple Type	K Type
Heating Element Placement	External Type
Inner Insulation Material	Insulating Fire Brick
Front Face Insulation Material	Insulating Fire Brick
Door Insulation Material	Ceramic Fibre Board
Housing Material	Steel Sheet
Housing Coating	Epoxy powder coating
Chimney	Standard
Heating Element Protection	Heating element protection by resistance wires
Lockable Door Handle	Sidewards
Temperature Control Accuracy	± 1 °C (can vary at low temperatures)
Measurement Accuracy	± 1 °C
Inner Volume Temperature Homogenity	± 10 °C
Max. Current	22A
Power	5000 W
Inner Chamber Dimension (W x H x D)	200 x 180 x 300 mm
Product Outer Dimension (W x H x D)	700 x 900 x 800 mm
Gross Dimension (W x H x D)	556 x 855 x 708 mm
Net Weight	50 kg
Gross weight	67 kg

Durable heating elements
Reliable safety features
User-friendly interface
Consistent heat distribution
Real-time energy monitoring

Muffle Furnace LMF-C30 delivers precise high-temperature heating and material testing with uniform heat distribution. It is used in laboratories, research centres, metallurgy, ceramics, glasswork, and quality control applications.

Sr. No.	Accessory
1	High Temperature Gloves
2	Tongs
3	Alumina Crucibles
4	Metal Crucibles
5	Alumina Combustion Boats
6	Ceramic pipes
7	Extra Thermocouples

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20 / 220 V fan
Chimney Fan: 40 x 40 x 10 / 5V fan

Download catalog for
Muffle Furnace LMF-C30 Catalog

Download manual for
Muffle Furnace LMF-C30 Manual

Available Range :

Muffle Furnace LMF-C41 : 1200 °C Muffle Furnace LMF-C21 : 1200°C Muffle Furnace LMF-C80 : 1200℃ Muffle Furnace LMF-C33 : 1300 °C

Models of Muffle Furnace 1200°C

Labtron Muffle Furnace 1200°C features accurate measurement and control of the temperature of K- and S-type thermocouples, providing precise readings. These durable inside linings, made of light-insulating bricks, enhance heat retention and efficiency. Their insulating fire brick material is used for inner and front face insulation, further optimizing heat containment. They use a quartz tube to protect the heating element, ensuring safety. Our furnace has an automatic power cut-off to the heating elements and an alert system if the control unit/control card is overheated, ensuring performance and safety.
