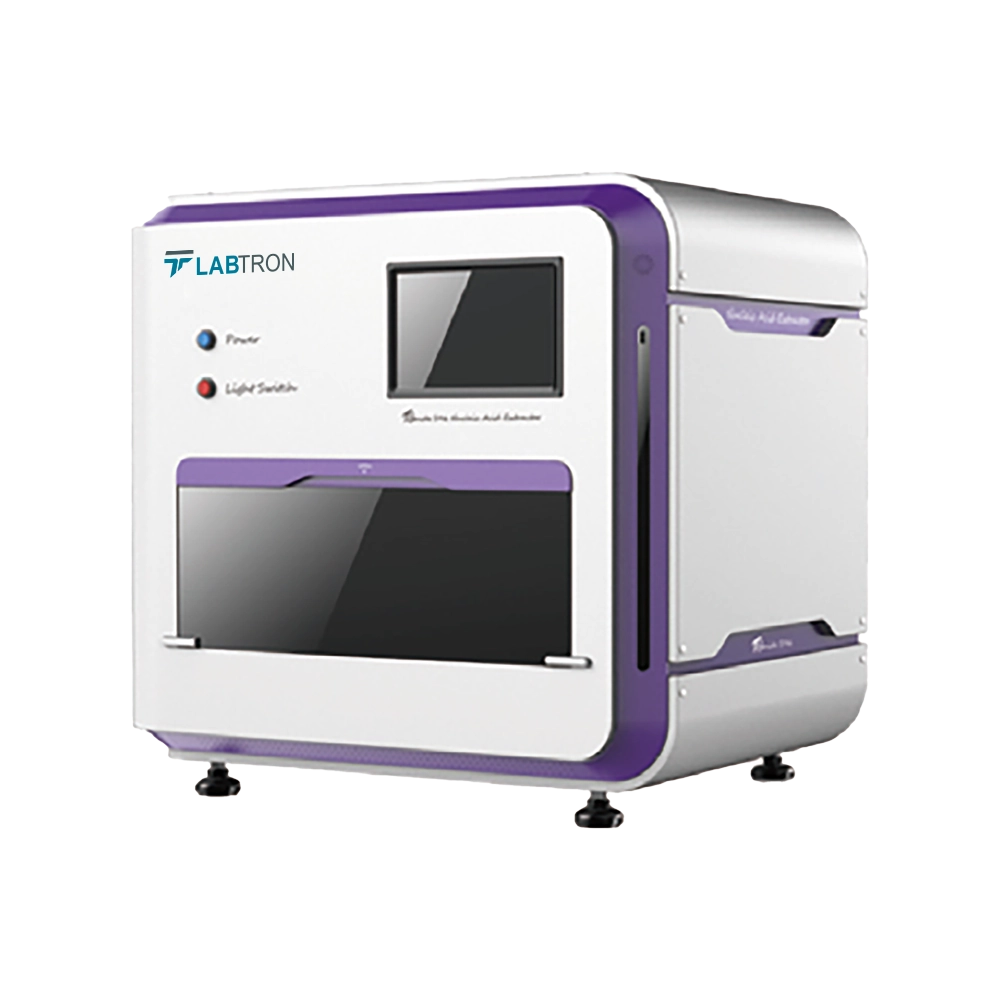

Nucleic Acid Extraction System LNES-B22

Name: Nucleic Acid Extraction System LNES-B22
Brand: Labtron
SKU: LNES-B22
Rating: 4.9 (940 reviews)

Labtron Nucleic Acid Extraction System LNES-B22 supports high-throughput processing with a sample capacity of 96 and volumes ranging from 20 to 1000 µl. It features a robust 10.1-inch touch screen with a windows control system for seamless operation. The system is equipped with advanced cross-contamination prevention features, including an aerosol prevention fan and UV sterilization module. Its innovative four-dimensional integrated movement and self-adaptive vibration amplitude ensure effective extraction. Our extraction system provides a safe and efficient nucleic acid extraction in high-volume settings.

Request Quote

Capacity	96 samples
Sample Volume	20 Sample to1000 µl
Recommended Volume	200 to 400 µl
Extraction Difference Between Wells	≤ 1%
Matching Reagent	96-Deep Well Plate prepackage reagent
Magnetic Bead Recovery	≥ 98%
Temperature Control Range	Room temperature to 80°C
Working Temperature	10℃ to 30℃
Extraction Method	Magnetic rod
Operation Interface	10.1-inch touch screen
Operation Mode	Built-in Windows control system
Data Interface	USB
Power Supply	220 VAC 50 Hz
Dimensions (W × D × H)	805 × 640 × 721 mm
Weight	140 kg

Replaceable 24-flux module option
Cycle binding
Adjustable multi-gear vibration speed
Liquid drip prevention tray
Flexible to create, edit and delete program

Our Nucleic Acid Extraction System is widely used in research laboratories, clinical diagnostics, and biotechnology facilities for the isolation and purification of DNA and RNA from various biological samples.

Download catalog for
Nucleic Acid Extraction System LNES-B22 Catalog

Models of Nucleic Acid Extraction System

Labtron Nucleic Acid Extraction System offer highly versatile magnetic-particle processing for high-throughput extraction. They efficiently isolate nucleic acid from whole blood, tissue, cells, plants, and viruses. The Extractor features a constant temperature function for optimal reaction speed and an extraction kit for reliable results. They have a user-friendly touchscreen, a built-in UV lamp, and ample data storage capacity. Our durable Nucleic Acid Extraction System is ideal for applications in diagnostic kits and research laboratories.
