LCD Overhead Stirrer LOSR-D10

LCD Overhead Stirrer LOSR-D10

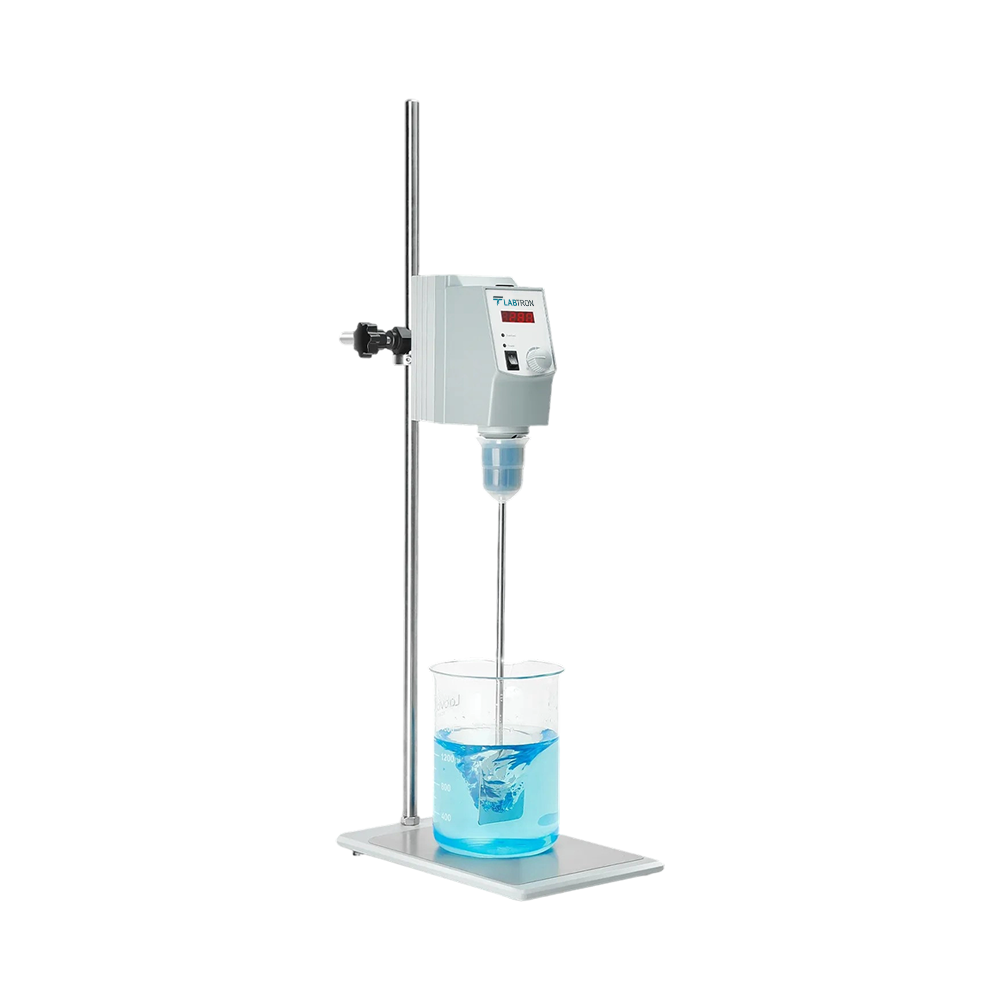

LCD Overhead Stirrer LOSR-D10 supports a maximum stirring volume of 20 liters for water-based media. It features a brushless DC motor operating within a speed range of 50 to 2200 rpm. The unit delivers a maximum torque of 40 N·cm and handles viscosities up to 10,000 mPa·s. LCD displays provide clear feedback on speed, torque, and overload protection status. Ideal for gentle mixing tasks in low to medium viscosity laboratory samples.

LCD Overhead Stirrer LOSR-D10
LCD Overhead Stirrer LOSR-D10
LCD Overhead Stirrer LOSR-D10
LCD Overhead Stirrer LOSR-D10
Request Quote
Max. Stirring Quantity [H₂O] 20 L
Speed Range 50 to 2200 rpm
Maximum Torque 40 N·cm
Maximum Viscosity 100,000 mPa·s
Motor Type Brushless DC motor
Speed Display LCD
Overload Protection Display LCD
Chuck Range Diameter 0.5 to 10 mm
Permissible Ambient Temperature 5 to 40 °C
Permissible Ambient Humidity 80% RH
Protection Class IP21
Motor Input Power 60 W
Motor Output Power 50 W
Power 70 W
Voltage, Frequency 100–240 V, 50/60 Hz
Dimension (W×H×D) 83 × 220 × 186 mm
Weight 2.8 kg
Gross Weight 5 Kg
  • Anti-slip chuck system

  • Long service brushless motor

  • Fanless low-noise operation

  • Multi-speed control algorithm

  • IP21 rated housing

  • Compact vertical design

Our LCD Overhead Stirrer LOSR-D10 is well-suited for routine mixing of low-viscosity reagents in academic labs. It’s ideal for preparing buffers, dilutions, and light chemical blends where precise control is required.

Accessory NameQuantity
Universal plate stand1
Crossed stirrer1
Accessory NameQuantity
Straight stirrer1 pc
Blade stirrer1 pc
Centrifugal stirrer1 pc
Spill-proof crossed stirrer1 pc
Flat-blade stirrer1 pc
Radial-flow stirrer1 pc
Anchor stirrer1 pc
Spiral stirrer1 pc
Overhead chuck1 pc
Self-locking drill chuck1 pc
Container locking mechanism1 pc
Stirrer tool 1 set

Models of Overhead Stirrer

Labtron Overhead Stirrer is specialized to agitate larger volume liquids. Their motors provide 50rpm to 6000rpm speed ensuring uniform mixing throughout process. They include various types of blades, optimized for different viscosities and fluid types. Their safety features include automatic shut-off in case of overload or malfunction. Our Overhead Stirrer is used for blending sauces in food industry, creams and lotion in cosmetics and dispersion of pigments.

Overhead Stirrer LOSR-E11

Overhead Stirrer LOSR-E11

  • Maximum stirring volume (H₂O) : 40 L
  • Stirring speed : 50 to 2200 rpm
  • Control accuracy of stirring speed : ±1 rpm
  • Ambient temperature : 5 to 40°C
Overhead stirrer LOSR-A11

Overhead stirrer LOSR-A11

  • Max. stirring capacity H₂O : 20 L
  • Speed range : 100 to 2500 rpm
  • Maximum torque : 40 ncm
  • Maximum viscosity : 10000 cps
Overhead Stirrer LOSR-A15

Overhead Stirrer LOSR-A15

  • Max. Viscosity : 10000 mPas
  • Max. Torque : 20 N.cm
  • Max. Capacity : 10 L
  • Speed : 100 to 1000 rpm
LCD Overhead Stirrer LOSR-D11
LCD Overhead Stirrer LOSR-D11
  • Max. Stirring Quantity [H₂O] : 40 L
  • Speed Range : 50 to 2200 rpm
  • Maximum Torque : 60 N·cm
  • Maximum Viscosity : 50,000 mPa·s
LED Overhead Stirrer LOSR-C11
LED Overhead Stirrer LOSR-C11
  • Max. stirring quantity [H₂O] : 40 L
  • Speed range : 50 to 2200 rpm
  • Maximum torque : 60 N·cm
  • Maximum Viscosity : 50000 mPa·s
Overhead Stirrer LOSR-E15

Overhead Stirrer LOSR-E15

  • Maximum stirring volume (H₂O) : 60 L
  • Stirring speed : 50 to 1200 rpm
  • Control accuracy of stirring speed : ±3 rpm
  • Ambient temperature : 5 to 40°C
Overhead Stirrer LOSR-E14

Overhead Stirrer LOSR-E14

  • Maximum stirring volume (H₂O) : 40 L
  • Stirring speed : 50 to 2200 rpm
  • Control accuracy of stirring speed : ±3 rpm
  • Ambient temperature : 5 to 40°C
Overhead Stirrer LOSR-E12

Overhead Stirrer LOSR-E12

  • Maximum stirring volume (H₂O) : 60 L
  • Stirring speed : 50 to 1200 rpm
  • Control accuracy of stirring speed : ±1 rpm
  • Ambient temperature : 5 to 40°C
LCD Overhead Stirrer LOSR-D10 FAQ's
  • The LCD Overhead Stirrer LOSR-D10 is well-suited for routine mixing of low-viscosity liquids in research and academic labs. Its compact build allows convenient placement on standard lab benches. The unit supports continuous operation for day-to-day applications without overheating. Lab professionals often use it to mix solvents, buffers, or reagent solutions consistently. Its intuitive interface makes it easy to set up and use across various protocols.

  • The LCD Overhead Stirrer LOSR-D10 is designed for general-purpose mixing and can safely handle many common lab solutions. Its sealed motor reduces risk of contamination or exposure during operation. While suitable for basic chemical media, use in fume hoods is recommended when handling volatile or corrosive substances. The unit includes built-in overload protection to maintain safe operation.

  • Our LCD Overhead Stirrer LOSR-D10 has a smooth exterior and enclosed motor, which simplifies post-use cleaning. Users can wipe down the body with a mild detergent or alcohol-based solution. The chuck and shaft area are accessible, allowing removal of residues with minimal effort. It’s important to avoid direct liquid exposure to the control panel during cleaning.

  • Labtron’s LCD Overhead Stirrer LOSR-D10 can support extended operation under light to moderate mixing loads. The fanless design ensures quiet performance during long procedures. However, users are advised to monitor the unit during prolonged use, especially when used near its maximum mixing volume. Allowing occasional cooldowns between long sessions extends the equipment’s working life.

  • The LCD Overhead Stirrer LOSR-D10 is ideal for general chemistry labs, academic teaching spaces, and research setups. It is most effective when used with aqueous solutions and light reagents. Its simplicity and consistency make it a reliable tool in labs requiring repeatable mixing tasks. Limited bench space environments will benefit from its compact footprint.
