Pilot Standard Freeze Dryer LPFD-E13

Name: Pilot Standard Freeze Dryer LPFD-E13
Brand: Labtron
SKU: LPFD-E13
Rating: 4.9 (925 reviews)

Pilot Standard Freeze Dryer LPFD-E13 features stainless steel chamber with 25L capacity. Both pre-freezing and drying operations are completed directly on the integrated shelf surface. Equipped with a nitrogen inflation valve to support controlled atmosphere freeze-drying processes. Shelf temperature can be adjusted and regulated automatically through programmable control system. Ideally used for formulation development, stability studies and preservation of biological materials.

Pilot Standard Freeze Dryer LPFD-E13_Front View

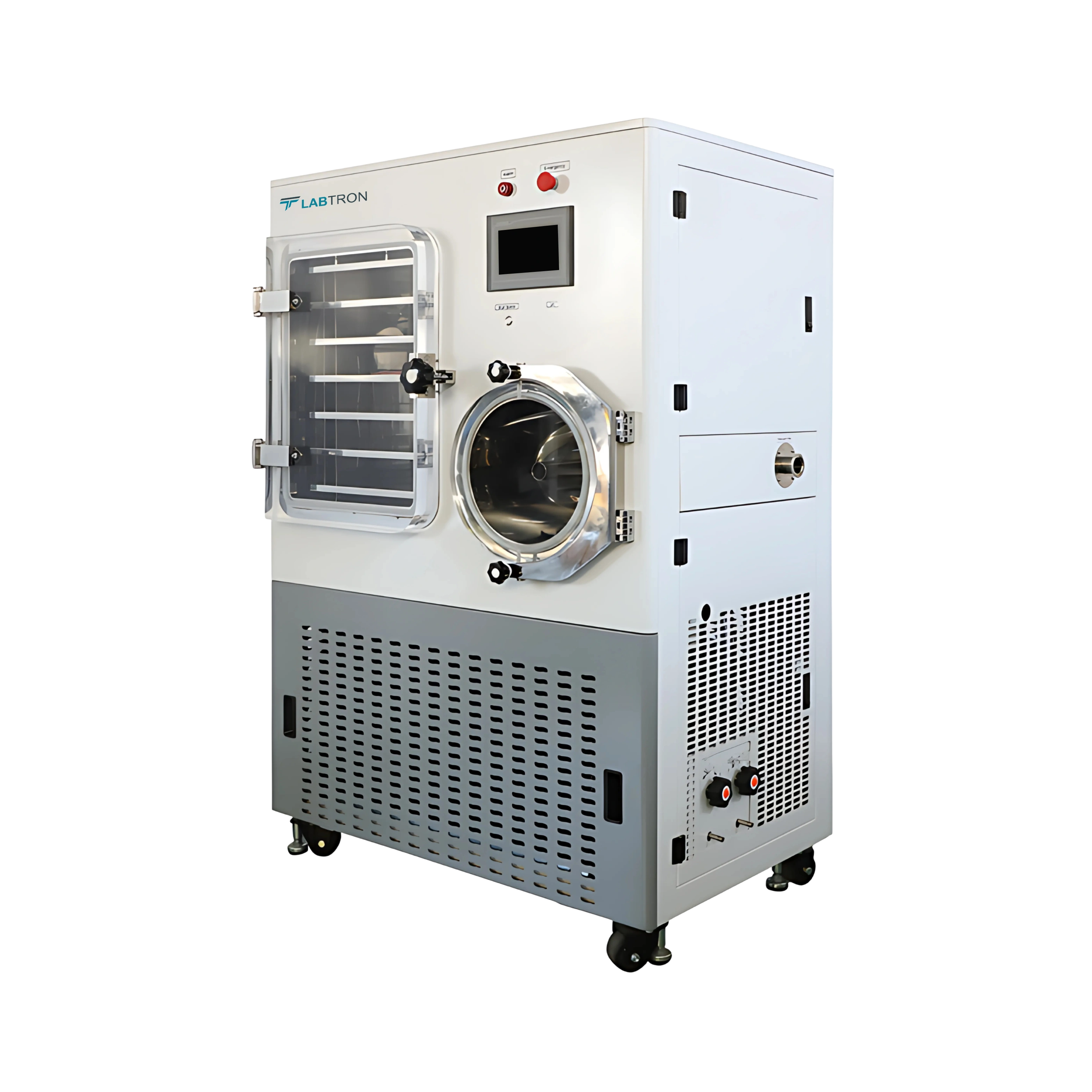

Pilot Standard Freeze Dryer LPFD-E13_Side View

Pilot Standard Freeze Dryer LPFD-E13_Back View

Request Quote

Maximum Water-Capture Capacity	25 kg
Minimum Temperature of Condenser	≤ -86℃
Freeze Drying Area	1.0 m2
Number of Shelves	6+1 (top shelf for heat compensation)
Temperature Scope of Shelf	-55℃ To +70℃
Shelf Temperature Error	±1℃ (+20℃ to -20℃) In Balance
Shelf Spacing	70mm
Roughness of Shelf	Ra≤0.4um
Final Vacuum Degree	≤1Pa（No-Load）
Style of Cooling	Fan Cooling
Power Consumption	8 Kw
Power Supply	380V/50Hz/3 Phases
Shelf Dimension	360mm × 480mm × 17mm
Exterior Dimension	1170mm × 830mm × 1670mm
Weight	About 1200 Kg

Polyurethane Foam Insulation
Pt-100 temperature sensor
Shelf-wise Sensor
AISI 304 Stainless Steel
Auto Electric Defrosting
ORV30 Vacuum Pump
Dual Refrigeration

Our Pilot Standard Freeze Dryer LPFD-E13 is ideally used across pharma, biotech, food, chemical, and research sectors for preservation of biological materials, formulation development, drying of heat-sensitive materials and stability evolutions of chemicals.

Condenser of minimum temperature -110℃

Download catalog for
Pilot Standard Freeze Dryer LPFD-E13 Catalog

Models of Pilot Freeze Dryer

Labtron Pilot Freeze Dryer is specialized to remove moisture from material while preserving its structure and biochemical properties. They are equipped with condenser working at temperature ranging from -70℃ to -80℃. Their automatic defrost cycles reduce manual intervention and streamline maintenance procedures. They utilize vacuum technology to preserve quality of sensitive materials during drying process. Our Pilot Freeze Dryer is efficient for pharmaceuticals, food storage, and research applications.

Pilot Standard Freeze Dryer LPFD-G10

Drying Area : 0.16 ㎡
Shelf Temperature : -45 to +50 ℃
Shelf Temperature Limit : Less than or Equal to -55℃ (no-load)
Shelf Temperature Uniformity : ±1℃ (under stabilized state)

Compare Remove

Pilot Standard Freeze Dryer LPFD-F14

Condenser Temperature : Less than or equal to -60°C
Layer Temperature Accuracy : Less than or equal to ±1°C
Shelf Temperature : -40°C to +80°C
Minimum Layer Temperature : Less than or equal to -40°C

Compare Remove

Pilot Top Press Freeze Dryer LPFD-D11

Condenser Temperature : - 70 °C
Condenser Capacity : 15 kg / 24 h
Freeze Drying Area : 1.15 m²
Bulk Capacity : 11 L

Compare Remove

Pilot Standard Freeze Dryer LPFD-B14

Drying Area : 1 m²
Shelf Temperature : -50 to +60 ℃
Shelf Temperature Limit : Less than or Equal to -55℃ (no-load)
Shelf Temperature Uniformity : ±1℃ (under stabilized state)

Compare Remove

Pilot Standard Freeze Dryer LPFD-D10

Condenser Temperature : - 70 °C
Condenser Capacity : 15 kg / 24 h
Freeze Drying Area : 1 m²
Bulk Capacity : 10 L

Compare Remove

Pilot Standard Freeze Dryer LPFD-F21

Equipment Appearance and Structure : Vertical unit (cylindrical material chamber)
Drying Area : 0.3 m²
Shelf Temperature : -45 to +50 ℃
Shelf Temperature Limit : Less than or Equal to -55℃ (no-load)
