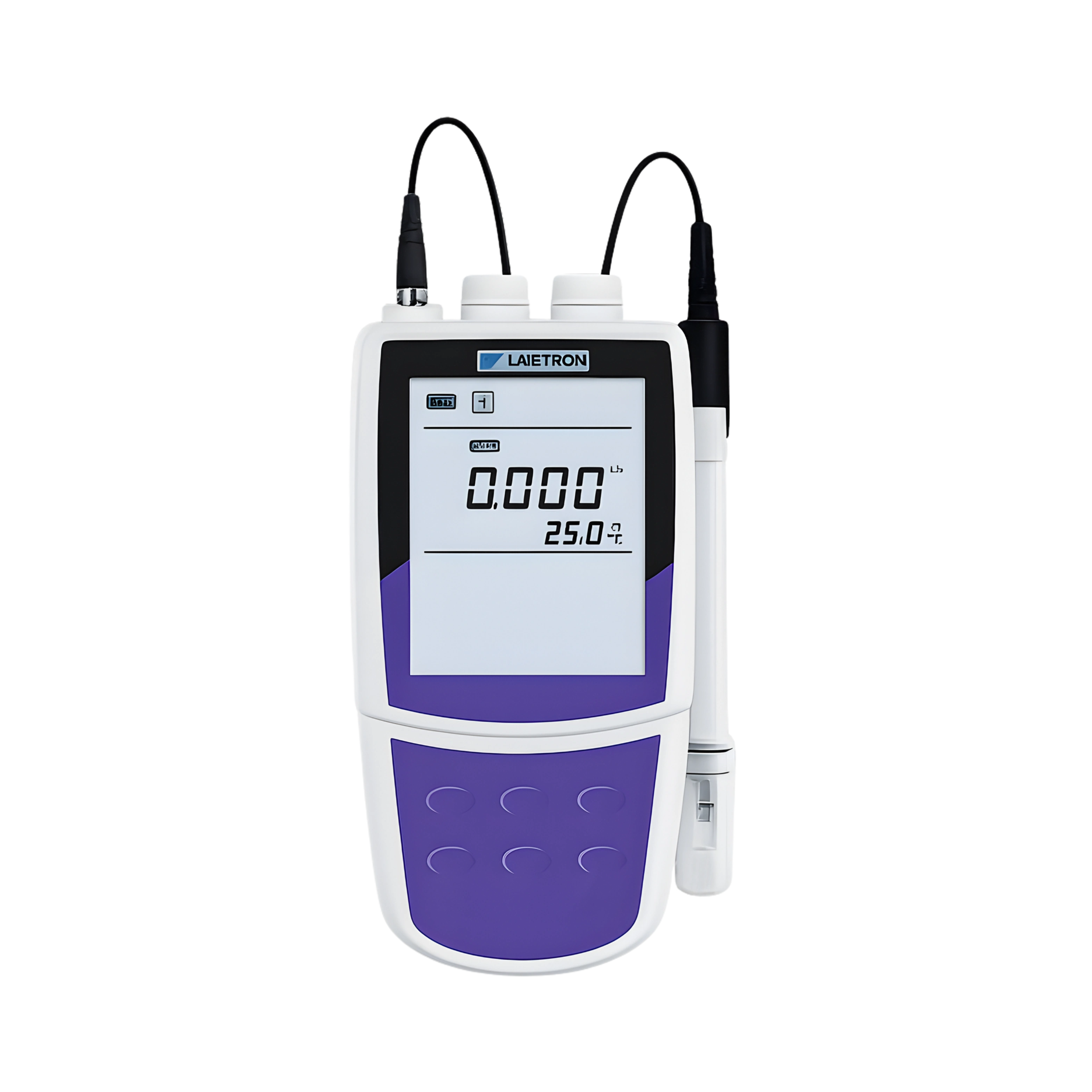

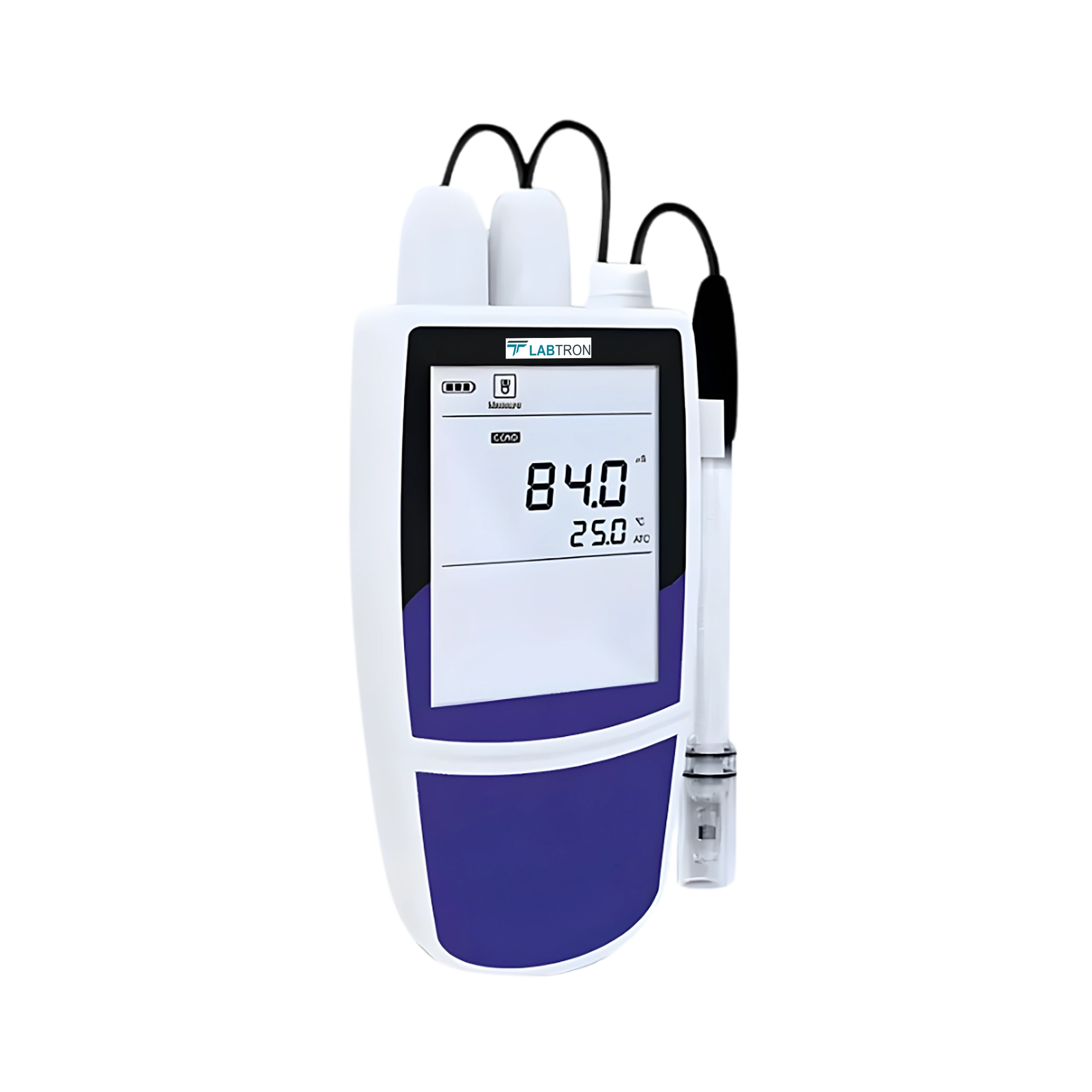

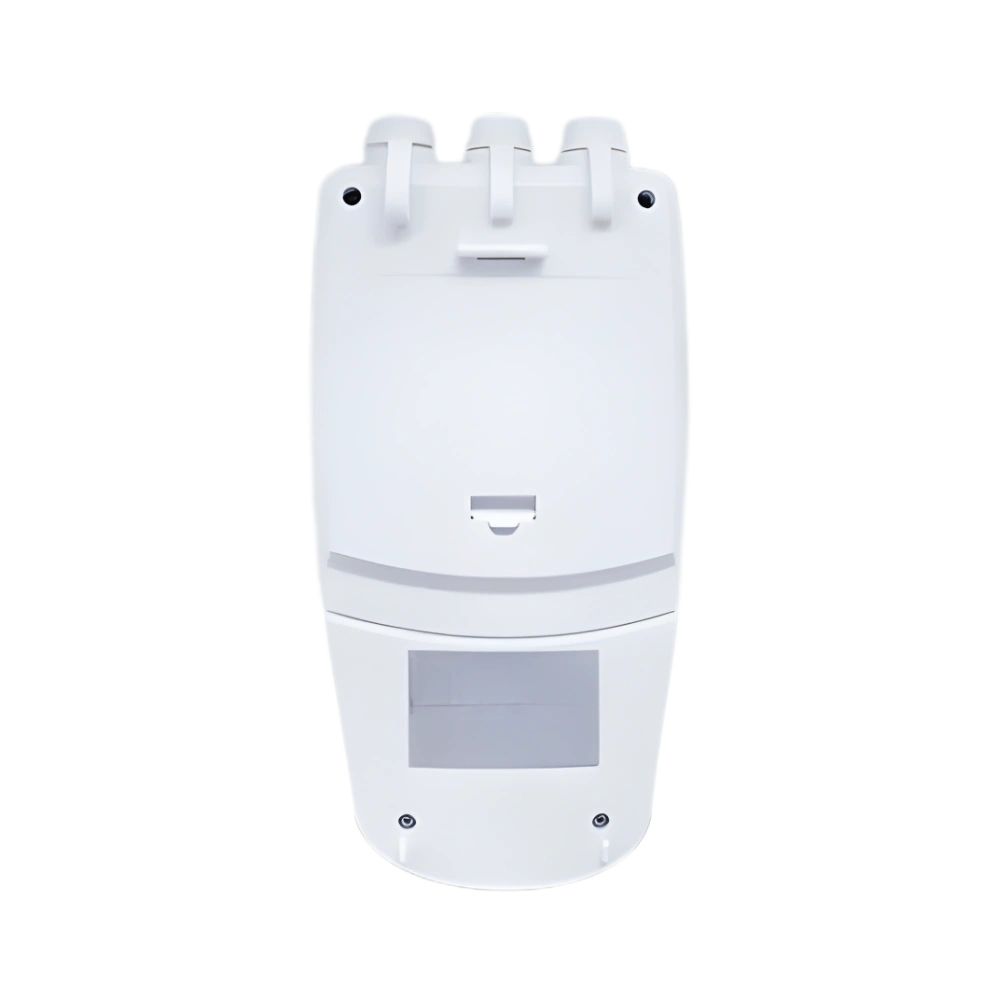

Portable Conductivity Meter LPCM-A10

Name: Portable Conductivity Meter LPCM-A10
Brand: Labtron
SKU: LPCM-A10
Rating: 4.8 (707 reviews)

Portable Conductivity Meter LPCM-A10 is adapted for measuring quality of water on parameter such as conductivity and TDS. Due to its portable design, it is suitable for outdoor measurements i.e. on site water testing, remote area water testing and for research purpose. It is reliable and user friendly.

Request Quote

Conductivity

Conductivity measurement range	0.01 to 20.00, 200.0, 2000 µS/cm, 20.00, 200 mS/cm
Conductivity accuracy	±0.5% F.S
Conductivity calibration points	1 to 3 points
Conductivity calibration solutions	10 µS/cm, 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm or Custom
Conductivity resolution	0.001, 0.01, 0.1, 1

Temperature

Temperature measuring range	0 105 °C, 32 to 221 °F
Temperature measuring accuracy	± °0.5 C, ± 0.9 °F
Temperature calibration points	1 point
Temperature resolution	0.1 °C, 0.1 °F

Temperature compensation

0 to 100 °C, 32 to 212 ° F, Manual or Automatic

Temperature coefficient

Linear

Reference temperature

25 °C

Stability conditions

Low or high

Cell constant

K= 0.1, 1, 10 or custom

Calibration due

1 to 31 days or off

Memory

100 data sets

Data hold

Manual or auto-end point

Connector

6 pin mini plug

Power Control

Manual or Automatic (10, 20 or 30 minutes after last key pressed)

Power

3 × 1.5 V AA batteries or DC 5 V power adapter

Dimension (L × W × H)

170 × 85 × 30 mm

Weight

300 g

Common features
Calibration due reminder informs operator to calibrate the meter regularly
Stability indicator displays the status of current measurement
Auto hold function freezes stable, ﬁnal readings for better viewing and recording
1 to 3 points push button calibration to automatically identify calibration solutions
Selectable temperature units (°C or °F) for different application requirements
Expanded memory stores and recalls up to 500 readings
Calibration report provides details of calibration standard and cell constant
Help message as an operational guide, helps users for quick access to the parameters
Reset function automatically resumes all settings back to factory default options
Store data is transferrable into computer via USB communication interface
Conductivity / Temperature
Conductivity: 1 to 3 point calibration with automatically identification of calibration solutions
Temperature: Can select cell constant (0.1/1/10) and normalization temperature 25°C
Linear compensation improves the measurement accuracy

Used for quality testing of water on different parameters in research and development labs, water resources and plants in nearby or remote area.

Number of accessories	Accessories name
1	Conductivity electrode (range: 10 µS/cm to 10 mS/cm)
2	Temperature probe
3	Standard calibration solutions (84 µS/cm, 1413 µS/cm, 12.88 mS/cm)
4	Carrying case

Number of accessories	Accessories name
1	Conductivity electrode for general application
2	Conductivity electrode (K= 0.1): Suitable for measuring the low conductivity liquids ( <10 µS/cm ) for pure water
3	Conductivity electrode (K= 10): Suitable for measuring the high conductivity liquids ( >20 mS/cm ) for sea water

Download catalog for
Portable Conductivity Meter LPCM-A10 Catalog

Available Range :

Portable Conductivity Meter LPCM-A10 :

Conductivity measurement range	0.01 to 20.00, 200.0, 2000 µS/cm, 20.00, 200 mS/cm
Conductivity accuracy	±0.5% F.S
Conductivity calibration points	1 to 3 points
Conductivity calibration solutions	10 µS/cm, 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm or Custom
Conductivity resolution	0.001, 0.01, 0.1, 1

Portable Conductivity Meter LPCM-A11 :

Conductivity measurement range	0.01 to 20.00, 200.0, 2000 µS/cm, 20.00, 200 mS/cm
Conductivity accuracy	±0.5% F.S
Conductivity calibration points	1 to 5 points
Conductivity calibration solutions	10 µS/cm, 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm or Custom
Conductivity resolution	0.001, 0.01, 0.1, 1

Portable Conductivity Meter LPCM-C10

Conductivity Measuring Range : 0.00 to 19.99 μS/cm20.0 to 199.9 μS/cm 200 to 1999 S/cm2.00 to 19.99 mS/cm20.0 to 199.9 mS/cmTDS: 0 to 100 g/LSalinity: 0 to 100 pptResistivity: 0 to 100 MΩ∙cm
Conductivity Resolution : 0.01/0.1/1μS/cm; 0.01/0.1 mS/cm
Conductivity Accuracy : ± 1.0% F S, Overall: ± 1.5% F S
Conductivity Temperature Compensation : 0 to 100℃ (Auto/manual)

Compare Remove

Portable Conductivity Meter LPCM-B10

Conductivity Measurement Range : 0.00 μS/cm to 100 mS/cm (0.0 to 2.0 μS/cm., 0.2 to 20.0 μS/cm, 0.00, 2 to 10,000 μS/cm, 10,000 to 100,000 μS/cm)
Conductivity Accuracy : ± 1.0% F.S
Stability : ±0.7% F.S / 3h
Temperature Compensation : Manual (15℃ to 35℃)

Compare Remove

Portable Conductivity Meter LPCM-A12

Conductivity : Conductivity measurement range0.01 to 20.00, 200.0, 2000 µS/cm, 20.00, 200 mS/cmConductivity accuracy±0.5% F.SConductivity calibration points1 to 5 pointsConductivity calibration solutions10 µS/cm, 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm or CustomConductivity resolution0.001, 0.01, 0.1, 1
Salinity : Salinity range0.00 to 80.00 ppt, 0.00 to 42.00 psuSalinity accuracy±1% F.SSalinity measurement modesPractical Salinity (psu) or Natural Seawater (ppt)Salinity resolution0.01, 0.1, 1
Temperature : Temperature measuring range0 105 °C, 32 to 221 °FTemperature measuring accuracy± °0.5 C, ± 0.9 °FTemperature calibration points1 pointTemperature resolution0.1 °C, 0.1 °F
Temperature compensation : 0 to 100 °C, 32 to 212 ° F, Manual or Automatic

Compare Remove

Portable Conductivity Meter LPCM-A11

Conductivity : Conductivity measurement range0.01 to 20.00, 200.0, 2000 µS/cm, 20.00, 200 mS/cmConductivity accuracy±0.5% F.SConductivity calibration points1 to 5 pointsConductivity calibration solutions10 µS/cm, 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm or CustomConductivity resolution0.001, 0.01, 0.1, 1
TDS : TDS range0 to 10.00, 100.0, 1000 ppm, 10.00, 100 ppt (Max. 200 ppt)TDS accuracy±1 % F.STDS factor0.01 to 1.00 (Default 0.5)TDS resolution0.01, 0.1, 1
Temperature : Temperature measuring range0 105 °C, 32 to 221 °FTemperature measuring accuracy± °0.5 C, ± 0.9 °FTemperature calibration points1 pointTemperature resolution0.1 °C, 0.1 °F
Temperature compensation : 0 to 100 °C, Manual or Automatic

Compare Remove

Portable Conductivity Meter LPCM-A13

Conductivity : Conductivity measurement range0.01 to 20.00, 200.0, 2000 µS/cm, 20.00, 200 mS/cmConductivity accuracy±0.5% F.SConductivity calibration points1 to 5 pointsConductivity calibration solutions10 µS/cm, 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm or CustomConductivity resolution0.001, 0.01, 0.1, 1
TDS : TDS range0 10.00, 100.0, 1000 ppm, 10.00, 100 ppt (Max. 200 ppt)TDS accuracy±1 % F.STDS factor0.01 to 1.00 (Default 0.5)TDS resolution0.01, 0.1, 1
Salinity : Salinity range0.00 to 80.00 ppt, 0.00 to 42.00 psuSalinity accuracy±1% F.SSalinity measurement modesPractical Salinity (psu) or Natural Seawater (ppt)Salinity resolution0.01, 0.1, 1
Resistivity : Resistivity range0.00 to 20 MΩResistivity accuracy±1% F.SResistivity resolution0.01, 0.1, 1

Compare Remove

Portable Conductivity Meter LPCM-A10
