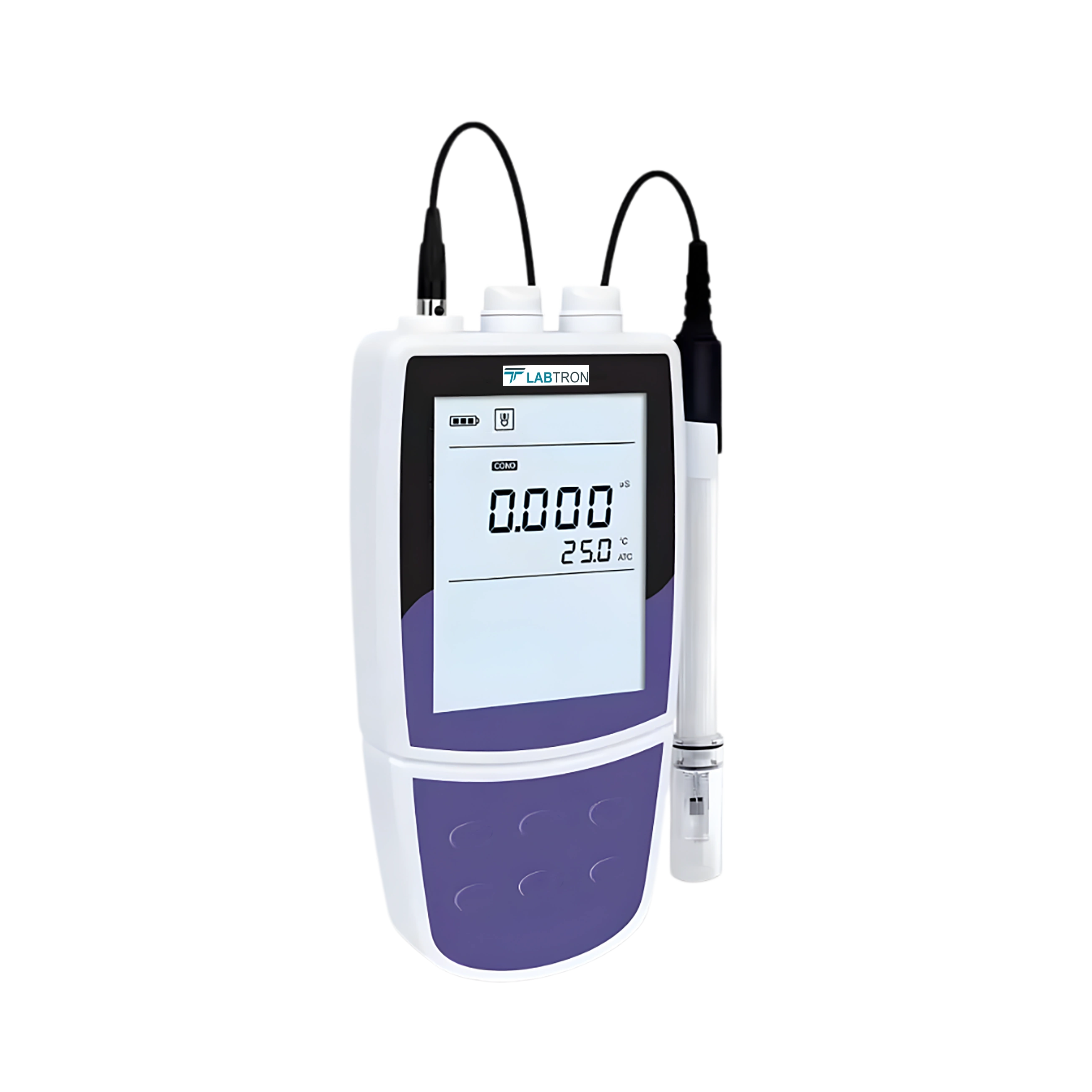

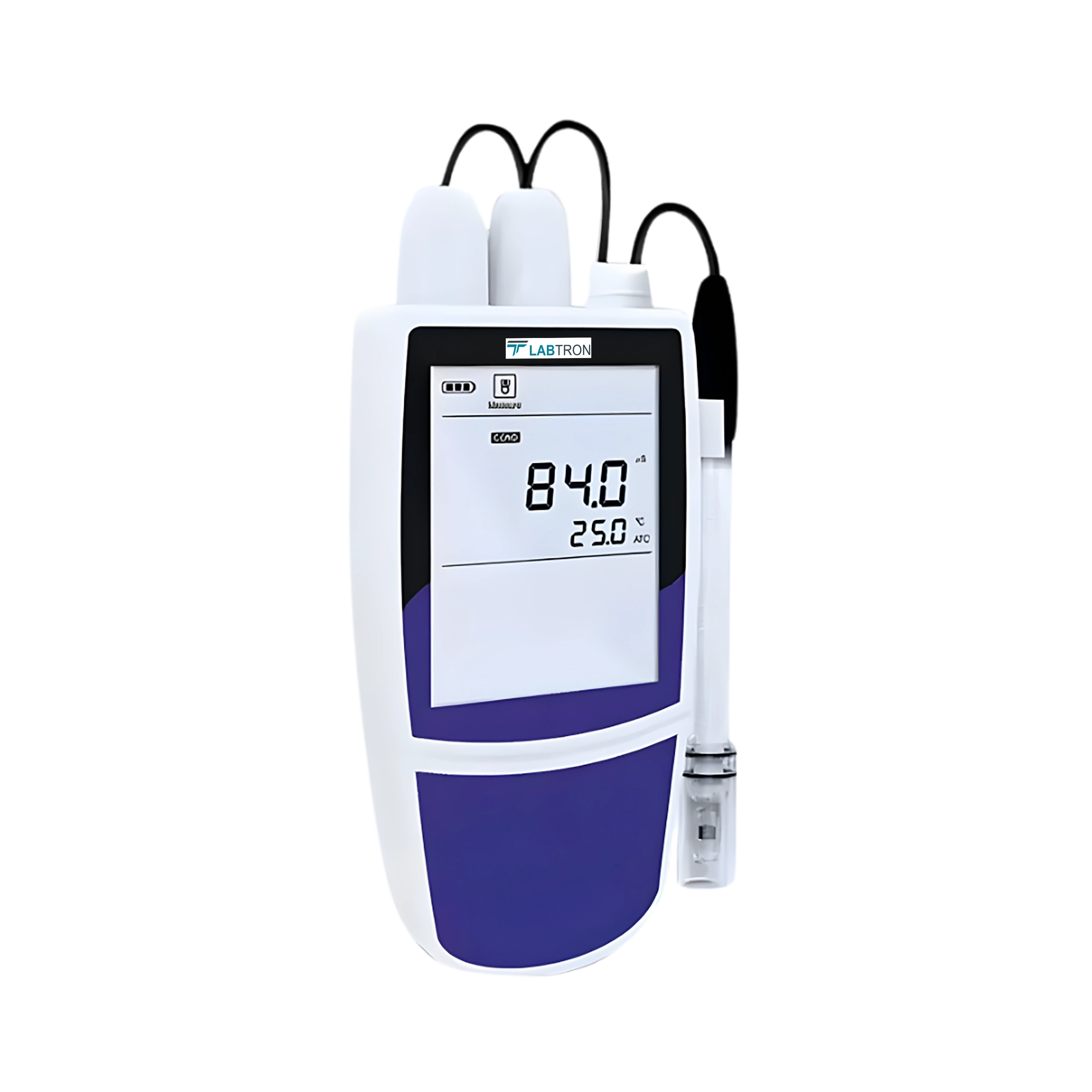

Portable Conductivity Meter LPCM-A12

Portable Conductivity Meter LPCM-A12

Portable Conductivity Meter LPCM-A12 is adapted with different modes for measuring quality of water on parameters such as conductivity, salinity and temperature. Due to its portable design, it is suitable for outdoor measurements i.e. on site water testing, remote area water testing and for research purpose. It is reliable and user friendly.

Request Quote
Conductivity
Conductivity measurement range0.01 to 20.00, 200.0, 2000 µS/cm, 20.00, 200 mS/cm
Conductivity accuracy±0.5% F.S
Conductivity calibration points1 to 5 points
Conductivity calibration solutions10 µS/cm, 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm or Custom
Conductivity resolution0.001, 0.01, 0.1, 1
Salinity
Salinity range0.00 to 80.00 ppt, 0.00 to 42.00 psu
Salinity accuracy±1% F.S
Salinity measurement modesPractical Salinity (psu) or Natural Seawater (ppt)
Salinity resolution0.01, 0.1, 1
Temperature
Temperature measuring range0 105 °C, 32 to 221 °F
Temperature measuring accuracy± °0.5 C, ± 0.9 °F
Temperature calibration points1 point
Temperature resolution0.1 °C, 0.1 °F
Temperature compensation 0 to 100 °C, 32 to 212 ° F, Manual or Automatic
Temperature coefficient Linear and Pure water compensation
Reference temperature 20 °C or 25 °C
Stability conditions Low or high
Cell constant K= 0.1, 1, 10 or custom
Calibration due 1 to 31 days or off
Memory 500 data sets
Data hold Manual or auto-end point
Connector 6 pin mini plug
Power Control Manual or Automatic (10, 20 or 30 minutes after last key pressed)
Power 3 × 1.5 V AA batteries or DC 5 V power adapter
Dimension (L × W × H) 170 × 85 × 30 mm
Weight 300 g
  • Common features
  • Calibration due reminder informs operator to calibrate the meter regularly
  • Stability indicator displays the status of current measurement
  • Auto hold function freezes stable, final readings for better viewing and recording
  • 1 to 5 points push button calibration to automatically identify calibration solutions
  • Selectable temperature units (°C or °F) for different application requirements
  • Expanded memory stores and recalls up to 500 readings
  • Calibration report provides details of calibration standard and cell constant
  • Help message as an operational guide, helps users for quick access to the parameters
  • Reset function automatically resumes all settings back to factory default options
  • Store data is transferrable into computer via USB communication interface
  • Conductivity /Salinity/ Temperature
  • Conductivity: 1 to 5 point calibration with automatically identification of calibration solutions
  • Temperature: Can select cell constant (0.1/1/10) and normalization temperature 20°C or 25°C
  • TDS and Salinity: Seawater, practical salinity measurements mode to meet different water quality measurement requirements
  • linear and pure water compensation improves the measurement accuracy

Used for quality testing of water on different parameters in research and development labs, water resources and plants in nearby or remote area.

Number of accessories Accessories name
1 Conductivity electrode (range: 10 µS/cm to 10 mS/cm)
2 Temperature probe
3 Standard calibration solutions (84 µS/cm, 1413 µS/cm, 12.88 mS/cm)
4 Carrying case

Number of accessories Accessories name
1 Conductivity electrode for general application
2 Conductivity electrode (K= 0.1): Suitable for measuring the low conductivity liquids ( <10 µS/cm ) for pure water
3 Conductivity electrode (K= 10): Suitable for measuring the high conductivity liquids ( >20 mS/cm ) for sea water
