Automobile Rearview Mirror Reflectivity Tester LRFT-D10

Name: Automobile Rearview Mirror Reflectivity Tester LRFT-D10
Brand: Labtron
SKU: LRFT-D10
Rating: 4.8 (968 reviews)

Automobile Rearview Mirror Reflectivity Tester LRFT-D10 uses an 8° angle test method with an integrating sphere, covering a wavelength range of 250 to 800 nm. It measures reflectivity, reflection color, and component information of chemical samples. The tester features an automatic dark background subtraction function, which enhances measurement accuracy by reducing background interference. Its compatibility with spectrophotometric methods makes it suitable for precise and reliable color measurement tasks. Our Reflectivity Tester is widely used for reflectance and color measurement across paints, coatings, plastics, and optical components.

Automobile Rearview Mirror Reflectivity Tester LRFT-D10_over view

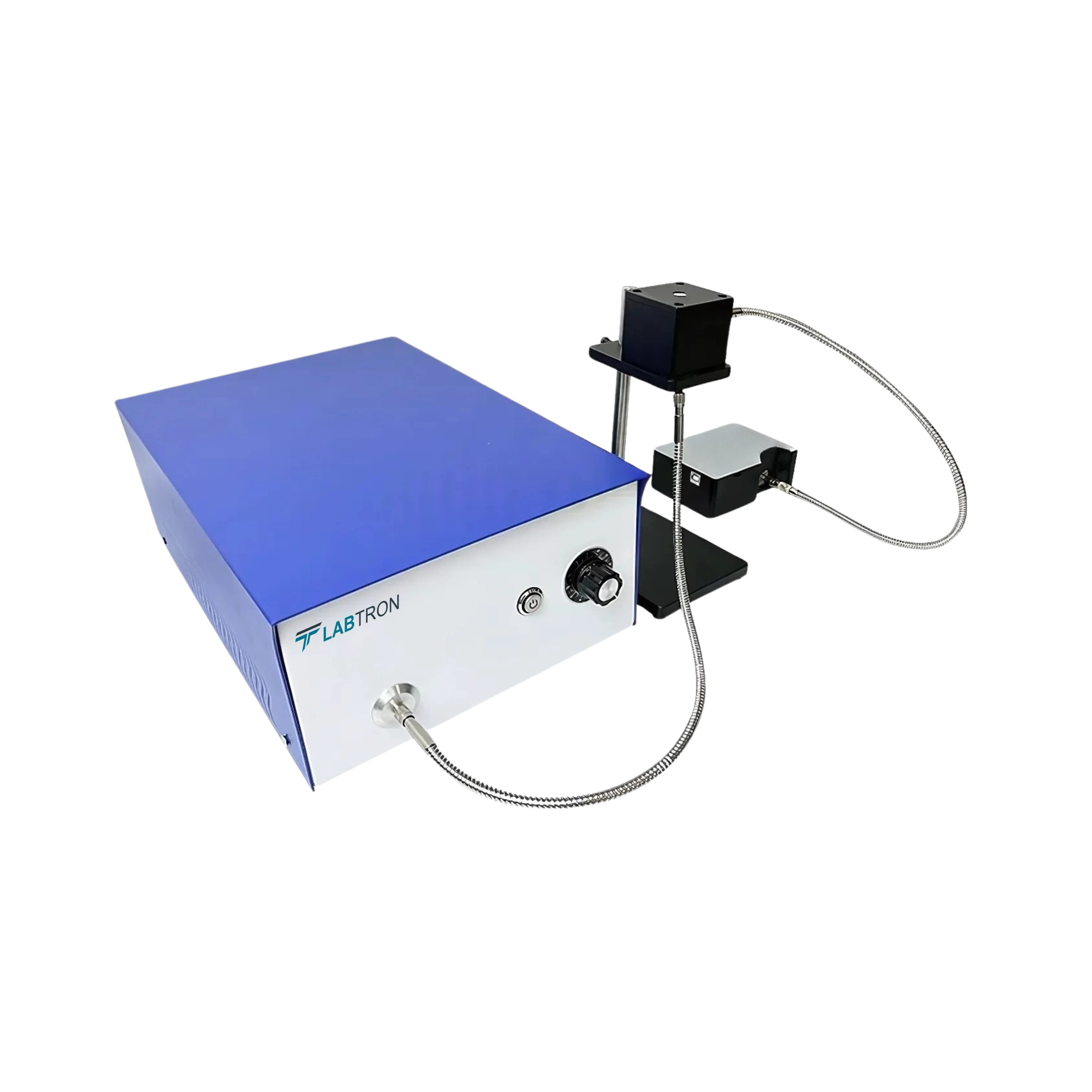

Automobile Rearview Mirror Reflectivity Tester LRFT-D10_side view

Request Quote

Wavelength Range	250 to 800 nm
Reflectivity Measurement Range	0 to 100%
Measurable Parameters	Wavelength reflectivity, average reflectivity, reflectivity spectrum curve, reflectivity change curve over time, etc.
Measurement Interval	1 nm
Single Sampling Time	Better than 2 s
Sample Port Size	5 mm
Fiber Length	Standard 0.5 m
White Board Standard	Standard 27 mm
Reflectivity Accuracy	Better than 1%
Test Repeatability	Better than 1%
Integrating Sphere Coating Reflectivity	At least 98%
Dark Background & Detection	Automatic
Lamp Source Life	2000 hours
Computer Interface	USB interface
Operating Systems	Windows 98/XP/2000/Vista/7/8/10

Stable integrating sphere
Spectral colour analysis
USB data interface
Flexible operation
International standard compliance

Our Automobile Rearview Mirror Reflectivity Tester LRFT-D10 is widely applied for high-precision reflectance and color measurement across paints, coatings, plastics, and optical components. It plays a vital role in quality control and chemical analysis, especially in industries requiring fast, accurate spectral reflectance readings. The tester supports both solid and non-reflective surfaces, making it adaptable for materials such as films, fabrics, wafers, and pigments.

Download catalog for
Automobile Rearview Mirror Reflectivity Tester LRFT-D10 Catalog

Available Range :

Automobile Rearview Mirror Reflectivity Tester LRFT-D10 : 250 to 800 nm Reflectivity And Transmittance Tester LRFT-B10 : 360 to 1000 nm Reflectivity Tester LRFT-C10 : 360 to 1100 nm Reflectivity Tester LRFT-A10 : 380 to 1000 nm Automobile Rearview Mirror Reflectivity Tester LRFT-D11 : 400 to 1000 nm Automobile Rearview Mirror Reflectivity Tester LRFT-D12 : 900 to 1700 nm

Automobile Rearview Mirror Reflectivity Tester LRFT-D10 | Wavelength Range 250 to 800 nm | Measurement Interval 1 nm | Sample Port Size 5 mm

Automobile Rearview Mirror Reflectivity Tester LRFT-D10 | Stable integrating sphere | Spectral colour analysis | USB data interface | Flexible operation | international standard compliance

Models of Reflectivity Tester

Labtron offers a wide range of Reflectivity Testers that are designed to measure the reflectivity and reflectivity curves of various objects. They are also analyzing the color characteristics of the materials and enabling the simultaneous detection. Their compliance with various national standards makes them reliable for industrial and laboratory-grade testing environments. They adopt the integrating sphere method, allowing customized measurement angles based on specific application needs. Our Testers are widely applied across industries such as electronics, automotive, optics, materials science, and display manufacturing.

Automobile Rearview Mirror Reflectivity Tester LRFT-D11

Wavelength Range : 400 to 1000 nm
Reflectivity Measurement Range : 0 to 100%
Measurable Parameters : Wavelength reflectivity, average reflectivity, reflectivity spectrum curve, reflectivity change curve over time, reflective color xy, XYZ, lab, etc.
Measurement Wavelength Interval : 1 nm

Compare Remove

Reflectivity Tester LRFT-C10

Type : Microscopic
Wavelength Range : 360 to 1100 nm
Spot Size : 60  µm
Spectral Resolution : 1 nm, 5 nm

Compare Remove

Automobile Rearview Mirror Reflectivity Tester LRFT-D12

Wavelength Range : 900 to 1700 nm
Reflectivity Measurement Range : 0 to 100%
Measurable Parameters : Wavelength reflectivity, average reflectivity, reflectivity spectrum curve, reflectivity change curve over time, material spectrum component analysis etc.
Measurement Interval : 1 nm

Compare Remove

Reflectivity And Transmittance Tester LRFT-B10

Wavelength Range : 360 to 1000 nm
Measurement Function : Transmission/Reflection
Illumination Receiving Conditions : Transmissions: Vertical illumination/vertical receivingReflection: 8° illumination / vertical receiving (integrating sphere method)
Spot Size : Transmission: adjustable diameter Φ 0.1 to 5 mmReflection: adjustable diameter 1 to 5mm

Compare Remove

Reflectivity Tester LRFT-A10

Measurement Function : Reflectance/ Reflectance spectral curve/ Color
Wavelength Range : 380 to 1000 nm
Detector : 2048 array photoelectric detector
Illumination/ Reception Conditions : 8-degree illumination/ Vertical reception (integrating sphere method)

Compare Remove

Reflectivity Tester:
Automobile Rearview Mirror Reflectivity Tester LRFT-D11, Reflectivity Tester LRFT-C10, Automobile Rearview Mirror Reflectivity Tester LRFT-D12, Reflectivity And Transmittance Tester LRFT-B10, Reflectivity Tester LRFT-A10, and more.
