Automobile Rearview Mirror Reflectivity Tester LRFT-D12

Name: Automobile Rearview Mirror Reflectivity Tester LRFT-D12
Brand: Labtron
SKU: LRFT-D12
Rating: 4.8 (956 reviews)

Automobile Rearview Mirror Reflectivity Tester LRFT-D12 is designed to measure reflectivity within the NIR region with a spectral range of 900 to 1700 nm. It has a stable integrating sphere that ensures accurate and consistent performance. The tester supports advanced colorimetric analysis using XY chromaticity diagrams and Lab values. It's an automatic dark background subtraction feature that enhances the measurement range. Our Reflectivity Tester is widely used in reflectivity spectrum measurement and color sorting of paints, pigments, inks, plastics, etc.

Automobile Rearview Mirror Reflectivity Tester LRFT-D12_over view

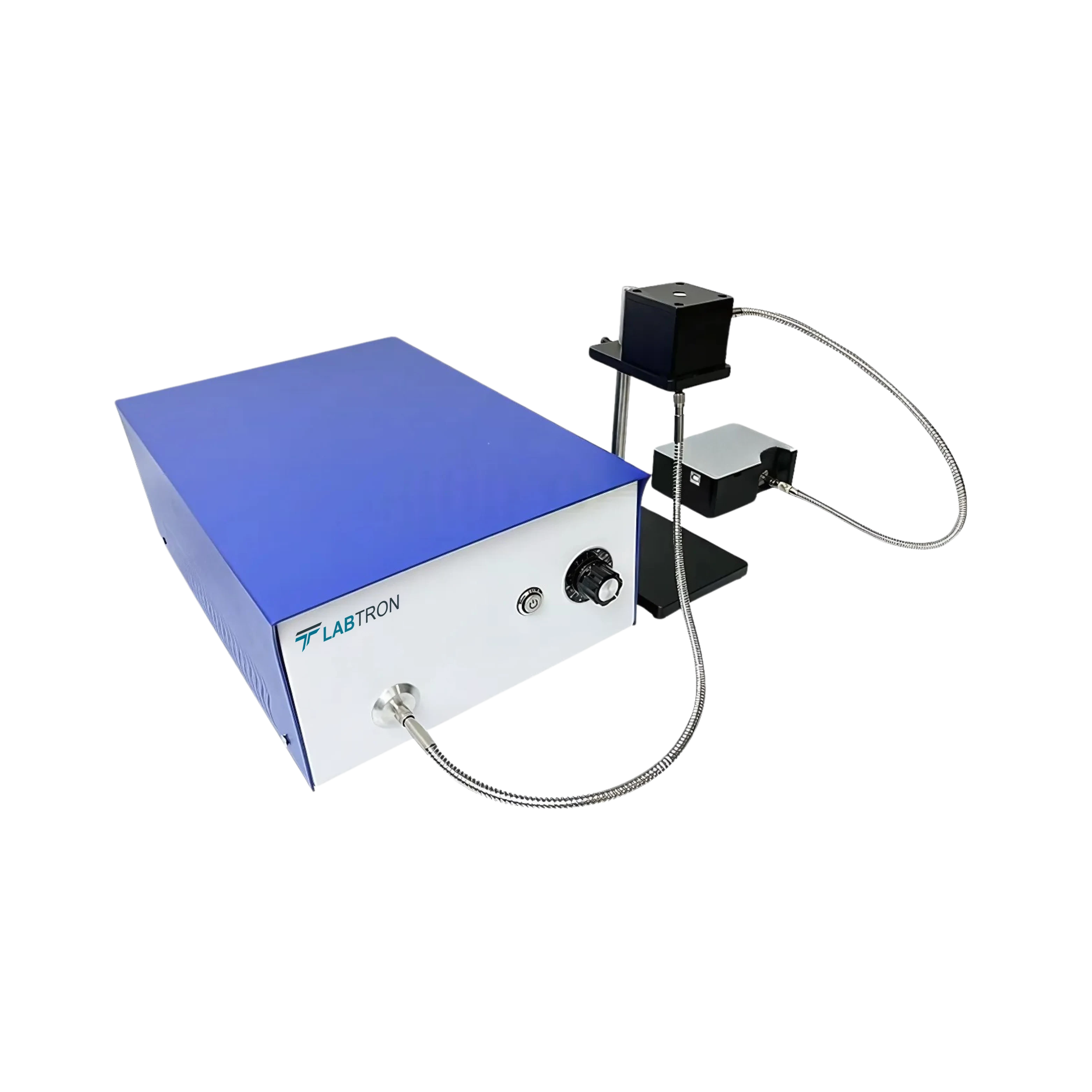

Automobile Rearview Mirror Reflectivity Tester LRFT-D12_side view

Request Quote

Wavelength Range	900 to 1700 nm
Reflectivity Measurement Range	0 to 100%
Measurable Parameters	Wavelength reflectivity, average reflectivity, reflectivity spectrum curve, reflectivity change curve over time, material spectrum component analysis etc.
Measurement Interval	1 nm
Single Sampling Time	Better than 2 s
Sample Port Size	5 mm
Fiber Length	Standard 0.5 m
White Board Standard	Standard 27 mm
Reflectivity Accuracy	Better than 1%
Test Repeatability	Better than 1%
Integrating Sphere Coating Reflectivity	At least 98%
Dark Background & Detection	Automatic
Lamp Source Life	2000 hours
Computer Interface	USB interface
Operating Systems	Windows 98/XP/2000/Vista/7/8/10

Easy to operate
Short measurement time
XY color mapping
Compact design

Our Automobile Rearview Mirror Reflectivity Tester LRFT-D12 is widely used in the chemical industry, such as coating, pigments, inks, flat samples, silicon wafers, coated surfaces, mirrored aluminium mirrors, paints, plastics, and fabrics.

Download catalog for
Automobile Rearview Mirror Reflectivity Tester LRFT-D12 Catalog

Available Range :

Automobile Rearview Mirror Reflectivity Tester LRFT-D10 : 250 to 800 nm Reflectivity And Transmittance Tester LRFT-B10 : 360 to 1000 nm Reflectivity Tester LRFT-C10 : 360 to 1100 nm Reflectivity Tester LRFT-A10 : 380 to 1000 nm Automobile Rearview Mirror Reflectivity Tester LRFT-D11 : 400 to 1000 nm Automobile Rearview Mirror Reflectivity Tester LRFT-D12 : 900 to 1700 nm

Models of Reflectivity Tester

Labtron offers a wide range of Reflectivity Testers that are designed to measure the reflectivity and reflectivity curves of various objects. They are also analyzing the color characteristics of the materials and enabling the simultaneous detection. Their compliance with various national standards makes them reliable for industrial and laboratory-grade testing environments. They adopt the integrating sphere method, allowing customized measurement angles based on specific application needs. Our Testers are widely applied across industries such as electronics, automotive, optics, materials science, and display manufacturing.

Automobile Rearview Mirror Reflectivity Tester LRFT-D11

Wavelength Range : 400 to 1000 nm
Reflectivity Measurement Range : 0 to 100%
Measurable Parameters : Wavelength reflectivity, average reflectivity, reflectivity spectrum curve, reflectivity change curve over time, reflective color xy, XYZ, lab, etc.
Measurement Wavelength Interval : 1 nm

Compare Remove

Reflectivity Tester LRFT-C10

Type : Microscopic
Wavelength Range : 360 to 1100 nm
Spot Size : 60  µm
Spectral Resolution : 1 nm, 5 nm

Compare Remove

Automobile Rearview Mirror Reflectivity Tester LRFT-D10

Wavelength Range : 250 to 800 nm
Reflectivity Measurement Range : 0 to 100%
Measurable Parameters : Wavelength reflectivity, average reflectivity, reflectivity spectrum curve, reflectivity change curve over time, etc.
Measurement Interval : 1 nm

Compare Remove

Reflectivity Tester LRFT-A10

Measurement Function : Reflectance/ Reflectance spectral curve/ Color
Wavelength Range : 380 to 1000 nm
Detector : 2048 array photoelectric detector
Illumination/ Reception Conditions : 8-degree illumination/ Vertical reception (integrating sphere method)

Compare Remove

Reflectivity And Transmittance Tester LRFT-B10

Wavelength Range : 360 to 1000 nm
Measurement Function : Transmission/Reflection
Illumination Receiving Conditions : Transmissions: Vertical illumination/vertical receivingReflection: 8° illumination / vertical receiving (integrating sphere method)
Spot Size : Transmission: adjustable diameter Φ 0.1 to 5 mmReflection: adjustable diameter 1 to 5mm

Compare Remove
