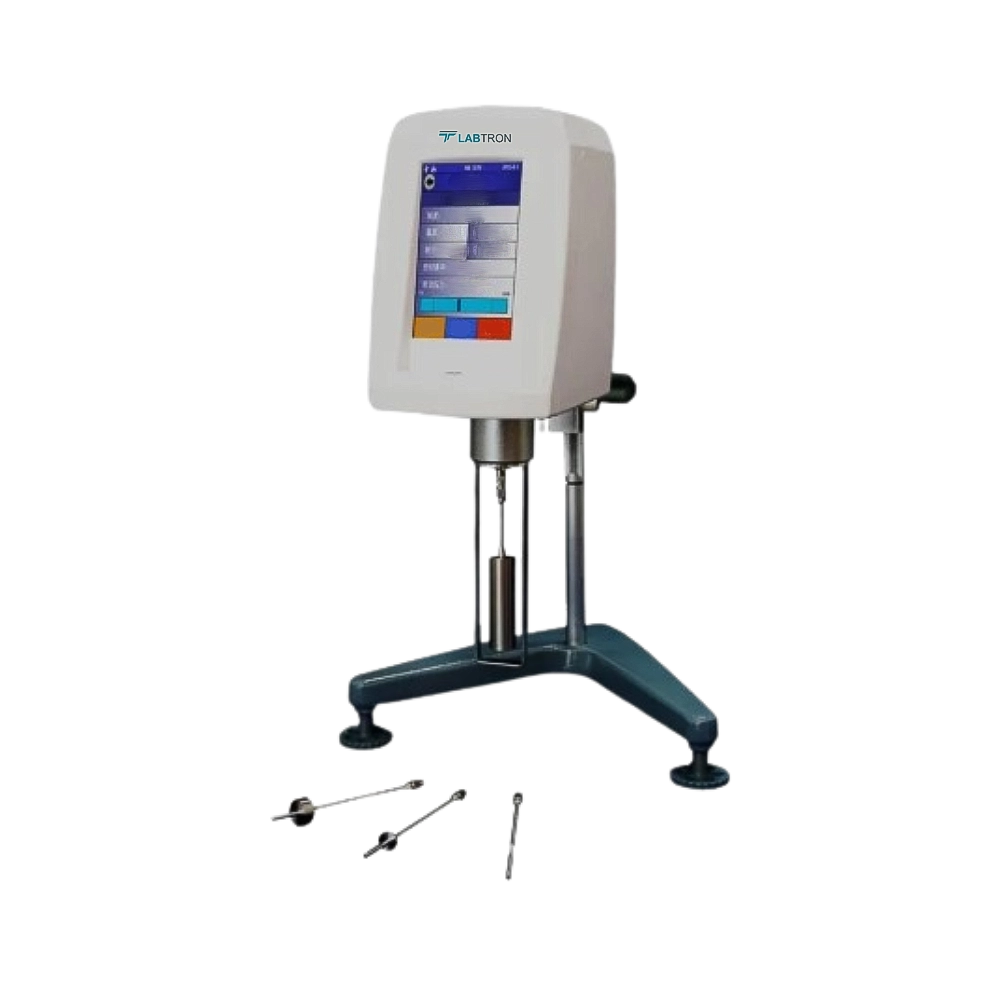

Rotational Viscometer LVM-C13

Name: Rotational Viscometer LVM-C13
Brand: Labtron
SKU: LVM-C13
Rating: 4.9 (721 reviews)

The rotational Viscometer LVM-C13 with stylish and modern technology, measures viscosity very quickly and accurately. It does measure & save 30 pcs test data. It is used in any area that requires the study of flow of liquid properties. They are handheld, user-friendly, and portable in nature.

Request Quote

Measuring range	1 to 600000 mPa.s
Rotating speed	0.1/0.3/0.6/1.5/3/6/12/30/60 (r/min)
Rotor	1 to 4 number rotors
Measuring Error (Newtonian liquid)	±1%
Repeatability error (Newtonian liquid)	±0.5%
Time function	Yes
Power	110 V/60 Hz or 220 V/50 Hz
Dimension	300 ×300 ×450 mm
Net weight	7.5 kg
Gross weight	8 kg

5 inch color touch-screen with multiple specifications
Use of ARM technology and built-in Linux system for quick and accurate results
Computer based self-calibrated measuring range for error free results
Can be handheld, user-friendly and portable in nature

Viscometer is used to measure viscosity of fluids, fluids under high melting temperature such as paints, coatings, cosmetics, inks, paper pulp, food, oil, starch, solvent-based glue, latex, and other biochemical products.

Accessories No.	Name
1	Rotor protection frame
2	(1, 2, 3, 4) number rotor

Accessories No.	Name
1	Constant temperature water bath, 10 to 100°C, only 220 V
2	Thermal Printer (with 1 roller paper)
3	Temperature probe
4	Ultra-low viscosity adapter (0 # rotor)
5	Thermostatic cup
6	PC Software RS232-USB Line
7	Calibrate silicone oil 400ml

Download catalog for
Rotational Viscometer LVM-C13 Catalog

Available Range :

Rotational Viscometer LVM-B10 : 0.1 to 100,000 Mpa. S Rotational Viscometer LVM-C10 : 1 to 100000 Mpa. S Rotational Viscometer LVM-B11 : 1 to 2,000,000 Mpa. S Rotational Viscometer LVM-C12 : 1 to 200000 mPa.s Rotational Viscometer LVM-C13 : 1 to 600000 mPa.s Rotational Viscometer LVM-D31 : 100 to 2 × 10⁵ mPa.s Rotational Viscometer LVM-A10 : 6 to 6,000,000 cP

Rotational Viscometer LVM-C13 | Measuring range : 1 to 600000 Mpa. S | Rotating speed : 0.1/0.3/0.6/1.5/3/6/12/30/60 (r/min)

Rotational Viscometer LVM-C13 | 5 inch color touch-screen | Use of ARM technology

Models of Rotational Viscometers

Labtron Rotational Viscometer are engineered with a robust rotating spindle that interacts with the fluid. They come with multiple spindle options and variable speed settings to fit diverse testing requirements. These have simple calibration procedures and low maintenance needs. Their user-friendly controls guarantee ease of operation. Our rotational viscometer are enhanced by integrated temperature control, ensuring consistent sample conditions.

Rotational Viscometer LVM-B12

Measurement Range : 10 to 100,000 mPa.s
Measurement Accuracy : ± 1.0 % (Newtonian fluids）
Rotors : No.1, No.2, No.3, No.4 (Optional No.0)
Rotate Speed : 6 / 12 / 30 / 60 / (r/min)

Compare Remove

Rotational Viscometer LVM-D30

Measurement range : 25 mPa.s to 1 × 107 mPa.s
Rotors : Rotor no. 21, 27, 28, 29 (total 4 pieces of spindles)
Rotation speed : 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50, 100 and 200 rpm
Temperature control range : 45 to 200°C

Compare Remove

Rotational Viscometer LVM-E10

Measurement Range : 10 to100,000 mPa.s (cP)
Rotor : No. 1, No. 2, No. 3, No. 4 (Four Rotors)
Rotor Speed : 6 r/min, 12 r/min, 30 r/min, 60 r/min
Measure : Newtonian fluids

Compare Remove

Rotational Viscometer LVM-A32

Measurement Range : 200 to 80,000,000 mPa.s
Rotational Speed : 0.1 to 250 rpm per min
Rotors : No.2, No.3, No.4, No.5, No.6, No.7 (No.0 and No.1 is optional)
Measurement Accuracy : ± 1.0 % (of the full range)

Compare Remove

Rotational Viscometer LVM-C12

Measuring range : 1 to 200000 mPa.s
Rotating speed : 0.3/0.6/1.5/3.6/12/30/60 (r/min)
Rotor : 1-4 number rotors, Measuring viscosity lower than 10 needs to be equipped with the 0 number rotar
Measuring Error (Newtonian liquid) : ±1%

Compare Remove

Rotational Viscometer LVM-F10

Measurement Range : Medium Viscosity Sample: 50 to 10M (mPa. s/cP) Low Viscosity Sample: 5 to 1M (mPa. s/Cp)
Rotors : SC4-21#, 27#, 28#, 29# four spindles Optional: SC4- 14, 15, 16, 18, 25, 31, 34
Rotation Speed : 0.1 to 200 RPM
Measurement Accuracy : ± 1.0 %
