Semi-automatic Microtome LSAM-A11

Name: Semi-automatic Microtome LSAM-A11
Brand: Labtron
SKU: LSAM-A11
Rating: 4.9 (774 reviews)

Semi-automatic Microtome LSAM-11 provides ultra-fine sectioning with an adjustable thickness from 0.1μm (increments of 0.1μm) for flawless, repeatable results. The microtome gives effortless control with dual locking systems (360° free-position lock + quick top-end lock) and optimized sample movement. It is built for durability with a sturdy base and a sleek, easy-to-maintain housing. Our LSAM-A11 offers a removable waste tray that ensures hassle-free cleaning, keeping your workspace pristine.

Semi-automatic microtome LSAM-A11_Front view

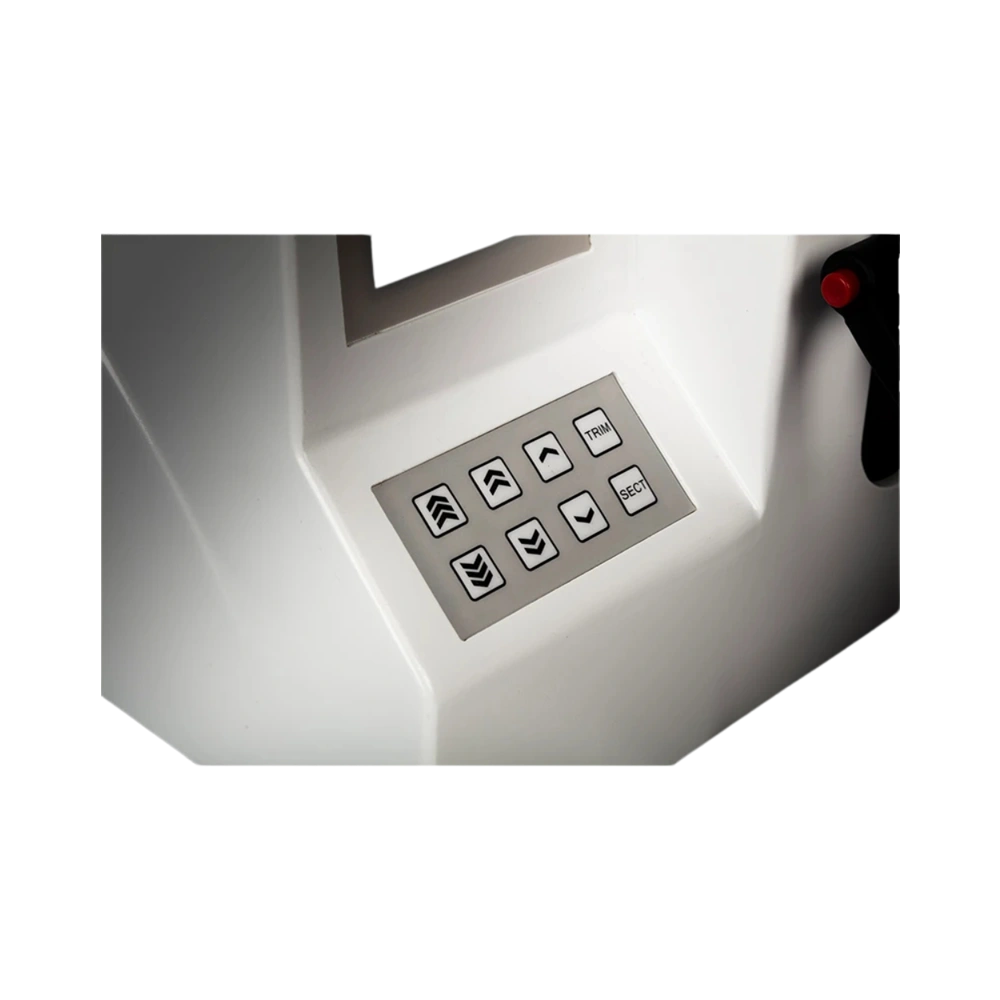

semi-automatic microtome LSAM-A11_Zoom panel view

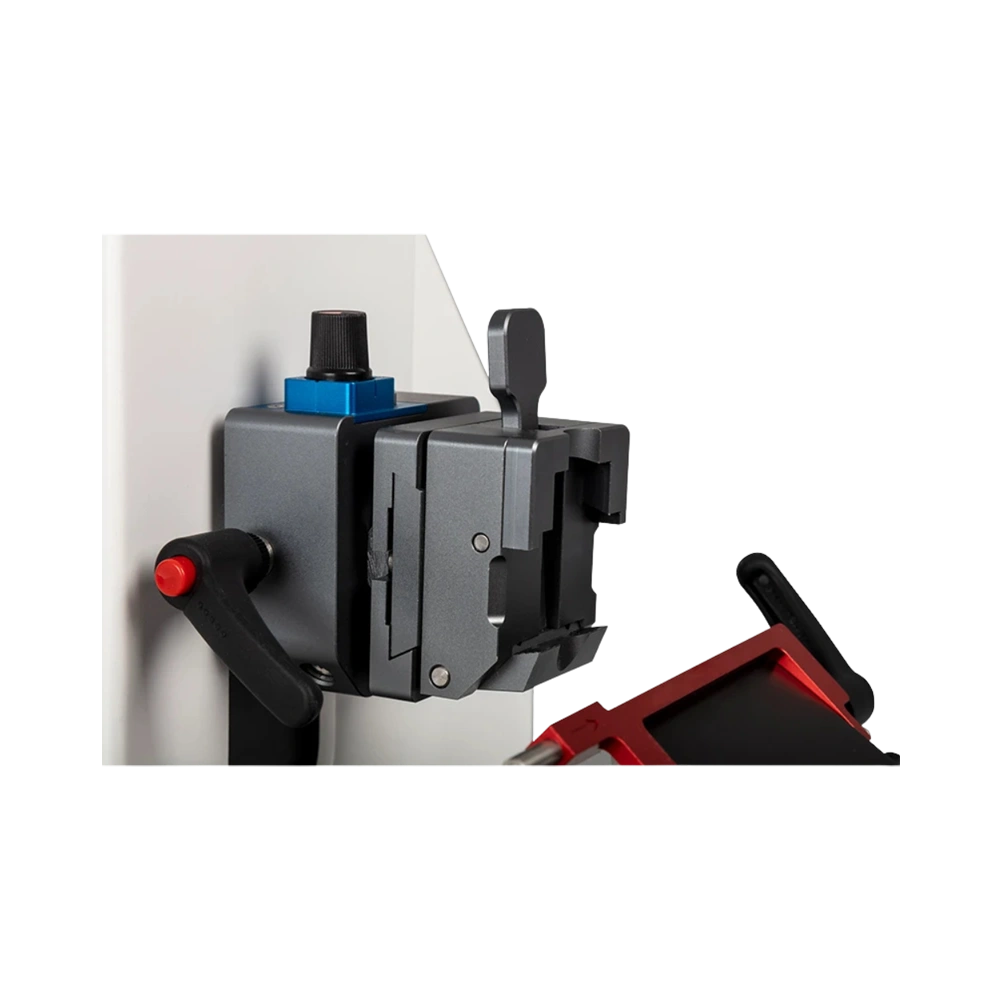

Semi-automatic microtome LSAM-A11_Zoom view

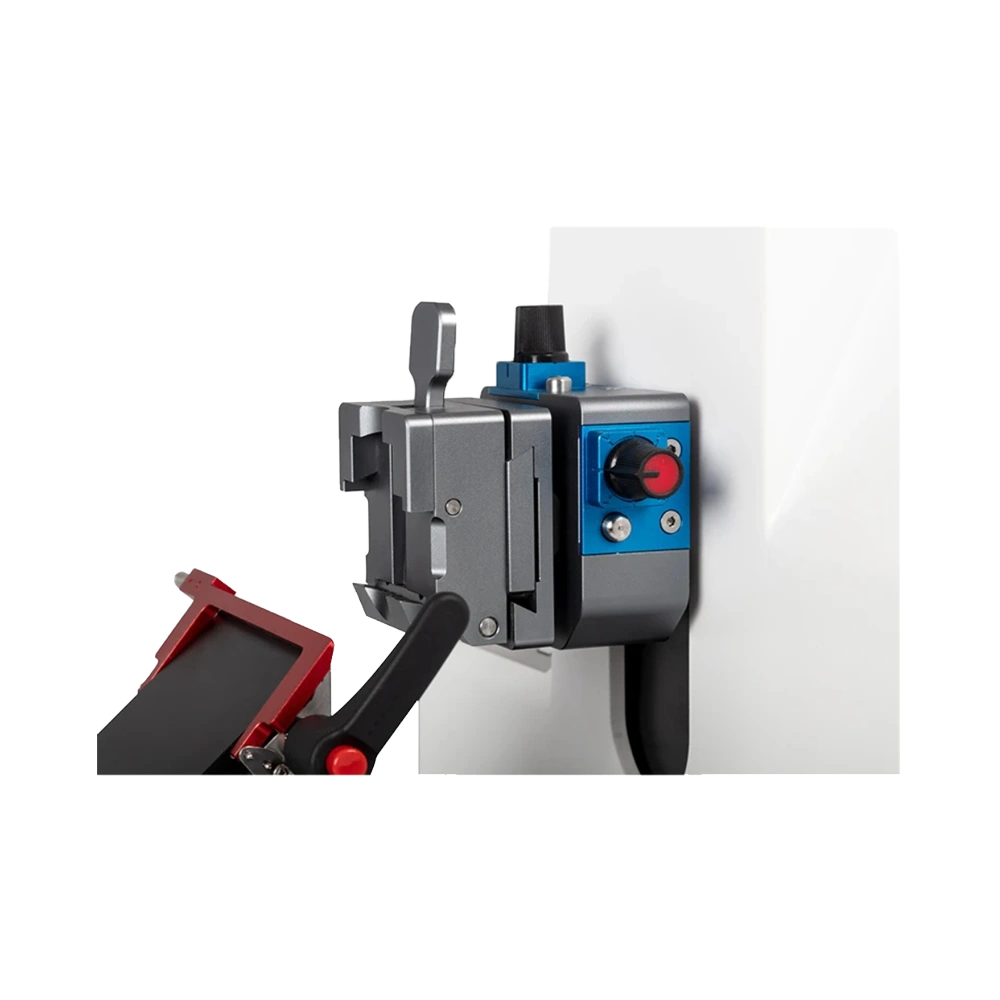

Semi-automatic microtome LSAM-A11_Zoomed view

Request Quote

Section Thickness Range	0 to 9/8μm
Section Thickness Increment	0.1μm
Trimming Thickness Range	0-99μm
Trimming Thickness Increment	0.1μm
Retraction Range	0 to 100μm (non-dose)
Precision	±1%
Fast Feed Speed Range	1mm/s to 3.5mm/s
Fast Feed Speed Adjustment	All-system set
Slow Feed Speed Range	0.1mm/s to 1mm/s
Slow Feed Speed Adjustment	All-system set
Maximum Specimen Size	Ø60mm × 60mm
Specimen Horizontal Movement	22mm
Specimen Vertical Movement	Ø60mm
Specimen Clamp Rotation	360° (any angle)
Specimen Orientation System	2x-8°
Display	High-definition color touch screen
Control System	High-precision photoelectric sensing
Control Resolution	25,000 sandwiched digits
Minimum Sliding Accuracy	0.1μm
Handwheel Locking System	360° position lock + quick top-end lock
Waste Tray	Wide, removable
Base Design	Sturdy for stability
Housing	Easy-to-clean
Design Focus	Humanized Operation Panel
Standard Voltage/Frequency	AC220V, 50Hz
Dimensions	550mm × 500mm × 115mm
Net Weight	40kg

Precision cutting technology
Smart & user-friendly controls
HD color touchscreen
Robust & hygienic design
Advanced specimen handling

Our Semi-automatic Microtome LSAM-A11 is ideal for pathology labs and histology research, enabling precise sectioning of tissue samples for accurate diagnostics and disease analysis. It is also widely used in medical education and biomedical research, providing consistent, high-quality slides for teaching and experimental studies.

Download catalog for
Semi-automatic Microtome LSAM-A11 Catalog

Models of Semi-automatic Microtome

Labtron Semi-automatic Microtome is specialized for combining both manual and automated features for cutting thin section of tissue. They have manual specimen holder, allowing easy adjustment for various specimen sizes and shapes. Their vertical adjustment knob allows users to fine-tune slice thickness, ensuring high-quality tissue preparation results. They incorporate a digital display for easy monitoring of section thickness settings and adjustments made. Our Semi-automatic Microtome is essential in research laboratories, neuroscience, toxicology and cytology.

Semi-automatic Microtome LSAM-B11

Whole Layer Clearance Distance : 10 – 6000 µm (10, 12, 15, 20……6000, after 15 µm the increment is 5 µm)
Specimen Horizontal Stroke : 28 mm
Specimen Vertical Stroke : 70 mm
Specimen Orientation : XY – 8°C, rotation ±90°C
