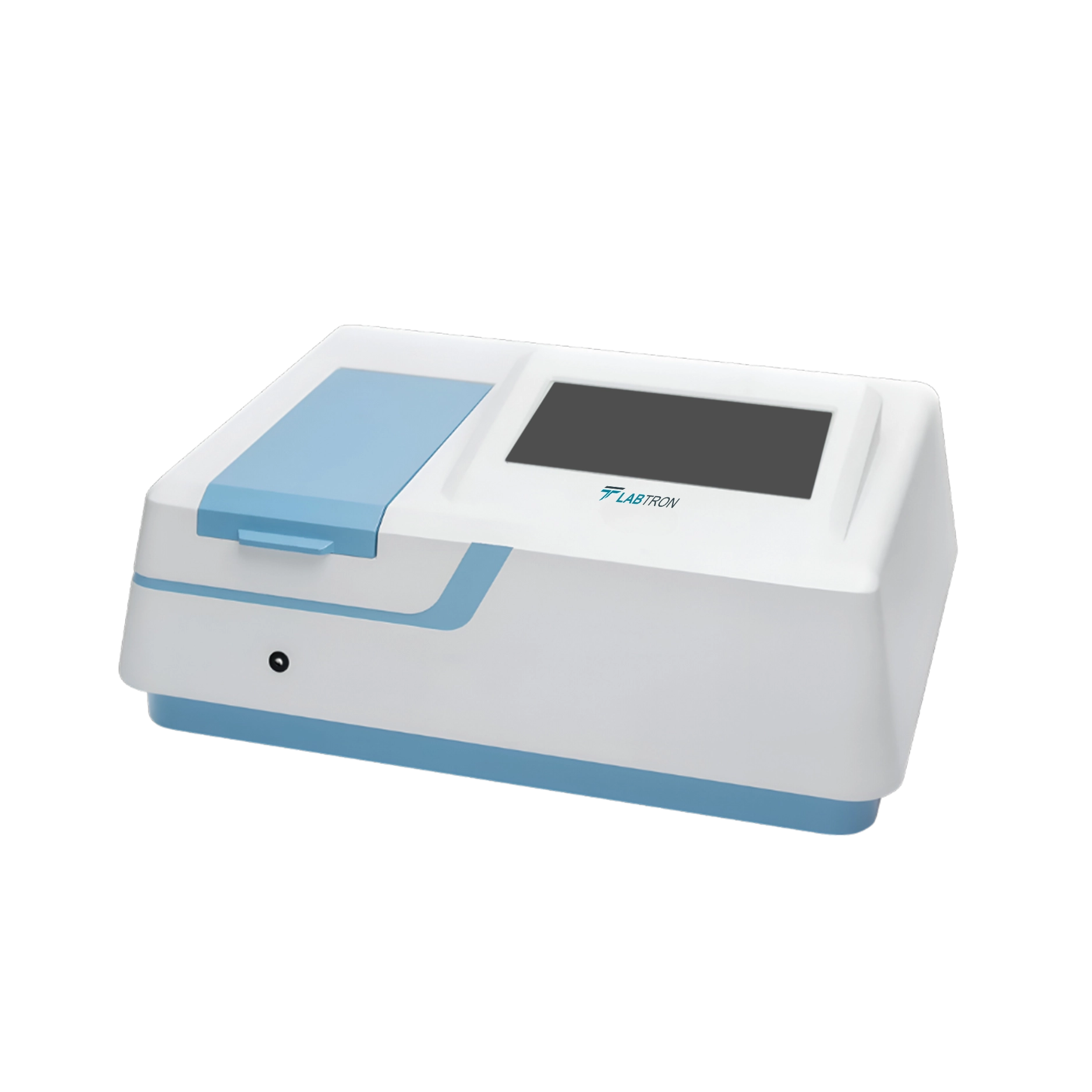

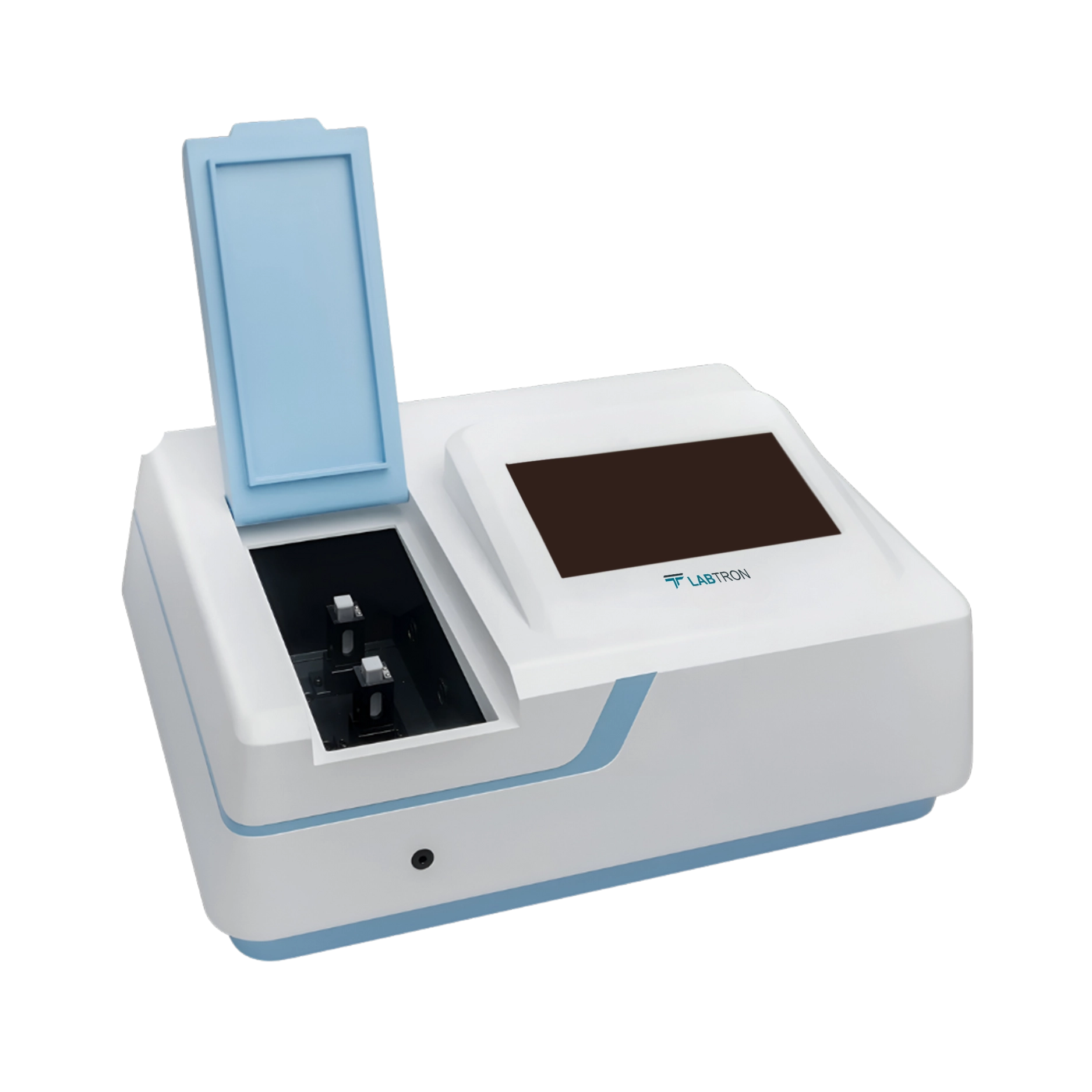

Single Beam UV-Visible Spectrophotometer LUS-A51

Name: Single Beam UV-Visible Spectrophotometer LUS-A51
Brand: Labtron
SKU: LUS-A51
Rating: 4.8 (945 reviews)

Single Beam UV-Visible Spectrophotometer LUS-A51 covers wavelength range of 190 nm to 1100 nm for versatile spectroscopic measurements. Its touchscreen display provides user-friendly navigation and intuitive operation for seamless analysis. Equipped with high-resolution LCD screen that enhances data visualization and operational convenience for users. Features advanced optical system for precise and stable absorbance evaluation in all conditions. The multiple measurement modes accommodate absorbance, transmittance and concentration analysis.

Request Quote

Optical System	Single Beam, Grating 1200 lines/mm
Wavelength Range	190nm to 1100 nm
Spectral Bandwidth	1 nm
Wavelength Accuracy	± 0.1 nm at 656.1 nm, ± 0.3 nm at all
Wavelength Repeatability	Less than or equal to 0.1 nm
Photometric Accuracy	0.2%T (0 to 100%T), ±0.0024A (0 to 0.5A), ±0.004A (0.5 to 1A)
Photometric Repeatability	Less than or equal to 0.15%T (0 to 100%T), 0.001A (0 to 0.5A), 0.002A (0.5 to 1A)
Photometric Range	0-200%T, -0.3 to 3.4A, 0 to 9999C (0 to 9999F)
Stray Light	Less than or equal to 0.03%T at 220 nm, 360 nm
Stability	±0.0003A/h at 500 nm
Baseline Flatness	±0.001A
Noise	0.0005A at 500 nm
Work Mode	T, A, C, E
Scanning Speed	Hi, Med, Low (Max 3000 nm/min)
Wavelength Setting	Auto
Display	10.1
Light Source	Imported Deuterium & Tungsten lamp
Detector	Imported Silicon Photodiode
Cuvette Holder	10 mm manual 4-cell holder
Output	USB drive, USB host, RS232
Power Supply	AC 220V/50Hz or AC 110V/60Hz
Shipping Size	810mm × 660mm × 390mm
Gross Weight	26 kg

Photometric & quantitative measurement
Spectrum scan & DNA/Protein test
Massive 1024M in-house memory
Various optional accessories available
Supports USB data transfer
Easy lamp replacement system
GLP/GMP compliance & data tracking

Our Single Beam UV-Visible Spectrophotometer LUS-A51 ensures precise absorbance, transmittance, and concentration analysis in laboratories, pharmaceutical research, and quality control applications with intuitive operation.

10 mm glass cuvette × 4
10 mm quartz cuvette × 2
Power cord
User Manual
PC software

Film Holder (H×W×L)	1mm×10mm×30mm
Cuvette Holder	1cm
Xenon Lamp	A510KU（10V）
Integrating Sphere (L×W×H)	95mm× 101mm× 99mm
Automatic 8-position cell holder	1cm
Automatic 5-position cell holder	1 to 5cm

Download catalog for
Single Beam UV-Visible Spectrophotometer LUS-A51 Catalog

Available Range :

Models of Single Beam UV-Visible Spectrophotometer

Labtron single beam UV-visible spectrophotometers offer a broad range of wavelengths and many choices for spectral bandwidth. They provide quantitative analysis and photometric measurement with user-friendly interfaces. They come with USB connections and a large colorful LCD display. They are flexible since they have several light sources installed. Our single beam spectrophotometers offer high performance, reliability, and accuracy with auto wavelength adjustment and robust construction.
