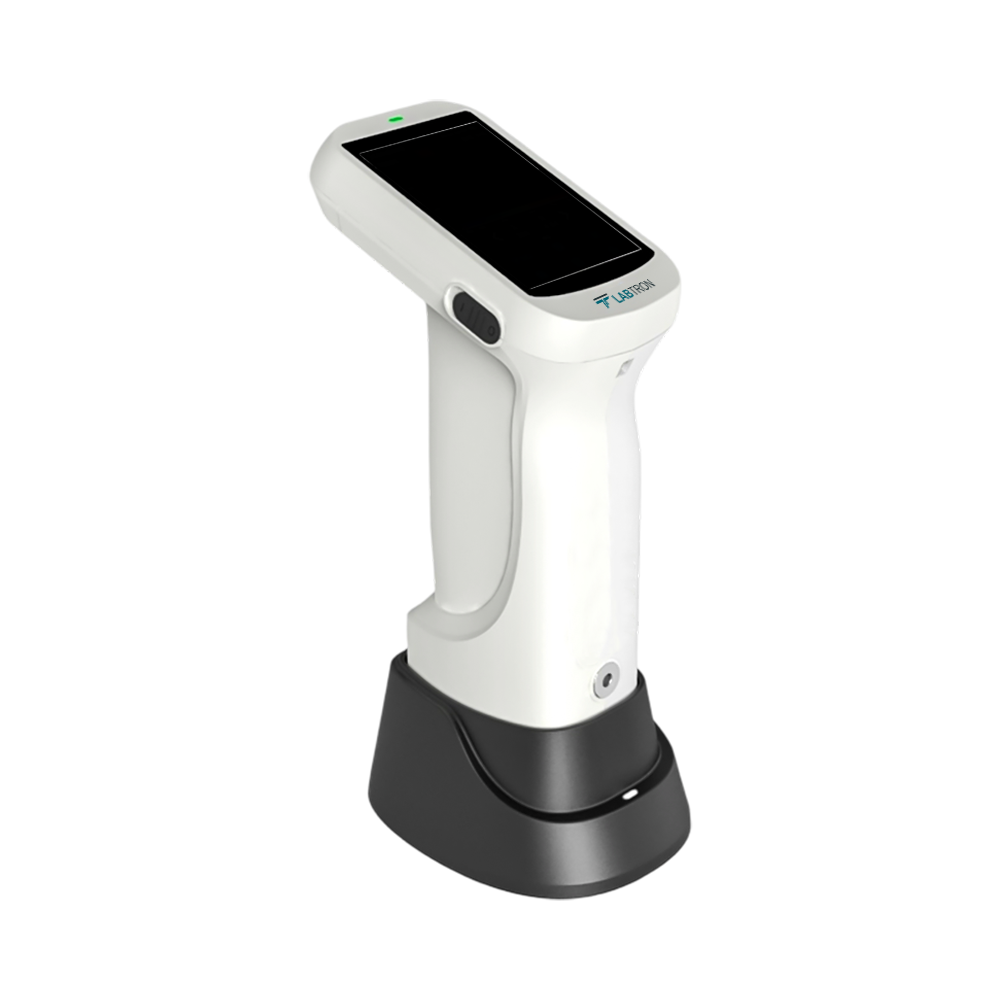

Spectral Colorimeter LCS-A10

Spectral Colorimeter LCS-A10

Spectral colorimeter LCS-A10 with high precision is adopted with spectral measurement working theory which greatly improves the accuracy of colorimeter. Equipped with superior leather design, helps in increasing the friction in case of fingers sliding. The spectral colorimeter comes with mass storage capacity and A, C, D65, D50 as light sources for colorimetric measurement.

Request Quote
Illumination Di / 8 (diffusion illumination, 8° viewing), SCI
Size of integrated sphere 40 mm, alvan diffused reflection surface coating
Illumination light source CLED
Sensor Sensor array
Wavelength 400 - 700 nm
Spectral resolution 10 nm
Measuring time 2 s
Measurement caliber size 11 mm
Optional measurement caliber size 4 mm, 6 mm, 15 mm
Repeatability Standard deviation ΔE × ab 0.08 (when a white calibration plate is measured 30x at 10 second interval after calibration)
Observe angles 2° and 10°
Light source A,C,D50 & D65
Camera attachment Without camera
Display Chromaticity value(L × a × b,L × C × h), ΔE value, pass / fail, color tendency, average, generate test report
Color difference formula ΔE × ab, ΔE × CH
Color space CIE - L × a × b, L × C × h, reflectance
Measurement indices Nil
Data storage 100 targets and 200 samples
Light source lifetime 5 years, 1.5 million times
Screen Panchromatic True Color Screen
Interface USB 2.0
Working temperature 5 ~ 45 °C, relative humidity 80 % or below( at 35 °C ),no condensation
Storage temperature (-25 to 55 °C), relative humidity 80 % or below( at 35 °C ),no condensation
Power Rechargeable Lithium battery, 8.4 V / 2000 mAh, adaptor DC 12 V
Dimension 77 × 86 × 210 mm
Weight 550 g
  • CLED as source of diffusion illumination, 8° viewing
  • Panchromatic true color screen with USB 2.0 interface
  • Mass storage capacity of 100 pcs targets and 200 data groups
  • Ergonomic design, portable nature
  • A.C, DC65, DC50 as light source
  • Patented technology guarantees the measurement stability

Spectral Colorimeter is widely used in plastic, printing, paint, ink, textile, dyeing, food, chemical and other industries for color management.

Micro printer

Compare Models

Model Illumination Size of integrated sphere Illumination light source Sensor Wavelength Spectral resolution Measuring time Measurement caliber size Optional measurement caliber size Repeatability Observe angles Light source Camera attachment Display Color difference formula Color space Measurement indices Data storage Light source lifetime Screen Interface Other function Working temperature Storage temperature Power Dimension Weight
LCS-A10 Di / 8 (diffusion illumination, 8° viewing), SCI 40 mm, alvan diffused reflection surface coating CLED Sensor array 400 - 700 nm 10 nm 2 s 11 mm 4 mm, 6 mm, 15 mm Standard deviation ΔE × ab 0.08 (when a white calibration plate is measured 30x at 10 second interval after calibration) 2° and 10° A,C,D50 & D65 Without camera Chromaticity value(L × a × b,L × C × h), ΔE value, pass / fail, color tendency, average, generate test report ΔE × ab, ΔE × CH CIE - L × a × b, L × C × h, reflectance Nil 100 targets and 200 samples 5 years, 1.5 million times Panchromatic True Color Screen USB 2.0 - 5 ~ 45 °C, relative humidity 80 % or below( at 35 °C ),no condensation (-25 to 55 °C), relative humidity 80 % or below( at 35 °C ),no condensation Rechargeable Lithium battery, 8.4 V / 2000 mAh, adaptor DC 12 V 77 × 86 × 210 mm 550 g
LCS-A12 Di / 8 (diffusion illumination, 8° viewing), SCI 40 mm, avian diffused reflection surface coating CLED Sensor array 400 - 700 nm 10 nm 2 s 11 mm 4 mm, 6 mm, 15 mm Standard deviation ΔE × ab 0.08 (when a white calibration plate is measured 30x at 10 second interval after calibration) 2° and 10° A, C, D50, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, DLF, TL183, TL184, NBF, U30, CWF, U35 camera viewing for measurement Chromaticity value(L × a × b,L × C × h), ΔE value, pass / fail, color tendency, average, generate test report
With camera to see the measurement area, spectrum reflectance figure data, manual input target data
ΔE × ab, ΔE × CH, ΔE × uv,ΔE × cmc(2:1),ΔE × cmc(1:1),ΔE × 94,ΔE × 00 CIE-L × a × b, L × C × h, L × uv, XYZ, Yxy, reflectance WI (whiteness indices)(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby)
YI (yellowness indices) (ASTM D1925,ASTM E313-00,ASTM E313-73)
Metameric index, staining fastness, color fastness
100 targets and 200 samples 5 years, 1.5 million times Panchromatic True Color Screen USB 2.0 Input color swatches 5 ~ 45 °C, relative humidity 80 % or below( at 35 °C ),no condensation (-25 to 55 °C), relative humidity 80 % or below( at 35 °C ),no condensation Rechargeable Lithium battery, 8.4 V / 2000 mAh, adaptor DC 12 V 77 × 86 × 210 mm 550 g
LCS-A11 - - - Array - - - - - - - - - - - - - - - - USB, Bluetooth - - - - - -
