| Measurement Parameter | Turbidity |
| Measurement Range | 0 to 400NTU |
| Indication Error | Less than or equal to 2% |
| Repeatability | Less than or equal to 2% |
| Minimum Resolution | 0.01NTU |
| Optical Stability | Absorbance drift less than or equal to 0.002A/20min |
| Working temperature | 5° to 40°C |
| Relative humidity | Less than or equal to 85% |
| Power Supply | AC 220 (165V-240V) |
| Dimension | 400mm × 320mm ×182mm |
| Weight | 4.75kg |

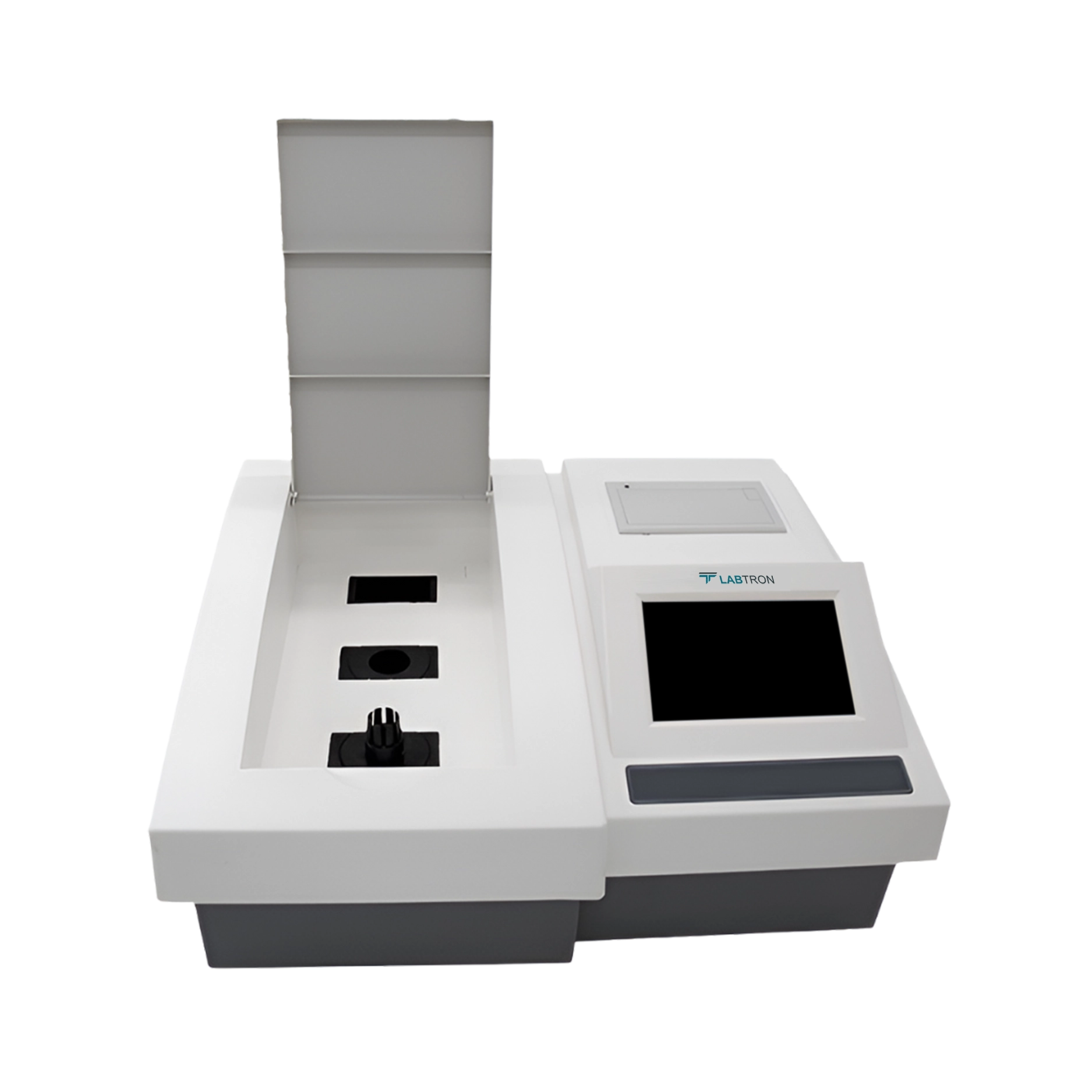

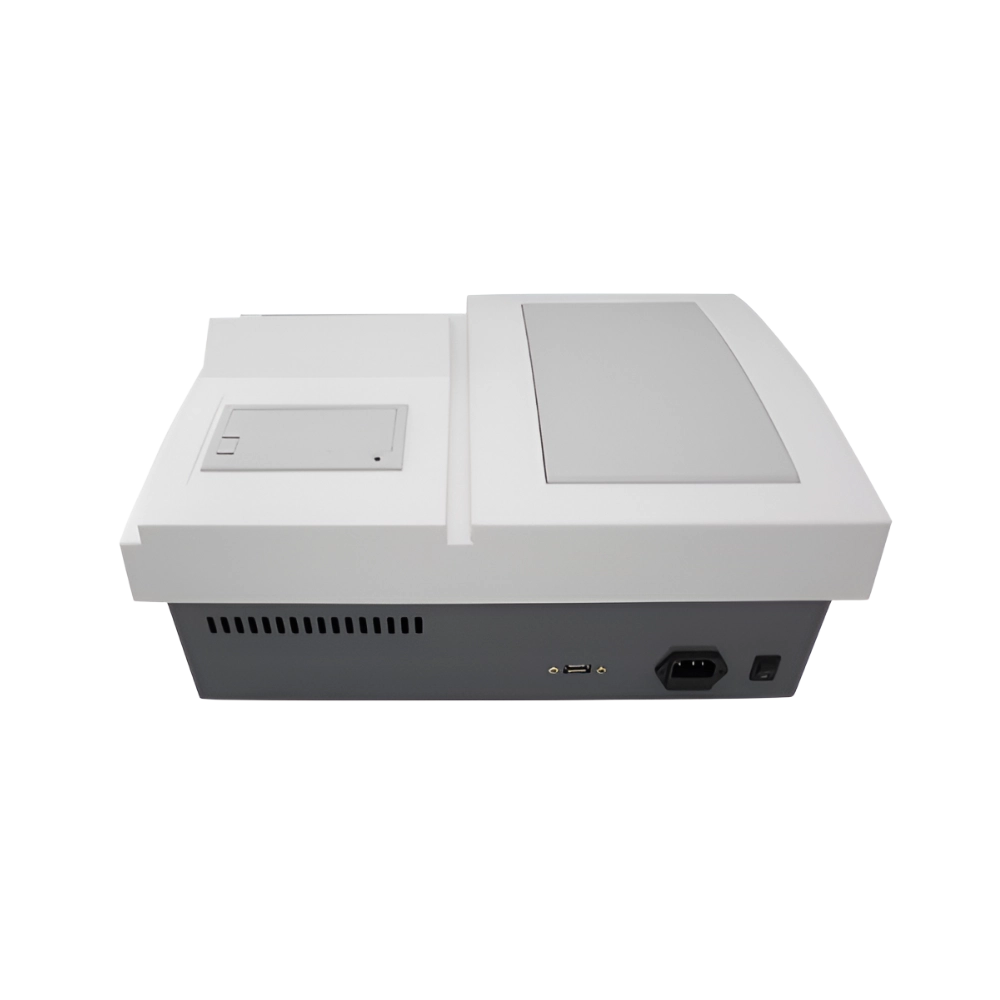

Our Benchtop Turbidity Analyzer LTA-A10 is widely applicable for determination and identification of drinking water, surface water and wastewater for precise water analysis in large, medium, small water plants, industrial and mining enterprises.
| Accessory | Quantity |
| Main Unit | 1 pc |
| Cuvette | 2 pc |
| USB data | 1 pc |
| Data collection disc | 1 pc |
Download catalog for
Benchtop Turbidity Analyzer LTA-A10 Catalog
Labtron’s Turbidity Analyzer with broad measurement range for analysis of different water samples. They provide excellent measurement accuracy with minimum resolution value. They utilize with cold light source and narrow-band interference optical system, providing excellent optical stability. They can store multiple user curves and records, with data retention even when powered off. Ideal for quantification of different water samples including industrial wastewater, surface water and ground water.
Labtron’s Precision Analyzer is used to accurately measure the turbidity (cloudiness or haziness) of a liquid caused by suspended particles. The Turbidity Analyzer is used in detection and measurement of water samples. Widely used in drinking water treatment plants, wastewater treatment facilities, industrial process water monitoring, pharmaceutical and food industries and environmental field testing.
It typically uses a light scattering method based on a monochromatic light source. The intensity of scattered or transmitted light is measured. The detector measures transmitted or scattered light depending on the design. The amount of light blocked or scattered correlates with the concentration of suspended solids It converts the optical signal into a suspended solids concentration, usually displayed in mg/L. Using monochromatic light ensures long-term stability with minimal drift.
Labtron’s Turbidity Analyzer comes with a calibration function. The calibration feature allows for self-calibration during operation. This effectively eliminates drift errors caused by long-term use.
Turbidity Analyzer are typically designed for continuous, real-time monitoring in both field and plant conditions. It enables curve queries, including not only curve equations but also the standard values of substance used during calibration, corresponding absorbance value, calibration time and calibration personnel ID, fully reproducing the calibration state. It also features printing function, allowing for single-item or page printing of records. The USB interface allows connection to a computer.
The Turbidity Analyzer can store maximum of 250 factory curves and up to 3500 user curves. It features the ability to store 100,000 records, with data retention even when powered off. It enables curve queries, including not only curve equations but also the standard values of substance used during calibration, corresponding absorbance value, calibration time and calibration personnel ID, fully reproducing the calibration state. The one-key factory reset function prevents loss or accidental deletion of curves.
