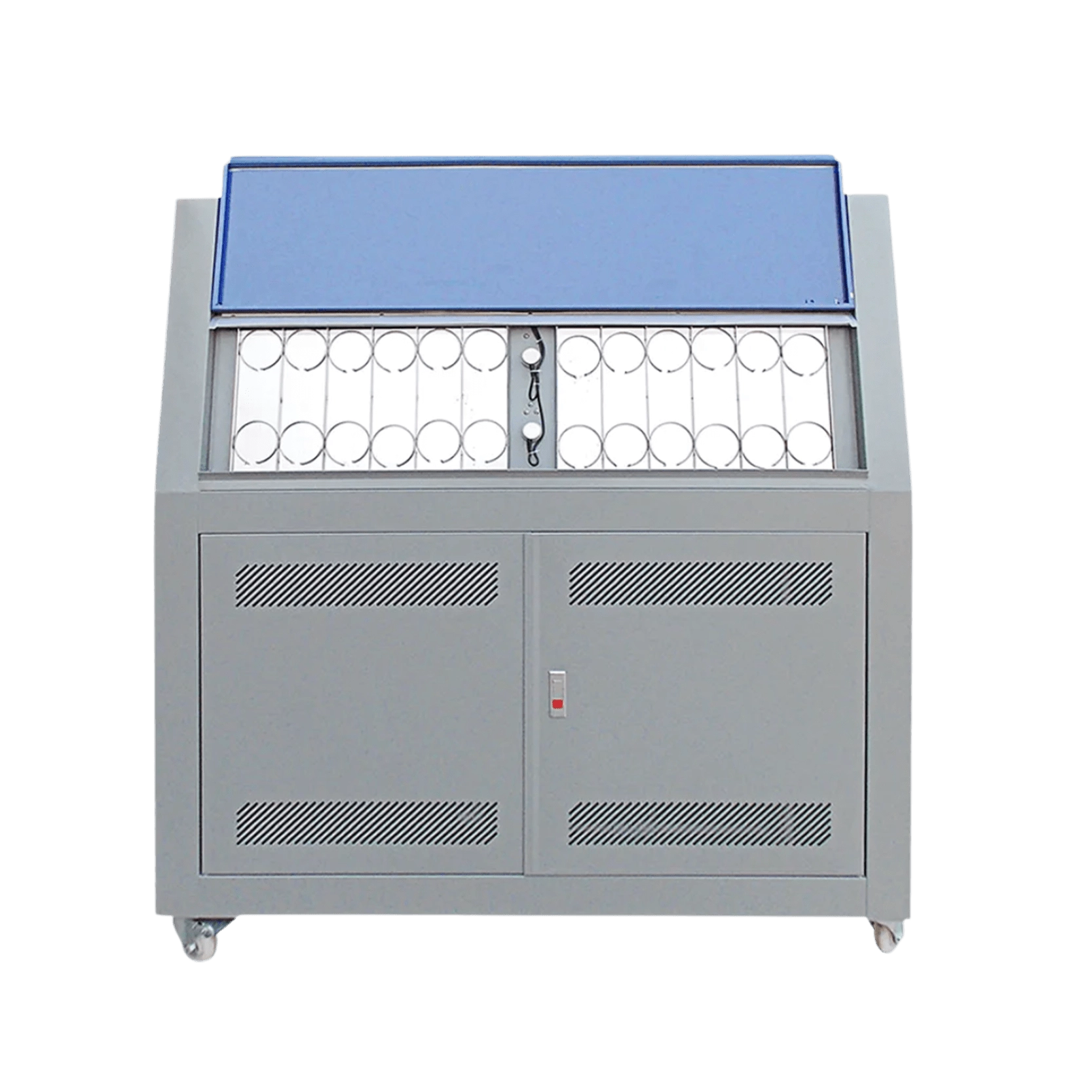

UV Test Chamber LUVC-B11 features an irradiation intensity of 0.38 W/m² for controlled UV exposure, ensuring accurate and efficient testing. It offers programmable test cycles, allowing users to customize settings for various testing requirements. The automated control system is for seamless operation and precise adjustments. It provides simulated sunlight exposure for material durability and aging studies. Our chamber has precision temperature control and maintains stable conditions for consistent and reliable test results.
| Irradiation Intensity | 0.38 W/m2 |
| Temperature Range | RT +10℃ to +70℃ |
| Temperature Uniformity | ±3.0℃ |
| Humidity Range | ≥75% RH |
| Distance Between Lamps | 65 to 70 mm |
| Distance Between Samples and Lamps | 55 mm |
| Standard Test Piece | 75 × 150 mm |
| Lighting | Q-blap or UVA-340 / UVB-313 lamp |
| Source of Water | Purified water/distilled water (8 L/24 H) |
| Spray System | 5 pcs nozzles |
| Dimensions (W × H × D) | 1165 × 500 × 450 mm |
| External Dimensions (W × H × D) | 1325 × 1480 × 600 mm |
Water spray simulation
Uniform light distribution
Real-time data monitoring
Energy-efficient operation
Advanced UV lamp system

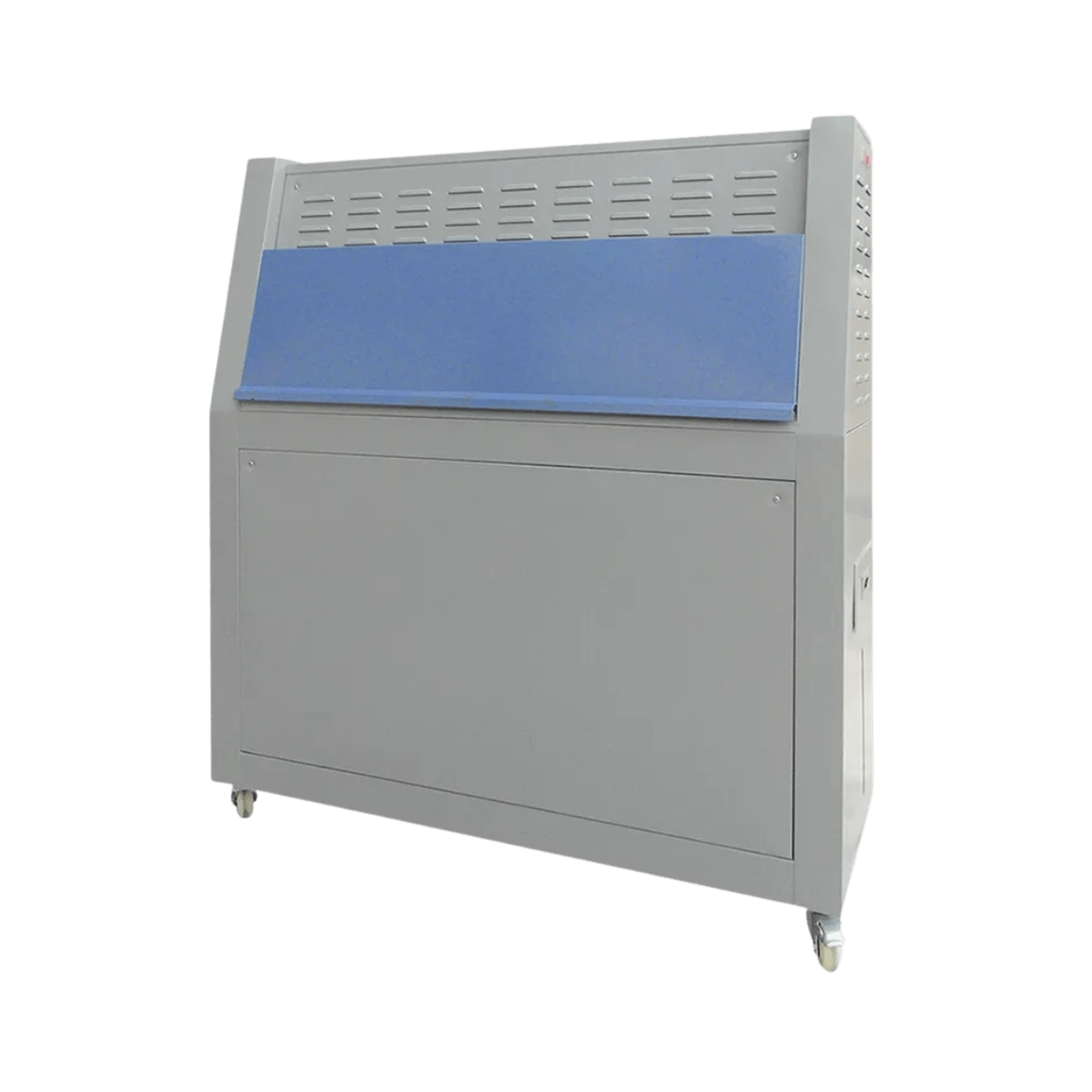

UV Test Chamber LUVC-B11 is a specialized testing device that simulates the damaging effects of sunlight, temperature, and humidity on materials, ensuring their durability and performance. It is widely used in automotive, textiles, plastics, and coatings for assessing weather resistance.
Download catalog for
UV Test Chamber LUVC-B11 Catalog
Labtron UV Test Chamber utilizes a single-cycle air duct system, ensuring efficient airflow for consistent temperature distribution. These are enhanced by an imported axial flow fan, providing superior air circulation for optimal performance. They incorporate an automatic water filling system, simplifying maintenance and ensuring a continuous water supply. Their sample frame is crafted from stainless steel, offering durability and resistance to corrosion. Our UV test chamber includes an internal automatic sprinkler spray system, providing uniform water distribution for testing.
