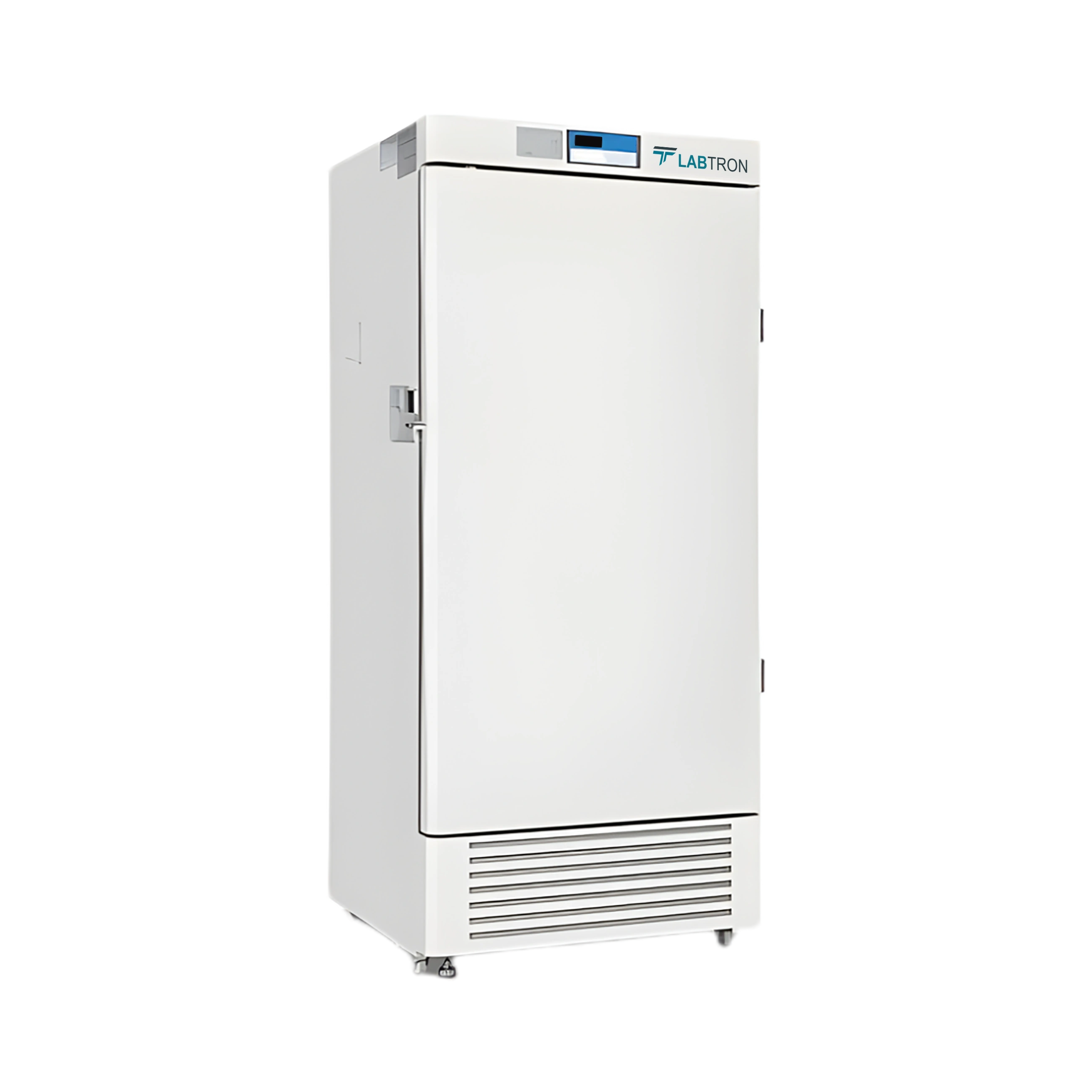

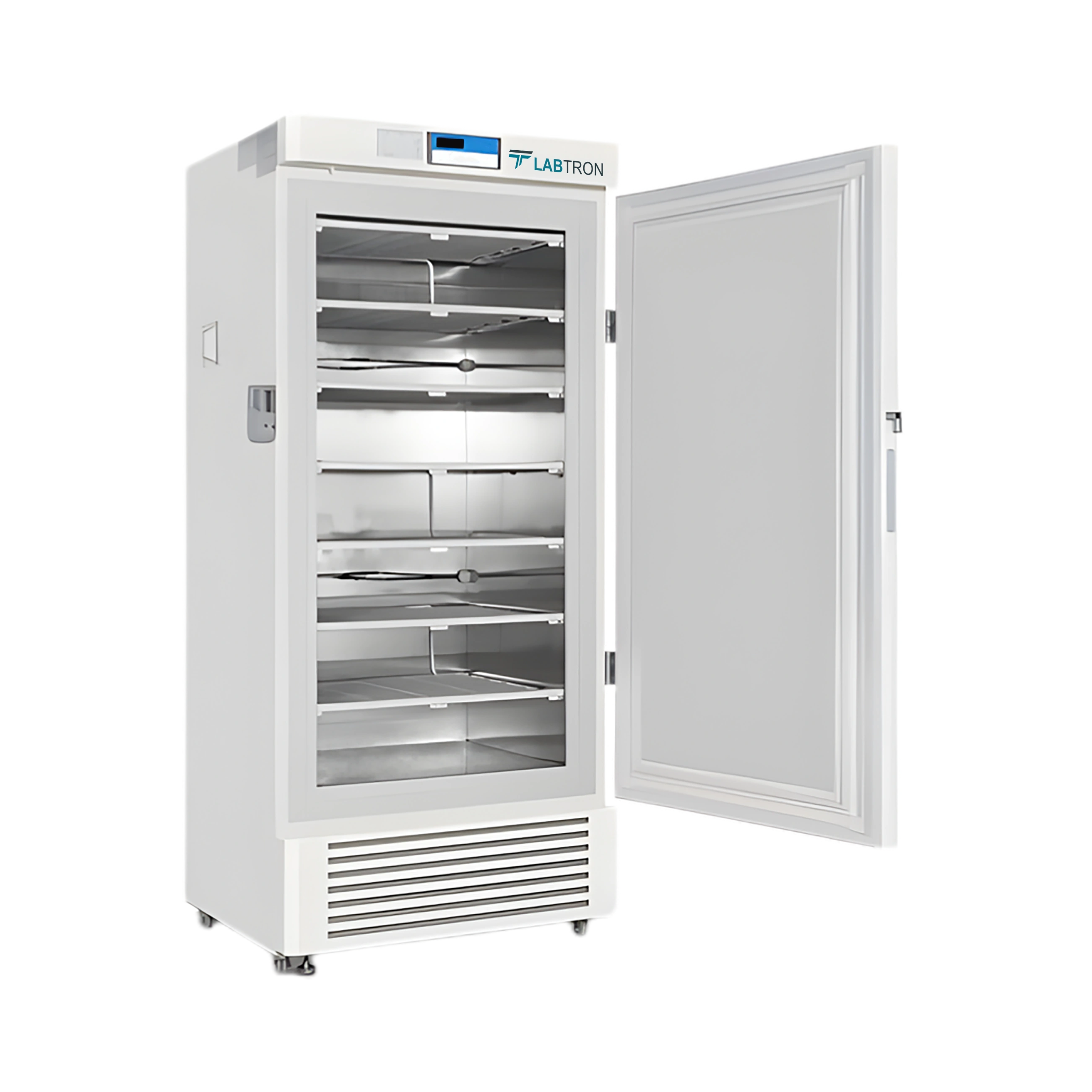

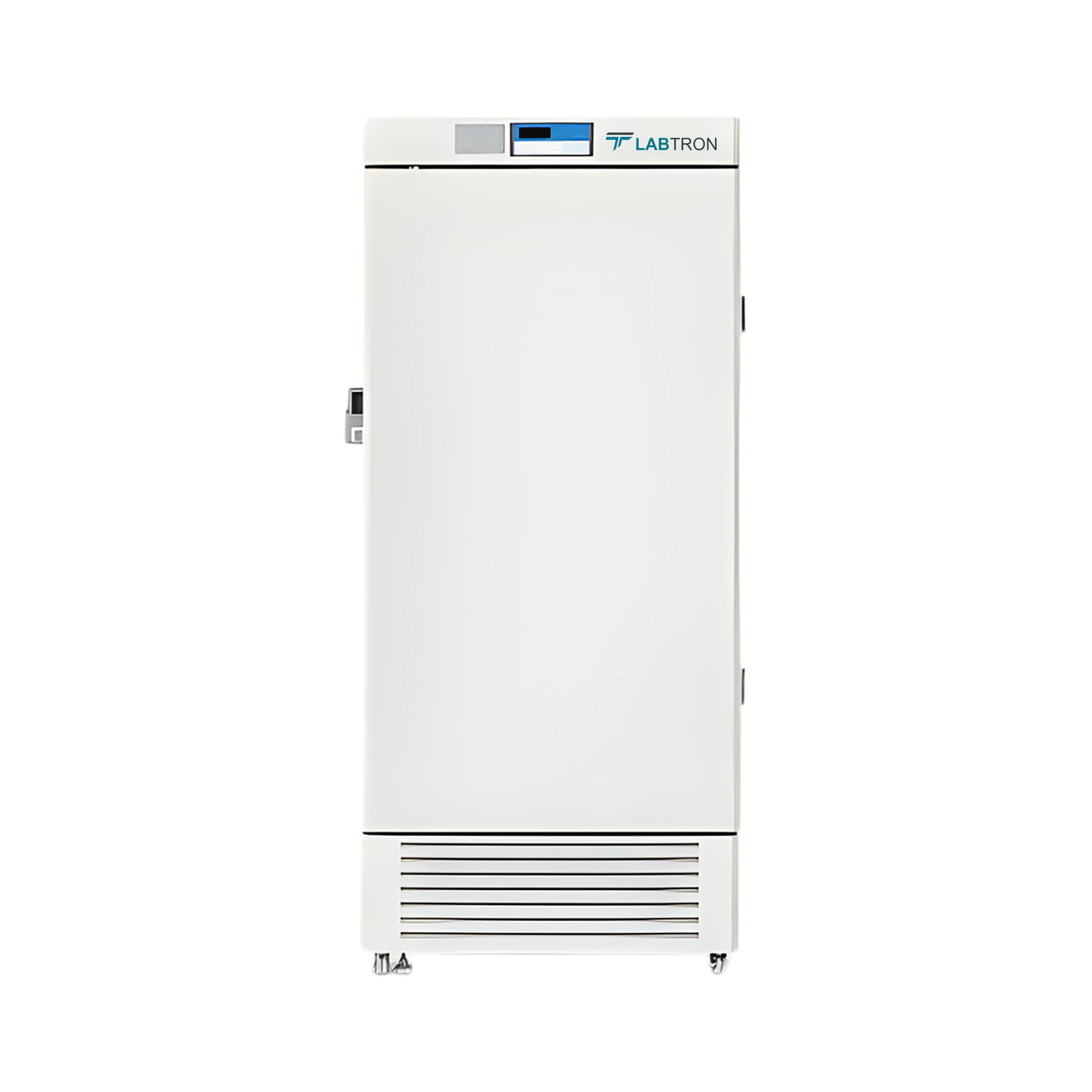

-40°C Upright Freezer LUF-B11

Name: -40°C Upright Freezer LUF-B11
Brand: Labtron
SKU: LUF-B11
Rating: 4.9 (658 reviews)

-40°C Upright Freezer LUF-B11 is a direct cooling comprised microprocessor controlled upright type unit, offers 439 L of capacity with -40°C of cooling performance and -20 to -40°C of temperature control range. Designed with powder coated material housing and stainless-steel interior with 7 adjustable shelves. With manual defrost mode and R507 refrigerant, features high-efficient EBM fan and compressor along with standard RS485 interface and remote alarm contact. Equipped with digital display and built-in advanced alarm system, has external door handle and padlock to prevent unauthorized access.

Request Quote

Cabinet Type	Upright
Capacity	439 L
Temperature Range	-20˚ to -40˚C
Ambient Temperature	16˚ to 32˚C
Cooling Performance	-40˚C
Cooling Method	Direct cooling
Defrost Mode	Manual
Refrigerant	R507
Climate Class	N
Controller	Microprocessor
Display	Digital display
Compressor	1 pc
Alarm System	High/Low temperature, High ambient temperature, Power failure, Low battery, Sensor failure, USB data-log failure, communication error, Door ajar
External Material	Powder coated material
Internal Material	Stainless steel
Insulation thickness	100 mm
Shelves	7 (ABS)
Casters	4 (2 caster with brake)
Door lock with Key	Yes
External Lock	Yes
Access Port	1 pc. Ø 25 mm
Data Logging/Interval/Recording Time	USB/Record every 10 minute / 2 years
Backup Battery	Yes
Power Supply	220 to 240 V 50 Hz
Rated Current	3.7 A
Internal Dimension (W×D×H)	650×547×1305 mm
External Dimension (W×D×H)	910×755×1945 mm
Packaging Dimension (W×D×H)	990×855×2070 mm
Net Weight	175 kg
Gross Weight	200 kg

A direct cooling comprised microprocessor controlled upright type unit
439 L of capacity with -40°C of cooling performance, targeted refrigeration
-20 to -40°C of temperature control range, ultra-low temperature freezer
Powder coated material housing and stainless-steel interior, easy maintenance
7 adjustable shelves, efficient and organized storage of different samples
Manual defrost mode and R507 refrigerant, efficient and environment-friendly
High-efficient EBM fan and compressor, stable operation with low noise
Standard RS485 interface and remote alarm contact, facilitate operation
Digital display with 0.1℃ display precision, convenient setting and observation
Built-in advanced alarm system, ensure safe and stable operation
External door handle and padlock to prevent unauthorized access
Anti-corrosive ultra-low freezer with strong cooling features and operation

-40°C Upright Freezer is used for scientific research, cryogenic test on special materials, low temperature resistance test on biological materials, vaccines, biological products and military products, etc. across research institutions, the electronic industry, the chemical industry, hospitals, the health,& disease prevention system, laboratories in colleges & universities, military enterprises, etc.

RS485
Remote alarm contact
