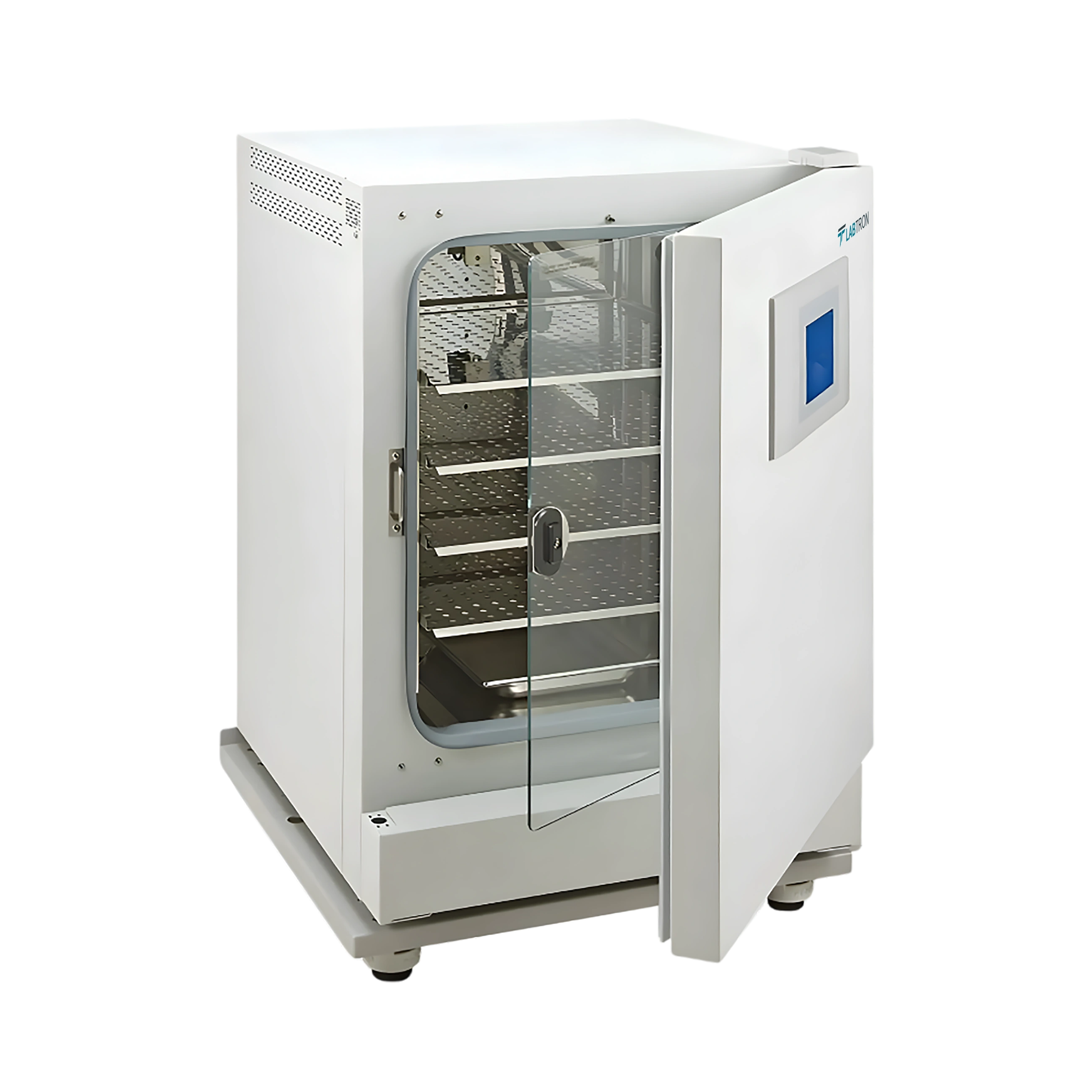

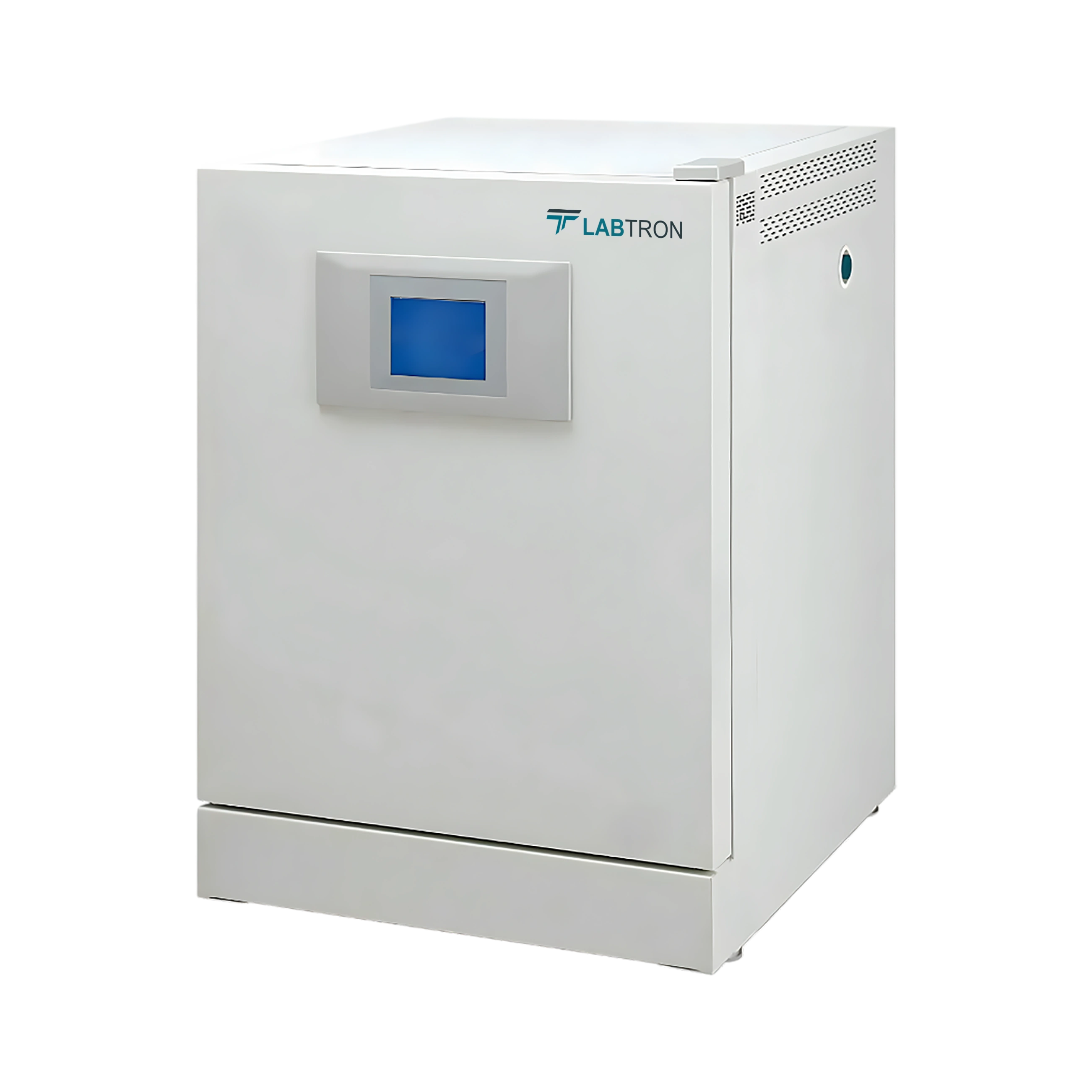

Air Jacketed CO2 Incubator LAJI-C13

Air Jacketed CO₂ Incubator LAJI-C13 offers outstanding temperature stability. Available with heat decontamination function and optional UV disinfection. Equipped with colored touch screen controller for displaying temperature, humidity, CO₂ concentration. In forced convection mode unit and offers heating function which prevents condensation on outer door.

Available Range :

Chamber Volume : 233 L Chamber Volume : 80 L Chamber Volume : 80 L CO₂ range : 0-20% Chamber Volume : 49 L Chamber Volume : 80 L

Chamber Volume	233 L
Shelves	3
Heating Method	Air-jacketed
Temperature Range	RT+5 ℃ to 50 ℃
Temperature Resolution	0.1 ℃
Temperature Fluctuation	0.1 ℃
Temperature Gradient	≤ ± 0.5 ℃
Temperature Uniformity	± 0.3 ℃
CO₂ Range	(0~20)% V/V
CO₂ Sensor	IR sensor
CO₂ Control Resolution	± 0.1%
CO₂ Deviation	≤ ±0.3%V/V
Humidity Method	Natural vaporization ＞ 95%
Interior Dimension (W×H×D)	600×670×630 mm
Exterior Dimension (W×H×D)	790 × 940 × 840 mm
Electrical Requirement	AC220 V,50 Hz
Power Consumption	950 W

Air jacketed CO₂ Incubator
Coloured touch screen displays temperature, humidity, CO₂ concentration curves
ISO Class 5 chamber with air renewal system
Data logger with alarm features and dry contact alarm, humidity sensor with water top up alarm
Meets sterilisation of 99.99% with 80°C heat on cells
90℃ high temperature hot and humid sterilization system
In forced convection mode
Heating function preventing condensation on outer door
Independent temperature-limiting protection system
CO₂ pressure-relief valve with 2-stage control and stable pressure
Optional HEPA filtration system

Air jacketed CO₂ incubators are widely used for a broad range of applications that includes Tissue engineering, In vitro fertilization, Neuroscience, Cancer research, Stem cell research, Regenerative medicine, Mammalian cell research.

CO₂ pressure releasing valve
RS485 connector
