Air Jacketed CO2 Incubator With UV Sterilization LAJI-F20

Air Jacketed CO2 Incubator With UV Sterilization LAJI-F20

Air Jacketed CO2 Incubator with UV Sterilization LAJI-F20 offers a temperature range of RT+5 to 55℃ for reliable performance. The integrated mirror-finish inner liner features a large arc design ensures easy cleaning and durability. Its reinforced perforated stainless steel shelves support long-term reliability and optimal airflow. Its top-mounted electrical components allow spacious access for convenient maintenance and repair. Our incubator is ideal for cell culture laboratories requiring stable CO2, temperature, and humidity conditions to support research.

Air Jacketed CO2 Incubator With UV Sterilization LAJI-F20_front view

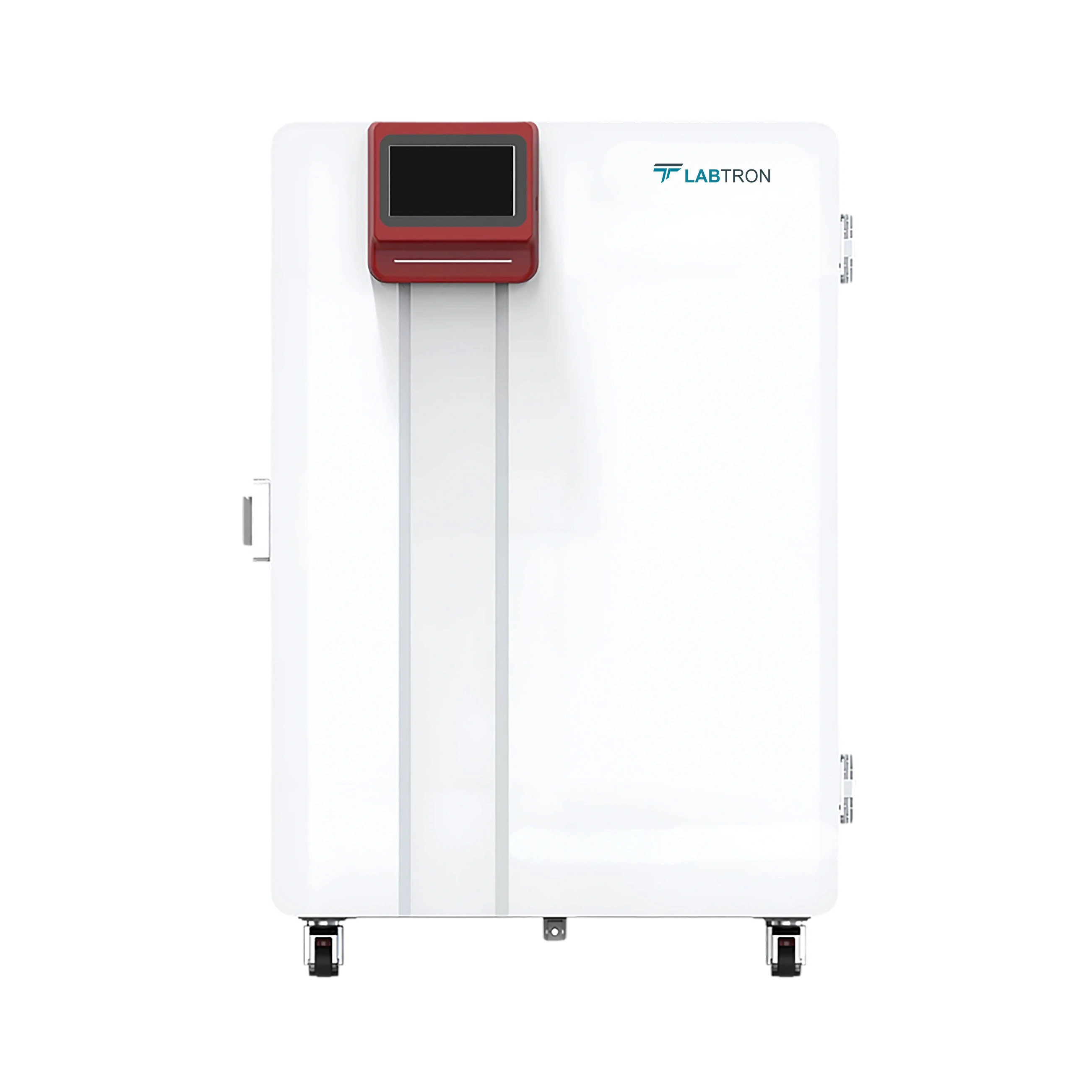

Air Jacketed CO2 Incubator With UV Sterilization LAJI-F20-01

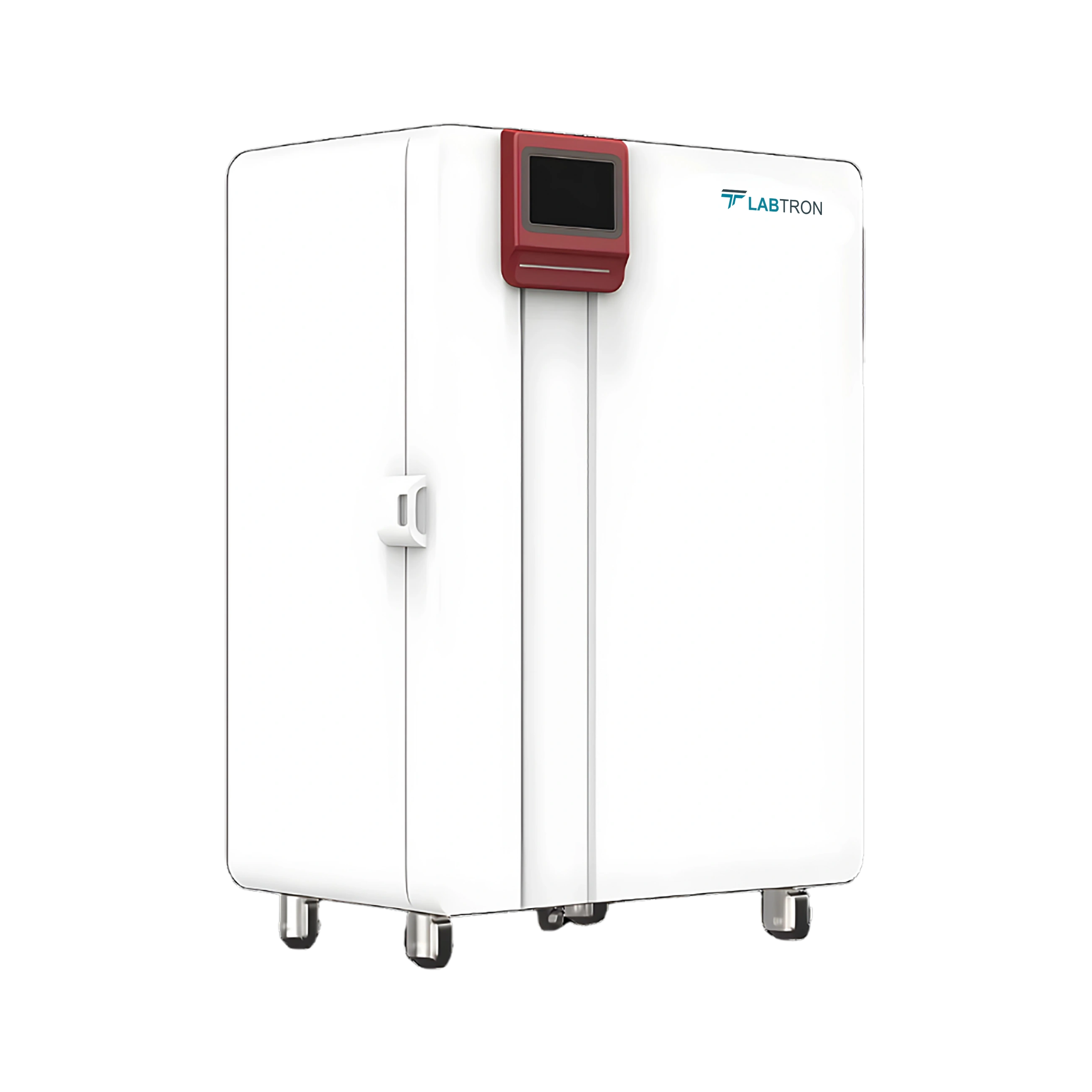

Air Jacketed CO2 Incubator With UV Sterilization LAJI-F20-02

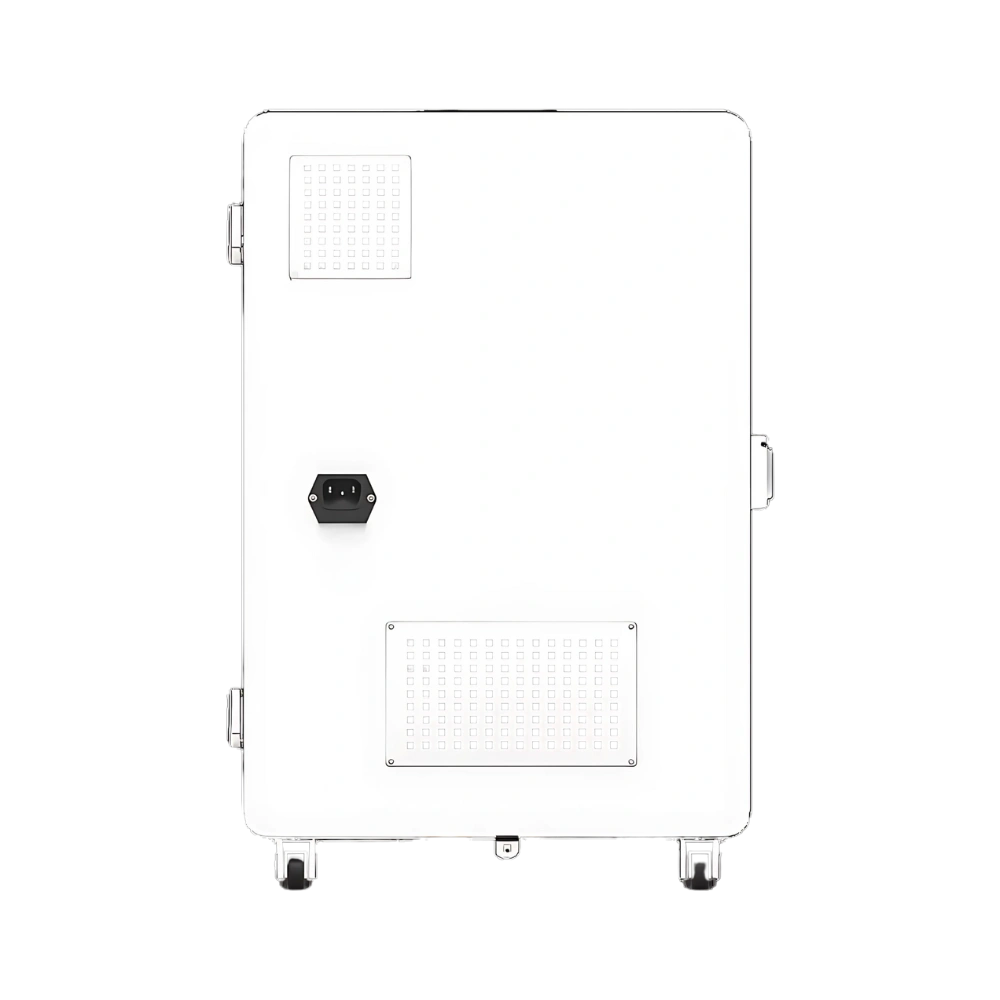

Air Jacketed CO2 Incubator With UV Sterilization LAJI-F20-03
Request Quote
Sterilization Method UV sterilization
Capacity 100 L
Temperature Range RT+5 to 55℃
Ambient temperature range 18 to 30℃
Temperature Fluctuation ±0.3℃
Temperature Uniformity ±0.5℃
Temperature Control Accuracy ±0.1°C
Relative Humidity Greater than 90%
CO2 Inlet Pressure 0.05 to 0.1 MPa
CO2 Control Range 0 to 20 %vol
CO2 Control Accuracy ±0.1 %vol
CO2 Recovery Time 6 min (at 5% vol)
CO2 Intake Time 5 min (at 5% vol)
CO2 Fluctuation ±0.1% vol
Amount of Water Required 1.5 L
Standard Quantity of Shelves 3
Maximum Quantity of Shelves 14
Power Consumption 900 W
Power Supply AC 220V (± 10%) 50/60Hz
Shelve Dimensions 350 × 375 mm
Internal Dimensions (W x D x H) 400 × 430 × 600 mm
Housing Dimensions (W x D x H) 650 × 650 × 960 mm
Load per Shelf 10 Kg
  • Real-Time Data Traceability
  • Event Logging Function
  • User Access Control
  • Rapid Uniform Heating
  • High-Temperature Sterilization

Our Air Jacketed CO2 Incubator with UV Sterilization ensures stable CO2, temperature, and humidity, ideal for precise, contamination-free cell culture in microbiology, oncology, and genetic research.

  • Optional Embedded Printer
  • Door Open Alarm
  • Double Temperature Protection
  • Low Water Level Protection
  • Filter Alarm
  • Abnormal CO2 Concentration Alarm
Air Jacketed CO2 Incubator With UV Sterilization LAJI-F20 | Capacity : 100 L | Temperature Range : RT+5 to 55℃
Air Jacketed CO2 Incubator With UV Sterilization LAJI-F20 | Real-Time Data Traceability | Event Logging Function

Models of Air-jacketed CO2 Incubator

Labtron Air-Jacketed CO2 Incubator is specialized to maintain optimal condition with chamber volume of 40 L to 570 L. Their dual-layer construction ensures stable internal temperature and protects against external fluctuations effectively. They are equipped with carbon dioxide monitoring system to measure accurate gas concentration levels. Their humidity control system prevents dehydration of cell cultures, promoting healthy growth environments consistently. Our Air-Jacketed CO2 Incubator culture sensitive cells and tissues for stem cell research and genetic engineering.

Air Jacketed CO2 Incubator LAJI-B11

Air Jacketed CO2 Incubator LAJI-B11

  • Chamber Volume : 80 L
  • Shelves : 2 (pcs)
  • Heating Method : Air-jacketed, PID Control
  • Temperature Range : RT + 5 to 50°C
Air Jacketed CO2 Incubator LAJI-B16

Air Jacketed CO2 Incubator LAJI-B16

  • Heating Method : Direct Heating Air Jacket Type
  • Capacity : 55 L
  • Temperature Range : RT+3 to 60℃
  • Temperature Uniformity : Less than or equal to ±0.25℃
Air Jacketed CO2 Incubator With Moist Heat Sterilization LAJI-F11

Air Jacketed CO2 Incubator With Moist Heat Sterilization LAJI-F11

  • Sterilization Method : Moist heat sterilization
  • Capacity : 180 L
  • Temperature Range : RT+5 to 55℃
  • Ambient temperature range : 18 to 30℃
Air Jacketed CO2 Incubator LAJI-B15
Air Jacketed CO2 Incubator LAJI-B15
  • Chamber Volume : 165L
  • Perforated shelf (Std/Max) : 3/10
  • Heating Method : Air-jacketed, PID Control
  • Temperature Range : RT+3-60℃
Air Jacketed CO2 Incubator LAJI-C13
Air Jacketed CO2 Incubator LAJI-C13
  • Chamber Volume : 233 L
  • Shelves : 3
  • Heating Method : Air-jacketed
  • Temperature Range : RT+5 ℃ to 50 ℃
Air Jacketed CO₂ Incubator LAJI-D10

Air Jacketed CO₂ Incubator LAJI-D10

  • Capacity : 570 L
  • Temperature Range : 5 to 40 °C
  • Ambient Temperature : 5 to 60 °C
  • Accuracy : 0.1 °C
Air Jacketed CO₂ Incubator LAJI-C14

Air Jacketed CO₂ Incubator LAJI-C14

  • Capacity : 300L
  • Sterilization : 90°C steam sterilization
  • Temperature Sensor : PT100
  • Temperature Range : RT+5 to 60℃
Air Jacketed CO2 Incubator LAJI-B12

Air Jacketed CO2 Incubator LAJI-B12

  • Chamber Volume : 150 L
  • Shelves : 2 (pcs)
  • Heating Method : Air-jacketed, PID Control
  • Temperature Range : RT + 5 to 50°C
Air Jacketed CO2 Incubator With UV Sterilization LAJI-F20 FAQ's
  • The Air Jacketed CO2 Incubator with UV Sterilization LAJI-F20 is primarily used in laboratories that perform sensitive cell culture work, including microbiology, oncology, genetic engineering, and tissue culture research. It provides a stable and sterile environment with precise control over temperature, humidity, and CO2 levels, which is essential for supporting the growth of mammalian cells and other biological samples. Its UV sterilization function adds an extra layer of contamination protection, making it ideal for high-precision and long-term experimental work in research institutes, pharmaceutical industries, and clinical labs. The large internal chamber and reliable performance make it suitable for both routine and advanced scientific applications.

  • The Air Jacketed CO2 Incubator with UV Sterilization LAJI-F20 includes an integrated UV sterilization system that plays a critical role in maintaining a contamination-free environment within the incubation chamber. UV light is effective in deactivating bacteria, viruses, and other microorganisms by disrupting their DNA, which helps prevent contamination of cultures and samples. This is especially beneficial during long-term incubation periods when biological growth is most vulnerable to microbial interference. The sterilization process operates safely and efficiently without affecting ongoing cultures, ensuring that research results are not compromised by external contaminants or internal cross-contamination between samples.

  • The Air Jacketed CO2 Incubator with UV Sterilization LAJI-F20 model is designed with features that support consistent, long-term usage required in advanced biological research. It maintains precise environmental control with a temperature range of RT+5 to 55? and high CO2 regulation accuracy of ±0.1% vol, which ensures reliable growth conditions for sensitive cultures. Its mirror-finish inner liner with a large arc design allows easy cleaning and reduces the risk of contamination build-up over time. The reinforced stainless steel shelves ensure durability and uniform airflow, while the top-mounted electrical components simplify maintenance and servicing. Additionally, the UV sterilization system helps maintain a sterile environment, making the incubator highly dependable for extended experiments and critical research workflows.

  • The Air Jacketed CO2 Incubator with UV Sterilization LAJI-F20 is engineered for user convenience and operational efficiency. Its mirror-finished inner liner with a curved arc design ensures quick and thorough cleaning, minimizing downtime between experiments. The shelves are made from reinforced perforated stainless steel to promote airflow while supporting heavy loads, enhancing usability and durability. Top-mounted electrical components provide easy access for troubleshooting and maintenance without interfering with the incubation space. The addition of a quick-insert drain, water level sensors, and a magnetic switch on the glass door also contributes to efficient monitoring and management. These thoughtful design elements make the LAJI-F20 both user-friendly and highly practical for busy laboratory environments.

  • The Air Jacketed CO2 Incubator with UV Sterilization LAJI-F20 includes several safety and monitoring features that ensure reliable operation and data security in laboratory settings. It is equipped with a water level sensor and alarm system to prevent low-humidity conditions that can affect sample integrity. The glass door features a magnetic switch that detects door status and minimizes internal condition fluctuations when opened. For environmental monitoring, the incubator includes a dual-wavelength IR CO2 sensor for accurate, drift-free gas level detection. It also supports USB and RS485 interfaces for real-time data access and event tracking. With an independent temperature protection device and user access control, the LAJI-F20 provides both operational safety and data traceability, making it well-suited for regulated research environments.
