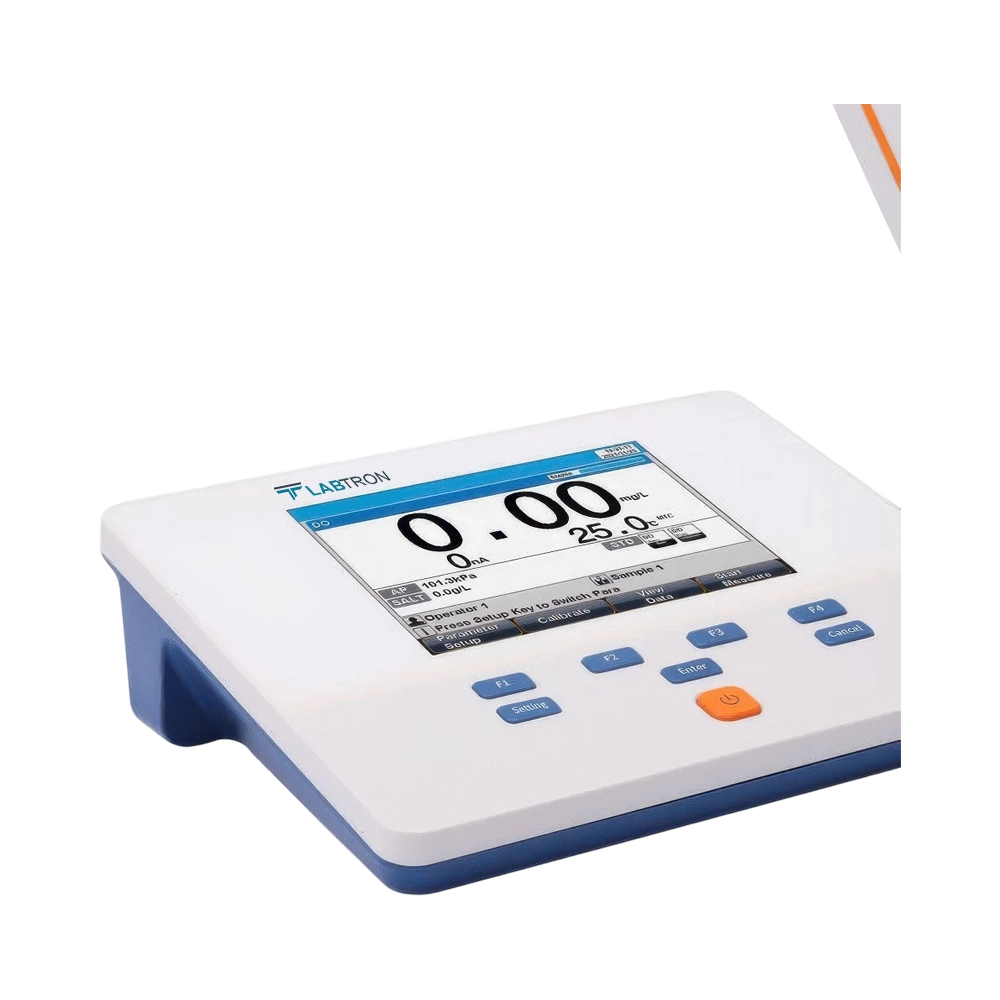

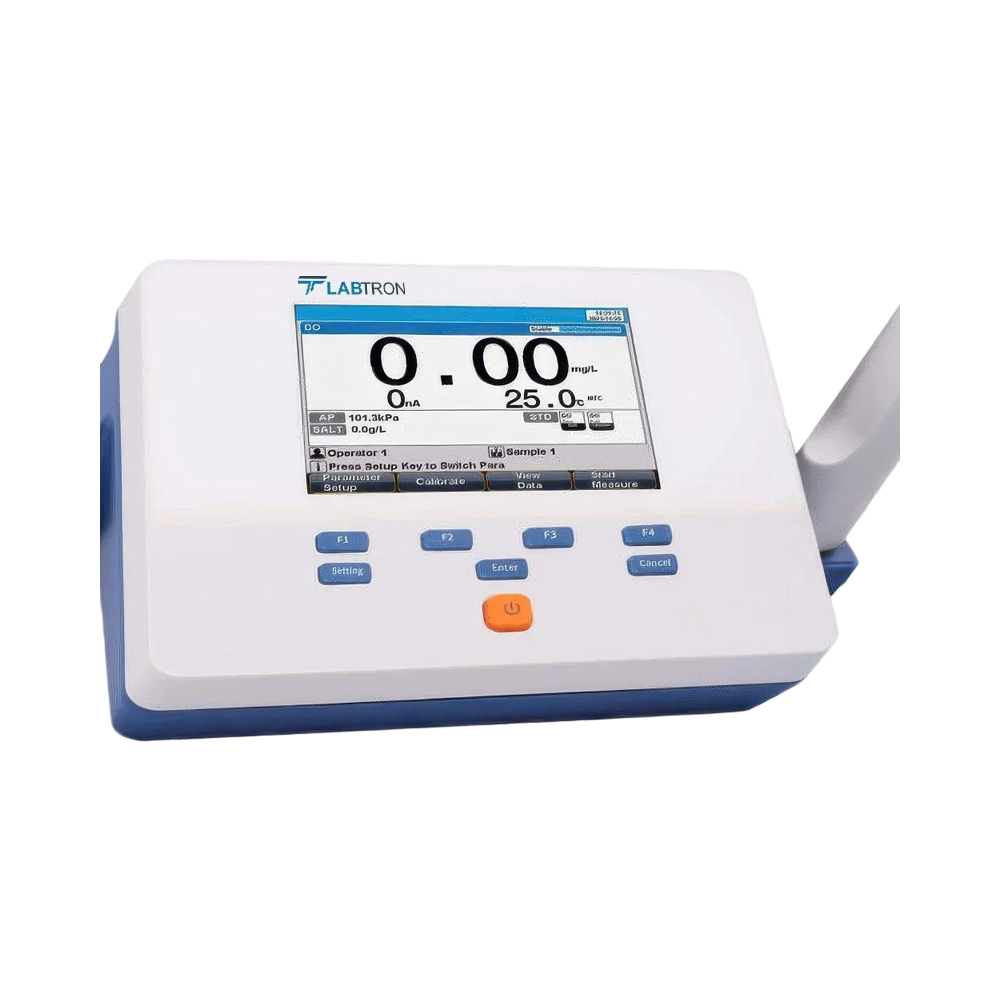

Benchtop Ion Meter For NO LBIM-C15

Benchtop Ion Meter For NO LBIM-C15

Benchtop Ion Meter for NO LBIM-C15 operates on the ion-selective electrode method and boasts a user-friendly design with 1 to 5 points calibration. Known for its simplified operation and impressive low detection limits, this meter ensures accurate measurements. The Automatic/Manual temperature compensation technology enhances precision, while the auto-hold feature secures the measurement endpoint. Conveniently, factory default options can be easily restored using the reset feature.

Benchtop Ion Meter For NO LBIM-C15
Benchtop Ion Meter For NO LBIM-C15
Benchtop Ion Meter For NO LBIM-C15
Request Quote
Test Parameters pH/ISE/Temp. (mV/pX)
pH Range -2.00 to 20.00 pH
pH Resolution 0.1, 0.01 pH
pH Accuracy ±0.01 pH
pH Calibration Points Up to 5
pH Standard Customization Yes
pH Standard Recognition NIST, GB, DIN, USA and MERK buffers
pH Slope Limit Yes
mV Range -2000.0 to 2000.0 mV
mV Resolution 0.1, 0.01 mV
mV Accuracy ±0.1 mV or ±0.03% of reading whichever is greater
pX Range -2.00 to 20.00 pX
pX Resolution 0.1, 0.01 pX
pX Accuracy ±0.01 pX
pX Calibration Points Up to 5
ISE Range 1E-9 to 9.999E9
ISE Unit mol/L, mmol/L, g/L, mg/L, μg/L, ppm
ISE Resolution Up to 4 significant digits
ISE Accuracy ± 0.3%
ISE Calibration Points Up to 5
Temperature Range -5.0 to 110 ºC, 23.0 to 230 ºF
Temperature Unit ºC, ºF
Temperature Resolution 0.1
Temperature Accuracy ±0.2
Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temperature Compensation ATC, MTC
Data Storage 500 results each
GLP Features Yes
Conductivity with Temperature Probe 5-pin aviation connector
Communication USB, RS 232 interface
Backlight Yes
Auto Shutdown 1 to 60 min, off
IP Rating IP54
Date and Time Yes
Power supply AC Adapter, 100-240V AC input, DC9V output
Dimension (W×D×H) 242 × 195 × 68 mm
Packaging dimension (W×D×H) 370 × 305 × 330 mm
Net weight 0.9 Kg
Gross weight 4.5 Kg
  • Multi reading function enables auto read, timed read and continuous read
  • Clear and easy-to-read LCD screen for quick data analysis
  • Automatic electrode diagnosis ensures accurate readings
  • Easily view offset values for precision
  • Quickly switch between direct reading and versatile multi-measurement options
  • Choose from mode, standard addition, sample addition, and GRAN for diverse analysis
  • Use the ten pre-loaded techniques including F-, Cl-, Br-, I-, NO3, BF4-, and NH4+
  • Supports elements like K+, Na+, Ca2+, Cu2+, Pb2+, Ag+, for flexibility in experiments

Benchtop Ion Meter for NO LBIM-C15 is used to determine the presence of nitrate ions and pH across industries like biomedical research, quality control, agriculture, forensics, etc.

Electrode

Models of Benchtop Ion Meter

Labtron Benchtop Ion Meter offers measurement of specific ions concentration in solution. They operate using electrodes (ISEs), which respond selectively to particular charged species, allowing for accurate and reliable measurements. Their built-in temperature sensors allow for automatic adjustments to readings minimizing interference from surrounding environmental factors. They feature user-friendly interfaces for easy navigation through evaluation settings and calibration processes. Our Benchtop Ion Meter is essential in environmental monitoring, food and beverage analysis, and pharmaceutical research.

Benchtop Ion Meter For Cu, LBIM-A27

Benchtop Ion Meter For Cu, LBIM-A27

  • Ion measurement range : Cu range: 1×108 - 1M, 0.06-6400 ppm
  • Ion measurement accuracy : ± 1 % F.S.
  • Resolution : 0.001, 0.01, 0.1, 1
  • Calibration points : 2 to 5 points
Benchtop Ion Meter For NH LBIM-C17

Benchtop Ion Meter For NH LBIM-C17

  • Ion measurement range : NH range: 0 to 19990 g/L
  • Ion measurement accuracy : 0.005
  • Ion measurement resolution : 4 significant digits (expressed in scientific notation)
  • mV range : 1999.9 to 1999.9 mV
Benchtop Ion Meter For Br, LBIM-A14

Benchtop Ion Meter For Br, LBIM-A14

  • Ion measurement range : Br range: 5 × 106 - 1 M, 0.4 - 79900 ppm
  • Ion measurement accuracy : ± 0.5 % F.S.
  • Resolution : 0.001, 0.01, 0.1, 1
  • Calibration points : 2 to 5 points
Benchtop Ion Meter For Cu LBIM-C18
Benchtop Ion Meter For Cu LBIM-C18
  • Ion measurement range : Cu range: 0 to 19990 g/L
  • Ion measurement accuracy : 0.005
  • Ion measurement resolution : 4 significant digits (expressed in scientific notation)
  • mV range : 1999.9 to 1999.9 mV
Benchtop Ion Meter For Br LBIM-C14
Benchtop Ion Meter For Br LBIM-C14
  • Ion measurement range : Br range: 0 to 19990 g/L
  • Ion measurement accuracy : 0.005
  • Ion measurement Resolution : 4 significant digits (expressed in scientific notation)
  • mV range : 1999.9 to1999.9 mV
Benchtop Ion Meter For Pb, LBIM-A25

Benchtop Ion Meter For Pb, LBIM-A25

  • Ion measurement range : Pb range: 1×108 – 0.1M, 0.2-20700 ppm
  • Ion measurement accuracy : ± 1 % F.S.
  • Resolution : 0.001, 0.01, 0.1, 1
  • Calibration points : 2 to 5 points
Benchtop Ion Meter LBIM-B10

Benchtop Ion Meter LBIM-B10

  • pH/pX Range : -2.000 to 20.000 pH/pX
  • mV Range : -1999.9 to 1999.9 mV
  • Ion Measurement : H, Na, K, Ag, Ca, Cl, F, NO3, etc.
  • Measurement Units : mol/L, mmol/L, g/L, mg/L, ppm, µg/L
Benchtop Ion Meter For Cl LBIM-C12

Benchtop Ion Meter For Cl LBIM-C12

  • Ion measurement range : Cl range: 0 to 19990 g/L
  • Ion measurement accuracy : 0.005
  • Ion measurement Resolution : 4 significant digits (expressed in scientific notation)
  • mV range : 1999.9 to1999.9 mV
Benchtop Ion Meter For NO LBIM-C15 FAQ's
  • Labtron Benchtop Ion Meter for NO is designed for use in a variety of professional fields including agriculture, biomedical research, environmental testing, and forensic analysis. It specializes in detecting nitrate ions and measuring pH with high accuracy. This makes it a valuable tool for water quality testing, soil nutrient analysis, and lab-based research. It offers a multi-ion detection capabilities that allow it to adapt to a wide range of testing scenarios.

  • The Benchtop Ion Meter for NO is crafted to feature up to 5-point calibration and automatic buffer recognition. Users can easily customize calibration settings and switch between measurement modes like auto-read, timed, and continuous. The large LCD screen provides clear reading prompts and status indicators to guide users through the process. This makes it simple to operate even for users with limited technical experience.

  • Our Benchtop Ion Meter for NO includes built-in safety functions like automatic electrode diagnostics and slope limit alerts to ensure reliable readings. These features notify users when calibration or electrode conditions are outside the acceptable range. The auto-hold function also helps lock in stable readings, preventing errors caused by user timing. Altogether, these safeguards help reduce the risk of inaccurate results during critical testing.

  • Yes, Labtron's LBIM-C15 supports an extensive ISE range from 1E-9 to 9.999E9, making it suitable for both trace-level and high-concentration samples. It provides results in multiple units including ppm, mol/L, and ?g/L, offering flexibility in how data is reported. The meter also supports advanced measurement techniques like standard addition and GRAN methods. This versatility makes it effective across many scientific and industrial applications.

  • The Benchtop Ion Meter for NO is equipped with both Automatic Temperature Compensation (ATC) and Manual Temperature Compensation (MTC). These features adjust readings based on real-time temperature changes to maintain accuracy. The temperature range of -5.0 to 110 ºC allows it to perform reliably in a wide variety of environments. This is particularly useful in labs or field conditions where precise temperature control may be challenging.

  • Our Benchtop Ion Meter for NO includes both USB and RS 232 ports for data transfer, allowing easy connection to external devices. It can store up to 500 readings, which helps with record-keeping and trend analysis over time. GLP-compliant features support traceability and accountability in regulated environments. These capabilities make it an excellent choice for labs that require detailed documentation and data management.

  • The Benchtop Ion Meter for NO is built for durability with an IP54-rated enclosure, protecting it against dust and light water splashes. It includes a factory reset function to quickly restore default settings when needed. The meter also offers automatic diagnostics for electrodes, helping users maintain optimal performance. These features, combined with a robust power supply and compact design, ensure long-term reliability and ease of maintenance.
