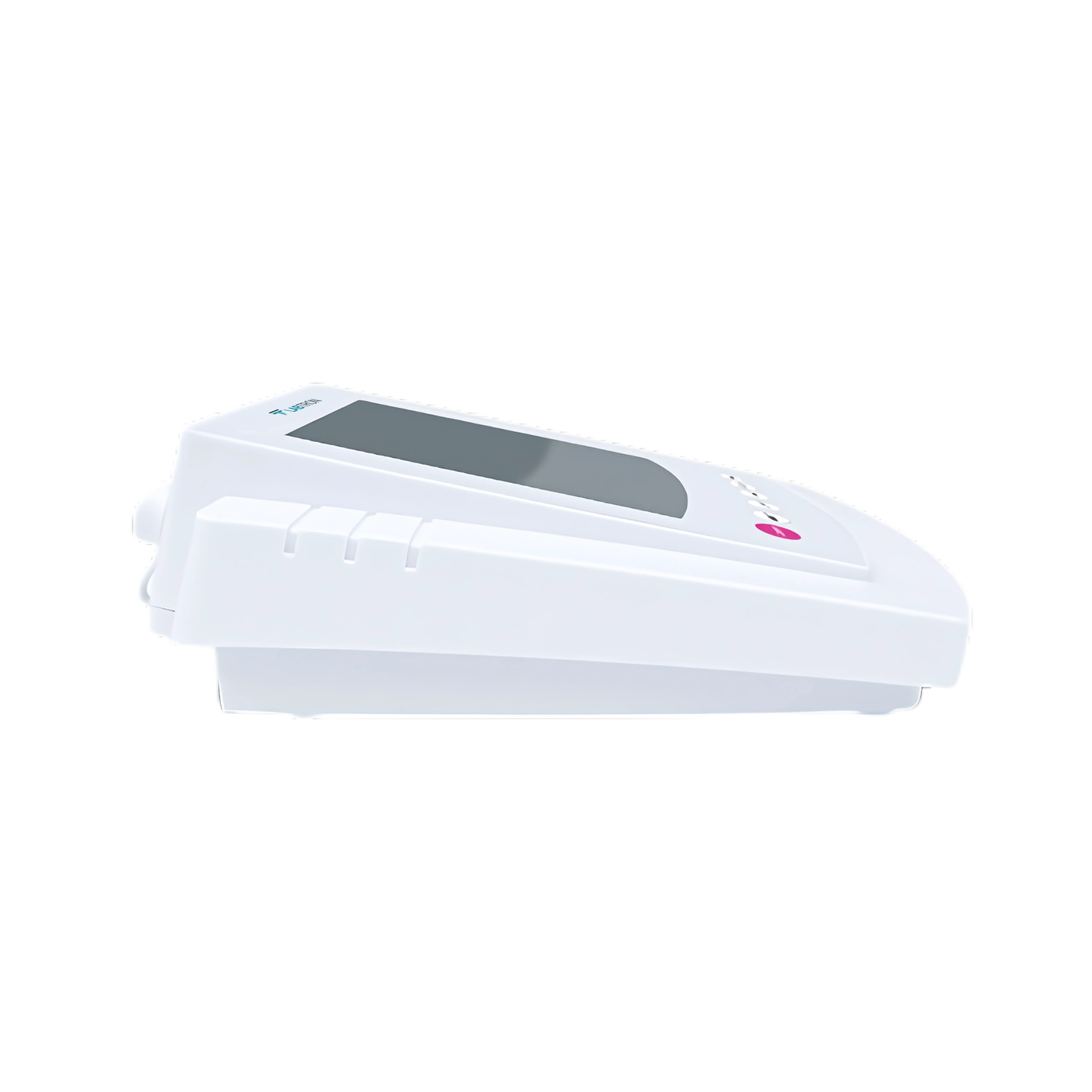

Benchtop Ion Meter For S, LBIM-A24

Benchtop Ion Meter For S, LBIM-A24

Benchtop Ion meter for S, LBIM-A24 comes with (S) sulphide ion selective electrode for sulphide ion concentration measurement. This Ion meter comes with ± 1 % F.S. measurement accuracy. Its direct ion concentration readout helps in elaborate measurement process. The system menu allows setting the 8 parameters like calibration points, stability condition etc. It can measure concentration in ppm, mg / L, mol / L. The mV measurement is used to check the performance of ion selective electrode.

Benchtop Ion Meter For S, LBIM-A24
Benchtop Ion Meter For S, LBIM-A24
Benchtop Ion Meter For S, LBIM-A24
Request Quote
Ion measurement range S range: 1×107 - 1M, 0.003-32100 ppm
Ion measurement accuracy ± 1 % F.S.
Resolution 0.001, 0.01, 0.1, 1
Calibration points 2 to 5 points
Calibration solutions 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L
mV range (-1999.9) to 1999.9 mV
mV accuracy ± 0.2 mV
mV resolution 0.1 mV
Temperature measurement range 0 to 105 °C, 32 to 221 °F
Temperature accuracy ± 0.5 °C, ± 0.9 °F
Temperature resolution 0.1°C
Temperature compensation 0 to 100 °C, 32 to 212 °F
Compensation mode Manual or automatic
Data hold function Manual or automatic endpoint detection
Reset function Yes
Stability condition Low or high
Calibration due 0 to 31 days
Power off Manual or automatic (10,20,30 minutes)
Memory Stores up to 500 sets of data
Output USB communication interface
Connector BNC
Display LCD (130 × 110 mm)
Power DC 5 V, using AC adapter, AC 220 V / 50 Hz
Dimension (L × W × H) 210 × 188 × 60 mm
Weight 1.5 kg
  • Large LCD display
  • 2 - 5 points calibration from low to high concentration
  • Direct ion concentration readout for elaborate measurement process
  • Selectable concentration units from ppm, mg / L, mol / L
  • mV measurements to check the performance of ion selective electrode
  • Temperature compensation provides accurate reading over the entire range
  • Stability indicator to show current measurement status
  • Calibration due reminder for regular calibration of the meter
  • Auto hold function to freeze stable reading for better viewing & recording
  • Automatic electrode diagnosis shows the slope of the sensor
  • Reset setting function
  • Expanded memory stores and recalls up to 500 readings
  • Built –in real time clock stamps
  • USB communication interface to transfer stored data to PC

Benchtop Ion meter is used to measure the sulphide ion concentration present in potable water, D/W water, waste water and natural water resources using different ion concentration electrodes.

S Ion selective electrode
Temperature probe
Standard solution (1000 ppm)
Ionic strength adjuster (30 mL)
USB cable
DC 5 V Power adapter

Ion selective electrode: S range: 1×107 - 1M, 0.003-32100 ppm
Ion standard solutions: 480 mL / bottle
Ionic strength adjuster: 480 mL / bottle
Temperature probe with sensor

Download catalog for
Benchtop Ion Meter For S, LBIM-A24 Catalog

Available Range :

Benchtop Ion Meter For Ag, LBIM-A22 : Ag range: 1 × 107 - 1 M, 0.01 - 107900 ppm Benchtop Ion Meter For Br LBIM-C14 : Br range: 0 to 19990 g/L Benchtop Ion Meter For Br, LBIM-A14 : Br range: 5 × 106 - 1 M, 0.4 - 79900 ppm Benchtop Ion Meter For Ca LBIM-C13 : Ca range: 0 to 19990 g/L Benchtop Ion Meter For Ca, LBIM-A13 : Ca range: 5 × 107 - 1 M, 0.02 - 4000 ppm Benchtop Ion Meter For Cd, LBIM-A28 : Cd range: 1×106– 1M, 0.01-11200 ppm Benchtop Ion Meter For Cl LBIM-C12 : Cl range: 0 to 19990 g/L Benchtop Ion Meter For Cl, LBIM-A10 : Cl range: 5 × 106 - 1 M, 1.8 - 35500 ppm Benchtop Ion Meter For Cn, LBIM-A21 : Cn range: 5 × 106 – 0.01 M, 0.2 – 260 ppm Benchtop Ion Meter For Cu LBIM-C18 : Cu range: 0 to 19990 g/L Benchtop Ion Meter For Cu, LBIM-A27 : Cu range: 1×108 - 1M, 0.06-6400 ppm Benchtop Ion Meter For F LBIM-C10 : F range: 0 to 19990 g/L Benchtop Ion Meter For F, LBIM-A11 : F range: 1 × 106M – saturation, 0.02 ppm to saturation Benchtop Ion Meter For I LBIM-C19 : I range: 0 to 19990 g/L Benchtop Ion Meter For I, LBIM-A26 : I range: 1×108- 1M, 0.06 -127000 ppm Benchtop Ion Meter For K LBIM-C16 : K range: 0 to 19990 g/L Benchtop Ion Meter For K, LBIM-A23 : K range: 1×106 - 1M, 0.04 -39000 ppm Benchtop Ion Meter For Na LBIM-C11 : Na range: 0 to 19990 g/L Benchtop Ion Meter For Na, LBIM-A12 : Na range: 1 × 105 - 1 M, 0.1 - 23000 ppm Benchtop Ion Meter For NH LBIM-C17 : NH range: 0 to 19990 g/L Benchtop Ion Meter For NH3 , LBIM-A20 : NH3 range: 1 × 106 - 1 M, 0.02 - 17000 ppm Benchtop Ion Meter For NH4, LBIM-A15 : NH4 range: 5 × 106 – 1 M, 0.1 – 18000 ppm Benchtop Ion Meter For Pb, LBIM-A25 : Pb range: 1×108 – 0.1M, 0.2-20700 ppm Benchtop Ion Meter For S, LBIM-A24 : S range: 1×107 - 1M, 0.003-32100 ppm

Models of Benchtop Ion Meter

Labtron Benchtop Ion Meter offers measurement of specific ions concentration in solution. They operate using electrodes (ISEs), which respond selectively to particular charged species, allowing for accurate and reliable measurements. Their built-in temperature sensors allow for automatic adjustments to readings minimizing interference from surrounding environmental factors. They feature user-friendly interfaces for easy navigation through evaluation settings and calibration processes. Our Benchtop Ion Meter is essential in environmental monitoring, food and beverage analysis, and pharmaceutical research.

Benchtop Ion Meter For Cd, LBIM-A28

Benchtop Ion Meter For Cd, LBIM-A28

  • Ion measurement range : Cd range: 1×106– 1M, 0.01-11200 ppm
  • Ion measurement accuracy : ± 1 % F.S.
  • Resolution : 0.001, 0.01, 0.1, 1
  • Calibration points : 2 to 5 points
Benchtop Ion Meter For Br LBIM-C14

Benchtop Ion Meter For Br LBIM-C14

  • Ion measurement range : Br range: 0 to 19990 g/L
  • Ion measurement accuracy : 0.005
  • Ion measurement Resolution : 4 significant digits (expressed in scientific notation)
  • mV range : 1999.9 to1999.9 mV
Benchtop Ion Meter For Na, LBIM-A12

Benchtop Ion Meter For Na, LBIM-A12

  • Ion measurement range : Na range: 1 × 105 - 1 M, 0.1 - 23000 ppm
  • Ion measurement accuracy : ± 0.5 % F.S.
  • Resolution : 0.001, 0.01, 0.1, 1
  • Calibration points : 2 to 5 points
Benchtop Ion Meter For Ca, LBIM-A13
Benchtop Ion Meter For Ca, LBIM-A13
  • Ion measurement range : Ca range: 5 × 107 - 1 M, 0.02 - 4000 ppm
  • Ion measurement accuracy : ± 0.5 % F.S.
  • Resolution : 0.001, 0.01, 0.1, 1
  • Calibration points : 2 to 5 points
Benchtop Ion Meter For F, LBIM-A11
Benchtop Ion Meter For F, LBIM-A11
  • Ion measurement range : F range: 1 × 106M – saturation, 0.02 ppm to saturation
  • Ion measurement accuracy : ± 0.5 % F.S.
  • Resolution : 0.001, 0.01, 0.1, 1
  • Calibration points : 2 to 5 points
Benchtop Ion Meter For NO LBIM-C15

Benchtop Ion Meter For NO LBIM-C15

  • Test Parameters : pH/ISE/Temp. (mV/pX)
  • pH Range : -2.00 to 20.00 pH
  • pH Resolution : 0.1, 0.01 pH
  • pH Accuracy : ±0.01 pH
Benchtop Ion Meter For NH LBIM-C17

Benchtop Ion Meter For NH LBIM-C17

  • Ion measurement range : NH range: 0 to 19990 g/L
  • Ion measurement accuracy : 0.005
  • Ion measurement resolution : 4 significant digits (expressed in scientific notation)
  • mV range : 1999.9 to 1999.9 mV
Benchtop Ion Meter For Cl, LBIM-A10

Benchtop Ion Meter For Cl, LBIM-A10

  • Ion measurement range : Cl range: 5 × 106 - 1 M, 1.8 - 35500 ppm
  • Ion measurement accuracy : ± 0.5 % F.S.
  • Resolution : 0.001, 0.01, 0.1, 1
  • Calibration points : 2 to 5 points

Benchtop Ion Meter For S, LBIM-A24 FAQ's
  • Labtron Benchtop Ion meter for S is ideal for analyzing sulphide ion concentrations in potable water, deionized water, wastewater, and natural water bodies. It is useful in industries like environmental monitoring, wastewater treatment, and chemical manufacturing, where sulphide levels must be regularly tracked. The meter has a wide detection range from 0.003 to 32,100 ppm, allowing both trace-level detection and high-concentration measurements. This makes it a versatile ion meter for routine lab testing and environmental compliance checks.

  • The Benchtop Ion meter for S features 2 to 5-point calibration with a variety of standard solutions to maintain high measurement accuracy. It also includes a calibration due reminder that alerts users when recalibration is needed, helping maintain consistent performance. These features are essential for long-term reliability, especially in labs with high testing frequency. The meter’s accuracy of ±1% F.S. supports dependable results throughout repeated use.

  • Our Benchtop Ion meter for S's compact design, user-friendly interface, and large LCD screen make it easy to operate in various work settings. Users can quickly switch between concentration units (ppm, mg/L, mol/L) depending on their testing requirements. The meter's manual or automatic endpoint detection helps users capture stable results with minimal effort. These usability features reduce operator fatigue and speed up testing workflows.

  • The Benchtop Ion meter for S includes a mV measurement mode to verify the electrode’s performance by checking its response potential. It also has an automatic electrode diagnosis function that displays the sensor slope, indicating how well the electrode is functioning. This allows users to detect electrode degradation early and take corrective actions. These built-in checks help avoid inaccurate readings and extend electrode life.

  • Labtron's Benchtop Ion meter for S with storage of up to 500 readings and a real-time clock for timestamping, users can keep a reliable digital log of all measurements. The USB output allows easy transfer of data to a PC, ensuring results are backed up and available for reporting or audit purposes. This is especially important in research and regulatory environments where data traceability is critical. It minimizes the risk of data loss due to manual entry errors or device shutdowns.

  • The Benchtop Ion meter for S includes both automatic and manual compensation modes across a wide range (0 to 100 °C). This ensures that the final concentration values are corrected for thermal effects, which is crucial when working with samples from various environments. The temperature probe provides precise real-time temperature input for more accurate compensation. This feature helps maintain data integrity, especially in fluctuating lab or field conditions.

  • Our Benchtop Ion meter for S offers manual and automatic power-off settings in 10, 20, or 30 minutes to help conserve energy and reduce the chance of overheating. This is useful in labs where equipment may be left unattended. It also has a reset function to quickly return to default settings if needed, preventing errors from incorrect configurations. These safety features promote responsible equipment use and long-term durability.
