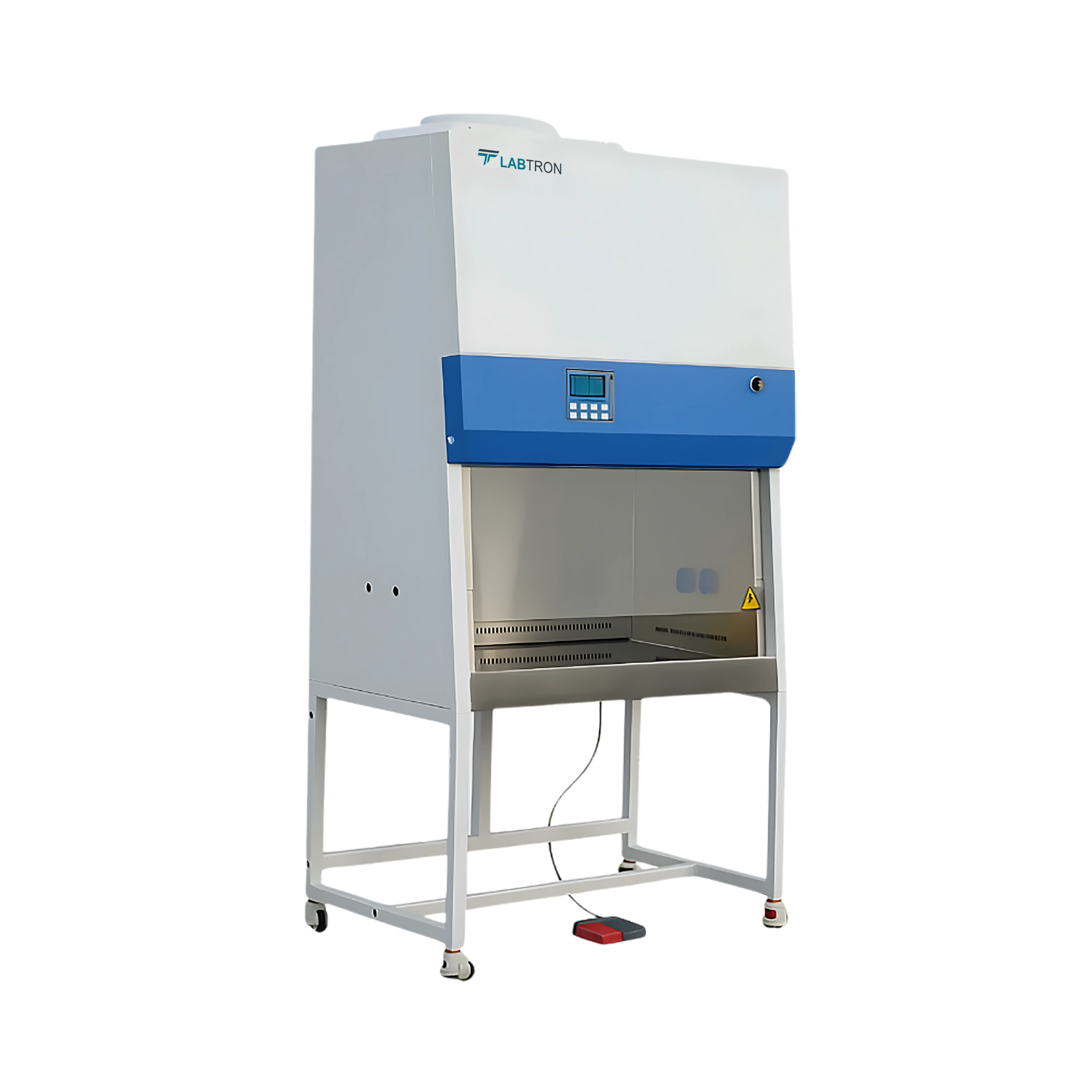

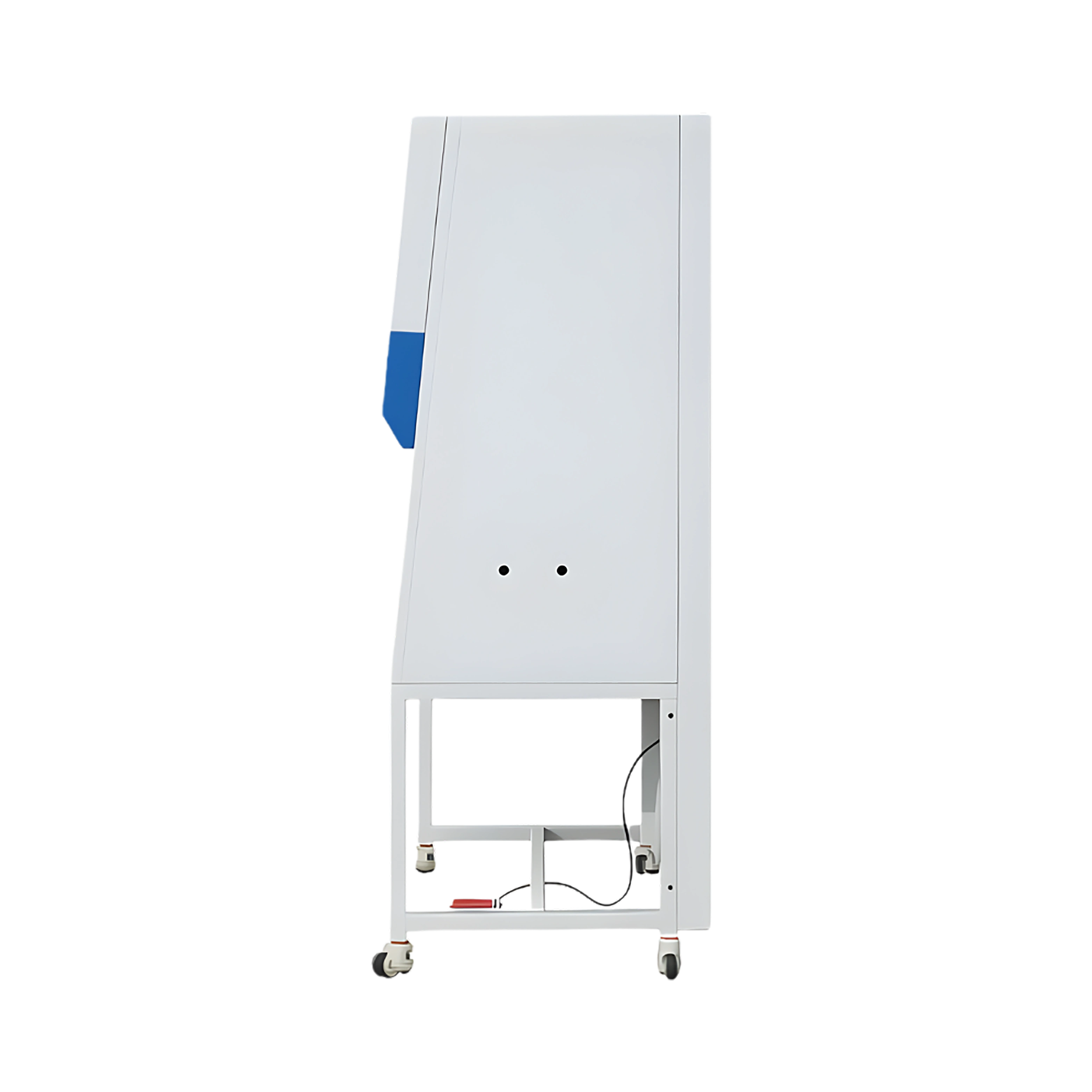

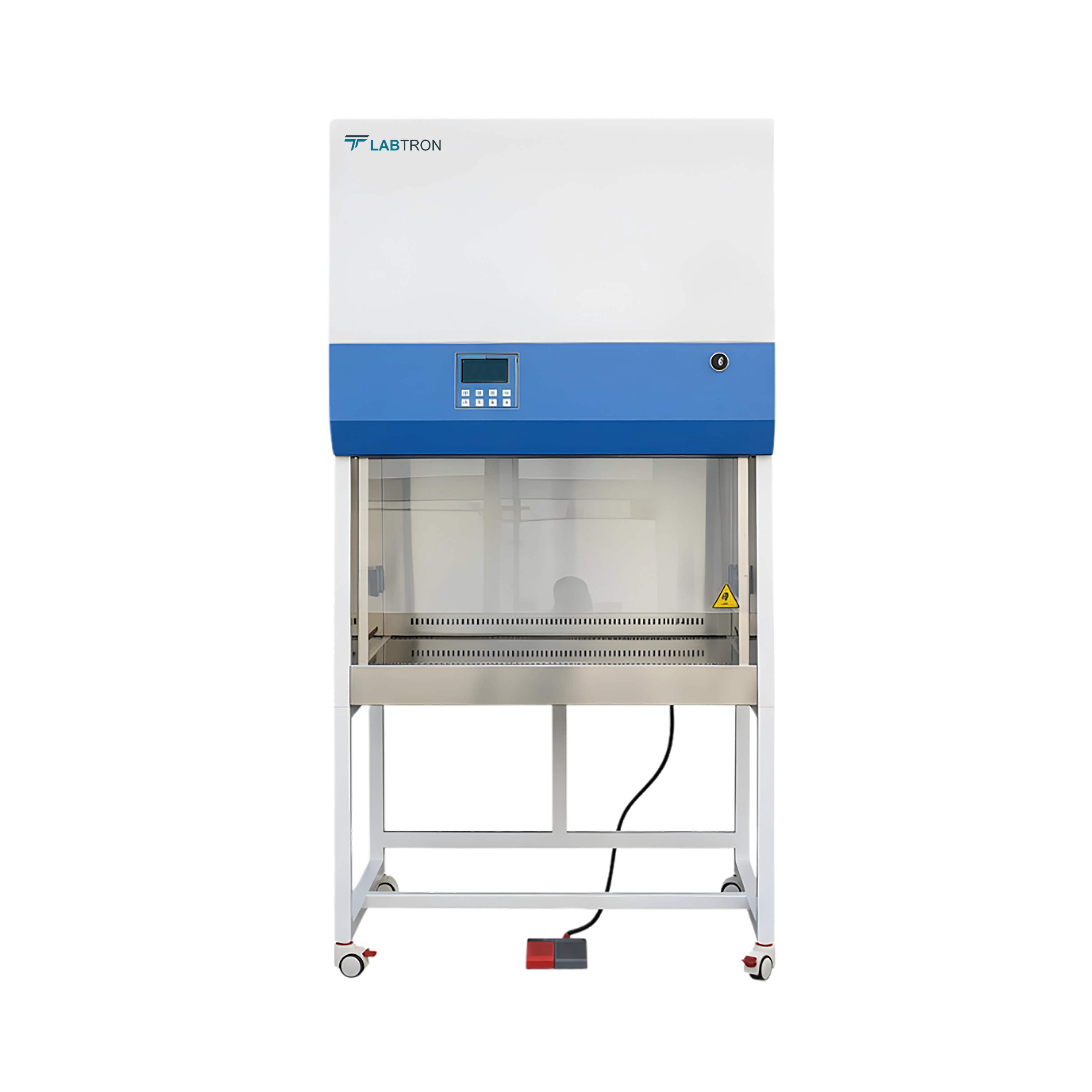

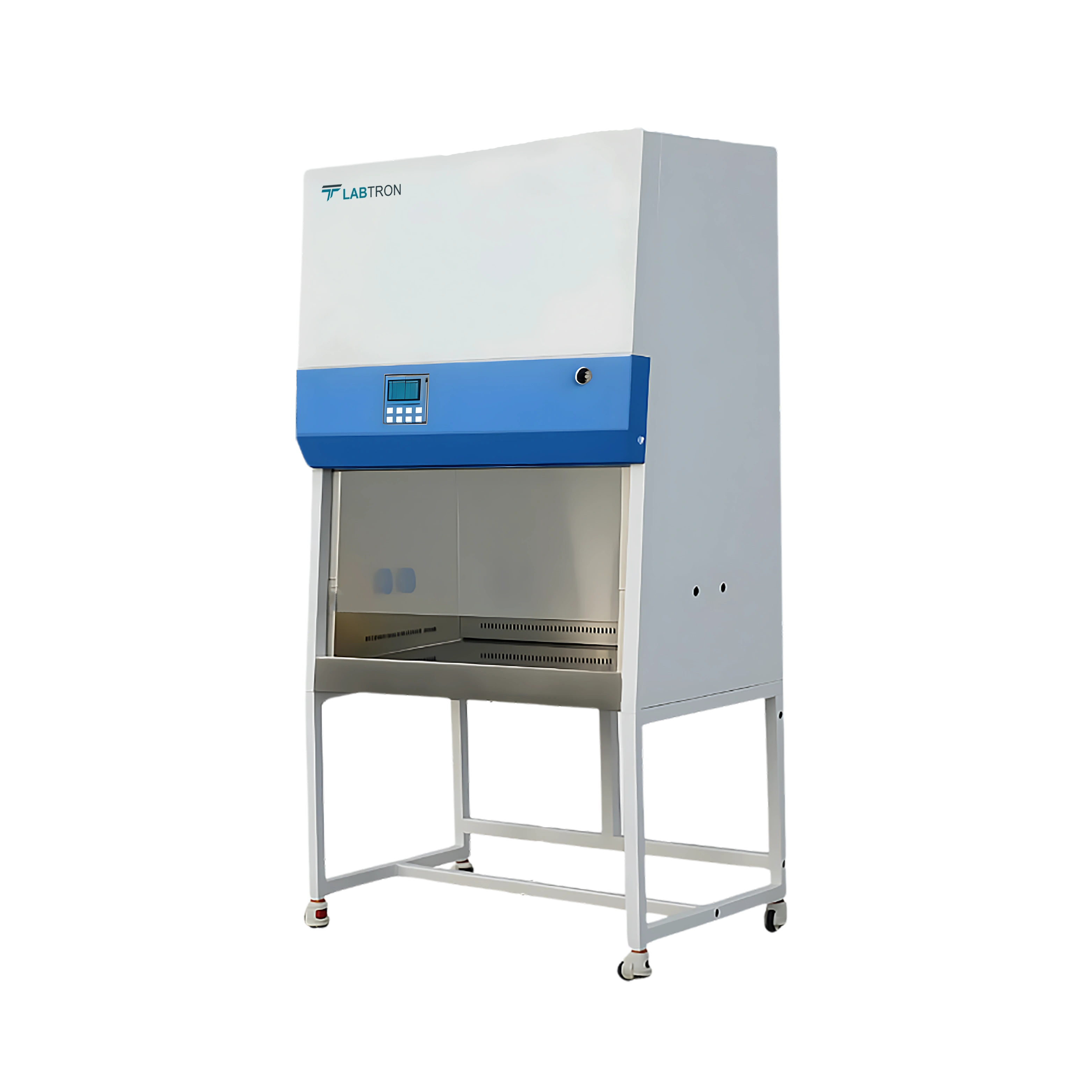

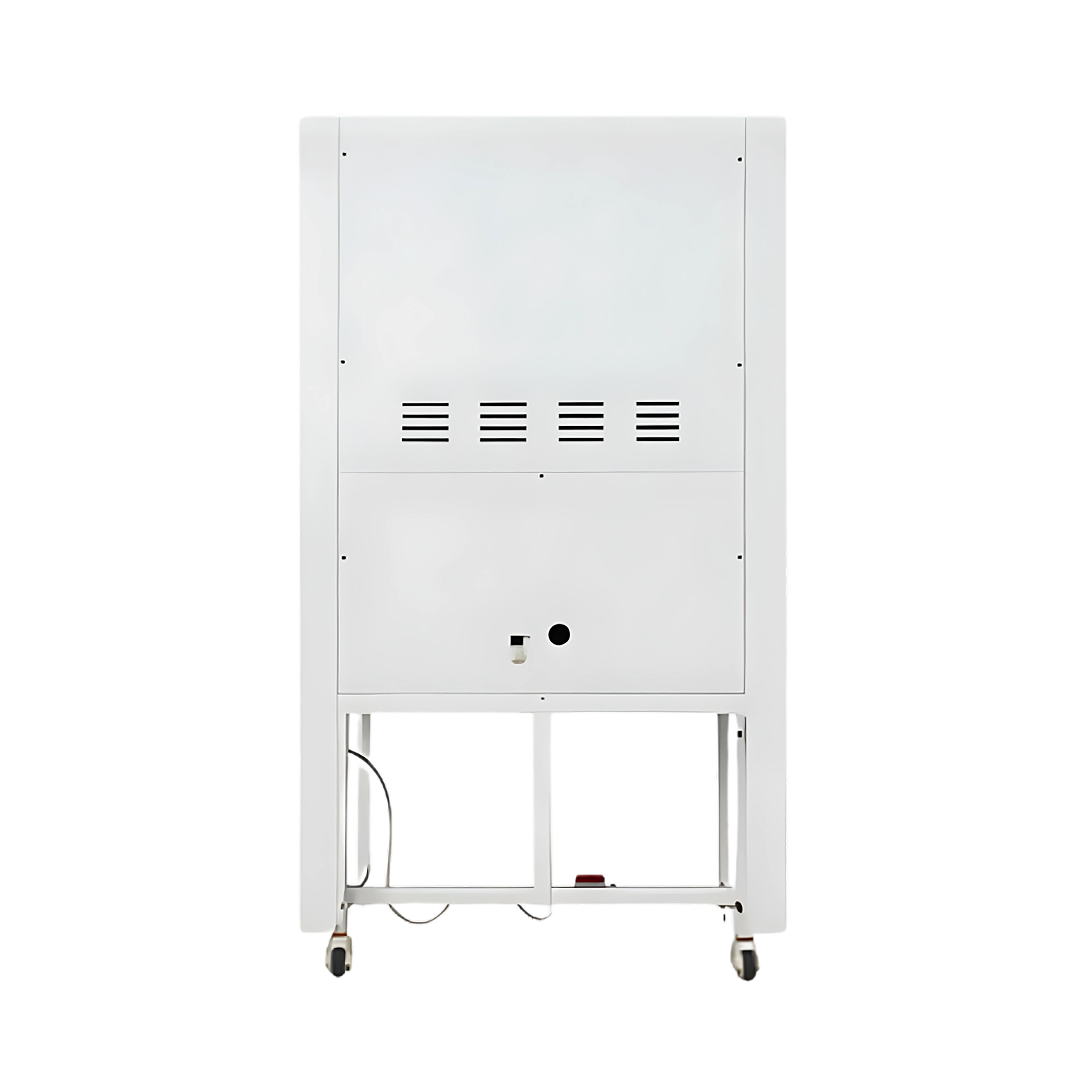

Biosafety Cabinet Class II A2 LBS2-A23

Name: Biosafety Cabinet Class II A2 LBS2-A23
Brand: Labtron
SKU: LBS2-A23
Rating: 4.9 (842 reviews)

Biosafety Cabinet Class II A2 LBS2-A23 offers maximum opening of 550 mm (22 inch) and tested opening of safety height 200 mm (8 inch). Incorporated with interlock function for blower and front window, UV lamp and front window, UV lamp and blower and LED lamp. Built in with foot switch to avoid airflow turbulence caused by arm movement, motorized front window of two layered laminated toughened glass and anti UV, UV lamp for most efficient decontamination and remote control with all functions for easier and convenient operation. Designed with UV life indicator and ULPA Filter, Two in number, 99.999 % efficiency at 0.12 um. Features airflow system of 30% air exhaust and 70 % air recirculation and three protection such as sample, environment and operator.

Request Quote

Tested Opening	Safety height of 200 mm (8 inch)
Maximum Opening	550 mm (22 inch)
Inflow Velocity	0.53 ± 0.025 m/s
Down Flow Velocity	0.33 ± 0.025 m/s
ULPA Filter	Two, 99.999 % efficient at 0.12 um, filter life indicator
Front Window	Motorized, two-layer laminated toughened glass ≥ 5 mm, anti UV
Noise	EN12469 ≤ 58 dB / NSF49 ≤ 61 dB
UV Lamp	40 W×1 UV timer, UV life indicator, emission of 253.7 nanometres for most efficient decontamination
Illuminating Lamp	16 W×2 LED Lamp
Illumination	≥ 1000 Lux
Consumption	900 W
Waterproof Sockets	Two, total load of two sockets: 500 W
Display	LCD display: exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time etc.
Control System	Microprocessor
Airflow System	70 % air recirculation, 30 % air exhaust
Visual and audio alarm	Filter replacement, front window at unsafe height, abnormal airflow velocity
Material	Work Zone: 304 stainless steel;Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height	750 mm
Caster	Foot master caster
Power Supply	AC220V±10 %, 50/60 hz; 110V ± 10 %, 60 hz
Internal Size (W×D×H)	1150×600×660 mm
External Size (W×D×H)	1700×600×660 mm
Package Size (W×D×H)	2000×950×1820 mm
Gross Weight	395 kg

Managed and monitored by an integrated microprocessor controller
Large LCD digital display for ease of monitoring all safety parameters
Incorporated with memory function in case of power-failure
Work zone made up of 304 stainless steel
Built in with time reserve function, automatic air speed adjustable with filter block and interlock function
Integrated with visual and audible alarm for abnormal airflow velocity, filter replacement, front window at unsafe height
Designed with universal caster with brake and leveling feet
Easy to use, operate and maintain
Easy to clean, corrosion resistant, stainless steel lining

Biosafety Cabinet Class II A2 is widely used in pathology, research laboratories, universities, colleges and hospitals. It is suitable to use for microbiology research in absence of volatile, toxic chemicals and radionuclide.

Sr. No	Name of the Accessory	Unit
1.	Illumination LED Lamp	2
2.	UV Lamp	1
3.	Base Stand	1
4.	Remote Control	1
5.	Foot Switch	1
6.	Drain Valve	1
7.	Waterproof Sockets	2

Electric Height Adjustable Base Stand

Download catalog for
Biosafety Cabinet Class II A2 LBS2-A23 Catalog

Download manual for
Biosafety Cabinet Class II A2 LBS2-A23 Manual

Available Range :

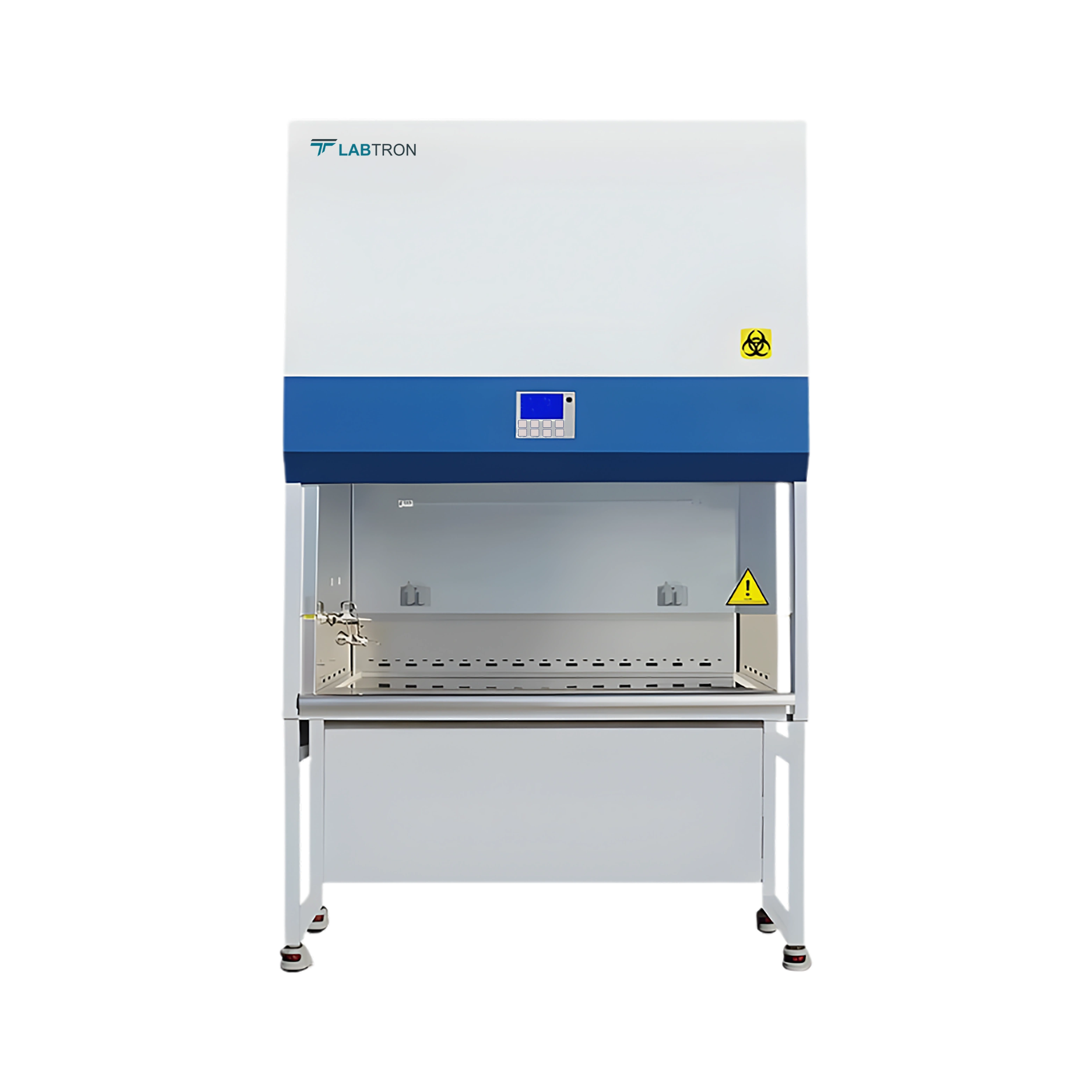

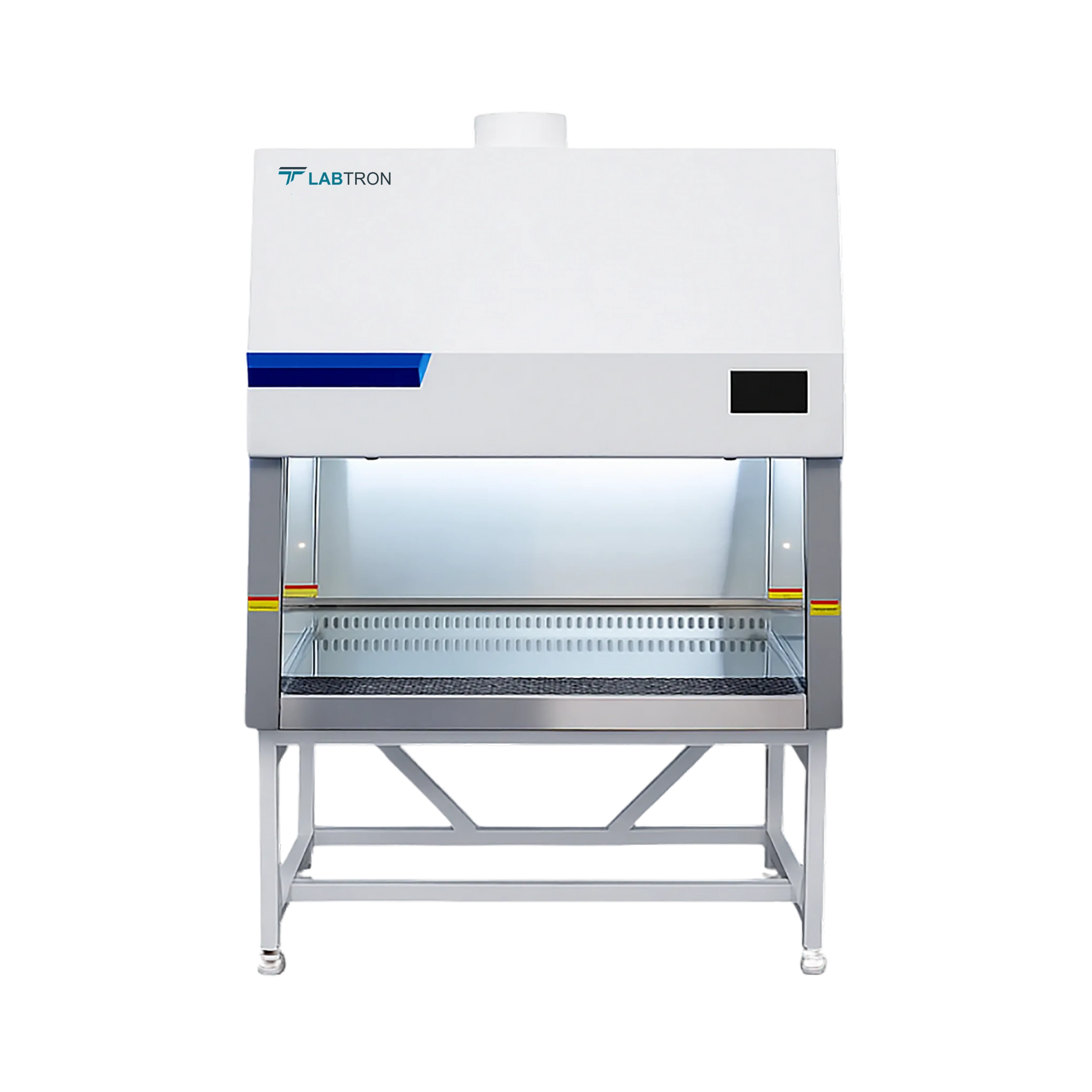

Biosafety Cabinet Class II A2 LBS2-A50 : 180 mm Biosafety Cabinet Class II A2 LBS2-A41 : Safety Height 200 mm Biosafety Cabinet Class II B2 LBS2-B21 : Safety Height 200 mm（8 inch） Biosafety Cabinet Class II B2 LBS2-B20 : Safety Height 200mm (8 inch) Biosafety Cabinet Class II B2 LBS2-B24 : Safety height 200mm (8'') Biosafety Cabinet Class II A2 LBS2-A20 : Safety height of 200 mm (8 inch)

Models of Biosafety Cabinet

Labtron Biosafety Cabinets are incorporated with advanced technology, including ULPA filters and UV indicators. These cabinets ensure advanced protection with built-in interlock functionalities. Our diverse selection encompasses Class I, Class II A2, Class II B2, and more. They provide exceptional airflow control for maintaining sterility and optimizing laboratory conditions. Our biosafety cabinet provides unparalleled durability, featuring two-layer laminated toughened glass.
