Electric Lifting Rotary Evaporator LERE-A10

Electric Lifting Rotary Evaporator LERE-A10

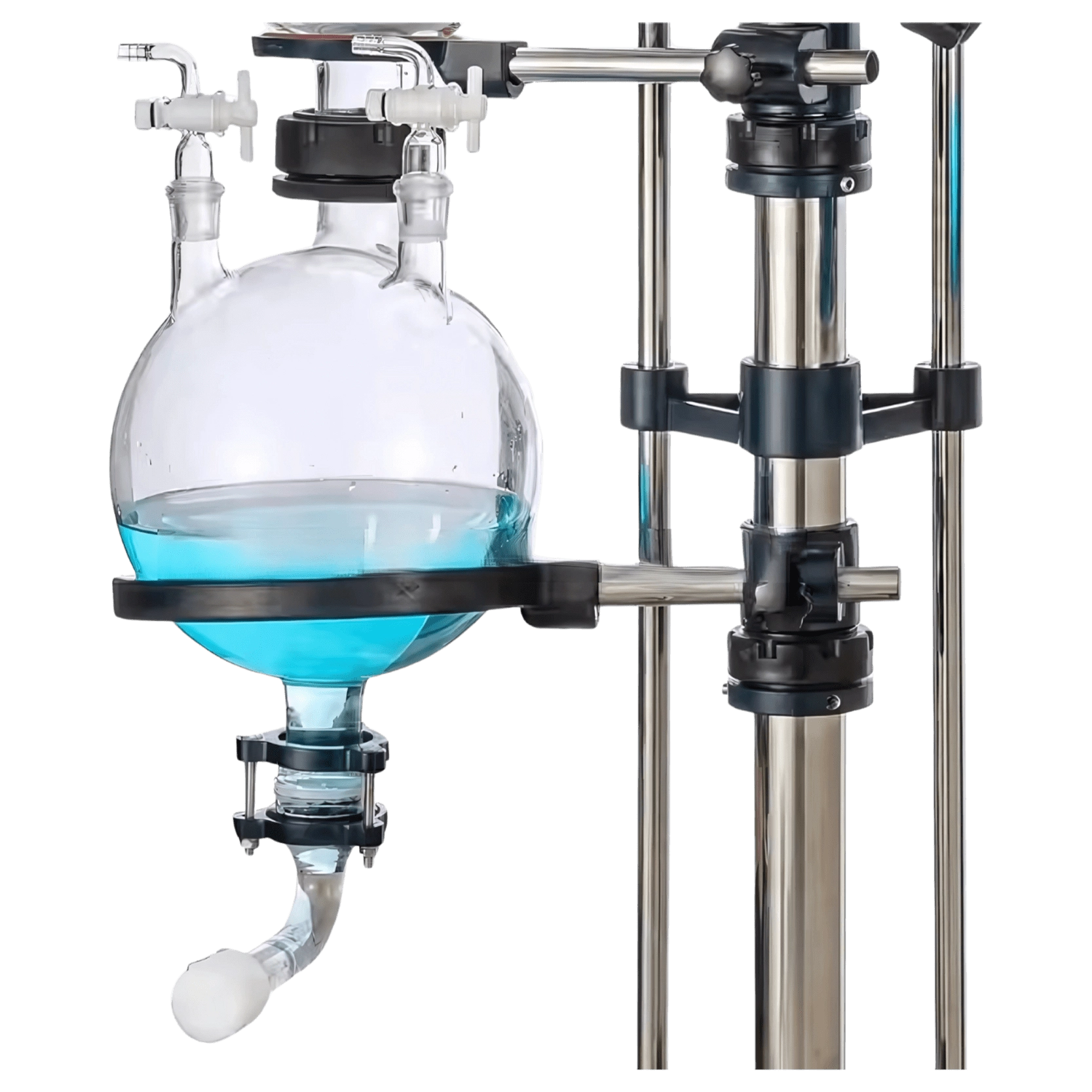

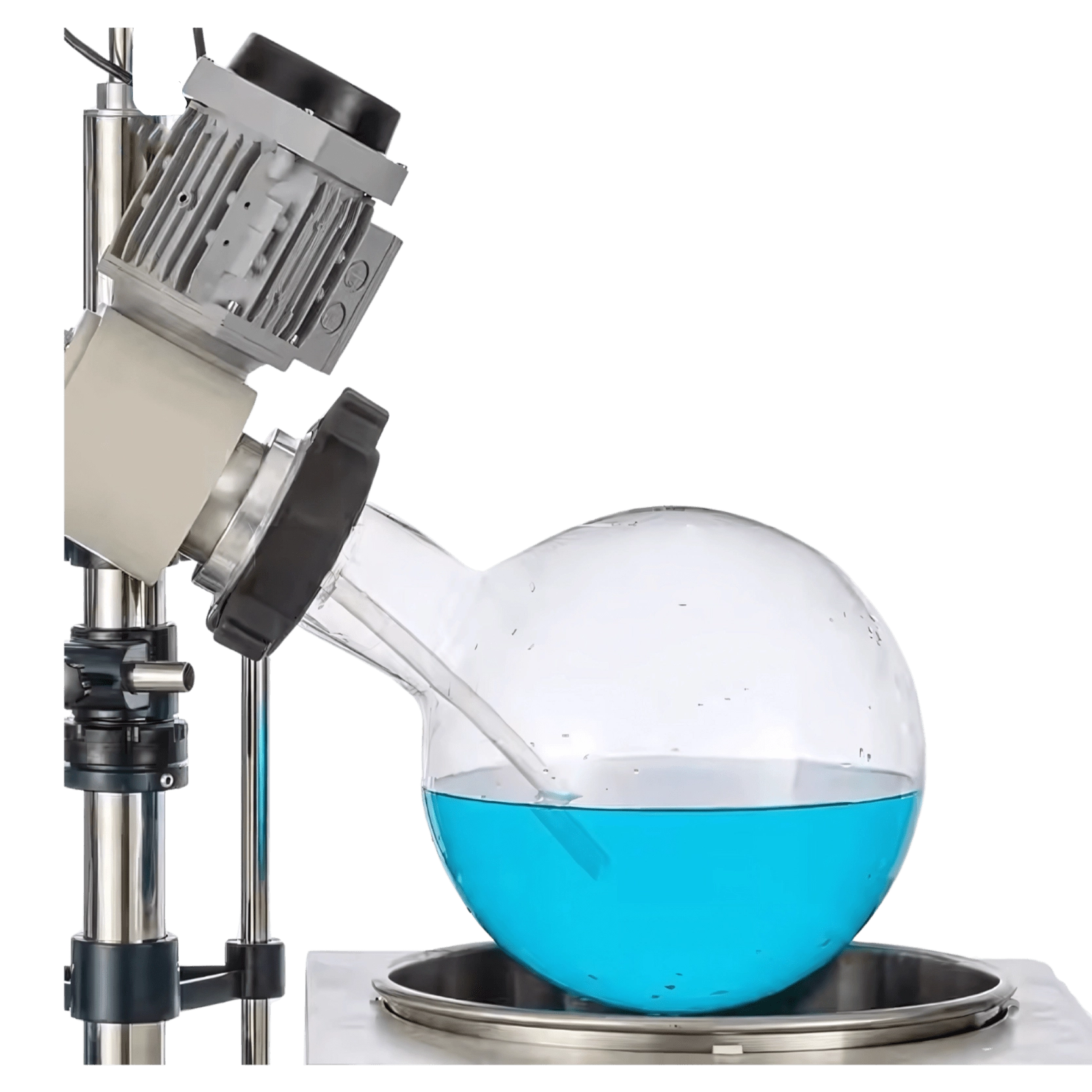

Electric Lifting Rotary Evaporator LERE-A10 features a 10 L evaporating flask for large-volume solvent handling. The motorized lift enables effortless and stable positioning of the flask, enhancing safety and user control during operation. The triple coil condenser maximizes condensation efficiency for higher solvent recovery. Our Electric Lifting Rotary Evaporator recovers solvents, dries samples, and separates components to ensure purity and reduce waste.

Electric Lifting Rotary Evaporator LERE-A10
Electric Lifting Rotary Evaporator LERE-A10
Electric Lifting Rotary Evaporator LERE-A10
Electric Lifting Rotary Evaporator LERE-A10
Electric Lifting Rotary Evaporator LERE-A10
Request Quote
Evaporating Flask 10 L
Receiving Bottle 5 L
Rotation Speed 0 to 120 rpm
Lifting Distance 180 mm
Lifting Mode Electric
Temperature Range RT to 180°C
Temperature Control Accuracy +/- 1°C
Vacuum Degree 0.098 Mpa
Rotating Motor Power 120 W
Heating Power 3000 W
Bath Capacity 21 L
Power Consumption 3120 W
Power Supply 220 to 240 V/5O Hz
Dimensions (L×W×H) 930×560×1910 mm
Weight 74 Kg
  • Dual-layer insulation

  • Wipe-friendly exterior

  • Thermal shock resistance

  • Energy-saving performance

  • Leak-proof connections

Electric Lifting Rotary Evaporator LERE-A10 performs solvent evaporation, recovery, and separation under reduced pressure. It is widely used in pharmaceutical, chemical, food, biopharmaceutical, and research laboratories for sample concentration and purification.



Models of Electric Lifting Rotary Evaporator

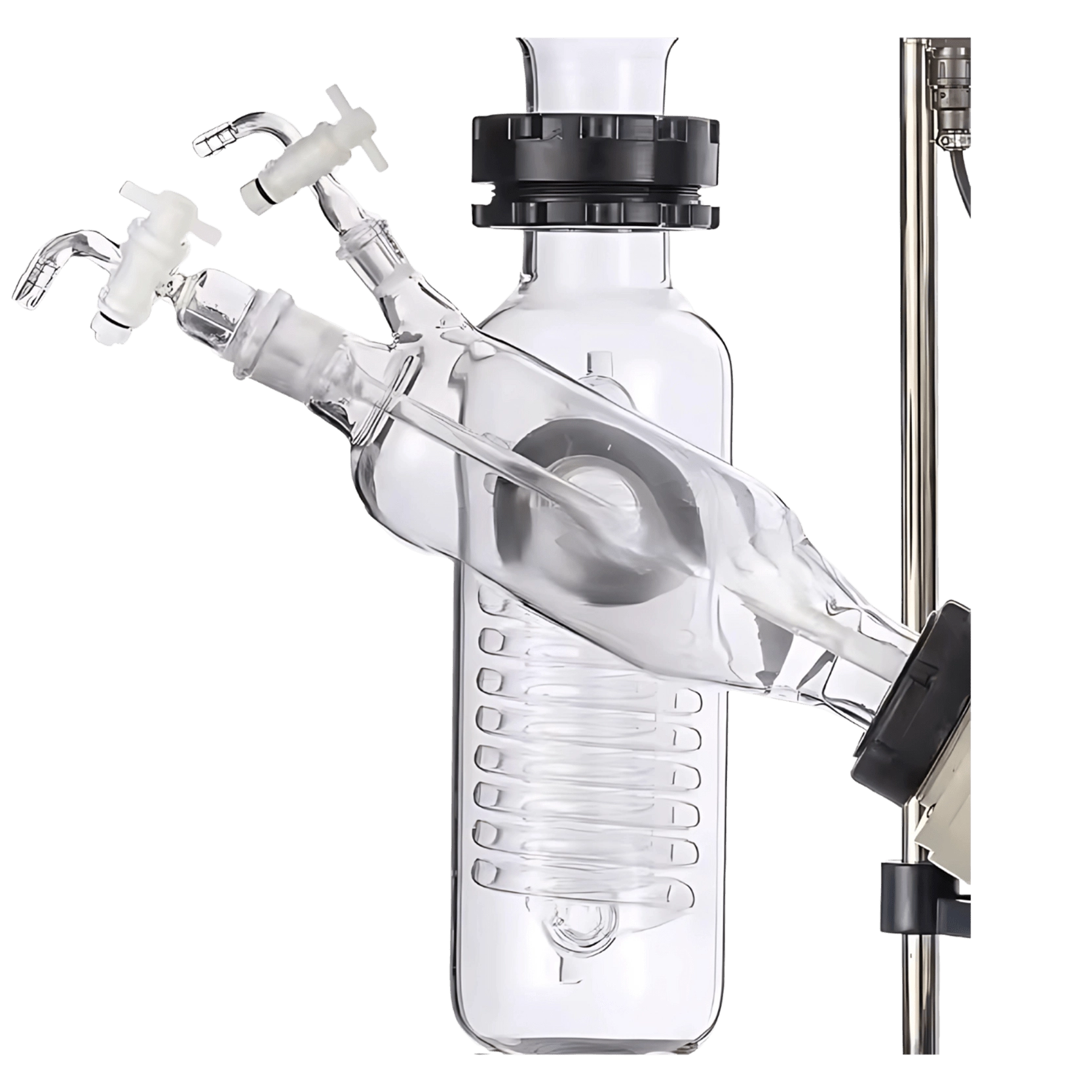

Labtron Electric Lifting Rotary Evaporator features a PTFE + fluoro rubber double seal to maintain high vacuum integrity. They include a main and auxiliary condenser with a triple-coil design for faster and more efficient condensation. Their vacuum switching valve supports continuous collection without disrupting the process. The system is equipped with over-temperature protection and an anti-dry function for added safety. Our Electric Lifting Rotary Evaporator supports solvent recovery, crystallization, and drying in biopharma, petrochemical, food, and research laboratories.

Electric Lifting Rotary Evaporator LERE-A19

Electric Lifting Rotary Evaporator LERE-A19

  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 190 mm
Electric Lifting Rotary Evaporator LERE-A24

Electric Lifting Rotary Evaporator LERE-A24

  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 150 mm
Electric Lifting Rotary Evaporator LERE-A17

Electric Lifting Rotary Evaporator LERE-A17

  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A34
Electric Lifting Rotary Evaporator LERE-A34
  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L
  • Rotation Speed : 20 to 110 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A25
Electric Lifting Rotary Evaporator LERE-A25
  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 215 mm
Electric Lifting Rotary Evaporator LERE-A14

Electric Lifting Rotary Evaporator LERE-A14

  • Evaporating Flask : 30 L
  • Receiving Bottle : 20 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A22

Electric Lifting Rotary Evaporator LERE-A22

  • Evaporating Flask : 5 L
  • Receiving Bottle : 3 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 140 mm
Electric Lifting Rotary Evaporator LERE-A21

Electric Lifting Rotary Evaporator LERE-A21

  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 215 mm

Electric Lifting Rotary Evaporator LERE-A10 FAQ's
  • Our Electric Lifting Rotary Evaporator gently handles delicate samples without disrupting the structure. Its even heating prevents thermal stress, maintaining the original composition. Continuous motion keeps the material from settling during evaporation. A well-balanced system reduces friction and prevents unnecessary pressure changes. The vacuum chamber supports stable conditions for volatile extracts. All movement is calibrated for uniform action across the entire setup. Chemical contact areas are corrosion-resistant and secure. Sensitive plant extracts or fine chemicals remain intact throughout use. This system maintains a balance between activity and sample stability.

  • The Electric Lifting Rotary Evaporator sustains steady performance throughout extended shifts. Its ergonomic layout reduces the need for repositioning during use. A responsive lifting system minimizes the delay between batches. No manual balancing or extra adjustments are required during runs. Thermal consistency removes the need for frequent supervision. All parts are easy to access for quick turnaround cleaning. The layout suits shared workspaces and team-based procedures. Downtime is reduced with durable seals and reinforced tubing. This model supports demanding laboratory timelines with minimal interruptions.

  • The Electric Lifting Rotary Evaporator is engineered to support diverse evaporation needs in laboratory settings. It maintains stable rotation and temperature control for consistent solvent recovery. Its electric lift mechanism ensures safe and accurate flask positioning. The digital interface helps fine-tune parameters based on sample type. Operators can adjust bath temperature and vacuum levels with ease. This evaporator handles both routine and demanding workflows efficiently. Streamlined operations reduce handling errors during long experiments. Its performance suits both academic and industrial environments.

  • Labtron’s Electric Lifting Rotary Evaporator incorporates several physical and operational safeguards. A stable base prevents tipping during operation or maintenance. All temperature zones are shielded to avoid surface burns. Sealed compartments reduce vapor loss or accidental leaks. The lifting arm stops smoothly to prevent glass impact. Slip-free knobs and controls ensure grip even with gloves. Electrical lines are insulated to avoid exposure. Chemical resistance reduces the chance of structural wear. All features together provide a secure environment throughout use.

  • Our Electric Lifting Rotary Evaporator requires daily care for best performance and long life. After operation, rinse and dry all glass parts to prevent buildup. Seals should be cleaned and examined for wear signs. Non-glass components should be wiped with a dry cloth. Avoid liquid near the power source during cleaning. Water in the bath should be replaced and checked for scaling. Store glassware upright to avoid scratches or cracks. Regular checks reduce damage during extended use. With this routine, the overall function remains reliable and smooth.

  • The Electric Lifting Rotary Evaporator stands out with its motorized lift system and refined structure. Unlike manual versions, the design supports consistent height control without manual alignment. Its body is shaped for balance, even with heavier flasks. Time-consuming manual resets are replaced by smooth transitions. The digital interface allows precise tuning of operational flow. It suits scaled-up batches without physical effort. Enhanced rotation support keeps the process fluid from start to finish. This modern version is built for upgraded workflows and modern lab expectations.

Post your question?

Our experts are here to help!

Electric Lifting Rotary Evaporator:
Electric Lifting Rotary Evaporator LERE-A19, Electric Lifting Rotary Evaporator LERE-A24, Electric Lifting Rotary Evaporator LERE-A17, Electric Lifting Rotary Evaporator LERE-A34, Electric Lifting Rotary Evaporator LERE-A25, Electric Lifting Rotary Evaporator LERE-A14, Electric Lifting Rotary Evaporator LERE-A22, Electric Lifting Rotary Evaporator LERE-A21, and more.
