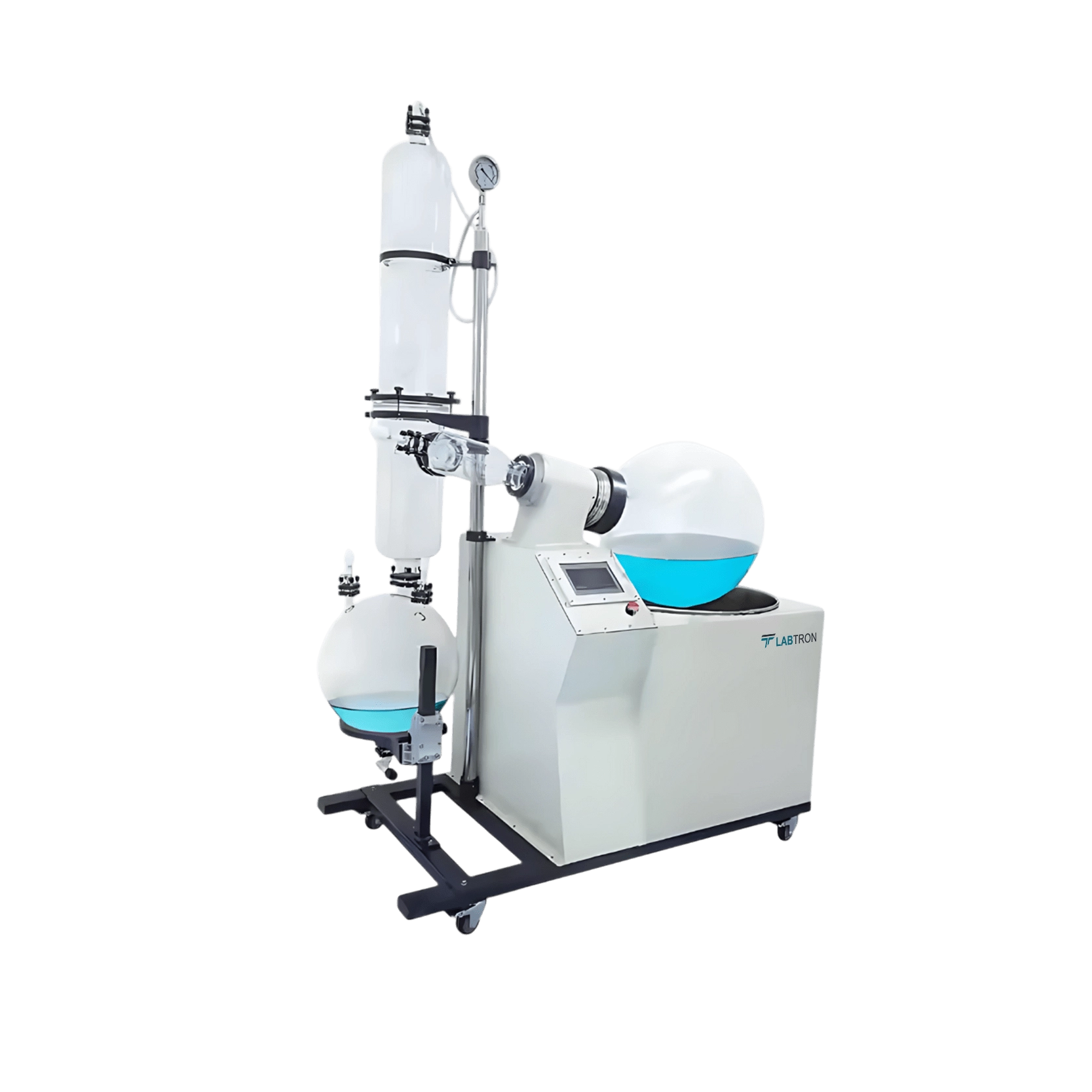

Electric Lifting Rotary Evaporator LERE-A26

Electric Lifting Rotary Evaporator LERE-A26

Electric Lifting Rotary Evaporator LERE-A26 features a 100 L evaporating flask for efficient high-volume processing. Its dual-condenser system improves vapour condensation and solvent collection efficiency. The glass components can withstand extreme thermal changes without risk of cracking. Our Electric Lifting Rotary Evaporator is designed for demanding applications in pharmaceutical, chemical, and biopharmaceutical industries.

Electric Lifting Rotary Evaporator LERE-A26
Electric Lifting Rotary Evaporator LERE-A26
Electric Lifting Rotary Evaporator LERE-A26
Request Quote
Evaporating Flask 100 L
Receiving Bottle 50 L
Evaporating Flask Flange Φ 610 ×180 mm
Receiving Bottle Flange Φ 470 × 60 mm
Rotation Speed 20 to 90 rpm
Lifting Distance 0 to 180 mm
Lifting Mode Electric
Main Condenser Φ 230 ×800 mm
Auxiliary Condenser Φ230 ×620 mm
Feeding Valve Φ 45 flange
Air Release Valve Φ 45 flange × 2
Discharge Valve Φ 45 flange, PTFE discharge valve
Temperature Range RT to 180°C
Temperature Control Accuracy +/- 1°C
Glass Temperature Range -80°C to 250°C
Vacuum Degree 0.098 Mpa
Heating Power 15000 W
Heating Bath 380V/50 Hz
Rotating Motor Power 370 W
Bath Shell Size 710×620×700 mm
Bottom Plate Size 804 L× 574 mm
Bath Size Φ 700 × 400H mm
Bath Capacity 154 L
Power Supply 220 to 240V/5O Hz
Rotary Motor Packaging Dimension (L×W×H) 1495×840×725 mm
Heating Bath Packaging Dimension (L×W×H) 780×850×910 mm
Dimension (L×W×H) 1520×520×2470 mm
Weight 191 kg
  • Bottom plate for stability

  • Quick heating capabilities

  • Vacuum discharge valve

  • Corrosion-resistant stainless steel

  • Wide flange vessels

Electric Lifting Rotary Evaporator LERE-A26 is designed for efficient concentration, crystallisation, and solvent recovery, making it essential for laboratory applications. It is widely used in pharmaceutical, chemical, and biopharmaceutical industries, where accurate heating and solvent extraction are crucial for research, production, and quality control processes.



Models of Electric Lifting Rotary Evaporator

Labtron Electric Lifting Rotary Evaporator features a PTFE + fluoro rubber double seal to maintain high vacuum integrity. They include a main and auxiliary condenser with a triple-coil design for faster and more efficient condensation. Their vacuum switching valve supports continuous collection without disrupting the process. The system is equipped with over-temperature protection and an anti-dry function for added safety. Our Electric Lifting Rotary Evaporator supports solvent recovery, crystallization, and drying in biopharma, petrochemical, food, and research laboratories.

Electric Lifting Rotary Evaporator LERE-A15

Electric Lifting Rotary Evaporator LERE-A15

  • Evaporating Flask : 30 L
  • Receiving Bottle : 20 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A32

Electric Lifting Rotary Evaporator LERE-A32

  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L
  • Rotation Speed : 20 to 110 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A18

Electric Lifting Rotary Evaporator LERE-A18

  • Evaporating Flask : 5 L
  • Receiving Bottle : 3 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 140 mm
Electric Lifting Rotary Evaporator LERE-A21
Electric Lifting Rotary Evaporator LERE-A21
  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 215 mm
Electric Lifting Rotary Evaporator LERE-A29
Electric Lifting Rotary Evaporator LERE-A29
  • Evaporating Flask : 5 L
  • Receiving Bottle : 3 L
  • Rotation Speed : 20 to 140 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A33

Electric Lifting Rotary Evaporator LERE-A33

  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L
  • Rotation Speed : 20 to 130 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A10

Electric Lifting Rotary Evaporator LERE-A10

  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A17

Electric Lifting Rotary Evaporator LERE-A17

  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm

Electric Lifting Rotary Evaporator LERE-A26 FAQ's
  • Labtron designed the Electric Lifting Rotary Evaporator to accommodate flange-style feed systems without risking leaks or disconnections during extended operation. Its upper inlet port accepts wide-mouth attachments, letting bulk liquids enter freely. The connection holds firm even when the flask is filled at higher speeds. No wobble or tilt interferes with vertical delivery. Rubber-sealed contours resist thermal changes mid-process. This setup allows direct pouring from storage tanks. The Electric Lifting Rotary Evaporator performs without feed misalignment issues.

  • Yes, the Electric Lifting Rotary Evaporator works with base drainage features designed for easy post-run emptying. Its structure allows the user to release materials through the lowest outlet, reducing the need for tilt or glass removal. The unit supports straight-down flow, which benefits sticky or dense substances. Even partial batches clear without scraping. This drainage option improves safety by keeping hands away from heated areas. The Electric Lifting Rotary Evaporator simplifies cleanup after use.

  • The Electric Lifting Rotary Evaporator is engineered with clear-flow inlet alignment that avoids obstructions around the feeding valve zone. Solid particles or thick solutions won’t stick due to their open-guided entry path. Movement isn’t interrupted by sample density. Materials flow in smoothly without surface drag. Even after multiple runs, the valve area stays open for repeated use. Maintenance doesn’t require heavy disassembly. The Electric Lifting Rotary Evaporator supports long-lasting feed performance.

  • Our Electric Lifting Rotary Evaporator features a detachable receiving unit that allows safe bottle exchange during prolonged sessions. The lower area stays cool enough for handling during replacement. Grip points ensure users don’t touch fragile glass directly. Drainage remains sealed until the switch is complete. Recovery doesn't stall while changing. The Electric Lifting Rotary Evaporator keeps the workflow moving smoothly.

  • Yes, the Electric Lifting Rotary Evaporator manages thicker samples through a steady rotational mechanism that doesn’t stall under resistant textures. The layout resists line blockages while rotating syrupy or resin-like materials. Feed flow remains uninterrupted due to its internal clearance planning. Even during extended operation, no sticking occurs near the entry point. The collection remains intact without buildup around glass joints. Heavy samples stay in motion without damaging seals. The Electric Lifting Rotary Evaporator provides a controlled environment for dense media handling.

  • Our Electric Lifting Rotary Evaporator features a firm locking system to keep glass assemblies perfectly positioned under motion. It avoids rotational drift that can stress critical joints during high-speed cycles. Built-in arms maintain symmetrical mounting every time the apparatus is set. This consistency protects fragile labware and prevents uneven wear. Glass elements remain centered regardless of sample weight. Misplacement is further minimised through balanced support at contact points. The Electric Lifting Rotary Evaporator prioritises safety by reducing accidental shifts.
