Electric Lifting Rotary Evaporator LERE-A29

Electric Lifting Rotary Evaporator LERE-A29

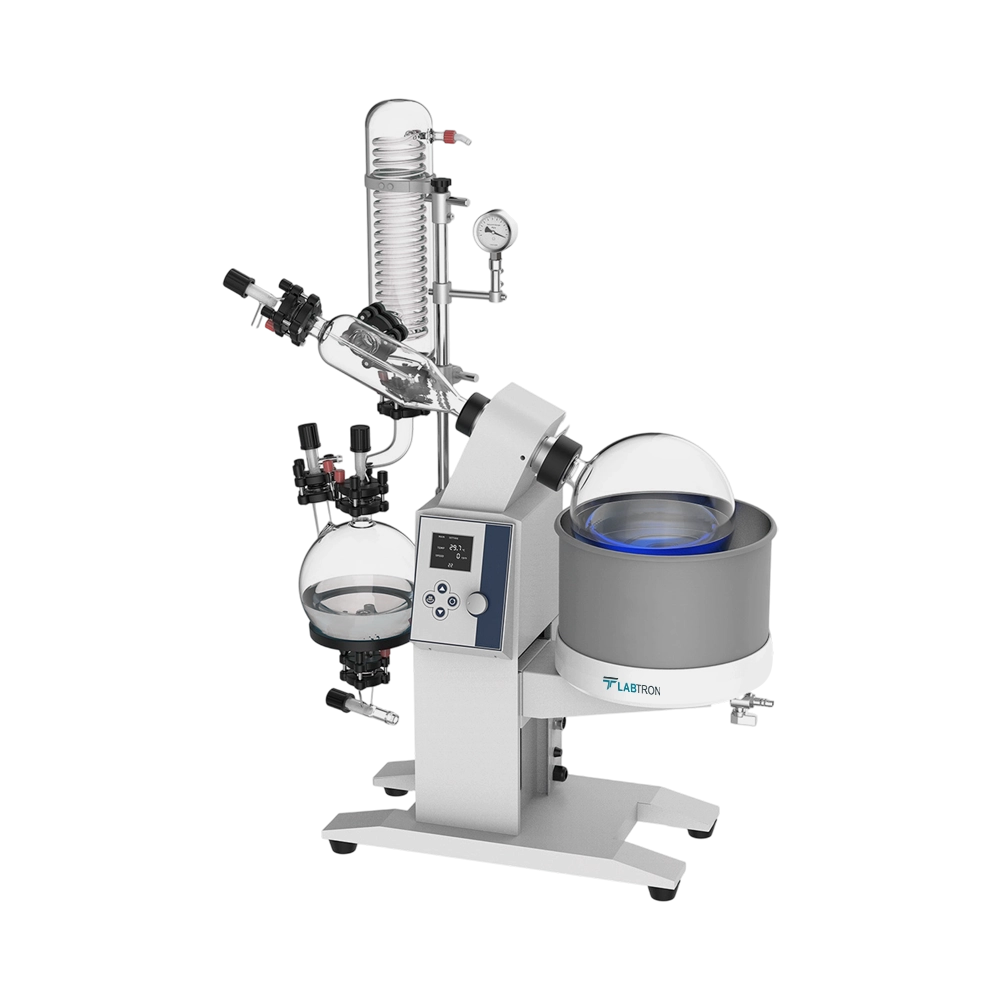

Electric Lifting Rotary Evaporator LERE-A29 is equipped with a 5 L evaporating flask, making it ideal for mid-scale laboratory processes. It supports both water and oil baths, offering flexible thermal environments for diverse samples. The integrated switching valve ensures smooth, uninterrupted material discharge during distillation. Our Electric Lifting Rotary Evaporator is suited for pilot experiments in biopharma and fine chemical research.

Electric Lifting Rotary Evaporator LERE-A29
Electric Lifting Rotary Evaporator LERE-A29
Request Quote
Evaporating Flask 5 L
Receiving Bottle 3 L
Rotation Speed 20 to 140 rpm
Rotation Control Electric
Rotation Speed Setting 1 rpm/step
Water Bath Temperature RT to 95°C
Oil Bath Temperature RT to 180°C
Temperature Sensor 2-wire PT100 RTD
Ambient Temperature 5 to 35°C
Environment Relative Humidity Less than or equal to 70%
Bath Temperature Setting 0.1°C/step
Heating Capacity 2000 W
Vacuum Leakage Less than or equal to 0.33 kPa/min
Nominal Adjustment Accuracy +/-1.5°C
Maximum Sea Level 2000 m
Bath Size Φ300×170 mm
Protection Grade IP20
Sealing Parts PTFE
Glass Material 3.3 borosilicate
Power Consumption 2300 W
Power Supply 110V,60 Hz or 220 to 240V,50 Hz
Dimensions (L×W×H) 840×520×1140 mm
Weight 35 kg
  • Adaptable power supply

  • Burn prevention covers

  • Improved dry-seal technology

  • Optimized vacuum performance

  • Wide temperature range

Electric Lifting Rotary Evaporator LERE-A29 excels in distillation and solvent recovery, offering precise temperature control and continuous operation. It is well-suited for biopharma, food purification, and chemical research laboratories, ensuring reliable performance in diverse experimental environments.

Models of Electric Lifting Rotary Evaporator

Labtron Electric Lifting Rotary Evaporator features a PTFE + fluoro rubber double seal to maintain high vacuum integrity. They include a main and auxiliary condenser with a triple-coil design for faster and more efficient condensation. Their vacuum switching valve supports continuous collection without disrupting the process. The system is equipped with over-temperature protection and an anti-dry function for added safety. Our Electric Lifting Rotary Evaporator supports solvent recovery, crystallization, and drying in biopharma, petrochemical, food, and research laboratories.

Electric Lifting Rotary Evaporator LERE-A33

Electric Lifting Rotary Evaporator LERE-A33

  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L
  • Rotation Speed : 20 to 130 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A27

Electric Lifting Rotary Evaporator LERE-A27

  • Evaporating Flask : 100 L
  • Receiving Bottle : 50 L
  • Evaporating Flask Flange : Φ 610 ×180 mm
  • Receiving Bottle Flange : Φ 470×60 mm
Electric Lifting Rotary Evaporator LERE-A28

Electric Lifting Rotary Evaporator LERE-A28

  • Evaporating Flask : Up to 1000ml (compatible with 500 and 1000 ml)
  • Receiving Bottle : 1000 ml
  • Rotation Speed : 10 to 280 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A13
Electric Lifting Rotary Evaporator LERE-A13
  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A22
Electric Lifting Rotary Evaporator LERE-A22
  • Evaporating Flask : 5 L
  • Receiving Bottle : 3 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 140 mm
Electric Lifting Rotary Evaporator LERE-A11

Electric Lifting Rotary Evaporator LERE-A11

  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A19

Electric Lifting Rotary Evaporator LERE-A19

  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 190 mm
Electric Lifting Rotary Evaporator LERE-A16

Electric Lifting Rotary Evaporator LERE-A16

  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A29 FAQ's
  • Yes, the Electric Lifting Rotary Evaporator is manageable in labs where equipment often moves between workstations. Its frame is compact without feeling fragile. Movement between benches or lab zones doesn’t strain structural joints. Wheel-less handling is still comfortable due to its balanced body. There are no external protrusions to catch or bump into other setups. Our Electric Lifting Rotary Evaporator is ideal for multi-user environments that need flexibility in layout. It’s a dependable option for dynamic teams with shifting priorities. You won’t need extra accessories just to move it between zones. Even in tight corners, it fits neatly without interfering with other setups.

  • Our Electric Lifting Rotary Evaporator functions well without full-time monitoring. Once settings are applied, the unit holds those parameters without drift. No continuous input or fine-tuning is required mid-process. This frees up operators to focus on other tasks while the distillation proceeds. No sudden alarms or faults interrupt workflow under normal usage. The display allows quick checks if needed without full attention. The Electric Lifting Rotary Evaporator supports autonomous functioning across various run durations. It’s suitable for busy labs where multitasking is common. Even novice staff can operate it with minimal instruction and still maintain safe handling.

  • The Electric Lifting Rotary Evaporator is built for labs that handle many types of extractions. Switching between different solvents or methods doesn’t require reconfiguration. Components can be adjusted quickly without long setup times. There’s no loss in output quality even with repeated changes. Tubing, connections, and clamps are easily cleaned and reattached. Our Electric Lifting Rotary Evaporator fits well into environments where experiments change daily. It supports a wide variety of lab goals without added strain. This makes it valuable for both research and academic labs. Transitions between protocols are smooth, even during back-to-back procedures.

  • Yes, the Electric Lifting Rotary Evaporator works well in multi-user settings where different researchers share one system. Its controls are intuitive and easy to understand, even for new users. There’s no steep learning curve for basic operations. Operating steps follow a clear sequence, making training faster. Users don’t need to reset everything between sessions. The Electric Lifting Rotary Evaporator avoids conflicts over usage thanks to its adaptable settings. It’s ideal for universities, shared industry labs, or rotational usage. Safety isn’t compromised across frequent user transitions. Repeated handling by multiple individuals does not affect its stability or performance.

  • Yes, the Electric Lifting Rotary Evaporator is built for steady operation during long laboratory hours. The system maintains functionality without drops in performance or overheating. Thermal output remains under control even with full-day usage. No forced pauses are needed to prevent stress on parts. Condensation management continues to function throughout multiple sessions. Our Electric Lifting Rotary Evaporator holds up against extended operation with no loss in reliability. It's ideal for labs with high-volume output or back-to-back workflows. You can trust it from morning to evening shifts. Multiple rounds of use won't compromise the setup or its repeatability.

  • The Electric Lifting Rotary Evaporator handles small or large volumes without needing multiple configurations. Whether using a reduced fill or full capacity, the operation stays consistent. Speed, lift, and collection all respond appropriately across the range. There’s no need to alter the internal setup for basic quantity adjustments. Uniform results can be expected across varying sample sizes. Our Electric Lifting Rotary Evaporator works across protocols without specialised parts. This makes it suitable for exploratory labs as well as routine ones. Adjustments are simple and don’t require technical support. Fluctuating sample demands won’t delay progress or compromise quality.
