| Evaporating Flask | 20 L |
| Receiving Bottle | 10 L (with discharge valve) |
| Rotation Speed | 0 to 120 rpm |
| Lifting Distance | 150 mm |
| Lifting Mode | Electric |
| Lifting Motor Power | 40 W |
| Condenser | Vertical |
| Coil Configuration | Main triple and auxiliary double coil |
| Temperature Range | RT to 180°C |
| Temperature Control Accuracy | +/- 1°C |
| Vacuum Degree | 0.098 Mpa |
| Rotating Motor Power | 60 W |
| Heating Power | 5000 W |
| Bath Capacity | 41 L |
| Power Consumption | 5180 W |
| Power Supply | 220 to 240 V/5O Hz |
| Dimensions (L×W×H) | 1210×610×2170 mm |
| Weight | 84 kg |

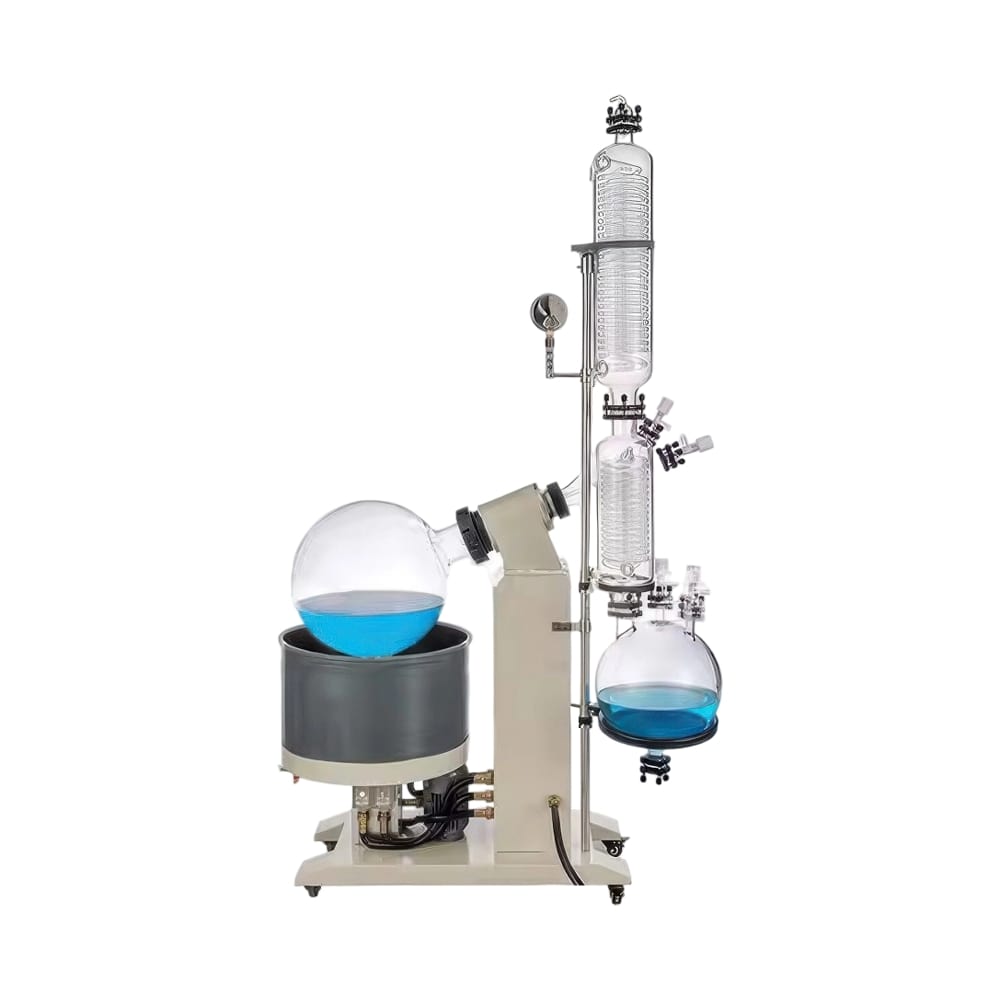

Electric Lifting Rotary Evaporator LERE-A24 is designed to efficiently recover solvents from samples through rotary evaporation under controlled vacuum conditions. It is predominantly utilized in the pharmaceutical, chemical, and biopharmaceutical industries for applications such as concentration, separation, and solvent recovery.
Download catalog for
Electric Lifting Rotary Evaporator LERE-A24 Catalog
Available Range :

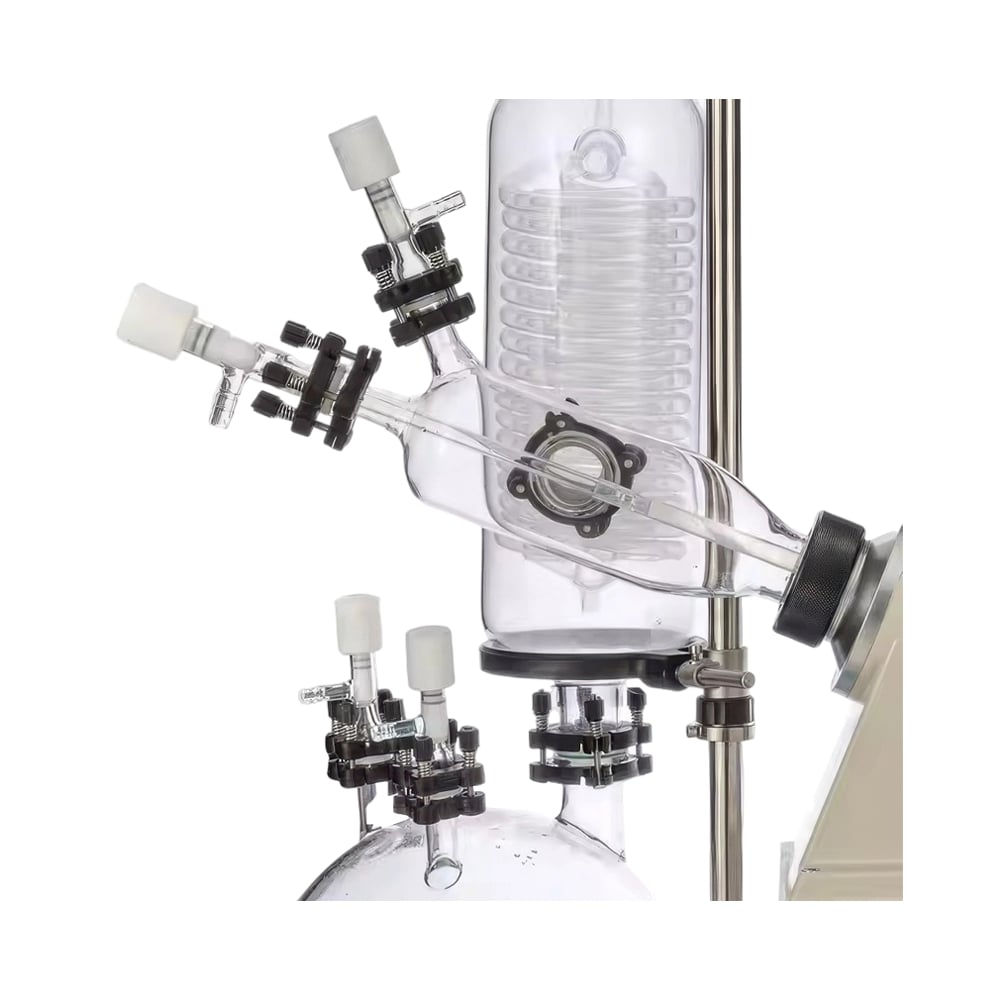

Electric Lifting Rotary Evaporator LERE-A10 : 10 L Electric Lifting Rotary Evaporator LERE-A26 : 100 L Electric Lifting Rotary Evaporator LERE-A12 : 20 L Electric Lifting Rotary Evaporator LERE-A14 : 30 L Electric Lifting Rotary Evaporator LERE-A35 : 3000ml Electric Lifting Rotary Evaporator LERE-A18 : 5 L Electric Lifting Rotary Evaporator LERE-A16 : 50 L Electric Lifting Rotary Evaporator LERE-A28 : Up to 1000ml (compatible with 500 and 1000 ml)Labtron Electric Lifting Rotary Evaporator features a PTFE + fluoro rubber double seal to maintain high vacuum integrity. They include a main and auxiliary condenser with a triple-coil design for faster and more efficient condensation. Their vacuum switching valve supports continuous collection without disrupting the process. The system is equipped with over-temperature protection and an anti-dry function for added safety. Our Electric Lifting Rotary Evaporator supports solvent recovery, crystallization, and drying in biopharma, petrochemical, food, and research laboratories.








Labtron Electric Lift Rotary Evaporator supports uninterrupted use during extended solvent recovery sessions. It maintains continuous motion without overheating or mechanical inconsistency. The reinforced shaft manages heavier samples without compromising alignment over time. Its structure ensures thermal uniformity during prolonged operation. With stable lifting and smooth rotation, there's minimal strain across components. This reliability makes it ideal for overnight extractions or large-batch production. Labs can run extended protocols without halting the system for cool-down. The unit delivers consistent performance even during the most time-intensive procedures.

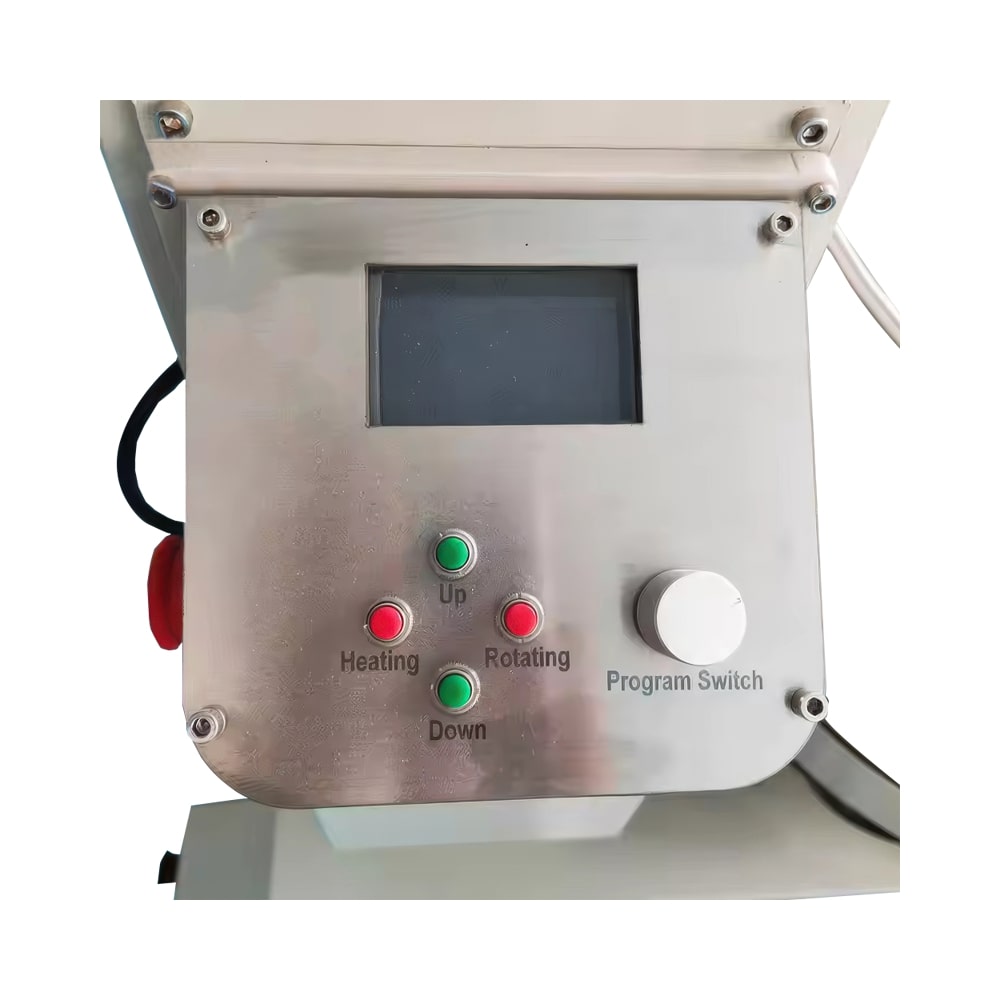

The Electric Lift Rotary Evaporator offers fast assembly with clearly labelled parts and a low learning curve. Its intuitive design allows users to prepare the unit without specialised tools. The control interface is simplified, so activation requires only a few basic steps. Operators can begin testing or distillation quickly without calibration delays. Display panels and control dials are positioned for quick access. For time-limited settings like teaching labs or mobile units, this layout saves valuable setup minutes. Early-stage research can begin promptly without technical holdups. Its readiness supports smoother throughput from the first use.
The Electric Lift Rotary Evaporator is tailored for narrow benches and crowded workspaces. Its upright build minimises side clearance and maximises vertical stacking. Motor and condenser parts are enclosed in a streamlined column to reduce spatial demands. Users can operate the system from the front without needing to shift surrounding tools. This allows several units to be positioned together in shared laboratory setups. Even in mobile or temporary labs, it preserves functionality without expansion. Layout efficiency supports routine use where equipment sharing is essential. Compact without compromise, it fits tightly arranged research spaces.
Our Electric Lift Rotary Evaporator runs with a low-noise motor that limits sound output in sensitive environments. There are no sudden vibrations or mechanical clicks during operation. This makes it suitable for clinical labs, educational settings, or spaces requiring minimal disruption. Technicians can discuss procedures without raising their voices. The lift and spin functions remain smooth throughout extended cycles. It helps maintain focus during detailed analytical work. Noise control enhances the working environment, especially during simultaneous experiments. Even in extended sessions, user concentration is preserved without auditory strain.
The Electric Lift Rotary Evaporator is built to manage repeated runs without downtime between processes. Its internal mechanisms tolerate rapid transitions between batches without heat stress. The lifting system remains aligned regardless of flask size or content weight. An efficient condenser setup allows quick sample removal and reconfiguration. The base structure resists wear from thermal cycling over frequent use. This reduces maintenance and avoids delays in fast-paced testing workflows. Heavy-duty components support continued use across long research days. Its daily resilience makes it valuable in batch-intensive laboratory routines.
Our Electric Lift Rotary Evaporator supports flexible use in labs with rotating teams or multi-department access. The labelled levers and streamlined controls allow new users to begin safely without extended instruction. It accommodates a wide range of solvents and sample sizes, helping interdisciplinary research proceed smoothly. Lift speeds are consistent but adjustable depending on user preference. Built-in power-saving elements reduce waste between runs. Maintenance procedures are simple, supporting shared upkeep without bottlenecks. Whether used by experienced chemists or student groups, it fits collaborative workflows. The unit adapts easily across various research styles.
