| Evaporating Flask | 20 L |
| Receiving Bottle | 10 L (with discharge valve) |
| Rotation Speed | 0 to 120 rpm |
| Lifting Distance | 150 mm |
| Lifting Mode | Electric |
| Lifting Motor Power | 40 W |
| Condenser | Vertical |
| Coil Configuration | Main triple and auxiliary double coil |
| Temperature Range | RT to 180°C |
| Temperature Control Accuracy | +/- 1°C |
| Vacuum Degree | 0.098 Mpa |
| Rotating Motor Power | 60 W |
| Heating Power | 5000 W |
| Bath Capacity | 41 L |
| Power Consumption | 5100 W |
| Power Supply | 220 to 240 V/5O Hz |
| Dimensions (L×W×H) | 1210×610×2170 mm |
| Weight | 78 kg |
Electric Lifting Rotary Evaporator LERE-A20 is built for efficient solvent recovery, distillation, and concentration, ideal for the pharmaceutical, chemical, and biopharmaceutical industries. It ensures reliable performance in extraction, crystallization, drying, and research applications.
Download catalog for
Electric Lifting Rotary Evaporator LERE-A20 Catalog
Available Range :
Electric Lifting Rotary Evaporator LERE-A10 : 10 L Electric Lifting Rotary Evaporator LERE-A26 : 100 L Electric Lifting Rotary Evaporator LERE-A12 : 20 L Electric Lifting Rotary Evaporator LERE-A14 : 30 L Electric Lifting Rotary Evaporator LERE-A35 : 3000ml Electric Lifting Rotary Evaporator LERE-A18 : 5 L Electric Lifting Rotary Evaporator LERE-A16 : 50 L Electric Lifting Rotary Evaporator LERE-A28 : Up to 1000ml (compatible with 500 and 1000 ml)Labtron Electric Lifting Rotary Evaporator features a PTFE + fluoro rubber double seal to maintain high vacuum integrity. They include a main and auxiliary condenser with a triple-coil design for faster and more efficient condensation. Their vacuum switching valve supports continuous collection without disrupting the process. The system is equipped with over-temperature protection and an anti-dry function for added safety. Our Electric Lifting Rotary Evaporator supports solvent recovery, crystallization, and drying in biopharma, petrochemical, food, and research laboratories.








The Electric Lift Rotary Evaporator simplifies lab operations by reducing the time needed for manual adjustments. With the automatic lift system, it allows users to quickly adjust the flask height without interruptions. This feature is particularly helpful in high-demand environments, where fast transitions between samples are required. The easy-to-use controls make it possible for operators to switch between tasks with minimal effort, keeping workflow smooth. With its simple interface, the machine can be operated with little training, allowing staff to focus on important tasks. Its durable build ensures that it remains functional throughout prolonged work hours. Overall, the evaporator optimizes lab efficiency by cutting down on time-consuming adjustments.
The Electric Lift Rotary Evaporator includes a range of safety features designed to protect both the operator and the equipment. The unit is equipped with an automatic shutdown function that activates in case of system errors or overheating. This feature helps to avoid potential hazards by stopping the operation before further issues can arise. Additionally, the enclosed design of critical components minimizes accidental exposure to hazardous elements. The evaporator’s robust construction ensures stability during use, reducing the chances of accidents during high-speed rotations. Also, the built-in pressure and temperature regulation systems ensure safe operation under various conditions.
Our Electric Lift Rotary Evaporator is adaptable to various lab processes, offering flexibility in how it’s used. Its adjustable settings for temperature and speed make it suitable for handling different materials, from sensitive compounds to more robust substances. This means that researchers can easily modify the system to meet the specific requirements of their experiments. Whether the task involves solvent recovery or other distillation procedures, this unit can accommodate diverse needs. The lifting mechanism provides further flexibility, allowing users to adjust the height based on the space and task requirements. Additionally, the evaporator can be paired with different accessories for even more customization. This versatility makes it an invaluable tool in laboratories with varying demands.

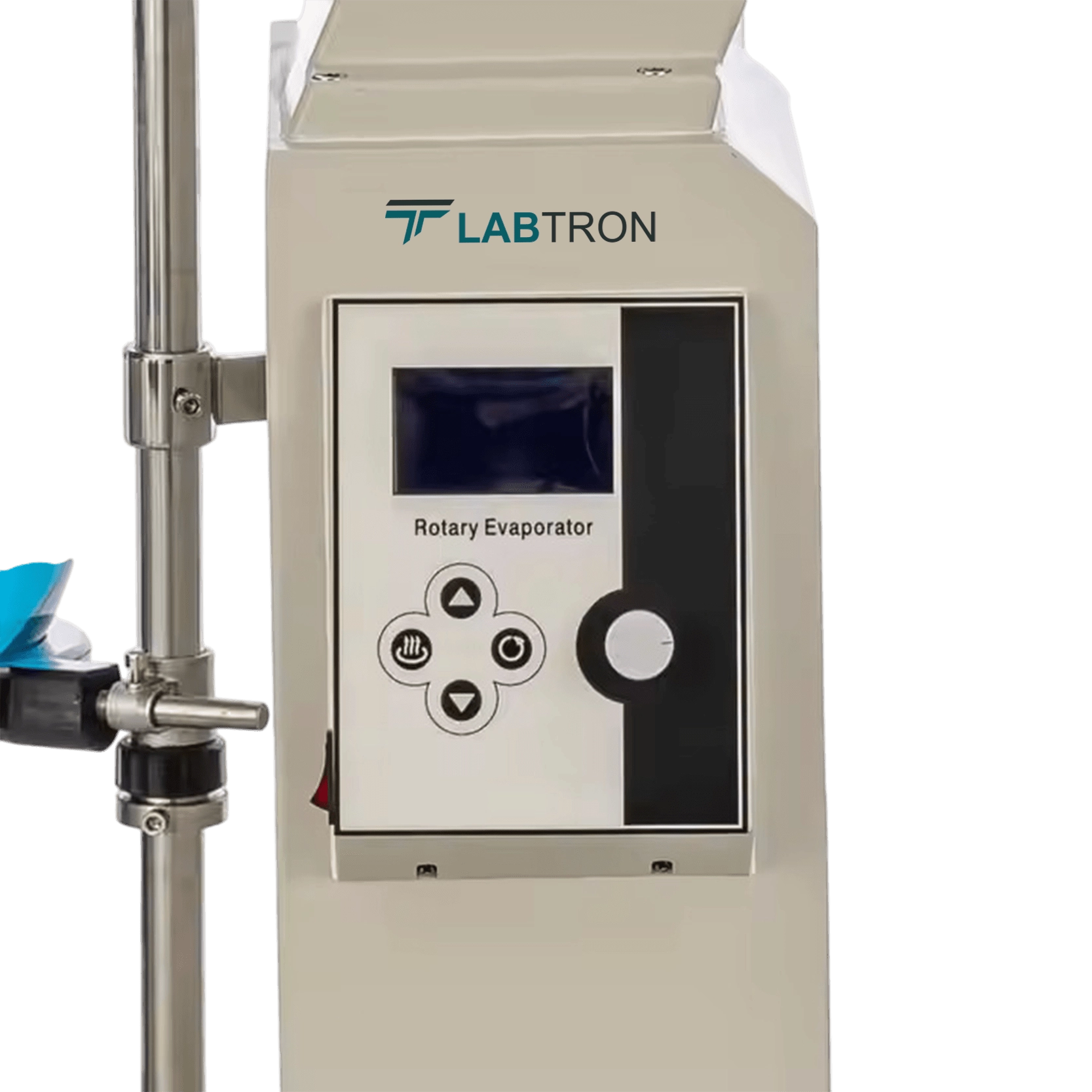

The Electric Lift Rotary Evaporator is designed to be intuitive, ensuring ease of use for staff at all levels. The digital control panel simplifies the process of setting temperature and rotation speed. The automatic lift feature eliminates the need for manual adjustments, reducing the physical strain on operators. With clear, easily visible indicators and a straightforward interface, users can quickly learn how to use the unit, making it ideal for fast-paced environments. Its compact and practical design ensures that it fits seamlessly into existing lab setups. Even in laboratories with heavy workflows, the system doesn’t disrupt daily operations. This makes the evaporator a convenient and efficient addition to any lab.
Labtron’s Electric Lift Rotary Evaporator helps labs operate more sustainably by focusing on energy conservation. It features energy-efficient mechanisms that adjust power usage according to the workload, ensuring minimal energy consumption. When the unit is idle, it activates a low-power mode that further reduces its energy footprint. Its durable components mean fewer replacements are necessary, contributing to lower waste production. The evaporator’s compact design optimises space usage, reducing the need for additional energy-consuming equipment. Additionally, by improving overall lab efficiency, it helps to reduce the environmental impact of long-term laboratory operations. This makes the unit a great choice for labs committed to sustainability.
The Electric Lift Rotary Evaporator provides reliable performance for various materials, regardless of their sensitivity. The adjustable temperature and speed settings allow for fine-tuning based on the specific needs of each sample. This level of control ensures that delicate substances are handled with care while more robust materials can be processed quickly. The stable heating system and advanced cooling mechanisms ensure that conditions remain constant throughout the process. This is crucial in experiments where maintaining consistency is key. Furthermore, the real-time monitoring system offers continuous feedback, allowing for immediate adjustments if needed. As a result, researchers can trust that they will get reliable, repeatable results every time.
