| Evaporating Flask | 20 L |
| Receiving Bottle | 10 L |
| Rotation Speed | 20 to 130 rpm |
| Rotation Control | Electric |
| Rotation Speed Setting | 1 rpm/step |
| Water Bath Temperature | RT to 95°C |
| Oil Bath Temperature | RT to 180°C |
| Temperature Sensor | 2-wire PT100 RTD |
| Ambient Temperature | 5 to 35°C |
| Environment Relative Humidity | Less than or equal to 70% |
| Bath Temperature Setting | 0.1°C/step |
| Heating Capacity | 6000 W |
| Vacuum Leakage | Less than or equal to 0.33 kPa/min |
| Nominal Adjustment Accuracy | +/-1.5°C |
| Maximum Sea Level | 2000 m |
| Bath Size | Φ450×260 mm |
| Protection Grade | IP20 |
| Sealing Parts | PTFE |
| Glass Material | 3.3 borosilicate |
| Power Consumption | 6300 W |
| Power Supply | 3 to 380V,50 Hz |
| Dimensions (L×W×H) | 1120×680×1900 mm |
| Weight | 90 kg |
PT100 RTD sensor integration
Stepwise rotation adjustment
Ambient humidity tolerance
Multi-source power support
High-load operational capacity

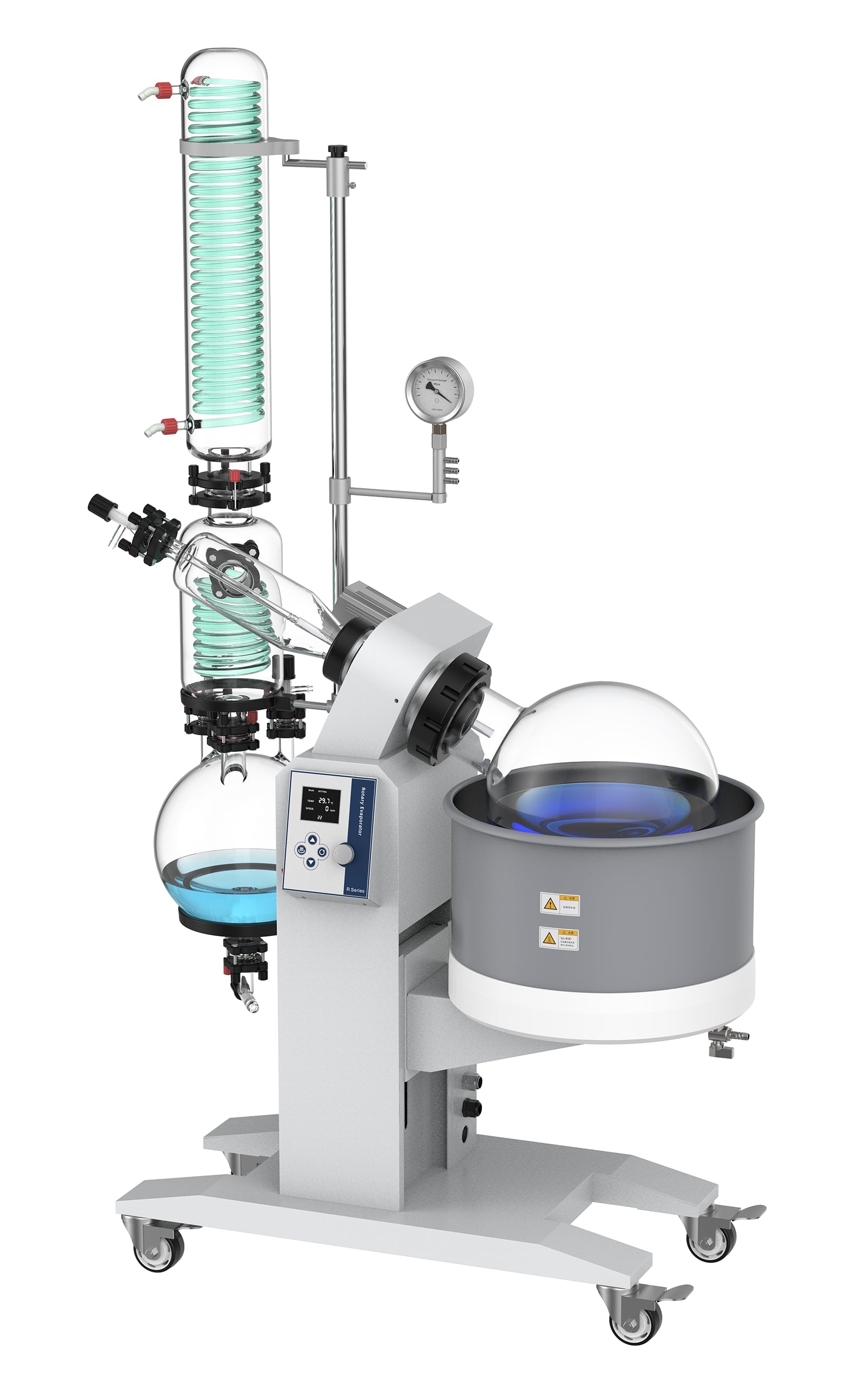

Electric Lifting Rotary Evaporator LERE-A31 facilitates efficient solvent evaporation and distillation. It is commonly used in laboratories, chemical industries, food processing, and pharmaceuticals for the extraction and purification of active substances.
Download catalog for
Electric Lifting Rotary Evaporator LERE-A31 Catalog
Available Range :
Electric Lifting Rotary Evaporator LERE-A10 : 10 L Electric Lifting Rotary Evaporator LERE-A26 : 100 L Electric Lifting Rotary Evaporator LERE-A12 : 20 L Electric Lifting Rotary Evaporator LERE-A14 : 30 L Electric Lifting Rotary Evaporator LERE-A35 : 3000ml Electric Lifting Rotary Evaporator LERE-A18 : 5 L Electric Lifting Rotary Evaporator LERE-A16 : 50 L Electric Lifting Rotary Evaporator LERE-A28 : Up to 1000ml (compatible with 500 and 1000 ml)Labtron Electric Lifting Rotary Evaporator features a PTFE + fluoro rubber double seal to maintain high vacuum integrity. They include a main and auxiliary condenser with a triple-coil design for faster and more efficient condensation. Their vacuum switching valve supports continuous collection without disrupting the process. The system is equipped with over-temperature protection and an anti-dry function for added safety. Our Electric Lifting Rotary Evaporator supports solvent recovery, crystallization, and drying in biopharma, petrochemical, food, and research laboratories.








Labtron’s Electric Lift Rotary Evaporator is built to efficiently handle a variety of workloads, making it versatile for different laboratory tasks. Its high-capacity heating system allows for quicker processing of larger volumes, making it an ideal choice for labs with heavy-duty demands. The unit also includes robust vacuum controls that prevent pressure fluctuations, ensuring consistent results. Its adjustable rotation speed is perfect for optimizing evaporation rates under different operational conditions. The combination of these features ensures that the device can easily switch between tasks without losing performance. This flexibility is key for laboratories dealing with diverse sample types and varying requirements.
The vacuum system in the Electric Lift Rotary Evaporator is integral to its functionality, allowing for efficient solvent separation under controlled conditions. By maintaining a low pressure environment, it accelerates the evaporation process and reduces the risk of thermal damage to sensitive substances. The system operates without causing fluctuations in pressure, which ensures a steady and controlled evaporation rate. This feature is particularly beneficial for distillation processes, where precision is vital. Furthermore, the robust vacuum control minimizes solvent loss, which maximizes overall efficiency during large-scale operations. This results in a more cost-effective and productive workflow for laboratory environments.
The Electric Lift Rotary Evaporator is ideal for working with temperature-sensitive materials, as it offers a wide and adjustable temperature range. This precise temperature control enables the device to handle substances that require careful heating, ensuring that they remain stable throughout the process. The combined vacuum function lowers the boiling point of solvents, allowing for evaporation at lower temperatures, thus preserving the integrity of heat-sensitive compounds. Additionally, the unit's stable temperature maintenance technology keeps the operating environment consistent, minimizing the risk of overheating. This makes it suitable for applications in fields like pharmaceuticals and botanical extractions, where maintaining sample integrity is critical.
Our Electric Lift Rotary Evaporator features a quick flange connection system that streamlines the setup process, allowing for faster and easier swapping of glass components. This system ensures that users can prepare the equipment for different tasks without unnecessary delays. The user-friendly interface and controls reduce the complexity of operation, making it easy for technicians to adjust settings quickly. The ergonomic design and intuitive layout allow for comfortable interaction with the unit, even during extended periods of use. This ease of operation makes it ideal for laboratories where the setup needs to be changed frequently, increasing overall efficiency. Furthermore, the sturdy construction ensures that the system remains stable during these transitions.
The Electric Lift Rotary Evaporator is equipped with advanced vacuum and temperature controls that ensure the careful processing of valuable samples. By operating at low pressures, it protects sensitive materials from degradation caused by high temperatures, preserving their quality. Its gentle evaporation process helps maintain the integrity of volatile compounds, ensuring that extracts remain potent. The system is designed to provide maximum solvent recovery while minimizing sample loss, making it ideal for precious chemical or botanical extractions. Whether dealing with pharmaceutical ingredients or essential oils, this evaporator offers an optimal solution for preserving the original characteristics of your samples. This careful handling is critical for applications where the quality of the final product is essential.
The Electric Lift Rotary Evaporator excels in large-scale solvent recovery by offering a robust heating system and an efficient vacuum mechanism. The unit's substantial bath capacity ensures that high-volume samples are processed effectively, even during extended periods of operation. Its adjustable rotation speed aids in maximizing the surface area of the liquid, which accelerates the evaporation process. This, combined with the reliable temperature control, ensures high recovery rates, even in challenging conditions. The high-performance system reduces processing time, making it an excellent choice for environments with large quantities of material to be distilled or recovered. The result is faster throughput and improved overall efficiency in solvent recovery operations.
