Electric Lifting Rotary Evaporator LERE-A21

Electric Lifting Rotary Evaporator LERE-A21

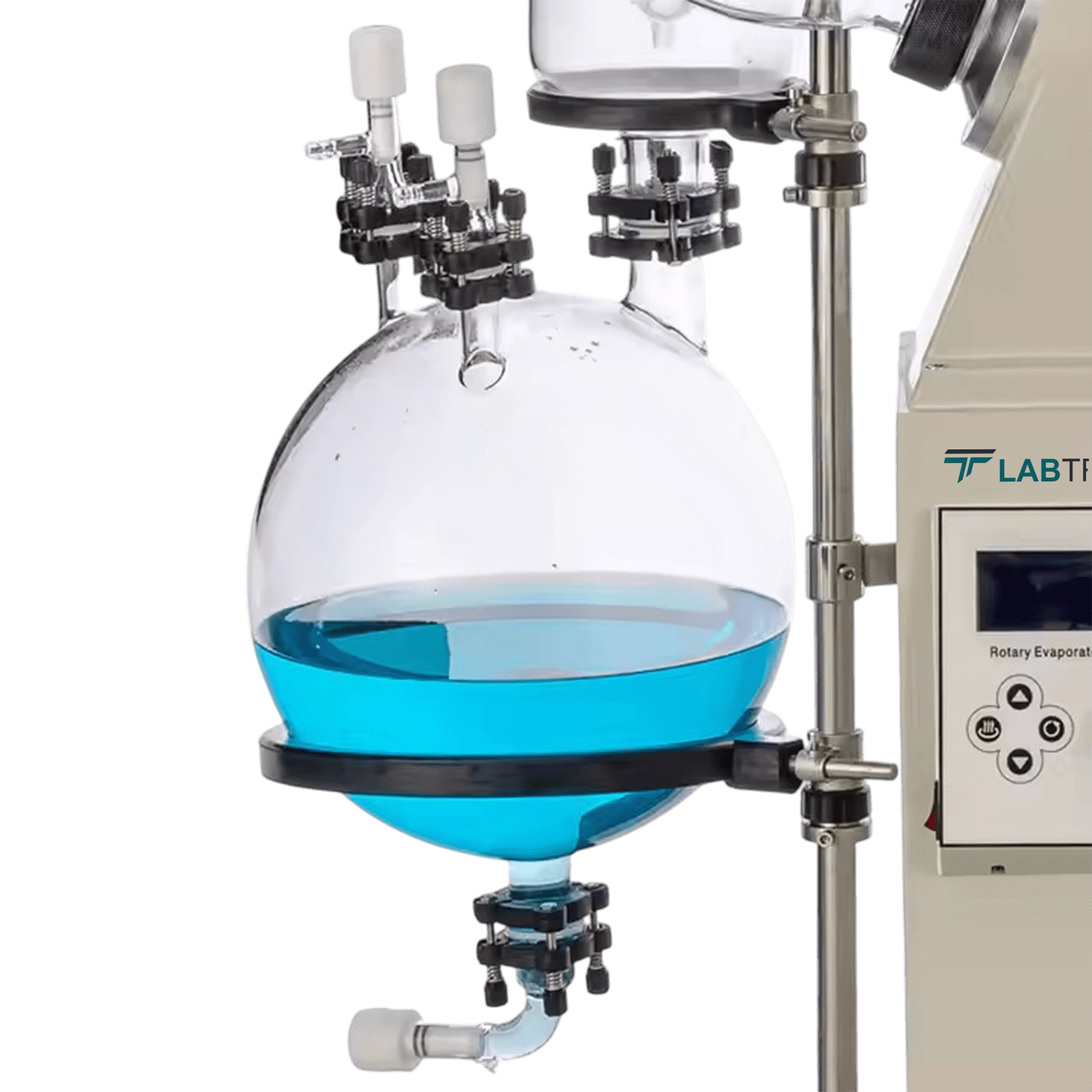

Electric Lifting Rotary Evaporator LERE-A21 features a 50 L evaporating flask, built for large-scale distillation and concentration processes. Its vacuum system enables low-pressure operation for faster processing and reduced boiling points. The rapid cooling system supports efficient solvent recovery with minimal downtime. Our electric lifting rotary evaporator is ideal for industrial and laboratory use across extraction, purification, and concentration tasks.

Electric Lifting Rotary Evaporator LERE-A21
Electric Lifting Rotary Evaporator LERE-A21
Electric Lifting Rotary Evaporator LERE-A21
Electric Lifting Rotary Evaporator LERE-A21
Electric Lifting Rotary Evaporator LERE-A21
Electric Lifting Rotary Evaporator LERE-A21
Request Quote

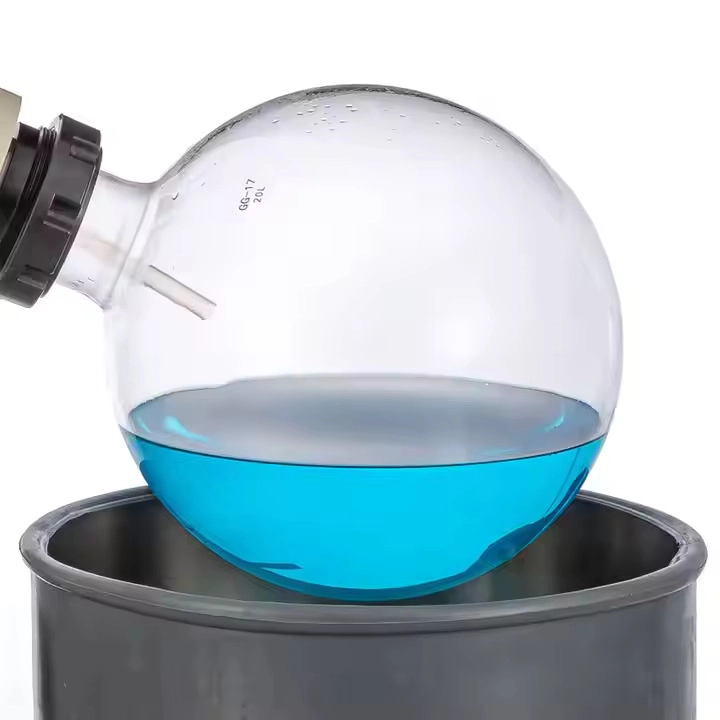

Evaporating Flask 50 L
Receiving Bottle 20 L (with discharge valve)
Rotation Speed 0 to 120 rpm
Lifting Distance 215 mm
Lifting Mode Electric
Lifting Motor Power 40 W

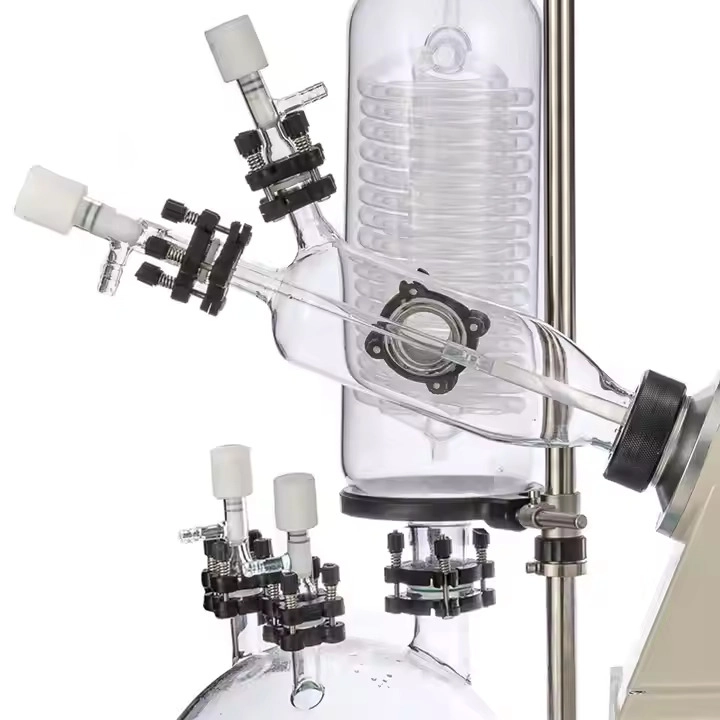

Condenser Vertical
Coil Configuration Main triple and auxiliary double coil
Temperature Range RT to 180°C
Temperature Control Accuracy +/- 1°C
Vacuum Degree 0.098 Mpa
Rotating Motor Power 100 W
Heating Power 6500 W
Bath Capacity 76 L
Power Consumption 6640 W
Power Supply 380V/5O Hz
Dimensions (L×W×H) 1390×700×2300 mm
Weight 97 kg

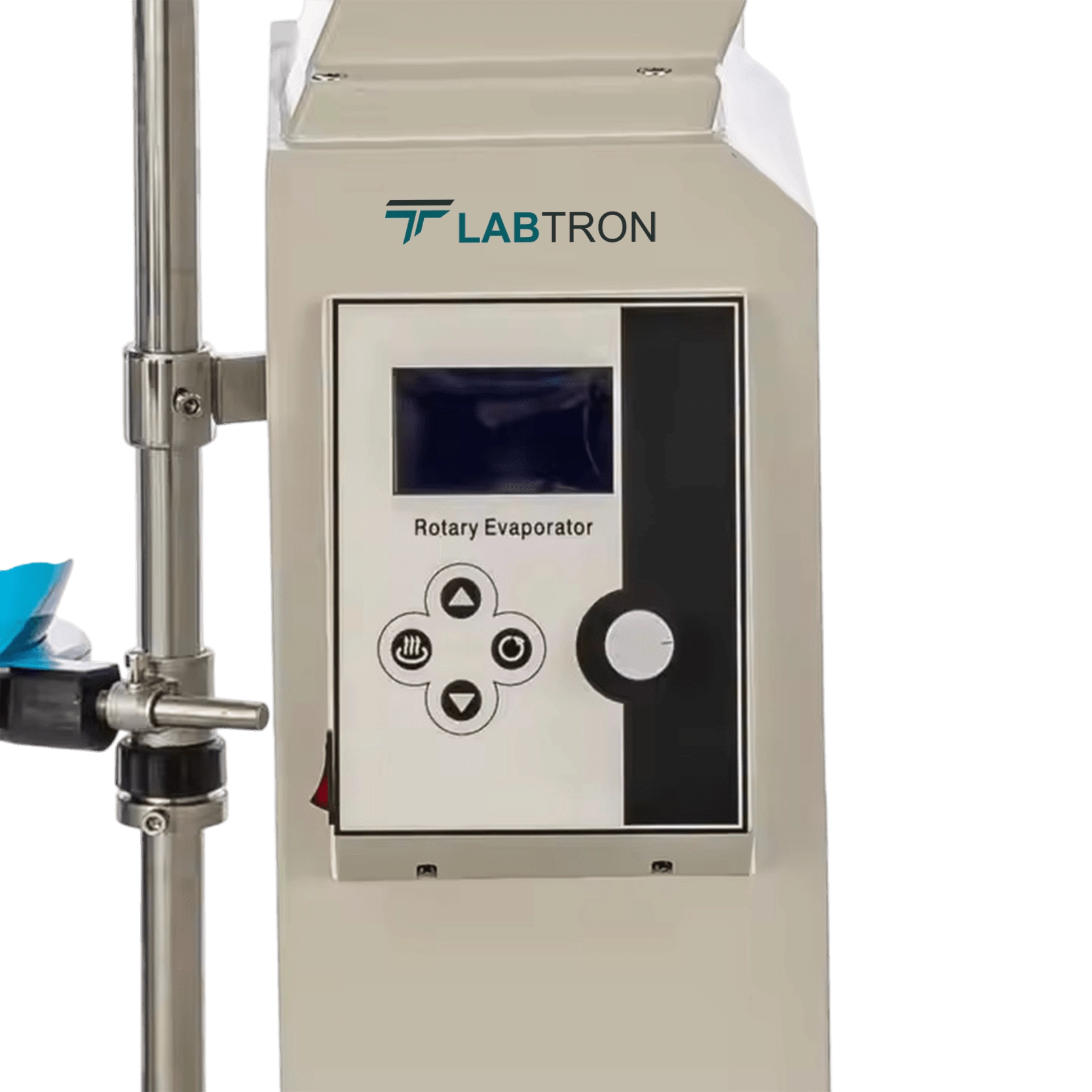

  • Digital status indicator

  • Easy-lift arm system

  • External drainage support

  • Convenient power access

  •  Effortless flask exchange

Electric Lifting Rotary Evaporator LERE-A21 efficiently performs solvent recovery, distillation, and concentration under vacuum conditions. It is commonly used in pharmaceutical, chemical, biotechnological, and food industries for extraction, purification, and crystallization processes.



Models of Electric Lifting Rotary Evaporator

Labtron Electric Lifting Rotary Evaporator features a PTFE + fluoro rubber double seal to maintain high vacuum integrity. They include a main and auxiliary condenser with a triple-coil design for faster and more efficient condensation. Their vacuum switching valve supports continuous collection without disrupting the process. The system is equipped with over-temperature protection and an anti-dry function for added safety. Our Electric Lifting Rotary Evaporator supports solvent recovery, crystallization, and drying in biopharma, petrochemical, food, and research laboratories.

Electric Lifting Rotary Evaporator LERE-A12

Electric Lifting Rotary Evaporator LERE-A12

  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A35

Electric Lifting Rotary Evaporator LERE-A35

  • Evaporating Flask : 3000ml
  • Receiving Bottle : 1000ml
  • Rotation Speed : 0 to 200rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A34

Electric Lifting Rotary Evaporator LERE-A34

  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L
  • Rotation Speed : 20 to 110 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A33
Electric Lifting Rotary Evaporator LERE-A33
  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L
  • Rotation Speed : 20 to 130 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A10
Electric Lifting Rotary Evaporator LERE-A10
  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A30

Electric Lifting Rotary Evaporator LERE-A30

  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L
  • Rotation Speed : 20 to 130 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A22

Electric Lifting Rotary Evaporator LERE-A22

  • Evaporating Flask : 5 L
  • Receiving Bottle : 3 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 140 mm
Electric Lifting Rotary Evaporator LERE-A26

Electric Lifting Rotary Evaporator LERE-A26

  • Evaporating Flask : 100 L
  • Receiving Bottle : 50 L
  • Evaporating Flask Flange : Φ 610 ×180 mm
  • Receiving Bottle Flange : Φ 470 × 60 mm
Electric Lifting Rotary Evaporator LERE-A21 FAQ's
  • The Electric Lift Rotary Evaporator is ideal for labs that handle frequent solvent recovery. Its electric lift system reduces the need for manual adjustments, streamlining workflows. The compact design makes it suitable for spaces with limited room, yet it still offers a robust capacity for medium-scale tasks. The device ensures steady and consistent rotation for even sample handling. The intuitive control panel makes it user-friendly, even for long shifts. With easy maintenance, lab downtime is kept to a minimum. This evaporator strikes the perfect balance between size, power, and usability for mid-sized laboratory environments.

  • Our Electric Lift Rotary Evaporator has built-in safety features that minimize operator risks. The motorized lift reduces the need for direct handling of heated glassware. Secure clamps prevent flasks from moving or tipping, ensuring stable operation. The heating system is precisely controlled to avoid overheating, reducing the risk of accidents. The device also helps prevent splashing or spillage through stable support during use. By removing manual lifting, the risk of strain injuries is significantly lowered. This design promotes a safer and more reliable working environment in the lab.

  • The Electric Lift Rotary Evaporator supports long, uninterrupted workflows, thanks to its electric lifting function and consistent rotation speed. Once set up, the system runs autonomously, allowing lab staff to focus on other tasks. The motor maintains steady motion across multiple cycles without loss of performance. Integrated cooling ensures the system doesn't overheat, allowing for continuous use. Quick drainage and spill-resistant design make transitions between runs faster. The evaporator reduces downtime, boosting efficiency during demanding tasks. It’s an excellent choice for labs where productivity is critical and processes need to be as smooth as possible.

  • Labtron's Electric Lift Rotary Evaporator is designed with ease of use in mind, even for beginners. The control panel is clear and easy to navigate, with intuitive buttons and indicators. The electric lift and rotating mechanisms take the strain out of manual handling, simplifying operation. Components are quick to assemble, clean, and maintain. The system runs steadily and predictably, helping new users gain confidence in handling the device. With detailed instructions provided, even first-time users can operate the system effectively. The Electric Lift Rotary Evaporator makes learning laboratory distillation techniques straightforward.

  • The Electric Lift Rotary Evaporator provides stable conditions that are essential for concentrating delicate samples. Its motor-driven lift system offers precise control over the positioning of flasks, ensuring uniform exposure. The gentle rotation prevents sample degradation or splashing. Operators can adjust the rotation speed to accommodate different types of samples. The temperature is maintained with minimal fluctuation, ensuring accuracy throughout the process. The condensation system efficiently recovers solvents, improving the yield. This evaporator is perfect for laboratories focusing on concentration tasks, providing both reliability and consistency.

  • The Electric Lift Rotary Evaporator is built to handle thicker solvents with ease. Its motor-driven rotation allows it to adjust to the needs of high-viscosity materials, ensuring smooth movement. The large flask support ensures that even with higher volumes, the system operates without slowdown. Even heating across the bath surface prevents uneven heating, which is crucial when working with thick substances. Cleaning between runs is simple, thanks to the minimal buildup of residue. The device performs well with dense solvents without any clogging or mechanical issues. Its robust design makes it a reliable choice for labs working with challenging materials.
