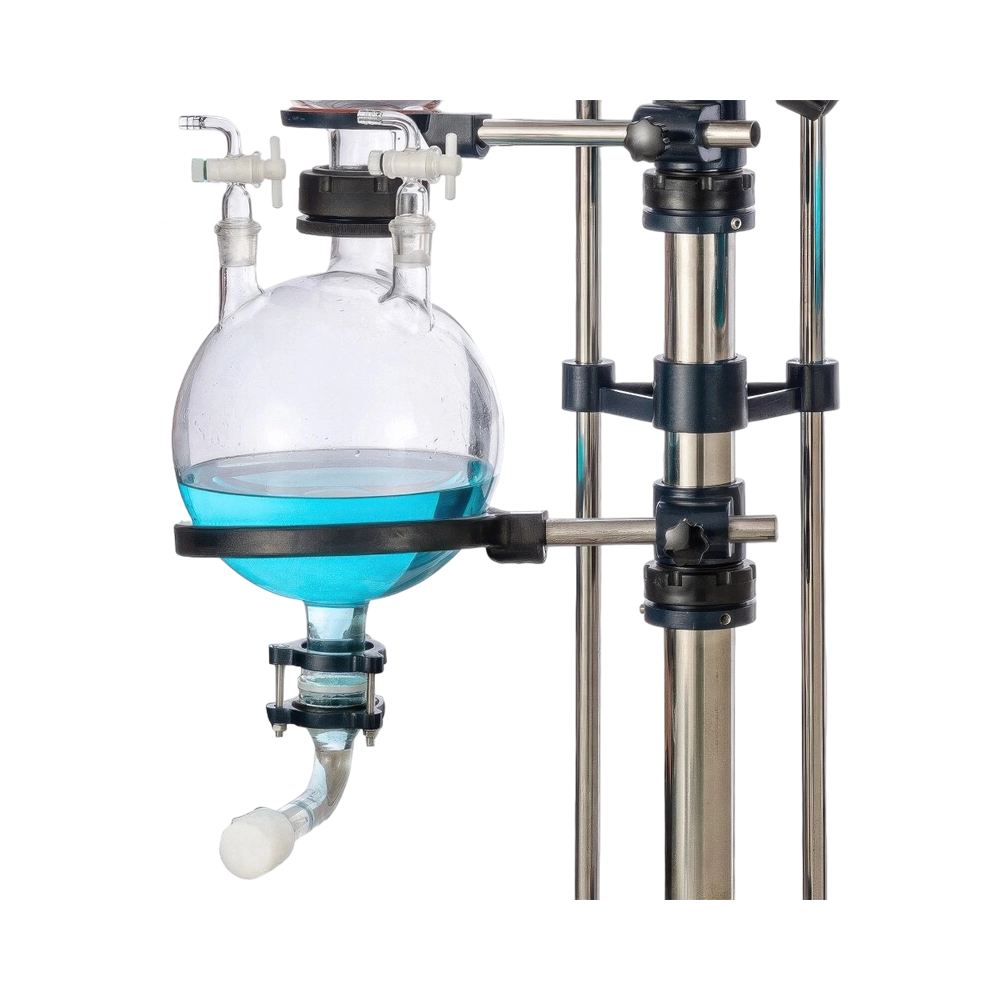

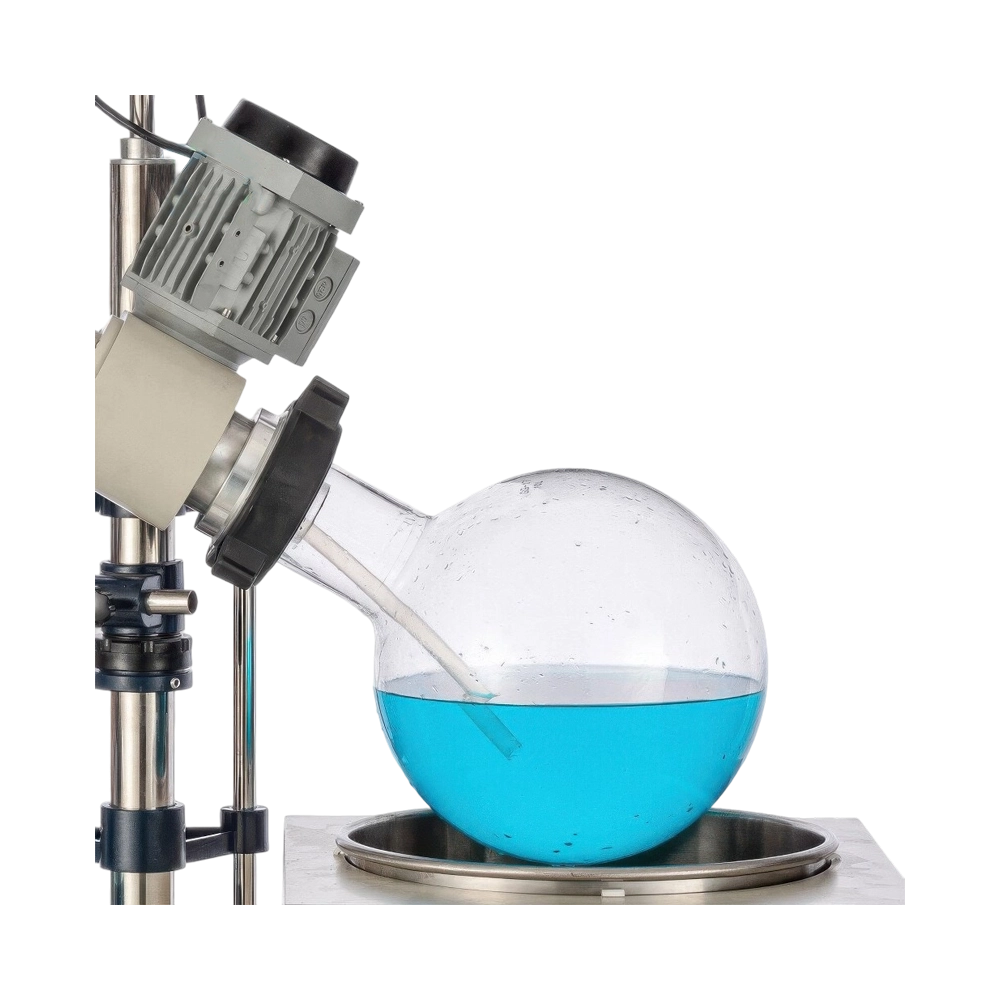

Electric Lifting Rotary Evaporator LERE-A17

Electric Lifting Rotary Evaporator LERE-A17

Electric Lifting Rotary Evaporator LERE-A17 with a 50 L evaporation flask supports high-capacity processing for large-scale lab and industrial applications. Its electric lift design improves flask handling and reduces physical strain during operation. Built-in over-temperature cut-off enhances user safety during prolonged procedures. Our Electric Lifting Rotary Evaporator is ideal for herbal work, petrochemical testing, and research.

Electric Lifting Rotary Evaporator LERE-A17
Electric Lifting Rotary Evaporator LERE-A17
Electric Lifting Rotary Evaporator LERE-A17
Electric Lifting Rotary Evaporator LERE-A17
Electric Lifting Rotary Evaporator LERE-A17
Request Quote
Evaporating Flask 50 L
Receiving Bottle 20 L (with discharge valve)
Rotation Speed 0 to 120 rpm
Lifting Distance 180 mm
Lifting Mode Electric
Temperature Range RT to 180°C
Temperature Control Accuracy +/- 1°C
Vacuum Degree 0.098 Mpa
Rotating Motor Power 180 W
Heating Power 8000 W
Bath Capacity 76 L
Heating Bath 380V/50 Hz
Power Consumption 8180 W
Power Supply 220 to 240 V/5O Hz
Dimensions (L×W×H) 1330×730×2340 mm
Weight 119.5 kg
  • User-friendly interface panel
  • Energy-saving performance

  • Simple power connection setup
  • Quick-start heating system

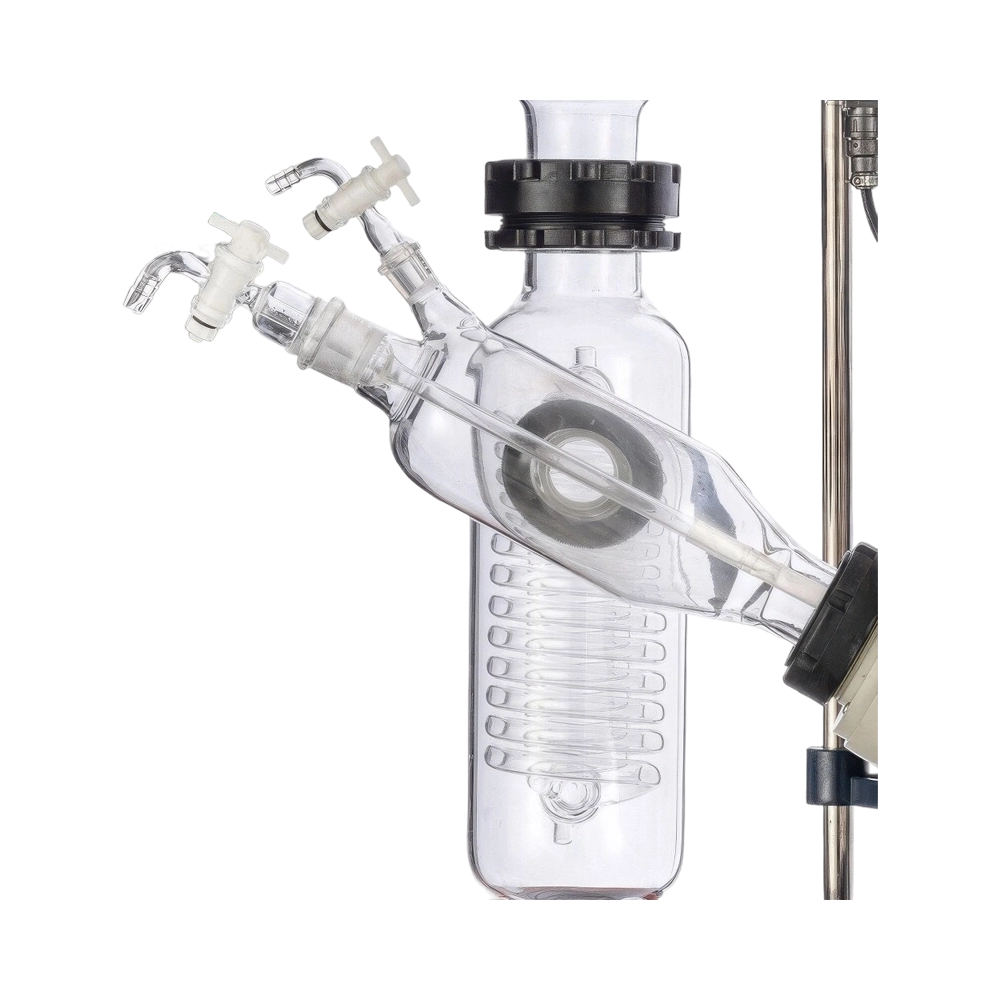

  • Triple coil condenser design

Electric Lifting Rotary Evaporator LERE-A17 performs effective solvent recovery and compound concentration for advanced lab applications. It is suitable for use in petrochemical facilities, electronic measurement labs, drying oven operations, and with constant temperature water baths.



Models of Electric Lifting Rotary Evaporator

Labtron Electric Lifting Rotary Evaporator features a PTFE + fluoro rubber double seal to maintain high vacuum integrity. They include a main and auxiliary condenser with a triple-coil design for faster and more efficient condensation. Their vacuum switching valve supports continuous collection without disrupting the process. The system is equipped with over-temperature protection and an anti-dry function for added safety. Our Electric Lifting Rotary Evaporator supports solvent recovery, crystallization, and drying in biopharma, petrochemical, food, and research laboratories.

Electric Lifting Rotary Evaporator LERE-A11

Electric Lifting Rotary Evaporator LERE-A11

  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A26

Electric Lifting Rotary Evaporator LERE-A26

  • Evaporating Flask : 100 L
  • Receiving Bottle : 50 L
  • Evaporating Flask Flange : Φ 610 ×180 mm
  • Receiving Bottle Flange : Φ 470 × 60 mm
Electric Lifting Rotary Evaporator LERE-A35

Electric Lifting Rotary Evaporator LERE-A35

  • Evaporating Flask : 3000ml
  • Receiving Bottle : 1000ml
  • Rotation Speed : 0 to 200rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A13
Electric Lifting Rotary Evaporator LERE-A13
  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A24
Electric Lifting Rotary Evaporator LERE-A24
  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 150 mm
Electric Lifting Rotary Evaporator LERE-A14

Electric Lifting Rotary Evaporator LERE-A14

  • Evaporating Flask : 30 L
  • Receiving Bottle : 20 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A23

Electric Lifting Rotary Evaporator LERE-A23

  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 190 mm
Electric Lifting Rotary Evaporator LERE-A20

Electric Lifting Rotary Evaporator LERE-A20

  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 150 mm

Electric Lifting Rotary Evaporator LERE-A17 FAQ's
  • Our Electric Lifting Rotary Evaporator preserves flavor-sensitive properties during the recovery of edible components. The internal structure prevents vapor contact with reactive surfaces. Collected residue stays intact without unwanted discoloration. There’s no temperature shock impacting sugars or aromatic esters. Rotation covers the full interior without shadow zones. Sample clarity remains visually consistent. Research kitchens and pilot plants rely on this system for uninterrupted material verification. It’s especially beneficial in flavor optimization labs where small molecular shifts affect the final output.

  • The Electric Lifting Rotary Evaporator works without fixed installation, allowing smooth relocation in shared or constrained labs. Orientation flexibility makes it adaptable for angled counters or tiered shelving. Vertical components don’t obstruct tool access. Collection bottles remain reachable from different heights. Benchtop layouts won’t require reconstruction. Workstation transitions happen without reassembly. It performs equally well in temporary stations and mobile facilities. Its footprint and design allow uninterrupted activity even during setup reshuffles or space repurposing.

  • The Electric Lifting Rotary Evaporator maintains performance when recovering test fluids from synthetic or metallic-laced materials. Active solvents don’t interfere with residual bonding agents. Narrow-film evaporation protects fragile blends from overexposure. Recovered volume doesn’t shrink across lengthy cycles. Isolation occurs without friction-based damage. Engineers working on resin blends and fuel mixtures prefer this system during post-experiment reclamation. It supports trials across varying atmospheric conditions. Its compatibility with aerospace-grade substances makes it an essential tool for material behavior evaluation under vacuum conditions.

  • The Electric Lifting Rotary Evaporator allows repeatable recovery without drifting end-weight values between trials. Collected matter doesn’t leave smears or surface crusts. Transparent pathways make batch monitoring easy. Weight measurements stay within close range even after drying. Process values align between users. Bottlenecking during drainage is avoided altogether. It handles non-uniform academic samples without constant recalibration. This consistency makes it ideal for teaching labs where standardization across student outputs is essential.

  • Our Electric Lifting Rotary Evaporator handles oil-in-water dispersions or complex reagent groups without yield loss. Vapor escape is minimized by structural balance. Mixed solvents separate cleanly in a controlled motion. Heat transfer reaches entire contact zones evenly. No segment remains untouched during active trials. Collected outputs contain fewer impurities. It shortens the route to product purification in exploratory formulation labs. Chemical teams dealing with early-stage blends often rely on it before committing to pilot-scale trials.

  • Labtron’s Electric Lifting Rotary Evaporator uses thermal cutoffs and rotation interlocks to halt response during stress conditions. Heating elements reset only after hazard drops. Overflow sensors prevent over-collection within liquid compartments. Exhaust lines are angled to prevent fume reflux. Even under lab congestion, safety remains passive and uninterrupted. It’s preferred by facilities managing high-volume, continuous-hour research cycles. Prolonged unattended sessions are supported without compromise due to the fail-safe integrations.
