Electric Lifting Rotary Evaporator LERE-A22

Electric Lifting Rotary Evaporator LERE-A22

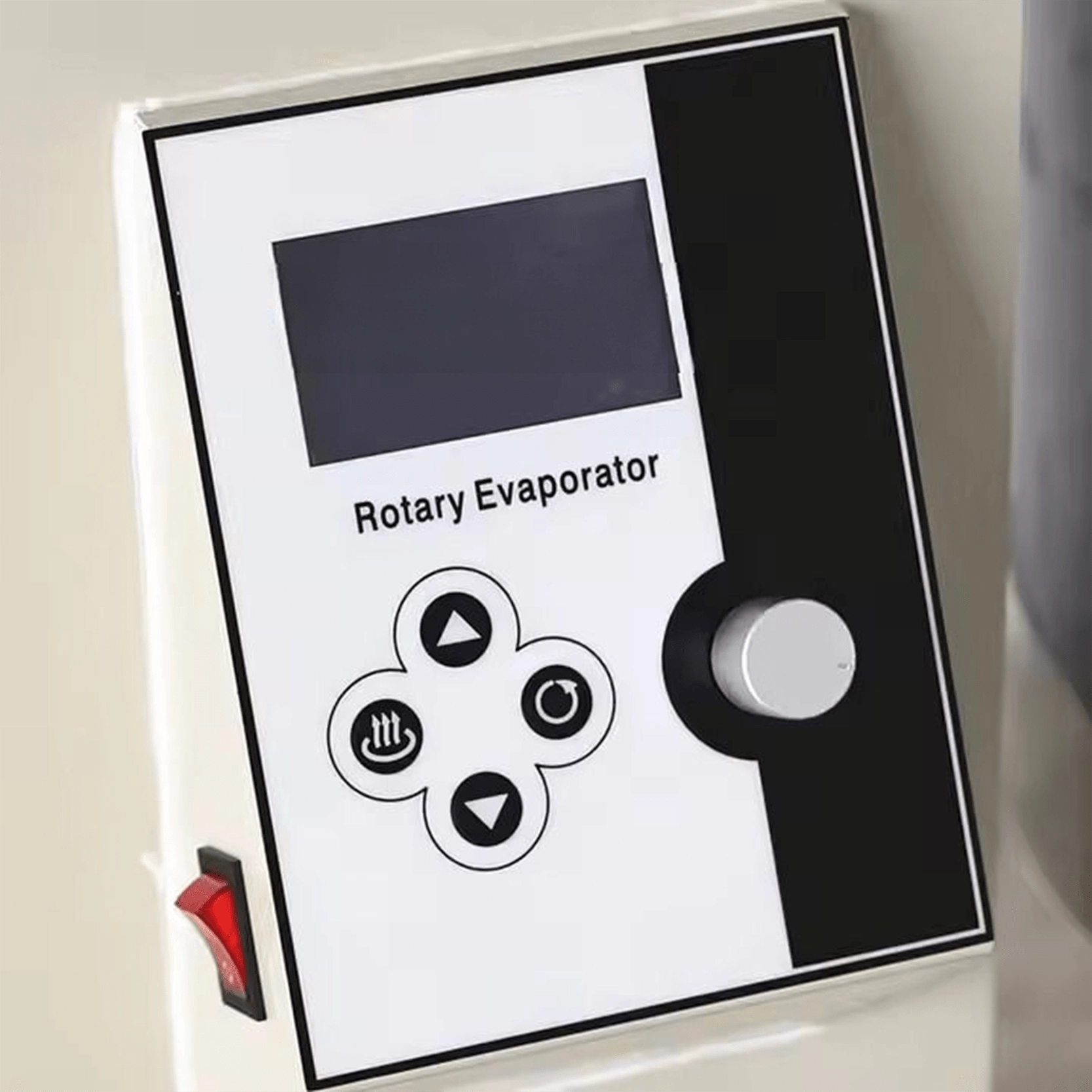

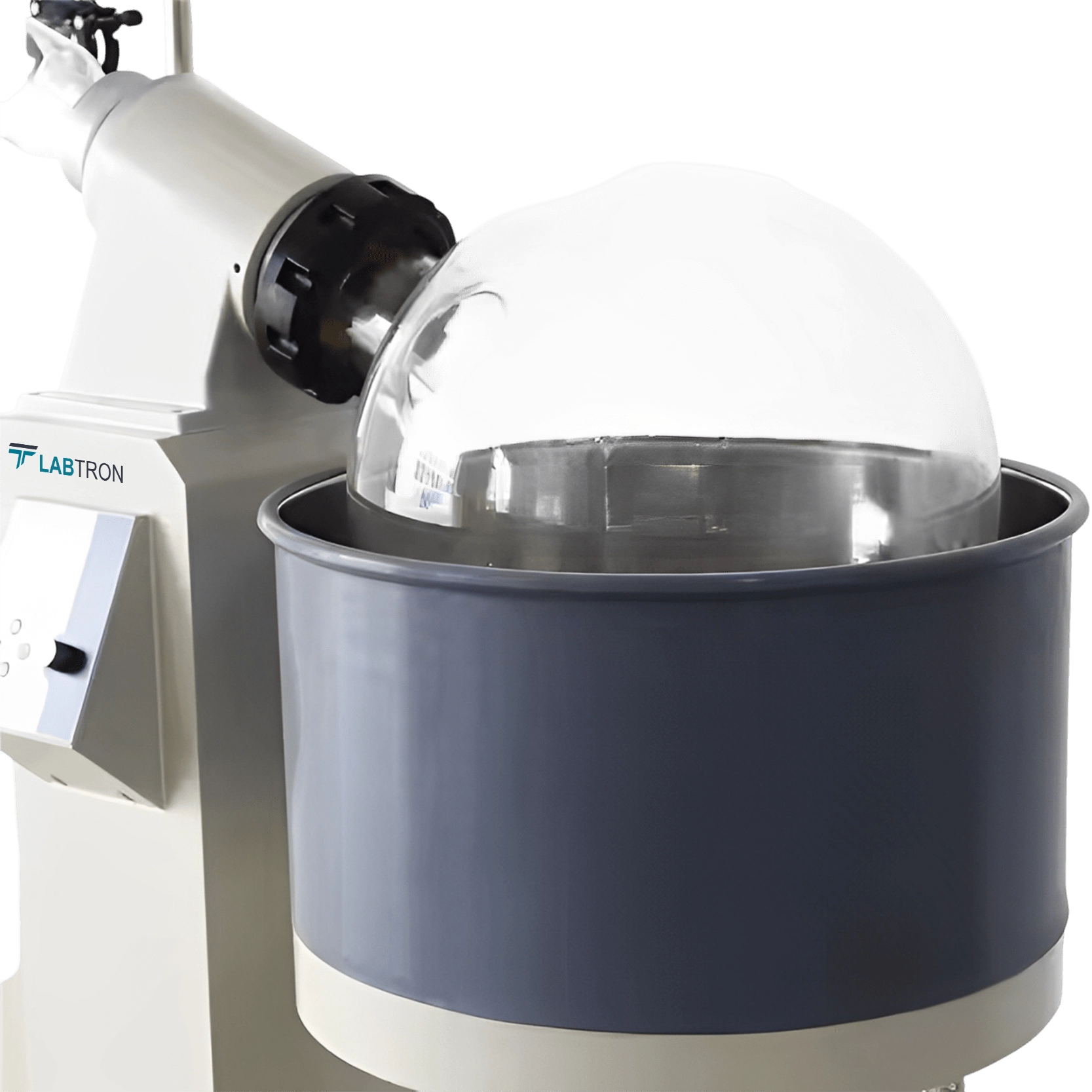

Electric Lifting Rotary Evaporator LERE-A22 with a 5 L evaporating flask is designed to ensure efficient solvent recovery and concentration in laboratories. It features an electric lift system with a vertical range for easy operation. The digital interface allows smooth control of rotation and heating functions. Our electric lifting rotary evaporator is ideal for chemical, and biopharmaceutical industries, as well as university research and chemical applications.

Electric Lifting Rotary Evaporator LERE-A22
Electric Lifting Rotary Evaporator LERE-A22
Electric Lifting Rotary Evaporator LERE-A22
Electric Lifting Rotary Evaporator LERE-A22
Request Quote
Evaporating Flask 5 L
Receiving Bottle 3 L (with discharge valve)
Rotation Speed 0 to 120 rpm
Lifting Distance 140 mm
Lifting Mode Electric
Lifting Motor Power 40 W
Condenser Vertical
Coil Configuration Main triple and auxiliary double coil
Temperature Range RT to 180°C
Temperature Control Accuracy +/- 1°C
Vacuum Degree 0.098 Mpa
Rotating Motor Power 60 W
Heating Power 2000 W
Bath Capacity 12 L
Power Consumption 2100 W
Power Supply 220 to 240 V/5O Hz
Dimensions (L×W×H) 980×480×1260 mm
Weight 52 kg
  • Easy-clean heating bath

  • Glove-friendly user controls

  • Quiet low-noise operation

  • Compact upright design profile

  • Wide top lid opening

Electric Lifting Rotary Evaporator LERE-A22 enables controlled concentration, drying, and solvent recovery of liquid samples. It is widely used across pharmaceutical labs, chemical facilities, and biotechnological research environments.

Accessory Quantity
Water chiller 1
vacuum pump





Models of Electric Lifting Rotary Evaporator

Labtron Electric Lifting Rotary Evaporator features a PTFE + fluoro rubber double seal to maintain high vacuum integrity. They include a main and auxiliary condenser with a triple-coil design for faster and more efficient condensation. Their vacuum switching valve supports continuous collection without disrupting the process. The system is equipped with over-temperature protection and an anti-dry function for added safety. Our Electric Lifting Rotary Evaporator supports solvent recovery, crystallization, and drying in biopharma, petrochemical, food, and research laboratories.

Electric Lifting Rotary Evaporator LERE-A14

Electric Lifting Rotary Evaporator LERE-A14

  • Evaporating Flask : 30 L
  • Receiving Bottle : 20 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A17

Electric Lifting Rotary Evaporator LERE-A17

  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A16

Electric Lifting Rotary Evaporator LERE-A16

  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A31
Electric Lifting Rotary Evaporator LERE-A31
  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L
  • Rotation Speed : 20 to 130 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A28
Electric Lifting Rotary Evaporator LERE-A28
  • Evaporating Flask : Up to 1000ml (compatible with 500 and 1000 ml)
  • Receiving Bottle : 1000 ml
  • Rotation Speed : 10 to 280 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A12

Electric Lifting Rotary Evaporator LERE-A12

  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A15

Electric Lifting Rotary Evaporator LERE-A15

  • Evaporating Flask : 30 L
  • Receiving Bottle : 20 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A19

Electric Lifting Rotary Evaporator LERE-A19

  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 190 mm
Electric Lifting Rotary Evaporator LERE-A22 FAQ's
  • Our Electric Lift Rotary Evaporator is ideal for large-scale labs because it handles higher volumes of samples efficiently. It comes with a spacious evaporating flask and receiving bottle, which ensures that more material can be processed at once. The adjustable electric lift system allows for effortless operation, and users can quickly modify the height depending on their workflow. Its vertical condenser maximises solvent recovery, ensuring that no valuable chemicals are lost during the process. This unit is designed to fit seamlessly into high-throughput lab settings. The versatility of the settings ensures that it can accommodate various applications, from solvent extraction to concentration. The compact design also allows it to be integrated into large setups without occupying excessive space.

  • The Electric Lift Rotary Evaporator is designed with precise controls that allow for careful manipulation of both speed and temperature. This capability ensures that samples are exposed to conditions that support their stability throughout the process. By adjusting the rotation speed and lift height, operators can tailor the system to specific needs, whether for gentle evaporation or more intensive solvent recovery. The integrated condenser ensures the recovered solvents remain pure for reuse. This flexibility allows the system to handle a range of materials with different boiling points and sensitivities. The easy-to-operate controls enhance overall workflow, enabling quick adjustments. Labtron’s system guarantees that sample integrity is maintained across multiple processes.

  • The Electric Lift Rotary Evaporator excels in distillation by maintaining steady temperature and rotation settings. Its vacuum-enhanced system lowers the boiling points of solvents, making it ideal for distillation at reduced temperatures. This process helps protect heat-sensitive materials from degradation during operation. The condenser is highly efficient in collecting evaporated substances, ensuring a clean distillation process. The system can handle a variety of chemicals, providing flexibility in distillation operations. Its reliable motor and controls further ensure consistency throughout the distillation process. Labtron’s evaporator is the preferred choice for labs that require precision in solvent separation and recovery.

  • Yes, the Electric Lift Rotary Evaporator is designed for easy cleaning and maintenance. The removable parts, such as the evaporating flask and receiving bottle, can be taken off and cleaned separately. This simplifies routine maintenance and ensures that no residue remains after each use. The corrosion-resistant materials used in the evaporator’s construction allow for hassle-free cleaning, even after prolonged exposure to solvents. The vertical condenser design minimizes residue build-up, which makes it easier to maintain. Regular cleaning helps maintain optimal performance and extends the lifespan of the unit. Labtron’s evaporator is engineered for durability, requiring minimal upkeep while delivering reliable results.

  • The Electric Lift Rotary Evaporator is highly adaptable to a variety of solvents due to its adjustable settings for both temperature and rotation speed. This makes it capable of working with solvents that have different boiling points and physical properties. The vacuum function ensures that volatile solvents evaporate at lower temperatures, which is essential for preventing decomposition. The condenser system efficiently recovers solvents, ensuring minimal loss during the evaporation process. Whether for basic solvent recovery or more complex chemical processing, the unit can be fine-tuned to match the requirements of different materials. Labtron’s evaporator handles a range of solvents safely, maintaining the integrity of both the chemicals and the environment. It is a reliable solution for labs working with various solvent types.

  • Our Electric Lift Rotary Evaporator is built with safety in mind, incorporating features that mitigate potential risks. The vacuum system ensures that volatile chemicals are safely contained during operation, preventing accidental exposure. The electric lifting system reduces the need for manual handling, lowering the risk of spills and accidents. Its sturdy construction and corrosion-resistant materials offer long-term durability in high-pressure environments. The unit’s temperature control helps prevent overheating, which could lead to hazardous situations. In addition, the easy-to-read display panel allows for quick assessment of operating parameters, ensuring operators can make adjustments as necessary. Labtron’s evaporator helps create a safer work environment by minimizing potential hazards.
