| Evaporating Flask | 100 L |
| Receiving Bottle | 50 L |
| Evaporating Flask Flange | Φ 610 ×180 mm |
| Receiving Bottle Flange | Φ 470×60 mm |
| Rotation Speed | 20 to 90 rpm |
| Lifting Distance | 0 to 180 mm |
| Lifting Mode | Electric |
| Main Condenser | Φ 230×800 mm |
| Auxiliary Condenser | Φ 230×620 mm |
| Feeding Valve | Φ 45 flange |
| Air Release Valve | Φ 45 flange ×2 |
| Discharge Valve Flange | Φ 45 Flange, PTFE |
| Temperature Range | RT to 180°C |
| Temperature Control Accuracy | +/- 1°C |
| Glass Temperature Range | -80°C to 250°C |
| Vacuum Degree | 0.098 Mpa |
| Heating Power | 15000 W |
| Heating Bath | 380V/50 Hz |
| Rotating Motor Power | 370 W |
| Bath Shell Size | 710×620×700 mm |
| Bottom Plate Size | 804 L×574 mm |
| Bath Size | Φ 700×400H mm |
| Bath Capacity | 154 L |
| Power Supply | 220 to 240V/5O Hz |
| Rotary Motor Packaging Dimension (L×W×H) | 1495×840×725 mm |
| Heating Bath Packing Dimension (L×W×H) | 780×850×910 |
| Dimension (L×W×H) | 1520×520×2470 mm |
| Weight | 191 kg |
Large-scale processing capability
Enhanced vacuum sealing
Heavy-duty construction materials
High-powered heating system
Dual air release valves

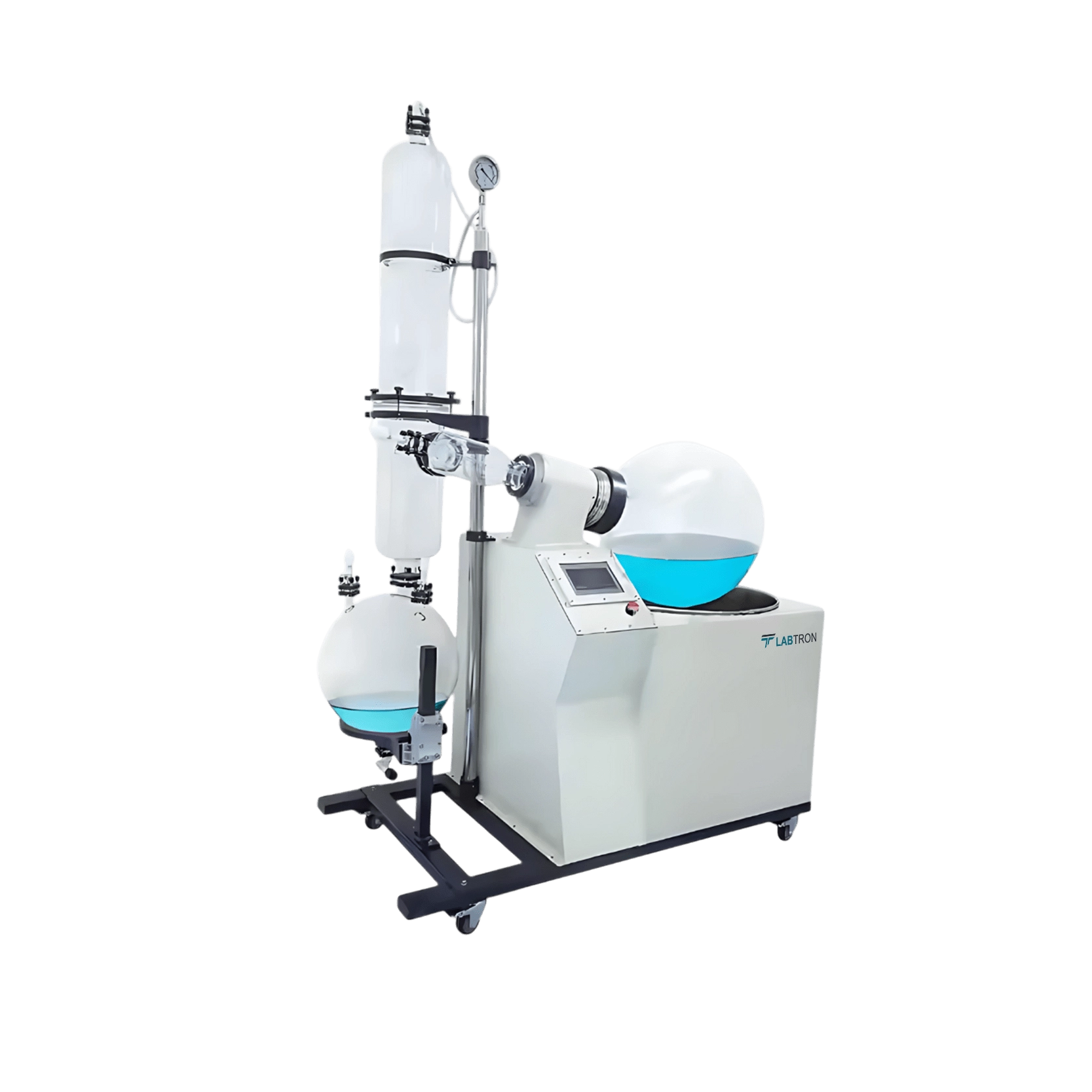

Electric Lifting Rotary Evaporator LERE-A27 excels in efficient solvent recovery and evaporation, specifically designed for large-scale laboratory processes. Its advanced capabilities make it an ideal choice for a wide range of applications, including chemical, pharmaceutical, and biotechnological industries.
Download catalog for
Electric Lifting Rotary Evaporator LERE-A27 Catalog
Available Range :
Electric Lifting Rotary Evaporator LERE-A10 : 10 L Electric Lifting Rotary Evaporator LERE-A26 : 100 L Electric Lifting Rotary Evaporator LERE-A12 : 20 L Electric Lifting Rotary Evaporator LERE-A14 : 30 L Electric Lifting Rotary Evaporator LERE-A35 : 3000ml Electric Lifting Rotary Evaporator LERE-A18 : 5 L Electric Lifting Rotary Evaporator LERE-A16 : 50 L Electric Lifting Rotary Evaporator LERE-A28 : Up to 1000ml (compatible with 500 and 1000 ml)Labtron Electric Lifting Rotary Evaporator features a PTFE + fluoro rubber double seal to maintain high vacuum integrity. They include a main and auxiliary condenser with a triple-coil design for faster and more efficient condensation. Their vacuum switching valve supports continuous collection without disrupting the process. The system is equipped with over-temperature protection and an anti-dry function for added safety. Our Electric Lifting Rotary Evaporator supports solvent recovery, crystallization, and drying in biopharma, petrochemical, food, and research laboratories.








Our Electric Lifting Rotary Evaporator supports large-volume processing while maintaining dependable cycle control throughout the day. Its compact layout helps reduce repositioning between back-to-back batches. The structure prevents unnecessary system pauses, allowing uninterrupted repetition. Users can maintain extended runs without experiencing process drift. The control interface is arranged for low-effort access during active sessions. This supports consistent use in time-bound settings. The Electric Lifting Rotary Evaporator becomes an asset in labs with continuous schedules and rotating staff.
Labtron Electric Lifting Rotary Evaporator improves laboratory workflow by offering smooth adjustments during step changes. Our design avoids mechanical lag between different sample heights or liquid loads. The visible system components reduce the need for trial-based handling. Heating remains balanced throughout extended usage, avoiding interruptions between processes. Routine settings can be recalled to support time-saving repeat tasks. The Electric Lifting Rotary Evaporator helps laboratories stay on track when working across multiple departments or teams. It simplifies coordination without introducing complexity.
The Electric Lifting Rotary Evaporator is highly adaptable to materials that are sensitive to irregular heat or shifting atmospheric exposure. Labtron designed the system to support both exploratory extractions and fine-tuned mixture recovery. Its build minimises environmental influence on delicate content. Glass contact points are structured to reduce stress under shifting compound behaviour. This is especially useful when testing rare blends or lab-synthesised fluids. The Electric Lifting Rotary Evaporator allows teams to explore a broader material range without modifying core components. It supports flexible experimentation without external add-ons.
Our Electric Lifting Rotary Evaporator fits well into long-term research infrastructure thanks to its low-wear design and adaptable use cases. Its system does not require repeated upgrades or replacements when the workflow expands. It allows multiple users to engage with shared tools without calibration loss. Physical parts withstand continuous cycles across different types of projects. Whether for new team members or shifting focus areas, it supports smooth integration. The Electric Lifting Rotary Evaporator remains dependable across research phases. Its utility remains intact through evolving project requirements.
The Electric Lifting Rotary Evaporator offers dependable support for early-stage scaling in pre-commercial facilities. Our setup allows trial runs without full system overhauls, ideal for stepwise progression. It accommodates formulation changes on demand, helping users test output under varied compound behaviour. Control flexibility ensures the conditions match pilot standards. This makes it valuable for transferring results from bench studies to scaled evaluation. The Electric Lifting Rotary Evaporator allows consistent trial replication without complexity. Teams can move forward with clarity during transition stages.
Labtron Electric Lifting Rotary Evaporator preserves sample integrity by reducing contact with exposed or non-collection areas. The vapour travel path is guided to avoid unintended condensation. Surfaces are treated to prevent sticking or flow interruptions. Our setup discourages liquid disturbance, which helps keep material characteristics consistent. The internal system promotes even transfer from one stage to the next. This results in minimal residue and balanced recovery across each run. The Electric Lifting Rotary Evaporator supports a clean process path for dependable output.
