Electric Lifting Rotary Evaporator LERE-A23

Electric Lifting Rotary Evaporator LERE-A23

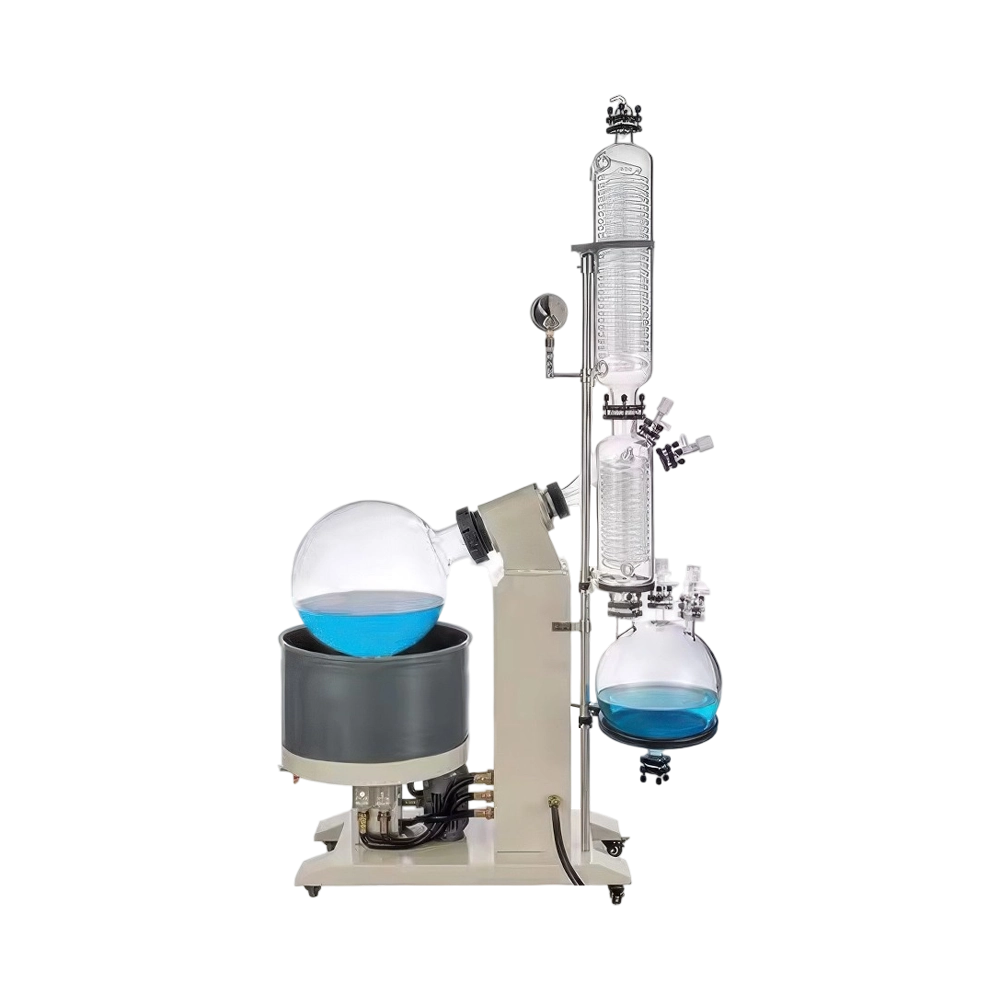

Electric Lifting Rotary Evaporator LERE-A23 is equipped with a 10 L evaporating flask for consistent, high-volume sample processing. It incorporates a high-efficiency condenser system for improved recovery performance. The system provides over-temperature protection with built-in safety functions. Our Electric Lifting Rotary Evaporator supports herbal extraction, food purification, pharmaceutical processing, and research in aerospace and petrochemicals.

Electric Lifting Rotary Evaporator LERE-A23
Electric Lifting Rotary Evaporator LERE-A23
Electric Lifting Rotary Evaporator LERE-A23
Electric Lifting Rotary Evaporator LERE-A23
Electric Lifting Rotary Evaporator LERE-A23
Electric Lifting Rotary Evaporator LERE-A23
Request Quote

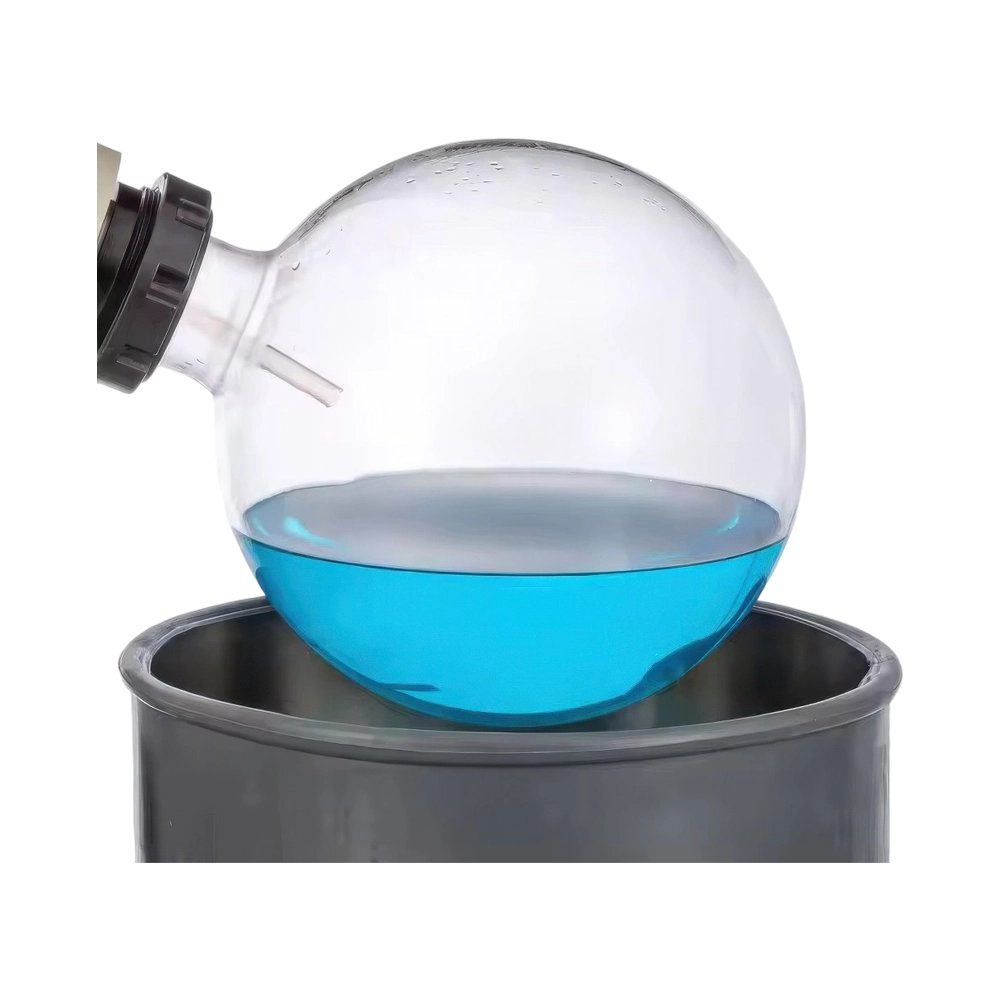

Evaporating Flask 10 L
Receiving Bottle 5 L (with discharge valve)
Rotation Speed 0 to 120 rpm
Lifting Distance 190 mm
Lifting Mode Electric
Lifting Motor Power 40 W
Condenser Vertical

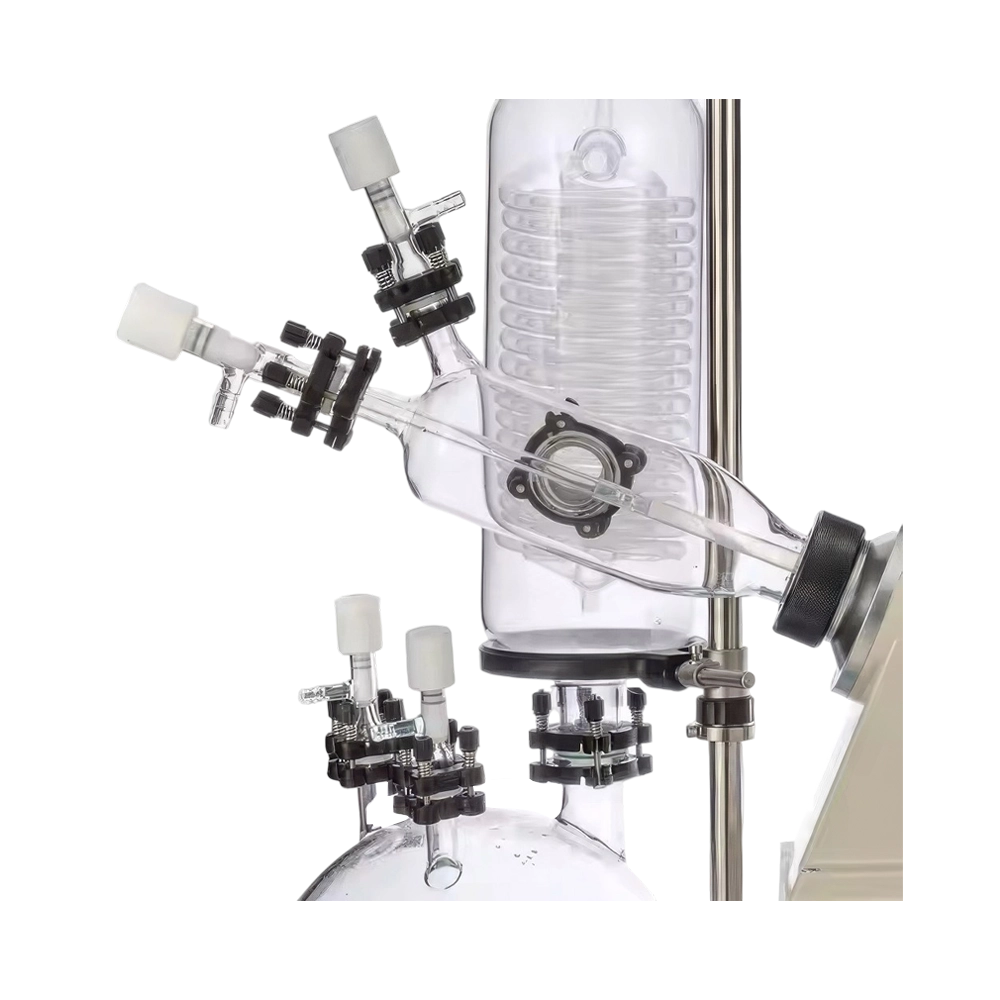

Coil Configuration Main triple and auxiliary double coil
Temperature Range RT to 180°C
Temperature Control Accuracy +/- 1°C
Vacuum Degree 0.098 Mpa
Rotating Motor Power 60 W
Heating Power 3000 W
Bath Capacity 21 L
Power Consumption 3180 W
Power Supply 220 to 240 V/5O Hz
Dimensions (L×W×H) 1130×470×1940 mm
Weight 70 kg
  • Anti-dry protection function

  • Triple-coil heat exchange system

  • Vacuum-seal continuous collection

  • Independent fuse protection circuit

  • Dual-speed safety lock mechanism

Electric Lifting Rotary Evaporator LERE-A23 efficiently handles solvent recovery and compound separation in laboratory settings. It is widely used in chemical, pharmaceutical, biotechnology, and food processing industries for research, extraction, and purification applications.



Models of Electric Lifting Rotary Evaporator

Labtron Electric Lifting Rotary Evaporator features a PTFE + fluoro rubber double seal to maintain high vacuum integrity. They include a main and auxiliary condenser with a triple-coil design for faster and more efficient condensation. Their vacuum switching valve supports continuous collection without disrupting the process. The system is equipped with over-temperature protection and an anti-dry function for added safety. Our Electric Lifting Rotary Evaporator supports solvent recovery, crystallization, and drying in biopharma, petrochemical, food, and research laboratories.

Electric Lifting Rotary Evaporator LERE-A12

Electric Lifting Rotary Evaporator LERE-A12

  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A17

Electric Lifting Rotary Evaporator LERE-A17

  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A30

Electric Lifting Rotary Evaporator LERE-A30

  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L
  • Rotation Speed : 20 to 130 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A20
Electric Lifting Rotary Evaporator LERE-A20
  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 150 mm
Electric Lifting Rotary Evaporator LERE-A26
Electric Lifting Rotary Evaporator LERE-A26
  • Evaporating Flask : 100 L
  • Receiving Bottle : 50 L
  • Evaporating Flask Flange : Φ 610 ×180 mm
  • Receiving Bottle Flange : Φ 470 × 60 mm
Electric Lifting Rotary Evaporator LERE-A11

Electric Lifting Rotary Evaporator LERE-A11

  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A28

Electric Lifting Rotary Evaporator LERE-A28

  • Evaporating Flask : Up to 1000ml (compatible with 500 and 1000 ml)
  • Receiving Bottle : 1000 ml
  • Rotation Speed : 10 to 280 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A24

Electric Lifting Rotary Evaporator LERE-A24

  • Evaporating Flask : 20 L
  • Receiving Bottle : 10 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 150 mm
Electric Lifting Rotary Evaporator LERE-A23 FAQ's
  • Labtron Electric Lift Rotary Evaporator is engineered for dependable operation over prolonged extraction periods. Its consistent rotational capability helps maintain even sample exposure throughout each stage. By delivering steady mechanical motion and uniform lift adjustments, the unit avoids downtime from overheating or mechanical stress. Users can keep it running across lengthy processes without loss of quality or performance. The reinforced lifting shaft ensures sustained handling of heavier samples without fluctuation. Its structural layout supports thermal balance during drawn-out procedures. This makes the system highly suitable for continuous or overnight use in production-oriented labs. It ensures uninterrupted solvent recovery for hours without compromising purity or yield. Built to support high-throughput research, it reduces process interruptions that could otherwise delay time-sensitive workflows.

  • The Electric Lift Rotary Evaporator is designed for fast installation and immediate use in dynamic lab settings. The configuration allows users to assemble and connect the system with minimal tools or training. Intuitive control dials and indicator displays reduce setup guesswork. Most components are labelled clearly to ensure proper alignment. The power-up procedure takes only a few steps before rotation and lift can be activated. With a structured interface, operators can begin trials or runs without external calibration. This simplifies early-stage tasks for first-time users or multi-user environments where time is limited. In teaching environments or urgent sample processing, the rapid start-up ensures no time is wasted on technical troubleshooting. It helps streamline initial experiments, particularly when working across multiple lab stations in quick succession.

  • The Electric Lift Rotary Evaporator suits compact laboratory benches with its upright, minimal-footprint design. It requires less lateral clearance compared to traditional evaporators, enabling better use of vertical space. The integration of condenser and motor elements into a unified column helps avoid clutter. Users can position adjacent devices without disruption, improving overall workflow. The control system remains accessible from the front, so operators don't need to reposition during adjustments. This makes it suitable for universities, mobile research units, and labs where real estate is a concern. Its layout allows efficiency without sacrificing essential features. When benchtop areas are shared among researchers, its narrow frame allows several units to function in parallel. This space-conscious format ensures performance is not compromised even in crowded environments.

  • Our Electric Lift Rotary Evaporator incorporates a sound-controlled drive system suitable for libraries, clinical spaces, or shared research facilities. The quiet motor reduces ambient disturbance during prolonged use. With no jarring vibrations or mechanical feedback, the unit preserves focus in noise-restricted environments. It allows communication between users without background interference. The rotation and lifting actions are smooth, so monitoring doesn't require elevated volume alerts. This feature benefits spaces where multiple teams work simultaneously. The system provides reliable performance without contributing to auditory fatigue. Extended operation won't contribute to background stress in precision-sensitive testing zones. This ensures both operator comfort and uninterrupted concentration during long analytical sessions.

  • The Electric Lift Rotary Evaporator supports repeated use across different material runs without requiring cooldown between cycles. Its thermal durability helps prevent material wear after consecutive batches. The consistent shaft lift maintains flask alignment regardless of weight differences between runs. With an efficient condenser system, users can collect outputs rapidly and reconfigure the setup for new tasks. This improves turnover and reduces prep time between operations. The frame resists thermal shock, so transitions from hot to ambient phases don’t affect structural integrity. That makes it ideal for research departments running high-throughput tests daily.Its robust internal components are designed for heavy-duty cycles, supporting accelerated experimentation without mechanical fatigue. Over the long term, this reduces replacement costs and extends equipment lifespan even in demanding workflows.

  • Our Electric Lift Rotary Evaporator is built to handle multiple-user workflows without compromising ease of use. With labelled markings and simple adjustment levers, technicians from different departments can operate it without needing full retraining. Its broad tolerance for varying solvent types suits mixed-application labs. The lift response is gentle enough for cautious users while still fast enough for experienced handlers. Power-saving features prevent overuse during idle phases. The maintenance schedule is straightforward, so shared responsibility doesn't create upkeep delays. This makes it a smart addition to centralised university or institutional facilities. Its universal interface bridges experience gaps between novice and seasoned users. The evaporator's adaptability ensures it supports interdisciplinary research without workflow disruption.
