Electric Lifting Rotary Evaporator LERE-A19

Electric Lifting Rotary Evaporator LERE-A19

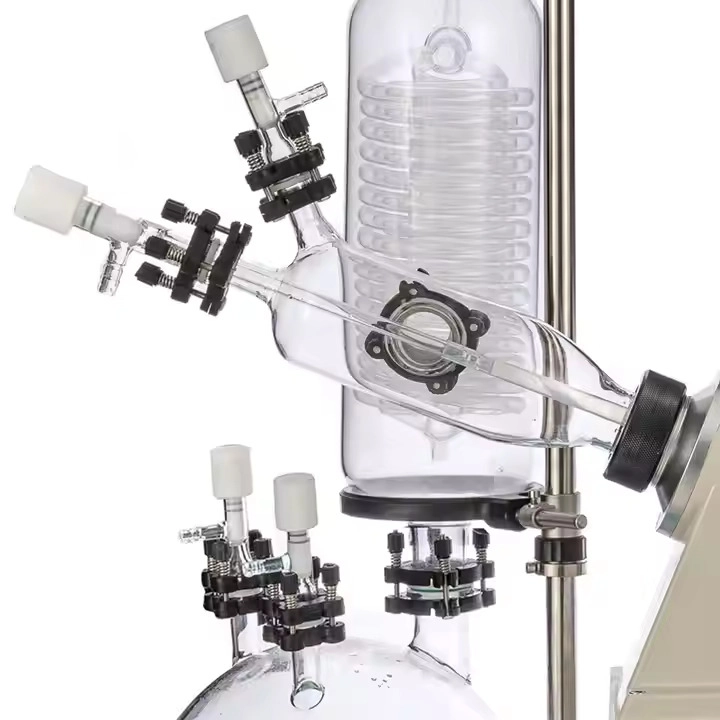

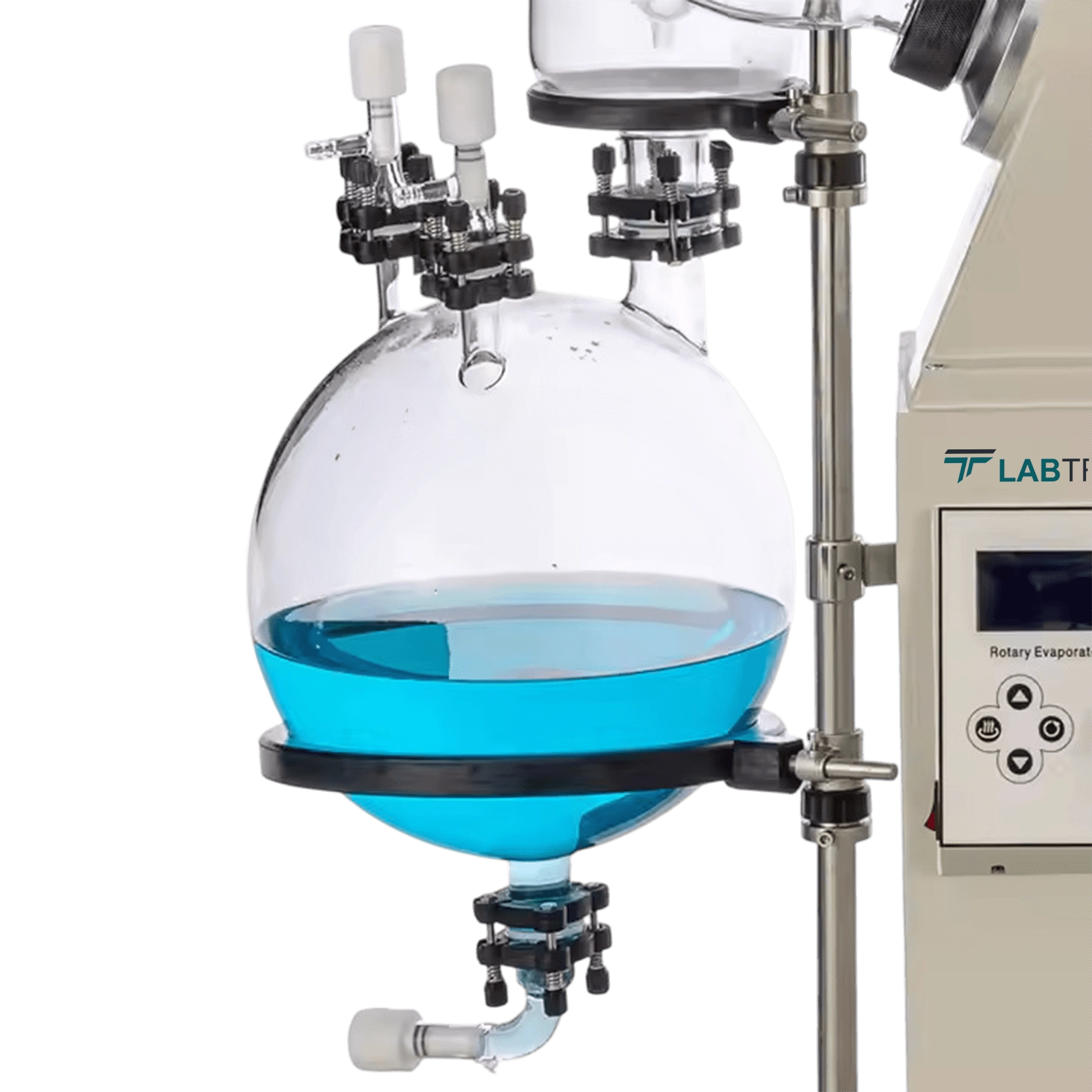

Electric Lifting Rotary Evaporator LERE-A19 is equipped with a 10 L evaporating flask, ideal for handling large sample volumes. The flexible condenser cooling design ensures accurate temperature management during evaporation. Its integrated electric lifting system provides effortless height adjustments, ensuring smooth operation. Our Electric Lifting Rotary Evaporator is suited for solvent recovery and concentration in chemical and academic labs.

Electric Lifting Rotary Evaporator LERE-A19
Electric Lifting Rotary Evaporator LERE-A19
Electric Lifting Rotary Evaporator LERE-A19
Electric Lifting Rotary Evaporator LERE-A19
Electric Lifting Rotary Evaporator LERE-A19
Electric Lifting Rotary Evaporator LERE-A19
Request Quote
Evaporating Flask 10 L
Receiving Bottle 5 L (with discharge valve)
Rotation Speed 0 to 120 rpm
Lifting Distance 190 mm
Lifting Mode Electric
Lifting Motor Power 40 W
Condenser Vertical
Coil Configuration Main triple and auxiliary double coil
Temperature Range RT to 180°C
Temperature Control Accuracy +/- 1°C
Vacuum Degree 0.098 Mpa
Rotating Motor Power 60 W
Heating Power 3000 W
Bath Capacity 21 L
Power Consumption 3100 W
Power Supply 220 to 240 V/5O Hz
Dimensions (L×W×H) 1130×470×1940 mm
Weight 64 kg
  • High-capacity heating bath

  • Continuous vacuum operation

  • Low noise operation

  • Integrated discharge valve design

  • Corrosion-resistant glassware

Electric Lifting Rotary Evaporator LERE-A19 is designed to provide efficient solvent removal and concentration under vacuum conditions. It is extensively applied for distillation, extraction, and purification processes, providing reliable solvent removal and concentration under vacuum conditions.



Models of Electric Lifting Rotary Evaporator

Labtron Electric Lifting Rotary Evaporator features a PTFE + fluoro rubber double seal to maintain high vacuum integrity. They include a main and auxiliary condenser with a triple-coil design for faster and more efficient condensation. Their vacuum switching valve supports continuous collection without disrupting the process. The system is equipped with over-temperature protection and an anti-dry function for added safety. Our Electric Lifting Rotary Evaporator supports solvent recovery, crystallization, and drying in biopharma, petrochemical, food, and research laboratories.

Electric Lifting Rotary Evaporator LERE-A34

Electric Lifting Rotary Evaporator LERE-A34

  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L
  • Rotation Speed : 20 to 110 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A30

Electric Lifting Rotary Evaporator LERE-A30

  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L
  • Rotation Speed : 20 to 130 rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A25

Electric Lifting Rotary Evaporator LERE-A25

  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 215 mm
Electric Lifting Rotary Evaporator LERE-A35
Electric Lifting Rotary Evaporator LERE-A35
  • Evaporating Flask : 3000ml
  • Receiving Bottle : 1000ml
  • Rotation Speed : 0 to 200rpm
  • Rotation Control : Electric
Electric Lifting Rotary Evaporator LERE-A22
Electric Lifting Rotary Evaporator LERE-A22
  • Evaporating Flask : 5 L
  • Receiving Bottle : 3 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 140 mm
Electric Lifting Rotary Evaporator LERE-A10

Electric Lifting Rotary Evaporator LERE-A10

  • Evaporating Flask : 10 L
  • Receiving Bottle : 5 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A16

Electric Lifting Rotary Evaporator LERE-A16

  • Evaporating Flask : 50 L
  • Receiving Bottle : 20 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 180 mm
Electric Lifting Rotary Evaporator LERE-A26

Electric Lifting Rotary Evaporator LERE-A26

  • Evaporating Flask : 100 L
  • Receiving Bottle : 50 L
  • Evaporating Flask Flange : Φ 610 ×180 mm
  • Receiving Bottle Flange : Φ 470 × 60 mm
Electric Lifting Rotary Evaporator LERE-A19 FAQ's
  • The Electric Lift Rotary Evaporator helps laboratories handle demanding workloads without delay by maintaining steady throughput across extended periods. Its built-in digital memory allows frequent users to recall prior settings quickly, which reduces the time needed for recalibration. Teams can shift between samples with minimal interruption due to the evaporator's swift setup and responsive controls. The device’s structure also permits fast draining and reloading of liquids without disassembling key parts. Because it remains operational with little downtime, multiple users can run sessions back-to-back. This consistency is useful during critical hours where lab schedules are tight. The Electric Lift Rotary Evaporator is therefore ideal for institutions balancing speed and reliability.

  • The Electric Lift Rotary Evaporator streamlines sample transitions by providing a highly accessible interface that simplifies routine handling. Its adjustable glassware mounts and quick-lock mechanisms allow users to load and unload samples without tools or complicated steps. Unlike traditional systems, there’s no need to pause operations for glass alignment or height adjustments. This promotes uninterrupted transitions between test runs or batch operations. The surface coating helps resist residue buildup, ensuring smooth container removal. Through faster preparation and less cleaning, the Electric Lift Rotary Evaporator helps laboratories minimise wasted time. Its influence on workflow becomes evident during high-frequency lab schedules.

  • Our Electric Lift Rotary Evaporator is designed to meet the demands of processes involving delicate materials that require stable conditions. It features a carefully insulated bath housing that retains warmth while shielding contents from external air currents. The uniform rotation ensures gentle processing, helping to preserve compounds that degrade under fluctuating heat. Real-time feedback alerts users to any deviation from set levels, promoting steady results. The Electric Lift Rotary Evaporator provides consistent sample care, particularly in pharmaceutical and botanical labs. Due to its thermal reliability, it performs well in procedures needing a narrow margin for variation. This focus makes it ideal for delicate work requiring extra thermal attention.

  • The Electric Lift Rotary Evaporator occupies minimal workspace without compromising performance, making it ideal for compact research stations. Its upright configuration and cable-routing design eliminate clutter while preserving easy access to all main controls. Integrated holders and a vertically mounted bath reduce spillage risks in tight surroundings. The overall build allows the unit to sit flush against walls or inside benchtop enclosures. Without extra attachments protruding, the equipment accommodates limited lab setups effectively. Even in small teams, the layout makes shared operations more manageable. The Electric Lift Rotary Evaporator is thus highly regarded for space-saving performance in research-intensive sites.

  • Energy usage is a growing concern in many labs, and the Electric Lift Rotary Evaporator helps minimize overhead through targeted design improvements. Its heating module responds dynamically to load conditions, reducing power draw during standby moments or lighter tasks. The motor operates with controlled consumption by adjusting torque to match rotation needs. An integrated auto-sleep function pauses energy use between cycles without user input. This thoughtful design approach lessens environmental impact while keeping costs predictable. Insulation layers retain heat efficiently, further lowering demand on the system. Overall, the Electric Lift Rotary Evaporator supports labs with sustainability goals in mind.

  • The Electric Lift Rotary Evaporator is ideal for shared educational labs thanks to its robust yet intuitive construction. It includes clearly marked controls and onboard indicators that guide new users through each operational step. The protective casing guards against common mishandling scenarios, making it well-suited for teaching environments. Users can track performance via digital feedback without navigating complex menus. Faculty and lab technicians appreciate the low-maintenance design that limits downtime. Its durability ensures it stands up to daily use from rotating student groups. The Electric Lift Rotary Evaporator supports training without constant supervision.
