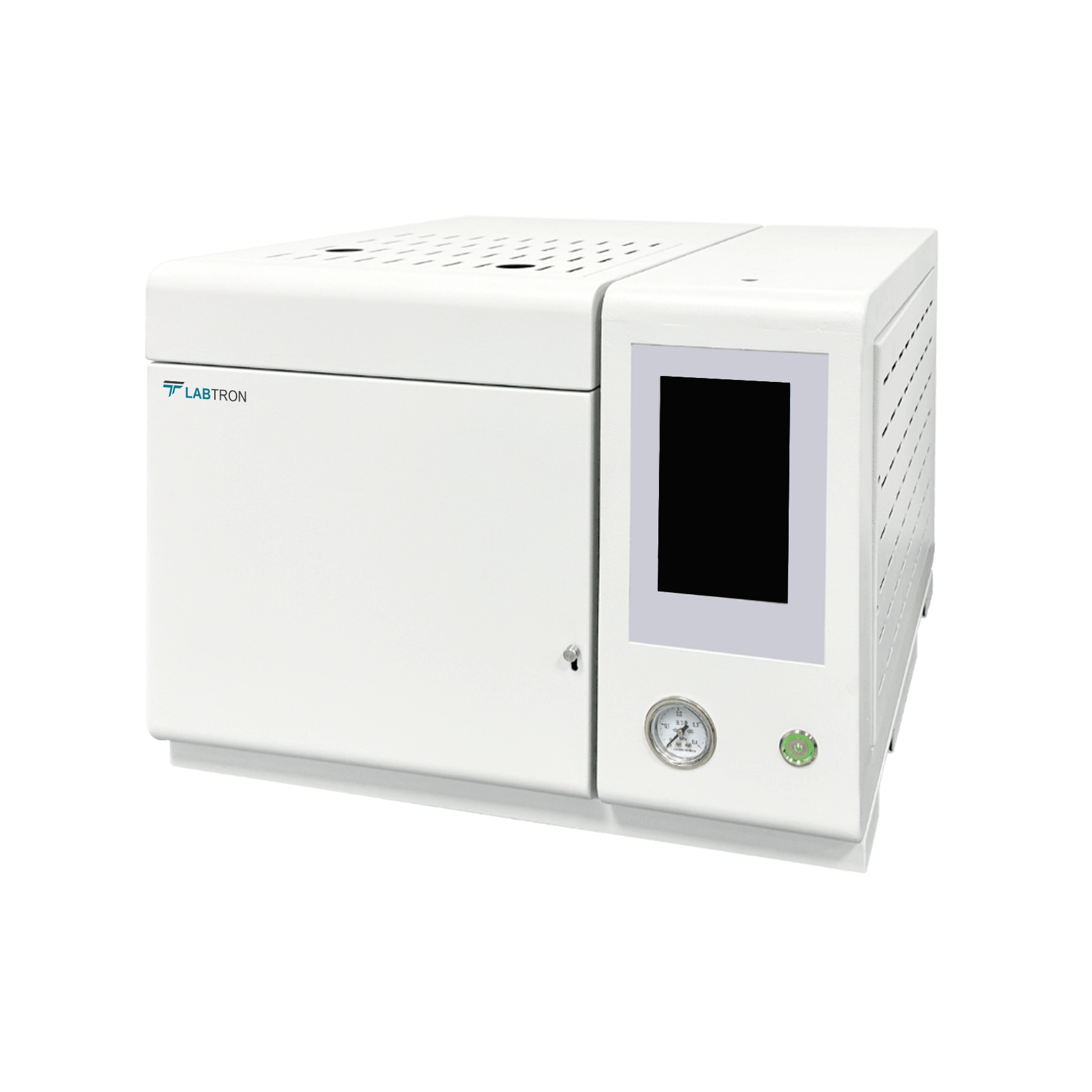

Gas Chromatography LGC-C10

Name: Gas Chromatography LGC-C10
Brand: Labtron
SKU: LGC-C10
Rating: 4.9 (740 reviews)

Gas Chromatography LGC-C10 operates reliably between room temperature +15 °C and 399 °C. Microprocessor-based control circuit with large memory ensures reliable and secure data storage. Automated gas extraction and injection reduce manual handling, ensuring consistent analytical performance. Efficiently separates dissolved gases from transformer oil samples using vacuum or headspace techniques. Ideal for fault diagnosis in power transformers, insulation quality monitoring and quality assurance of transformers and oils.

Request Quote

Column chamber temperature range	Room temperature +15°C to 399°C
Conversion furnace temperature range	Room temperature +30°C to 399°C
Thermal conductivity detector temperature range	Room temperature +30°C to 399°C
Thermal conductivity noise	Less than or equal to 0.05mv
Thermal conductivity drift	Less than or equal to 0.15mv/30min
Hydrogen flame detector temperature range	Room temperature +30°C to 399°C
Hydrogen flame detector noise	Less than or equal to 0.05mv
Hydrogen flame detector drift	Less than or equal to 0.15mv/30min
Minimum detectable concentration of hydrocarbon	Less than or equal to 5μl/L
Temperature control precision	±0.1°C
Machine start-up time	Less than 3 hours
Program heating rate	0.1ºC to 40ºC
Constant temperature holding time of each stage	0.1 to 9999.9min
Power consumption	2kW
Power supply	AC 220V±10% 50HZ
Column temperature box volume	260mm × 260mm × 248mm
External dimension	660mm × 460mm × 465mm
Packaging dimension	700mm × 500mm × 500mm
Net Wight	55 kg
Gross weight	58kg

Multi-Gas Detection Capability
Flame Ionization Detectors
Rapid Analysis Time
High-Precision Thermal Conductivity
Temperature-Stable Chromatography Oven

Our Gas Chromatography LGC-C10 functions as a transformer oil dissolved gas chromatograph for fault diagnosis in power transformers, insulation quality monitoring, life assessment of transformer assets and quality assurance of transformers and oils.
