Dual Disc Grinding and Polishing Machine LGPM-C11

Name: Dual Disc Grinding and Polishing Machine LGPM-C11
Brand: Labtron
SKU: LGPM-C11
Rating: 4.9 (641 reviews)

Dual Disc Grinding and Polishing Machine LGPM-C11 has a 254 mm disc diameter for efficient grinding and polishing. It is equipped with dual motor control, allowing independent adjustment of the left and right discs for precise operation. It includes 12 material sampling processes for steel and iron, with up to 10 steps per material. Weighing 38 kg, the machine ensures efficient and consistent grinding and polishing. Ideal for metallographic sample preparation and surface finishing in laboratory and industrial environments.

Request Quote

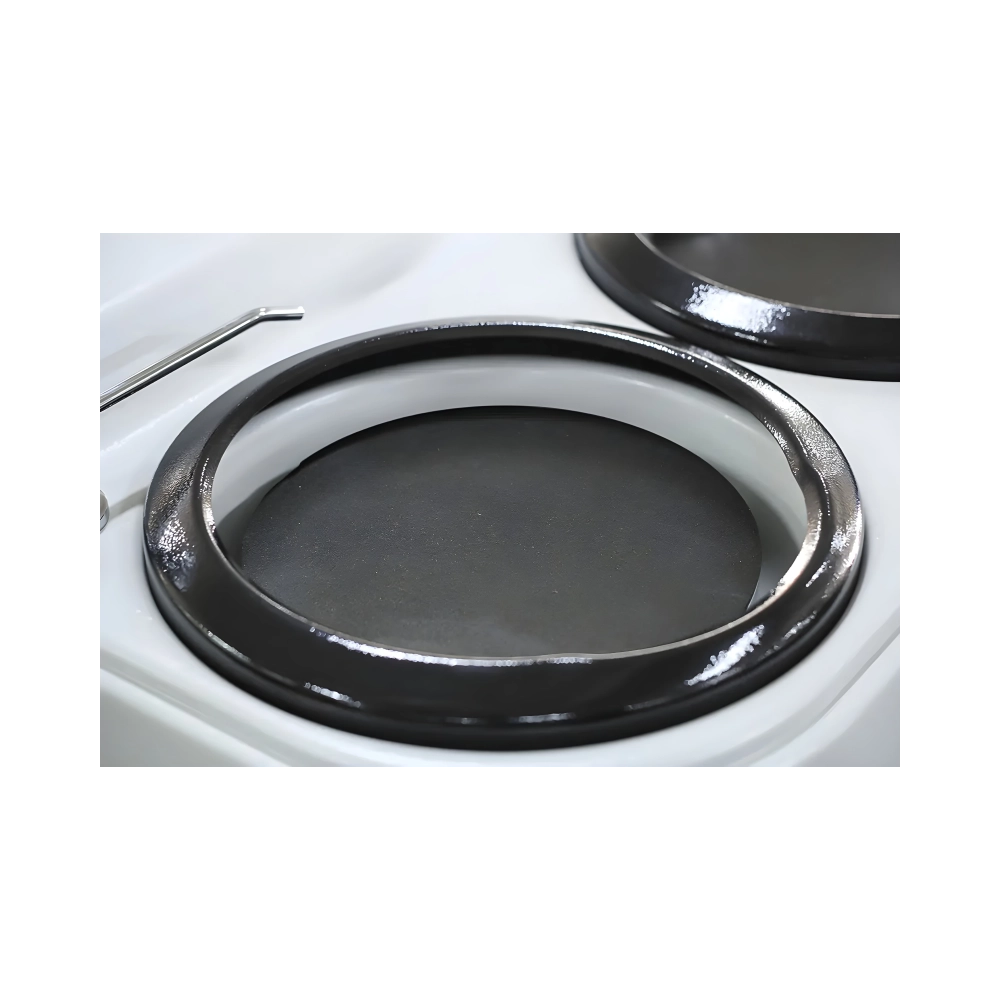

Disc Diameter	254 mm (Optional 200 mm, 230 mm, 300 mm)
Number of Grinding Discs	2
Speed Range	5 to 1500 rpm
Four Speed Manual	V1=200 rpm, V2=400 rpm, V3=600 rpm, V4=800 rpm
Operation Mode	Dual motor
Sample Processing Capability	64 processes
Power Supply	AC 220V
Dimension (L × W × H)	760 × 730 × 360 mm
Weight	38 kg
Packaging Dimension	820 × 800 × 520 mm
Gross Weight	87 Kg

Compact and durable design
PLC control for easy parameter saving
Intuitive touch screen interface
8 customizable automatic modes
User-defined parameters for each mode

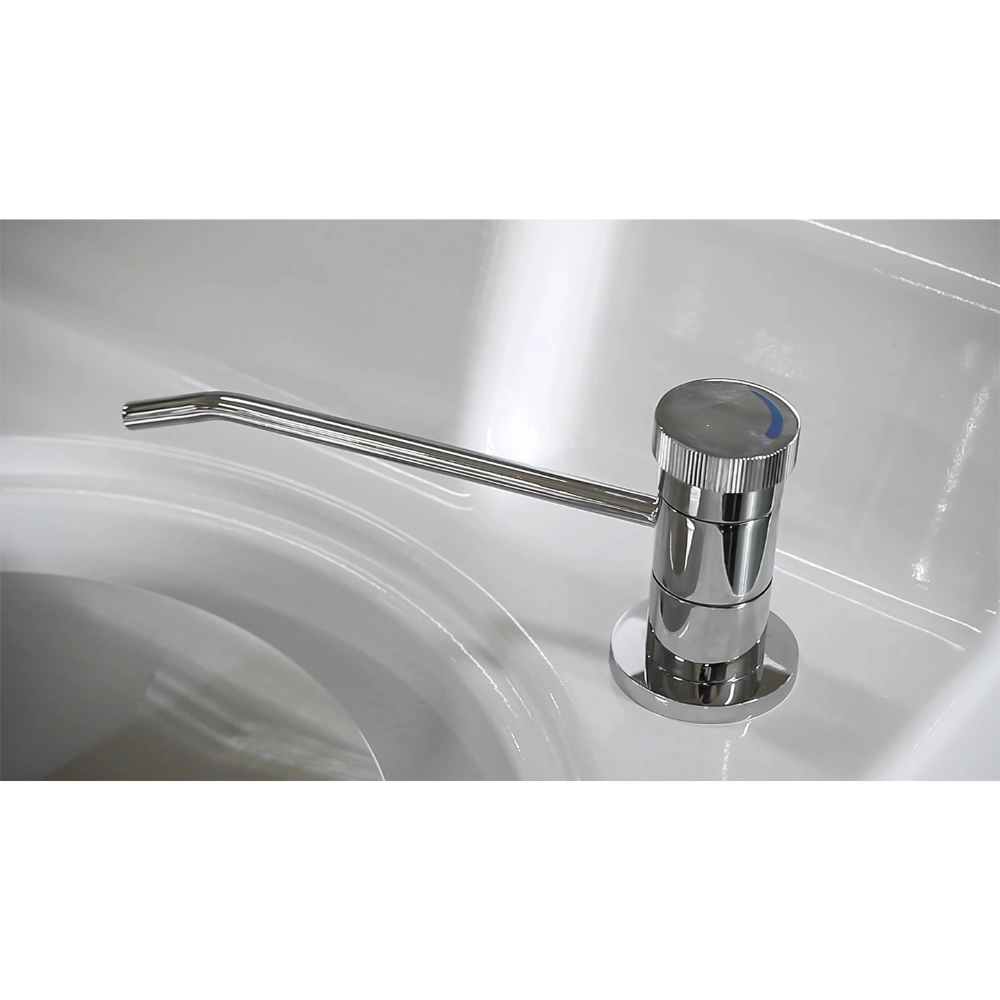

Adjustable water drop position

Our Dual Disc Grinding and Polishing Machine LGPM-C11 is ideal for material preparation in metallurgical and material analysis labs, offering efficiency and precision for various materials.

Download catalog for
Dual Disc Grinding and Polishing Machine LGPM-C11 Catalog

Available Range :

Grinding and Polishing Machine LGPM-A10 : 203 mm /254 mm Dual Disc Grinding and Polishing Machine LGPM-C10 : 230 mm (Optional 203 mm) Dual Disc Grinding and Polishing Machine LGPM-C11 : 254 mm (Optional 200 mm, 230 mm, 300 mm) Grinding and Polishing Machine LGPM-A11 : φ230mm (standard), φ200mm (optional) Dual Disc Grinding and Polishing Machine LGPM-C12 : Φ254 mm (optional: Φ200, Φ230, Φ300)

Dual Disc Grinding and Polishing Machine LGPM-C11 | Number of Grinding Discs 2 | Speed Range 5 to 1500 rpm

Dual Disc Grinding and Polishing Machine LGPM-C11 | Compact and durable design | PLC control for easy parameter saving

Models of Grinding and Polishing Machine

Labtron Grinding and Polishing Machine offers modes for both grinding and polishing, with options for coarse and fine abrasives. They feature variable speed settings to adjust the rotation of the abrasive wheels. Their advanced control systems ensure precise operation, supported by digital displays and sensors for accuracy. A servo motor maintains high torque at all speeds for consistent performance of our grinding and polishing machine.
